** SOLD **

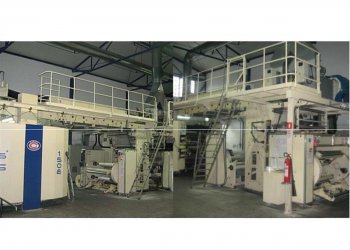

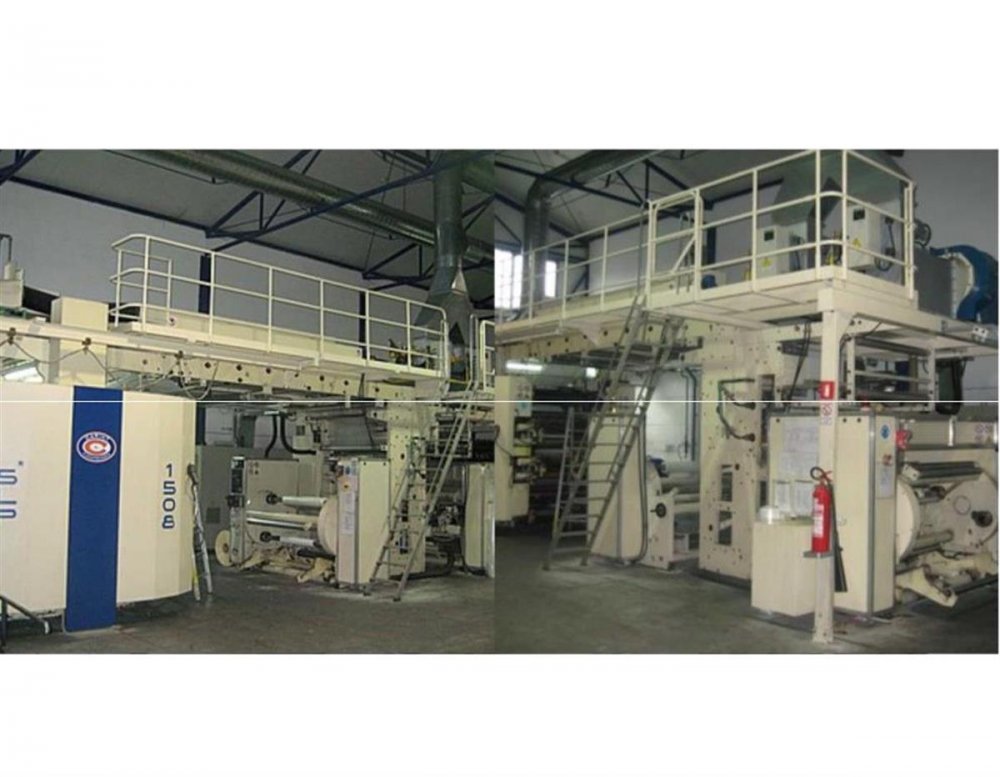

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL850
- Manufacturer
- CARINT
- Modello
- SPL 1508 mod 120 s/n 824
- Year
- 2006
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- No
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1250
- Print width (mm)
- 1200
- Min print repeat (mm)
- 360
- Max print repeat (mm)
- 685
- Unwinder type
- Automatic turret
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Semi-automatic turret
- Max reel diameter rewinder (mm)
- 800
- Drying
- Gas 2 packages.
- Videocamera
- BST PROSCAN.
- Web guides
- Edge guide before/after printing FIFE
- Inking system
- solvent based
- Anilox
- 20 pcs as follows : steel print width: 1200 mm liniature volumebrand in grams 80/16 16 apex 80/16 16 simec 80/16 16 apex 100/16 16 simec 100/16 16 apex 120/12 12 simec 120/11 11 apex 140/12 12 apex 140/11 11 apex 140/10 10 apex 280/8 8 simec 280/8 8 apex 280/6 6 apex 260/4,2 4,2 apex 260/5 5 apex 260/5 5 apex 260/5 5 apex 300/4 4 apex 300/5 5 apex , 320/5 5 apex
- Print cylinders
- 176pcs
- Note
- Solvent based inks Printing speed up to 300m/min
| Machine Code | FL850 |
| Manufacturer | CARINT |
| Modello | SPL 1508 mod 120 s/n 824 |
| Year | 2006 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | No |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1250 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 360 |
| Max print repeat (mm) | 685 |
| Unwinder type | Automatic turret |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Semi-automatic turret |
| Max reel diameter rewinder (mm) | 800 |
| Drying | Gas 2 packages. |
| Videocamera | BST PROSCAN. |
| Web guides | Edge guide before/after printing FIFE |
| Inking system | solvent based |
| Anilox | 20 pcs as follows : steel print width: 1200 mm liniature volumebrand in grams 80/16 16 apex 80/16 16 simec 80/16 16 apex 100/16 16 simec 100/16 16 apex 120/12 12 simec 120/11 11 apex 140/12 12 apex 140/11 11 apex 140/10 10 apex 280/8 8 simec 280/8 8 apex 280/6 6 apex 260/4,2 4,2 apex 260/5 5 apex 260/5 5 apex 260/5 5 apex 300/4 4 apex 300/5 5 apex , 320/5 5 apex |
| Print cylinders | 176pcs |
| Note | Solvent based inks Printing speed up to 300m/min |
