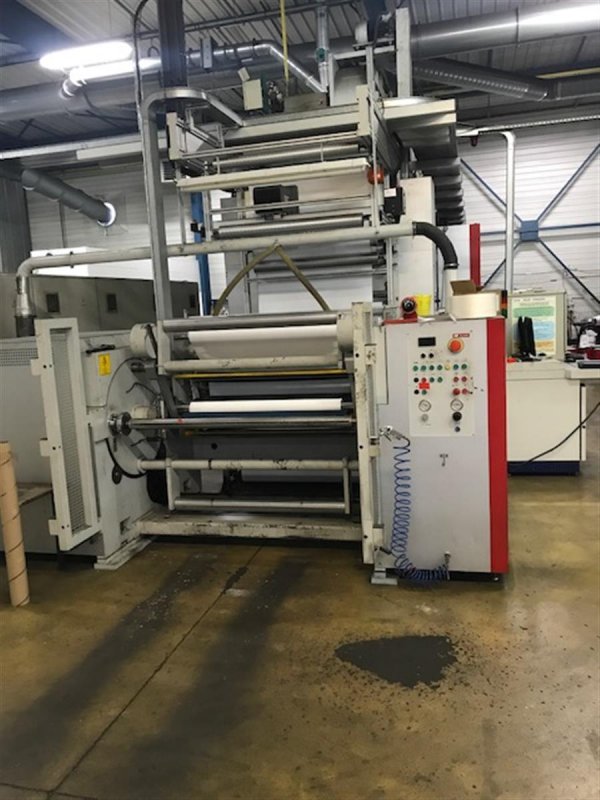

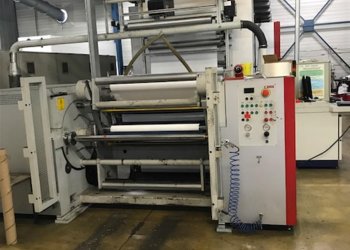

COMEXI FJ 2108 flexo printing machine 8 colors

** SOLD **

Flexo CI presses use a central drum which is common to all colours as counter impression roll.

Ask more informations
about a similar one
Machine Code
FL834
Manufacturer
COMEXI
Model
FJ 2108
Year
2004
Number of colors
8
Print possibilityes
8+0
Gearless
No
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1270
Print width (mm)
1220
Min print repeat (mm)
350
Max print repeat (mm)
850
Unwinder type
Turret semi automatic marriage roll
Max reel diameter unwinder (mm)
800
Rewinder type
Turret automatic flying splice
Max reel diameter rewinder (mm)
800
Drying
Gas, between colors and drying tunnel
Videocamera
AVT 2009 - camera with dual screens
Web guides
BST type OPG before printing and rewinding
Vyscosity control
LR products 2004
Inking system
8 pneumatic reversible ink pumps
Print Sleeves
yes
Additional information
Speed 300m/min subject to web, materials, printing, inks Electricity 3 x 400 V, 50 Hz Products to be printed Films LDPE 25-150 my, PP, OPP 12-30 my Unwind Turret, marriage roll, dancing roller, tension control, pneumatic shaft 3”and 6” Rewind Turret non-stop, pneumatic shaft 3” Printing unit 8 colours, slow rotation with electrical motors, chamber doctor blades, through off system, meshing system Longitudinal register /side register : Motorized Drive system Bull gear, gear-pitch 5 mm
Machine Code FL834
Manufacturer COMEXI
Model FJ 2108
Year 2004
Number of colors 8
Print possibilityes 8+0
Gearless No
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1270
Print width (mm) 1220
Min print repeat (mm) 350
Max print repeat (mm) 850
Unwinder type Turret semi automatic marriage roll
Max reel diameter unwinder (mm) 800
Rewinder type Turret automatic flying splice
Max reel diameter rewinder (mm) 800
Drying Gas, between colors and drying tunnel
Videocamera AVT 2009 - camera with dual screens
Web guides BST type OPG before printing and rewinding
Vyscosity control LR products 2004
Inking system 8 pneumatic reversible ink pumps
Print Sleeves yes
Additional information Speed 300m/min subject to web, materials, printing, inks Electricity 3 x 400 V, 50 Hz Products to be printed Films LDPE 25-150 my, PP, OPP 12-30 my Unwind Turret, marriage roll, dancing roller, tension control, pneumatic shaft 3”and 6” Rewind Turret non-stop, pneumatic shaft 3” Printing unit 8 colours, slow rotation with electrical motors, chamber doctor blades, through off system, meshing system Longitudinal register /side register : Motorized Drive system Bull gear, gear-pitch 5 mm
