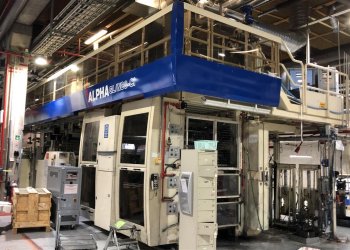

SCHIAVI ALPHA flexo press 8 colors

** SOLD **

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Ask more informations
about a similar one
Machine Code
FL921
Manufacturer
SCHIAVI
Model
ALPHA
Year
2001
Number of colors
8
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1250
Print width (mm)
1200
Min print repeat (mm)
325
Max print repeat (mm)
650
Unwinder type
TURRET
Max reel diameter unwinder (mm)
1000
Rewinder type
TURRET
Max reel diameter rewinder (mm)
1000
Drying
2 zones, 4 fans and 2 thermal oil heat exchangers. 1 zone inter colors 8.500m3/h, second zone is drying tunnel 10.300 m3/h: 2 x 18 nozels, tot 4,5 m length, Infrared lamps
Videocamera
BST
Corona treatment
yes
Web guides
2 in and out
Vyscosity control
New celio
Inking system
Closed chamber doctor blades
Print Sleeves
approx 310 sleeves + approx 24 bridge sleeves/adapters
Additional information
CI drum diam 1800mm Hastelly surface Materials: Film from 10 my, Alu foil from 7 my, paper and laminates up to 120 gsm Plate thickness 1,14mm + 0,55mm Thermo regulation for CI drum LEL contol system Zellweger speed 350 m/min
Machine Code FL921
Manufacturer SCHIAVI
Model ALPHA
Year 2001
Number of colors 8
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1250
Print width (mm) 1200
Min print repeat (mm) 325
Max print repeat (mm) 650
Unwinder type TURRET
Max reel diameter unwinder (mm) 1000
Rewinder type TURRET
Max reel diameter rewinder (mm) 1000
Drying 2 zones, 4 fans and 2 thermal oil heat exchangers. 1 zone inter colors 8.500m3/h, second zone is drying tunnel 10.300 m3/h: 2 x 18 nozels, tot 4,5 m length, Infrared lamps
Videocamera BST
Corona treatment yes
Web guides 2 in and out
Vyscosity control New celio
Inking system Closed chamber doctor blades
Print Sleeves approx 310 sleeves + approx 24 bridge sleeves/adapters
Additional information CI drum diam 1800mm Hastelly surface Materials: Film from 10 my, Alu foil from 7 my, paper and laminates up to 120 gsm Plate thickness 1,14mm + 0,55mm Thermo regulation for CI drum LEL contol system Zellweger speed 350 m/min
