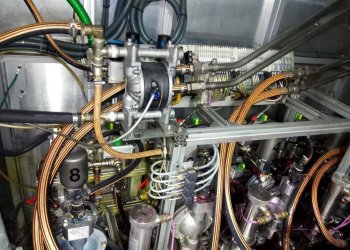

COMEXI FW1508 flexo press 8 colors

Flexo CI presses use a central drum which is common to all colours as counter impression roll.

Machine Code FL903
Manufacturer COMEXI
Model FW1508
Year 2010
Number of colors 8
Print possibilities 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1320
Print width (mm) 1270
Min print repeat (mm) 380
Max print repeat (mm) 800
Unwinder type Turret Automatic non stop with Electric Roll lifting device
Max reel diameter unwinder (mm) 1000
Rewinder type Turret Automatic non stop with Electric Roll lifting device
Max reel diameter rewinder (mm) 1000
Drying 2 zones , final drying tunnel 4,5 mt length with 14 blowing air slots, 2 electric heaters ech one power 126 kW. LEL controls
Videocamera AVT Print Vision Jupiter Dual mode
Corona treatment Yes AFS
Web guides Yes in and out BST type OPG
Washing system Yes automatic
Inking system Closed chamber doctor blades with magnetic blade locking
Anilox Carbon fiber anilox mandrels - 10 ceramic anilox sleeves ; 2 x340 l/cm, 2 x 320 l/cm , 2 x 140 l/cm , 1x 160 l/cm, 1x 120 l/cm
Print Sleeves 64 sleeve s and 1 set of carbon fiber carriers ; repeat 7 x380mm, 8x 400mm , 8x 420 mm, 8x 480mm, 8x 520 mm, 8x 600mm , 8x 620 mm, 8x 680mm,
Additional information Hastalloy plasma coated drum Gearless direct drive system Automatic print final setting PRESCO ACONPRO Uninterrupted power supply unit ( UPS ) Temperature control unit complete with One water chiller of 18.500 frig/h. (21 KW) capacity. Capacity suitable for chill rollers, as well as for the CI drum temperature stabiliser.
