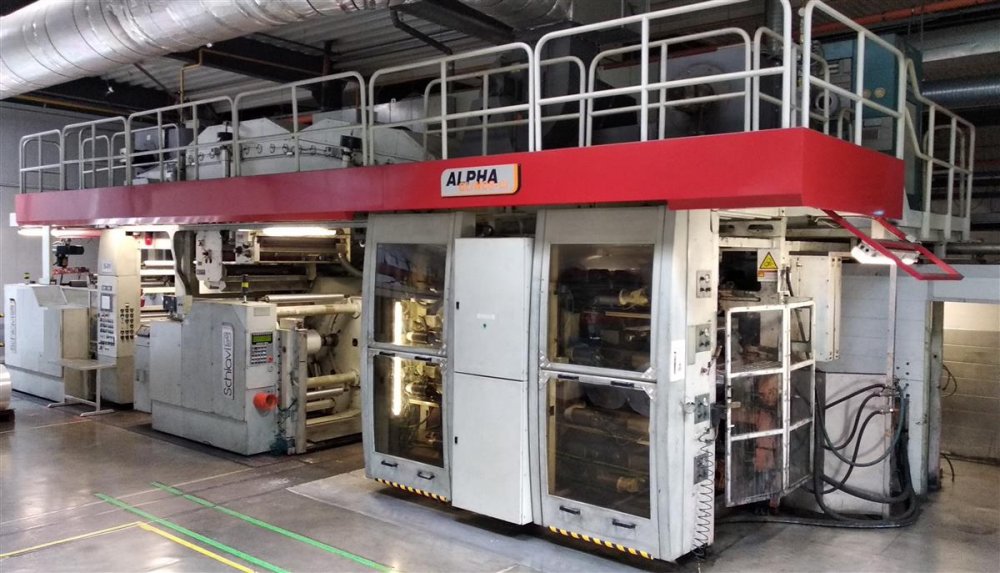

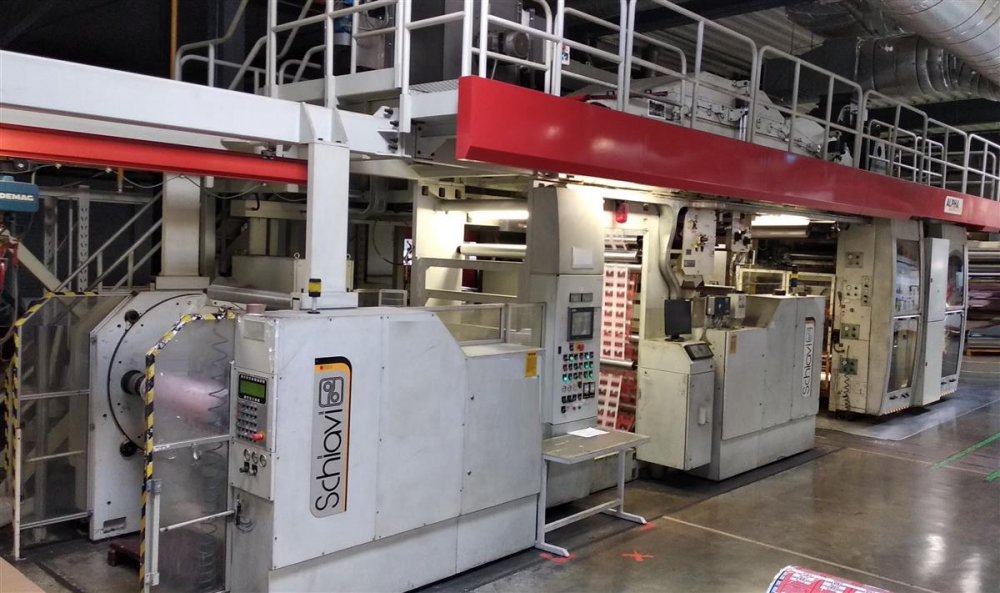

SCHIAVI BOBST ALPHA flexo press 8 colors

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
Machine Code
FL902
Manufacturer
SCHIAVI BOBST
Model
ALPHA
Year
2000
Number of colors
8
Print possibilityes
8+0
Overhaul/renovation
updated main computer by bobst in 2022
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1120
Print width (mm)
1050
Min print repeat (mm)
300
Max print repeat (mm)
650
Unwinder type
Turret
Max reel diameter unwinder (mm)
1000
Rewinder type
Turret
Max reel diameter rewinder (mm)
1000
Drying
Gas
Videocamera
BST
Corona treatment
Mero
Web guides
2 BST

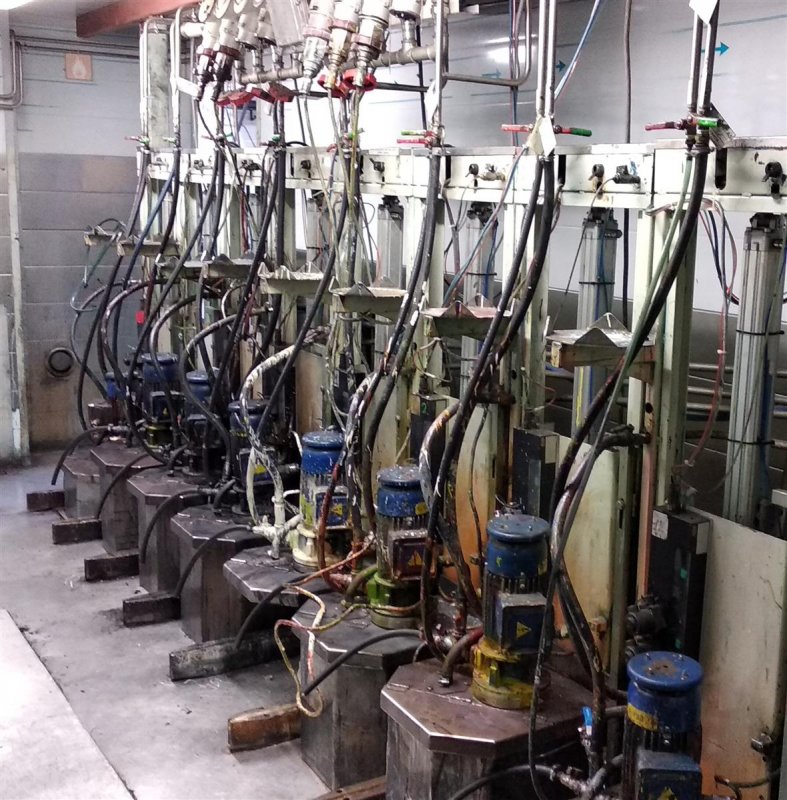

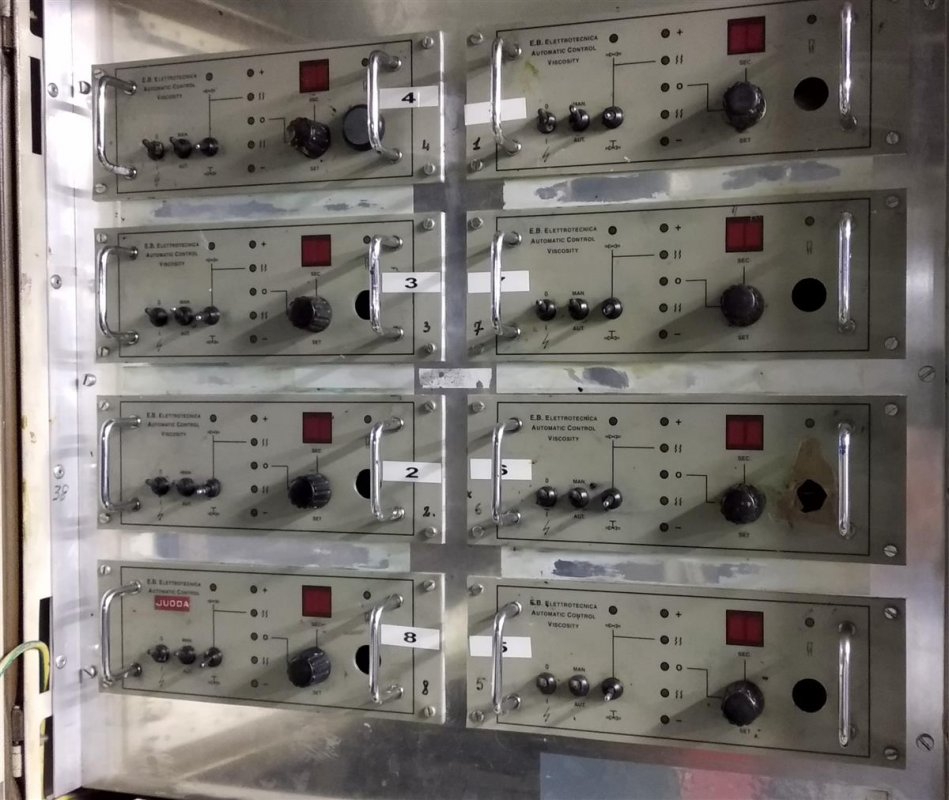

Vyscosity control
Yes
Washing system
No
Inking system
Closed chamber doctor blades + ceramic anilox

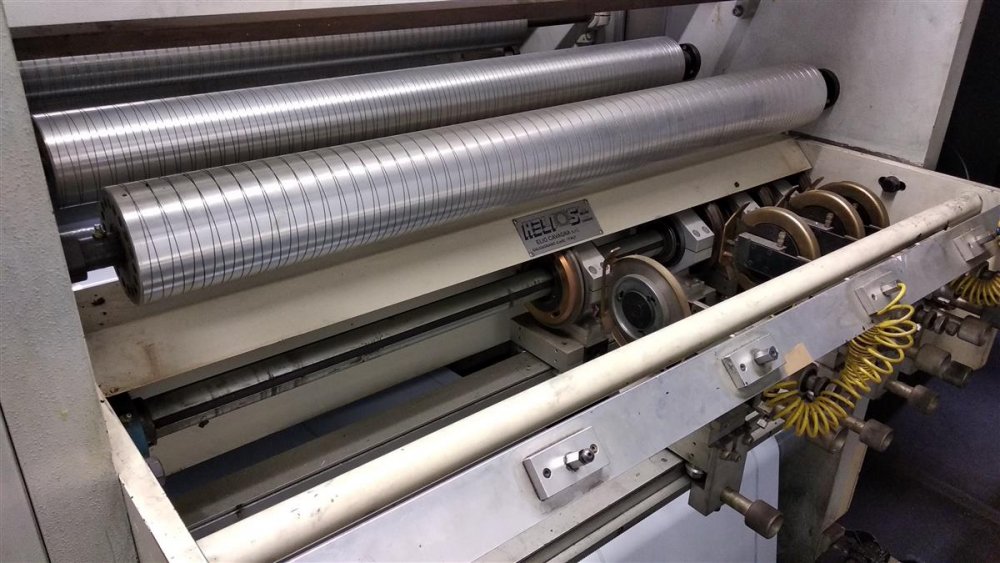

Anilox
8
Print Sleeves
150
Additional information
Number of carrier sleeves 114,708-8pcs & 140,173-8pcs Max. mechanical speed: Max 350 Thickness: Min 12 my
Machine Code FL902
Manufacturer SCHIAVI BOBST
Model ALPHA
Year 2000
Number of colors 8
Print possibilityes 8+0
Overhaul/renovation updated main computer by bobst in 2022
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1120
Print width (mm) 1050
Min print repeat (mm) 300
Max print repeat (mm) 650
Unwinder type Turret
Max reel diameter unwinder (mm) 1000
Rewinder type Turret
Max reel diameter rewinder (mm) 1000
Drying Gas
Videocamera BST
Corona treatment Mero
Web guides 2 BST
Vyscosity control Yes
Washing system No
Inking system Closed chamber doctor blades + ceramic anilox
Anilox 8
Print Sleeves 150
Additional information Number of carrier sleeves 114,708-8pcs & 140,173-8pcs Max. mechanical speed: Max 350 Thickness: Min 12 my
