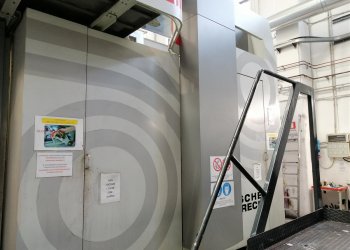

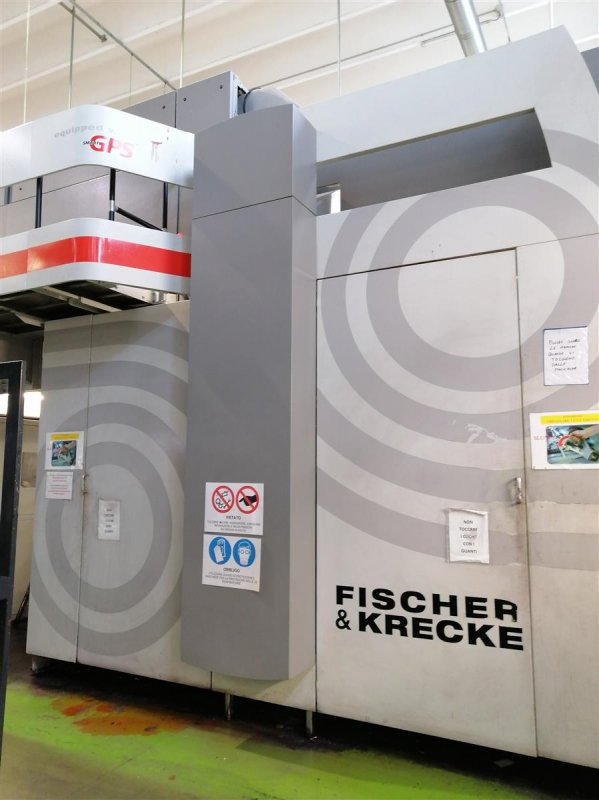

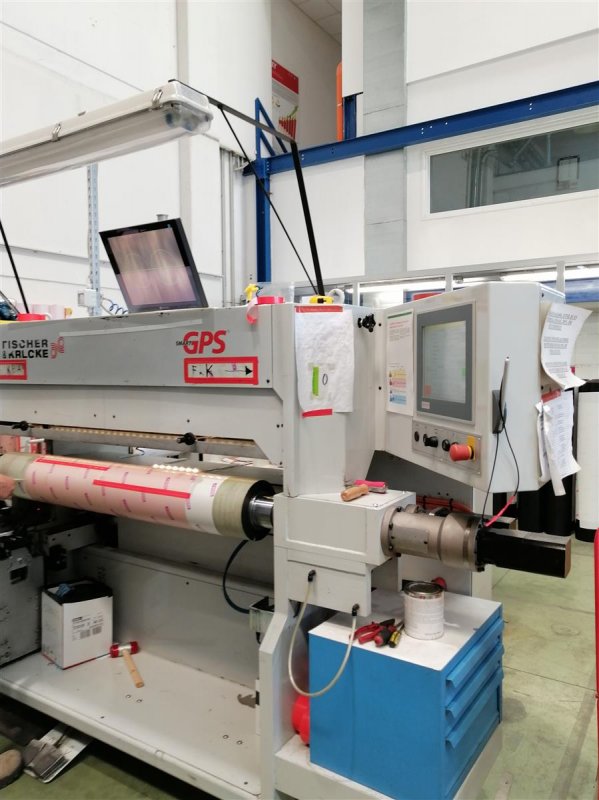

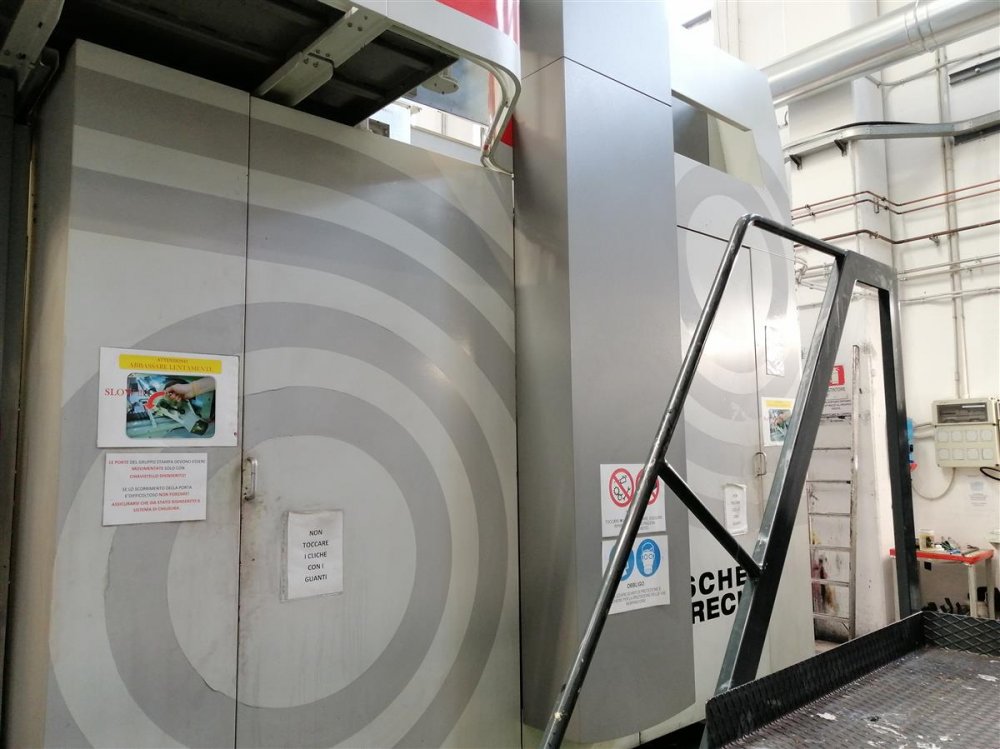

FISCHER & KRECKE FP15 S Flexo central drum printing press 8 colors ** SOLD ** Ask more informations about a similar one

Flexo CI presses use a central drum which is common to all colours as counter impression roll.

Machine Code FL896
Manufacturer FISCHER & KRECKE

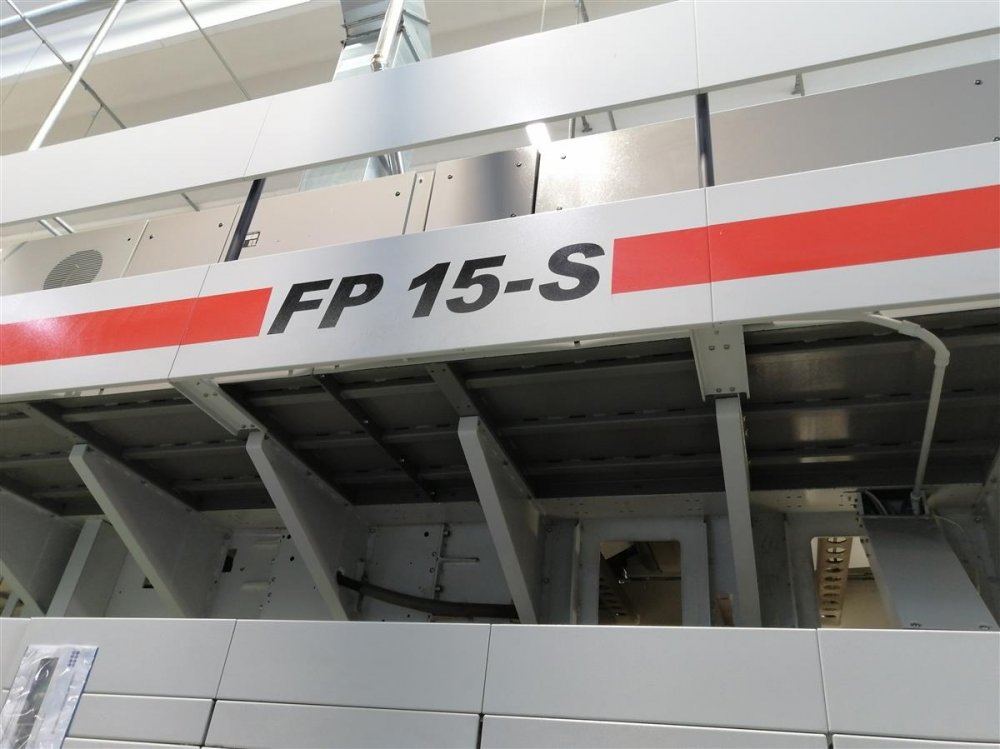

Model FP15 S
Year 2012
Number of colors 8
Print possibilities 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes

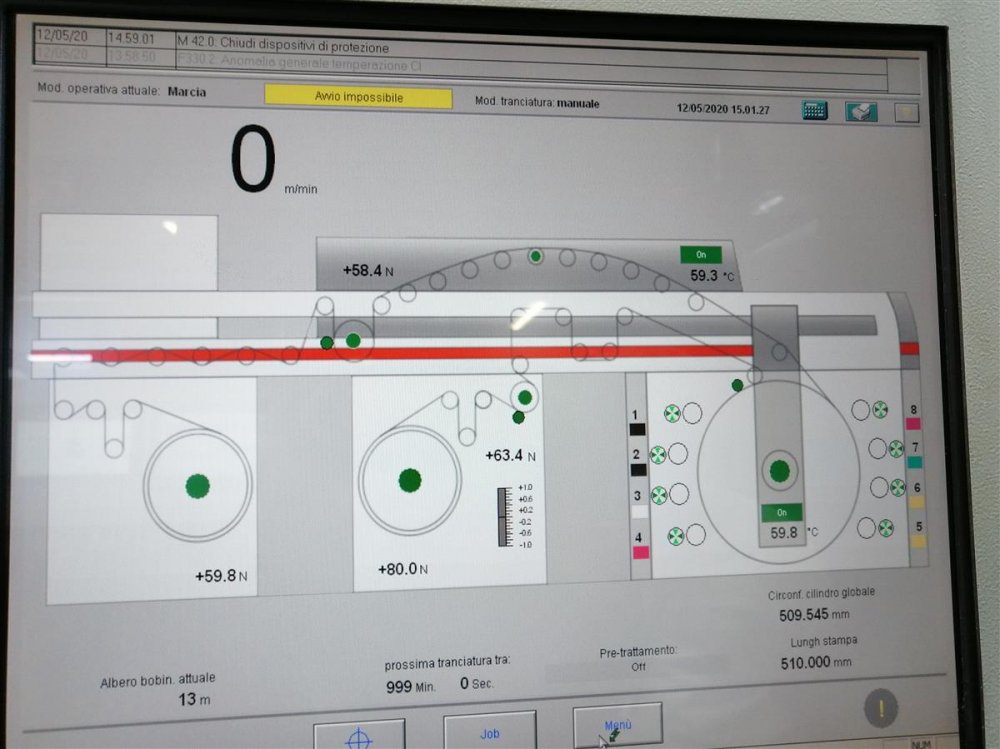

Computer supervision Yes
Web width (mm) 1270
Print width (mm) 1220
Min print repeat (mm) 380
Max print repeat (mm) 800

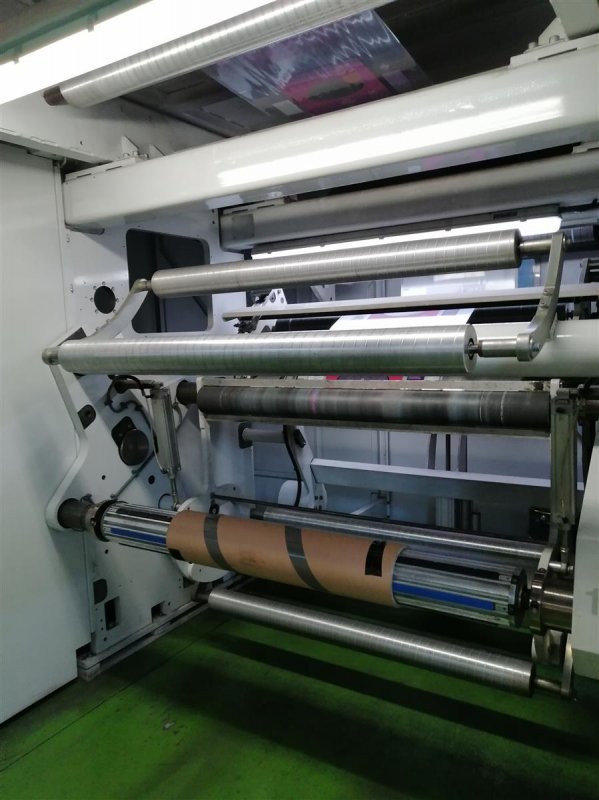

Unwinder type Turret Automatic
Max reel diameter unwinder (mm) 1000
Rewinder type Turret Automatic
Max reel diameter rewinder (mm) 1000

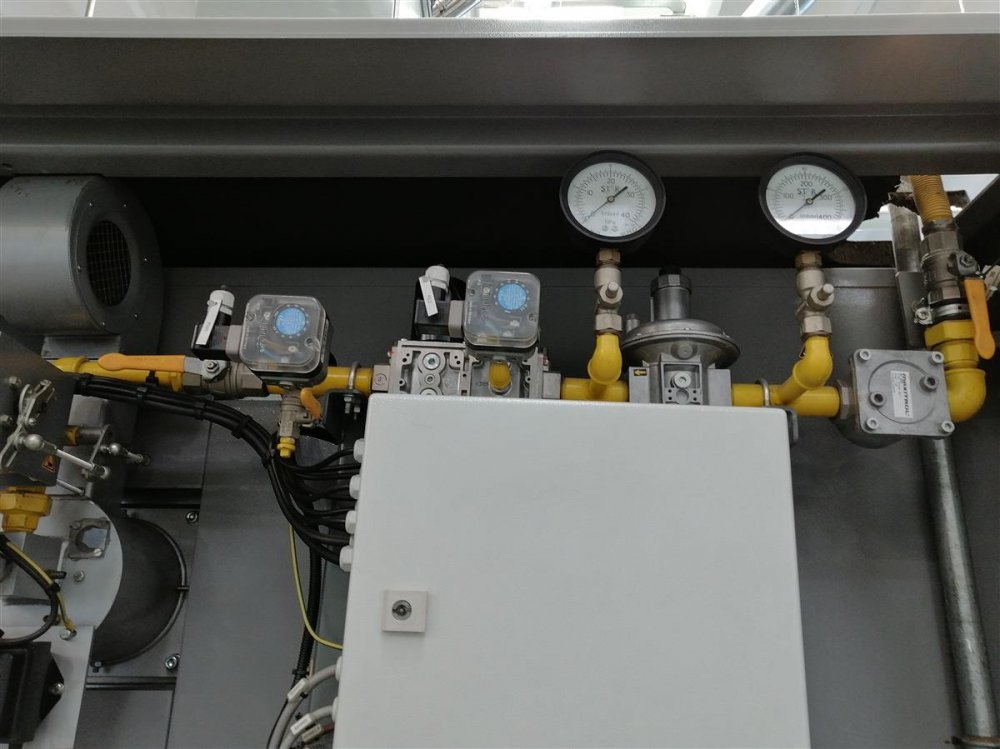

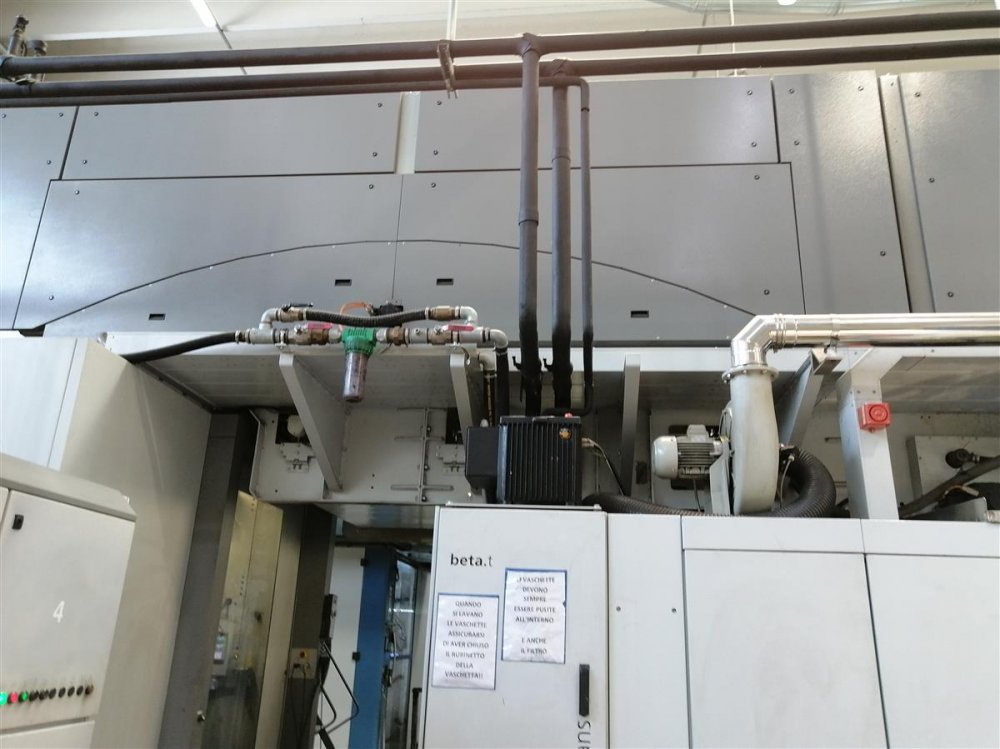

Drying 2 zones 4 fans 2 gas burners
Videocamera yes
Web guides Yes in and out

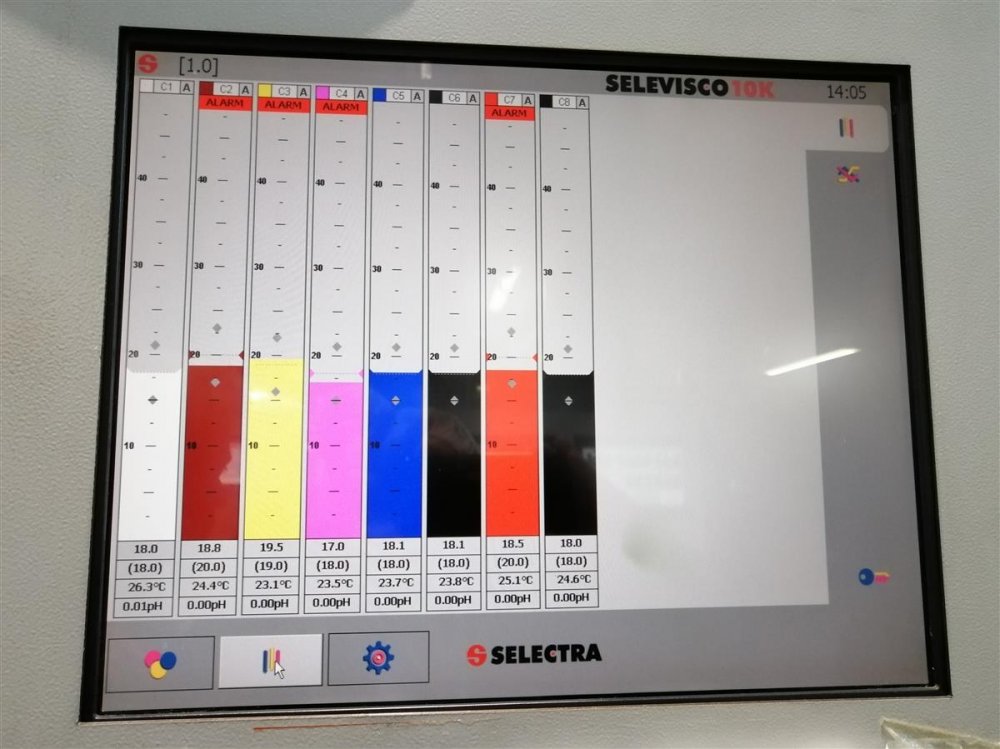

Vyscosity control yes automatic by Selectra
Washing system yes

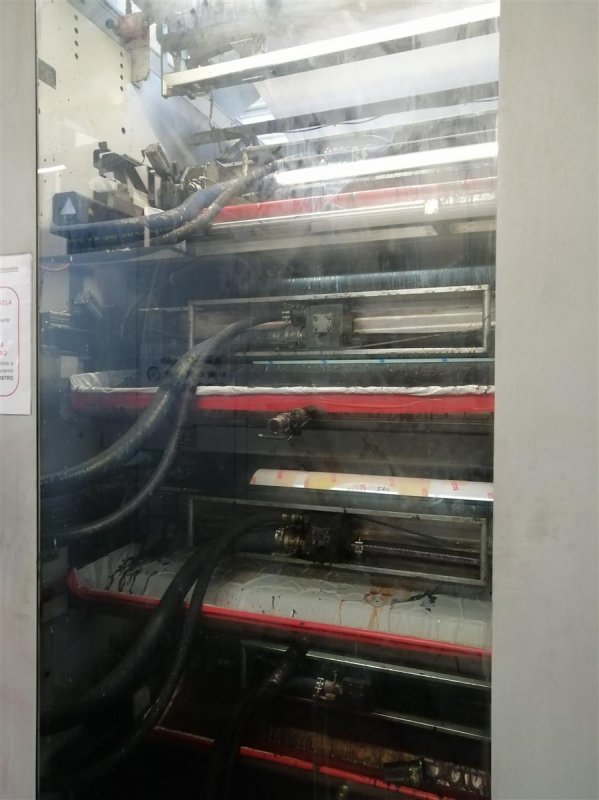

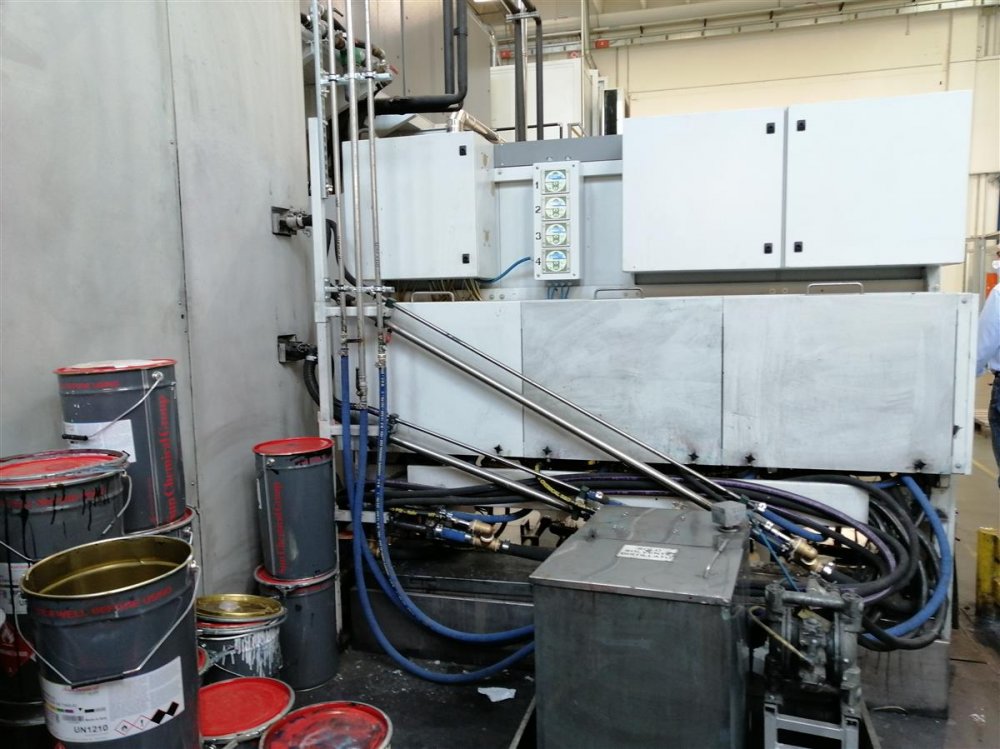

Inking system Closed chamber doctor blades
Anilox 16 ceramic anilox sleeves : 5x 420 L/cm-vol.4,5 ; 1x 225 L/cm- vol.6 ; 1x 200 L/cm-vol.6 ; 3x 200 L/cm-vol.8; 1x 180 L/cm-vol.9; 2x 110 L/cm-vol.12 ; 2 x 80 L/cm-vol.15 ; 1x 60 L7cm.vol.18;
Print Sleeves 256 print sleeves , 8 for each repeat as follwos: 370, 380, 390, 400,410, 420, 430 , 440 , 450, 460 , 470 , 480 , 490 , 500 , 510 , 520, 530 , 540, 550 , 560, 570, 580, 600 , 620 , 630, 640 , 660, 700, 720, 760

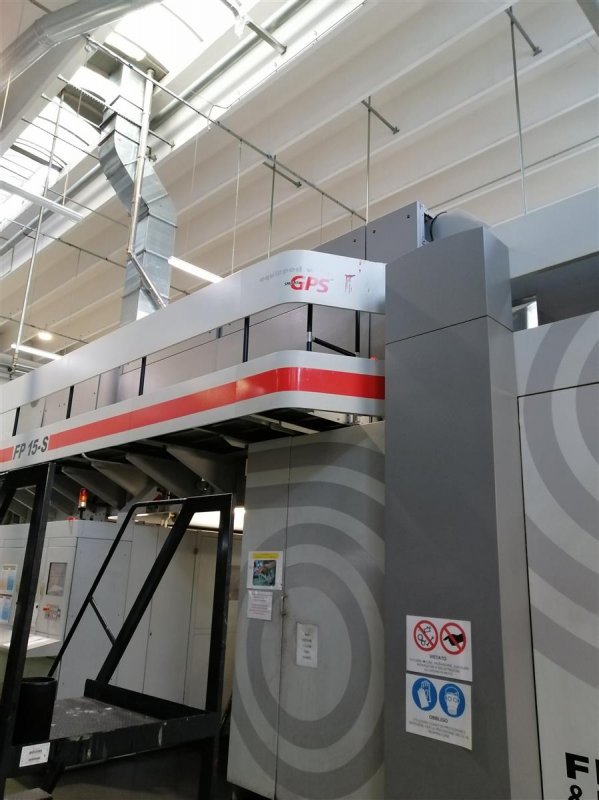

Additional information AUTO REGISTER SYSTEM AND PRINT SET UP with GPS system

** SOLD **
