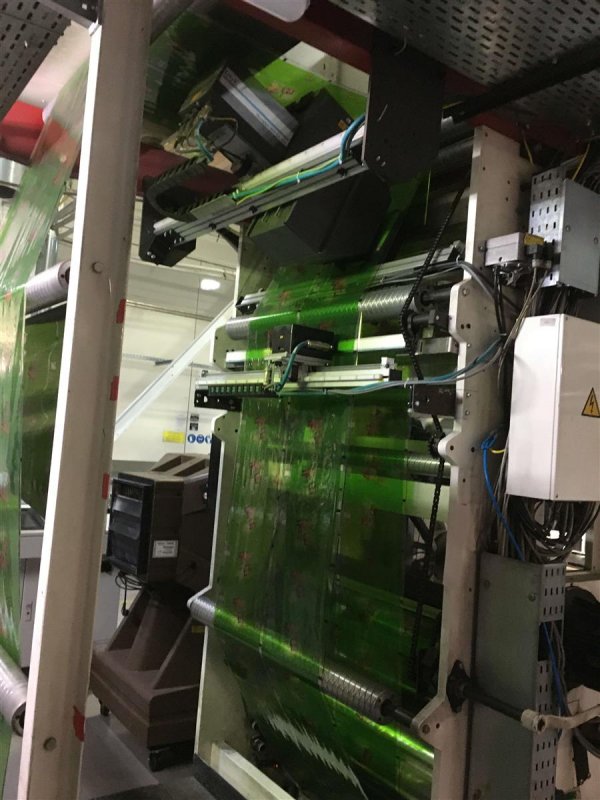

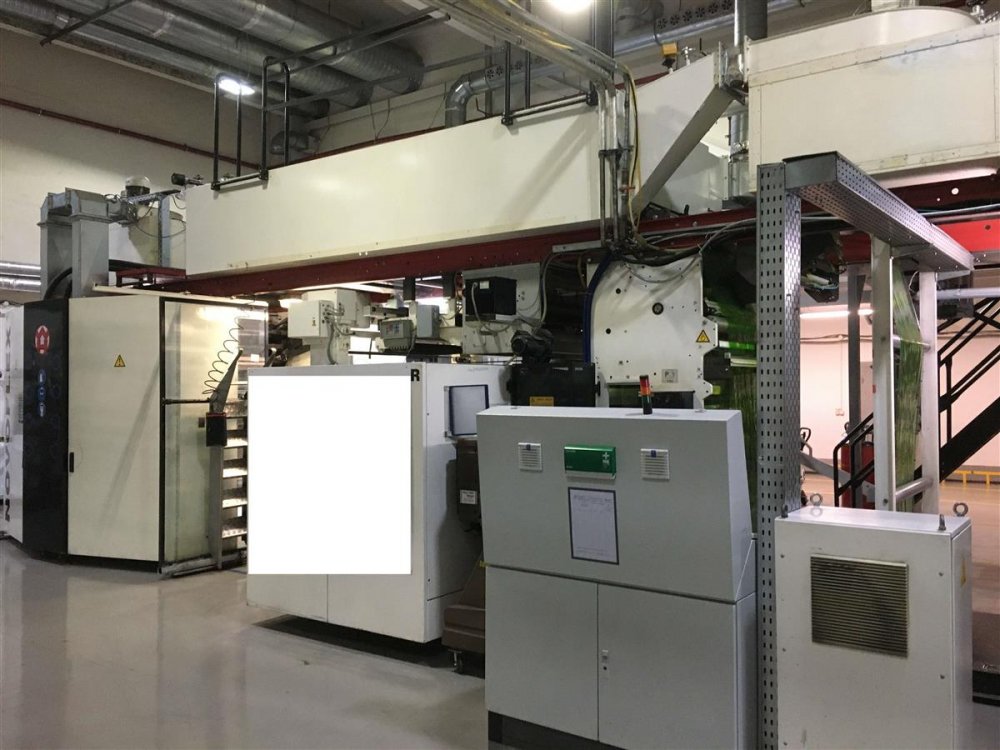

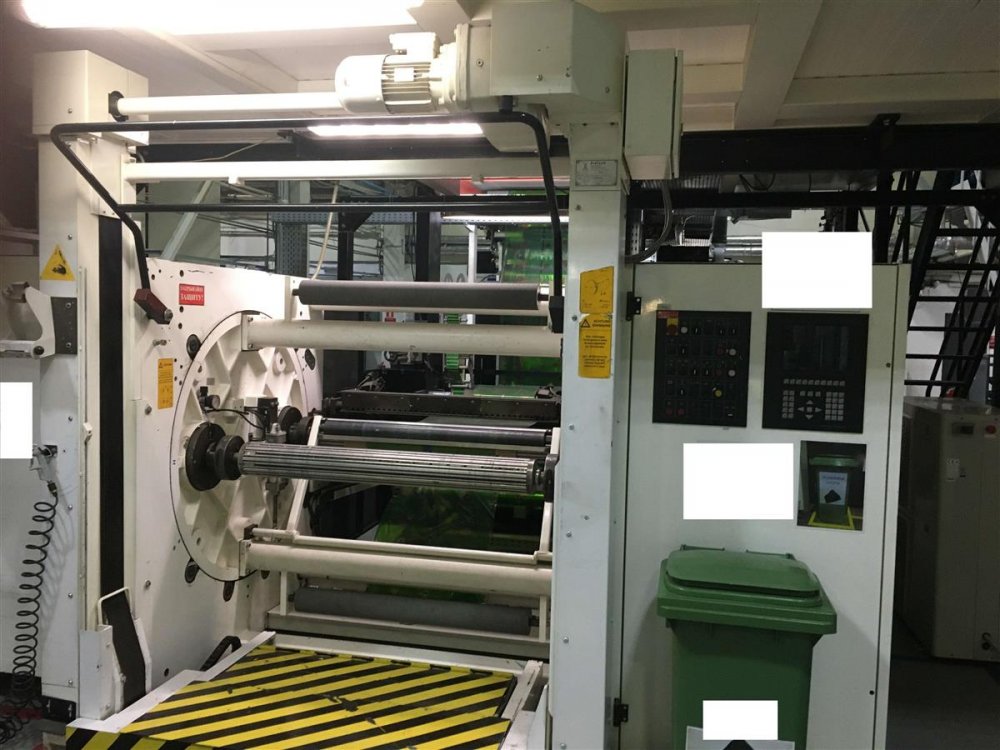

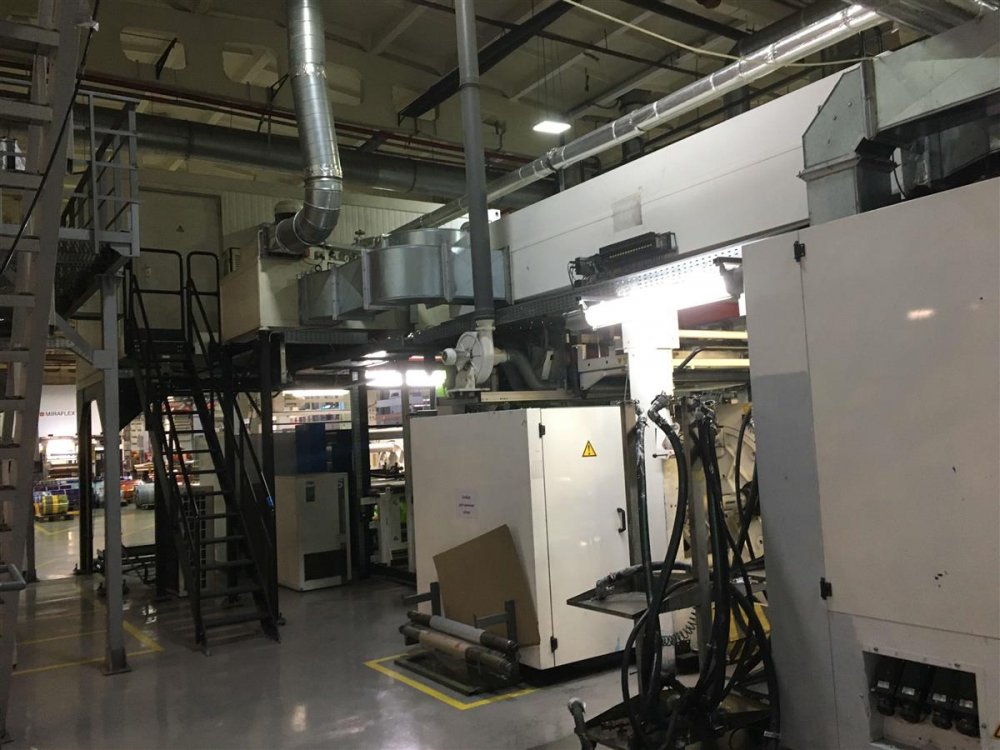

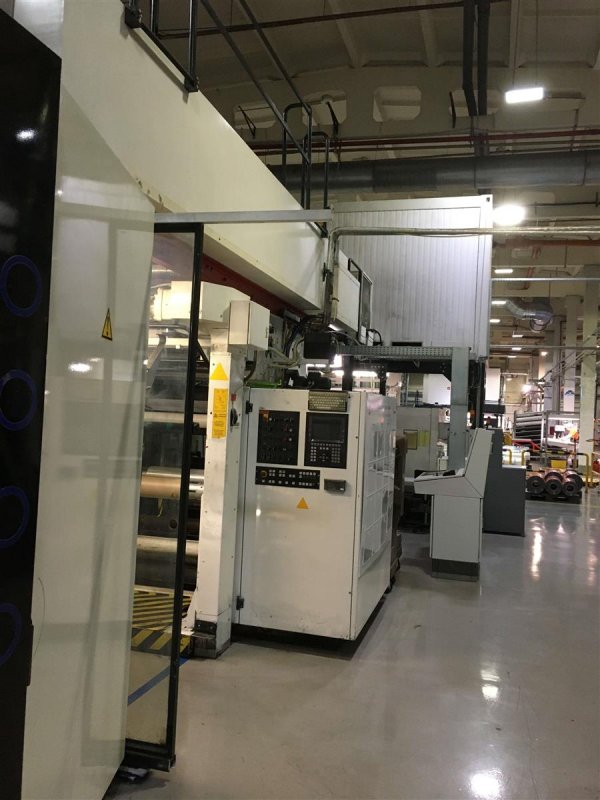

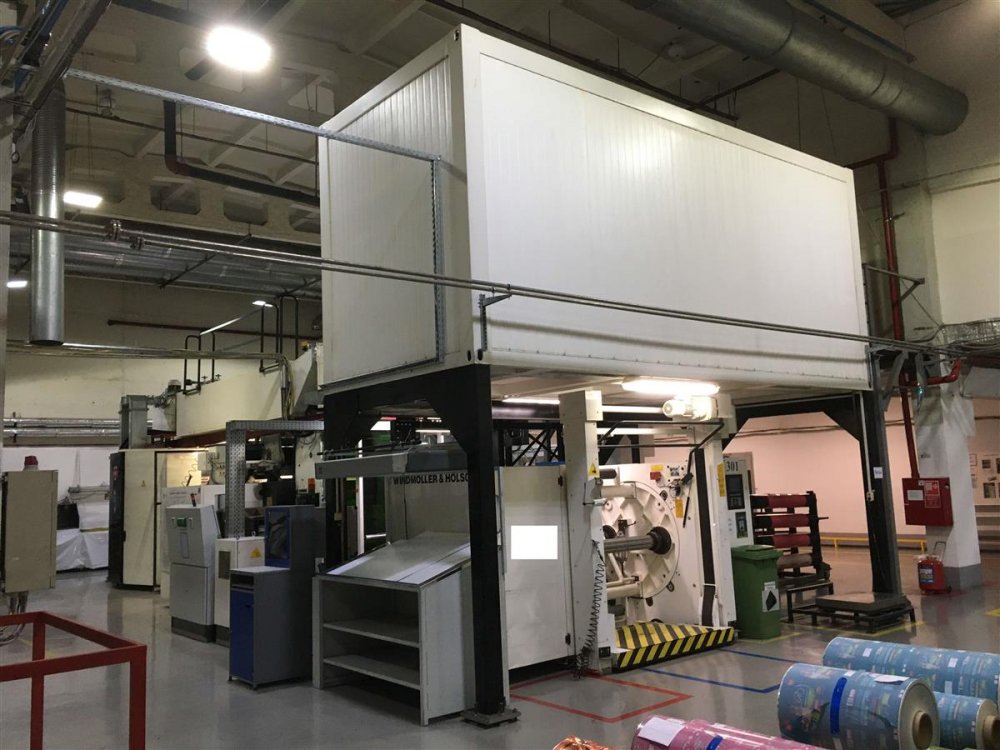

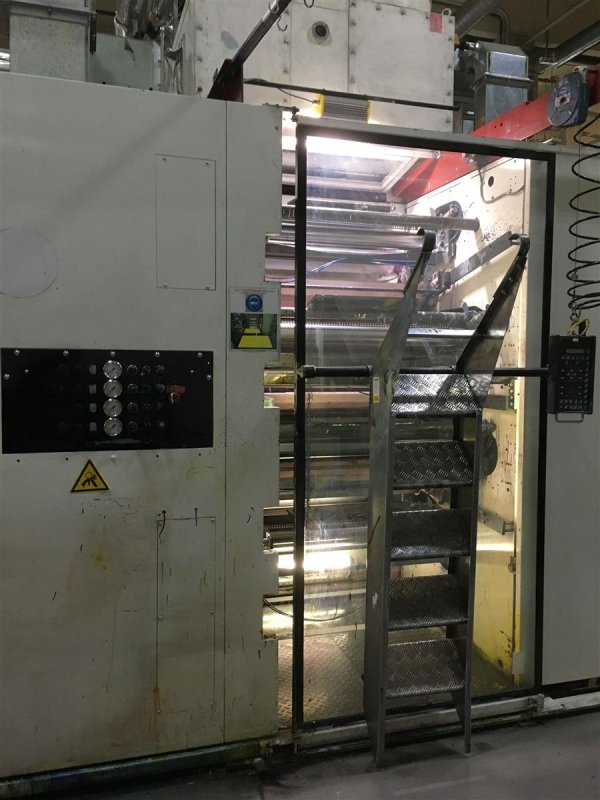

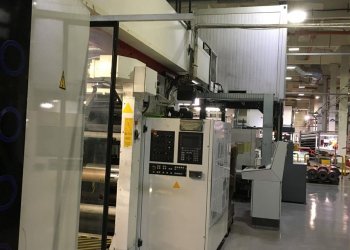

WINDMÖLLER & HÖLSCHER NOVOFLEX flexo printing machine 8 colors

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
about a similar one
Machine Code
FL890
Manufacturer
WINDMÖLLER & HÖLSCHER
Model
NOVOFLEX
Year
2002
Number of colors
8
Print possibilityes
8+0
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1050
Print width (mm)
1000
Min print repeat (mm)
300
Min print repeat (mm)
300
Max print repeat (mm)
760
Unwinder type
TURRET
Max reel diameter unwinder (mm)
1000
Rewinder type
TURRET
Max reel diameter rewinder (mm)
1000
Videocamera
Eltromat from 2016 with registration system
Corona treatment
Softal
Vyscosity control
no
Washing system
no
Inking system
Closed cha,ber doctor blades
Inking system
Closed chamber doctor baldes
Anilox
43 ceramic anilox sleeves as follows 2 x 400 l/cm Vol. 4,3 ; 6x 400 L/cm-V 4,5 ; 4x 400 l/cm V.4,7; 4x 320 l/cm-V.5 ; 1x 320 l/cm-V5,5; 1x 320 l/cm V.5,7 ; 1x 315 l/cm-Vol.5,2 ; 2x 315 l/cm -V. 5,8; 2 x 285 l/cm.V.9,5 ; 4x 280 l/cm-V.8,5 ; 1x 280 l/cm-V.7 ; 2x 220 l/cm V.9,1 ;1x 180 l/cm-v.9,2 ; 1x 180 l/cm.V.9,6 ; 3x 160 l/cm-v.12 ; 2x 160 l/cm-V.12,3 ; 2x 140 l/cm -v.14 ; 1x 140 l/cm v.12,3 ; 2 x100 l/cm-v.14,2; 2x 100 l/cm-v.15,1; 1x 100 l/cm-v.22
Anilox
45 Anilox sleeves: 5x100 L/cm, 3x140 L/cm, 5x160 L/cm, 2x180 L/cm, 2x220 L/cm, 5x280 L/cm, 2x285 L/cm, 3x315 L/cm, 6x320 L/cm, 12x400 L/cm
Print Sleeves
Tot 292 print repeats: 300x16,315x16, 325x15, 330x7, 340x8, 350x8, 365x8, 380x8, 400x16, 410x16, 420x16, 425x8, 430x16, 440x8, 450x16, 460x8, 470x16, 480x8, 490x12, 500x10, 520x16, 540x8, 560x8, 580x8, 640x8, 680x8, 690x8
Machine Code FL890
Manufacturer WINDMÖLLER & HÖLSCHER
Model NOVOFLEX
Year 2002
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1050
Print width (mm) 1000
Min print repeat (mm) 300
Min print repeat (mm) 300
Max print repeat (mm) 760
Unwinder type TURRET
Max reel diameter unwinder (mm) 1000
Rewinder type TURRET
Max reel diameter rewinder (mm) 1000
Videocamera Eltromat from 2016 with registration system
Corona treatment Softal
Vyscosity control no
Washing system no
Inking system Closed cha,ber doctor blades
Inking system Closed chamber doctor baldes
Anilox 43 ceramic anilox sleeves as follows 2 x 400 l/cm Vol. 4,3 ; 6x 400 L/cm-V 4,5 ; 4x 400 l/cm V.4,7; 4x 320 l/cm-V.5 ; 1x 320 l/cm-V5,5; 1x 320 l/cm V.5,7 ; 1x 315 l/cm-Vol.5,2 ; 2x 315 l/cm -V. 5,8; 2 x 285 l/cm.V.9,5 ; 4x 280 l/cm-V.8,5 ; 1x 280 l/cm-V.7 ; 2x 220 l/cm V.9,1 ;1x 180 l/cm-v.9,2 ; 1x 180 l/cm.V.9,6 ; 3x 160 l/cm-v.12 ; 2x 160 l/cm-V.12,3 ; 2x 140 l/cm -v.14 ; 1x 140 l/cm v.12,3 ; 2 x100 l/cm-v.14,2; 2x 100 l/cm-v.15,1; 1x 100 l/cm-v.22
Anilox 45 Anilox sleeves: 5x100 L/cm, 3x140 L/cm, 5x160 L/cm, 2x180 L/cm, 2x220 L/cm, 5x280 L/cm, 2x285 L/cm, 3x315 L/cm, 6x320 L/cm, 12x400 L/cm
Print Sleeves Tot 292 print repeats: 300x16,315x16, 325x15, 330x7, 340x8, 350x8, 365x8, 380x8, 400x16, 410x16, 420x16, 425x8, 430x16, 440x8, 450x16, 460x8, 470x16, 480x8, 490x12, 500x10, 520x16, 540x8, 560x8, 580x8, 640x8, 680x8, 690x8
