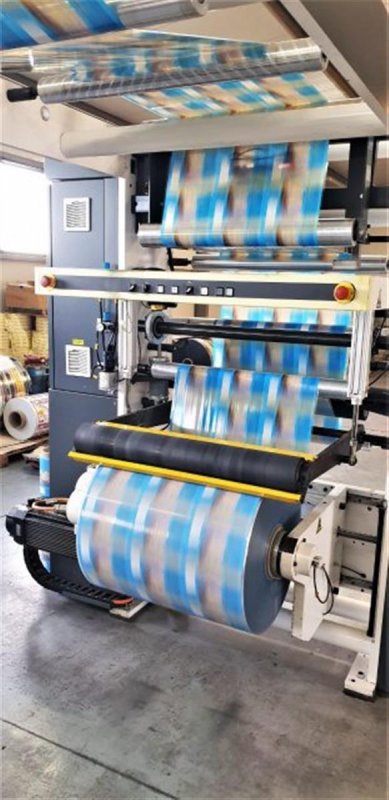

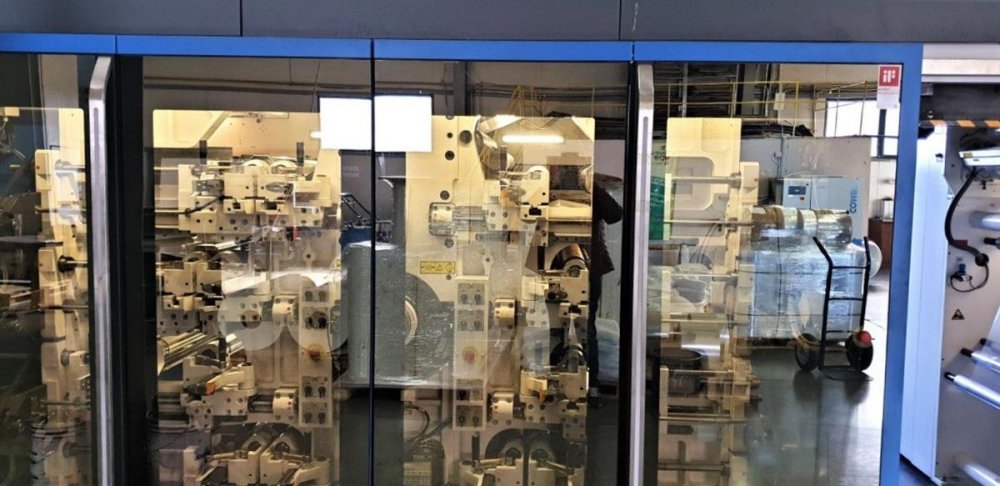

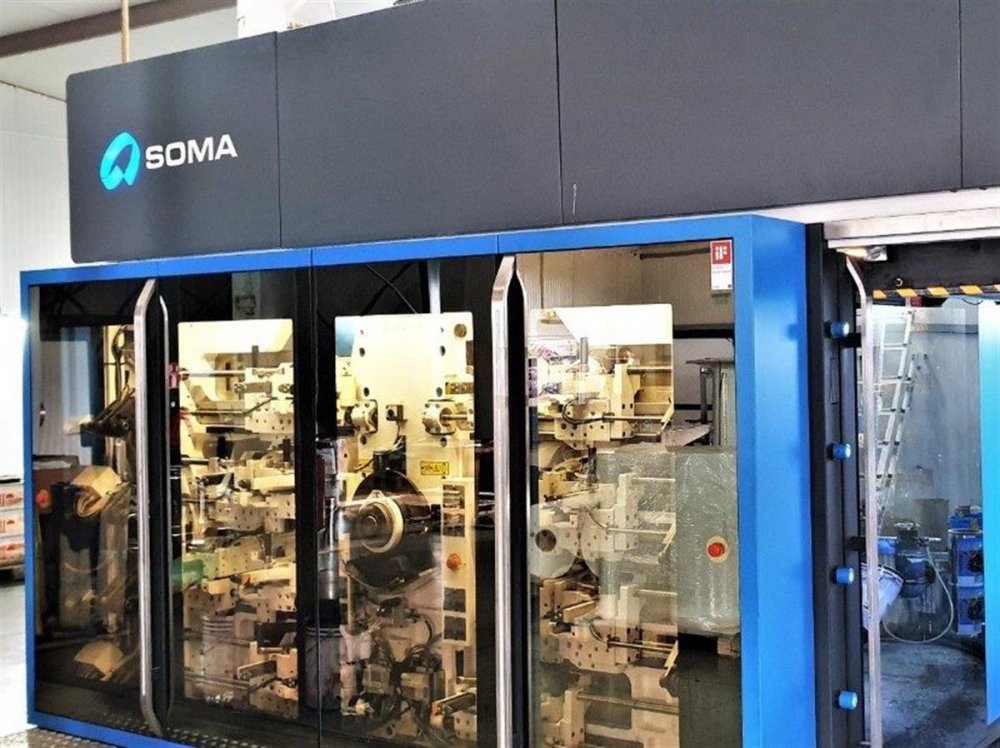

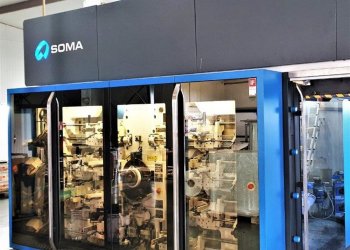

SOMA FLEX-OPTIMA 8 EG/WG flexo press 8 colors

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
about a similar one
Machine Code
FL883
Manufacturer
SOMA
Model
FLEX-OPTIMA 8 EG/WG
Year
2016
Number of colors
8
Print possibilityes
8+0
Overhaul/renovation
Machine brand new . used only for printing test and demo in demo center , not for daily production .less than 1000 hours f operation
Gearless
Yes
Fast sleeve change
No
4 motor per deck CNC position system
Yes

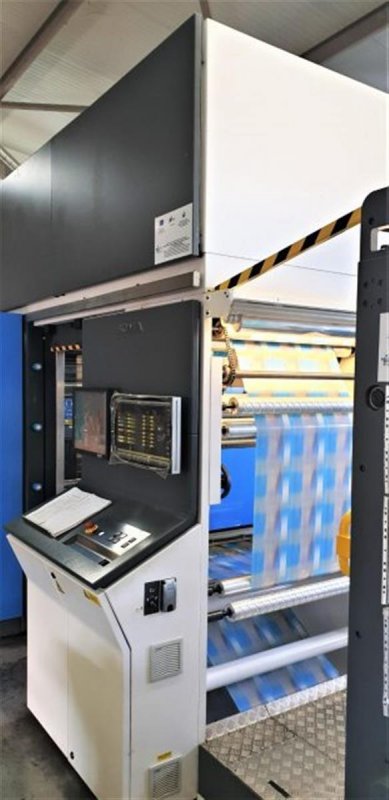

Computer supervision
Yes
Web width (mm)
850
Print width (mm)
820
Min print repeat (mm)
280
Max print repeat (mm)
600

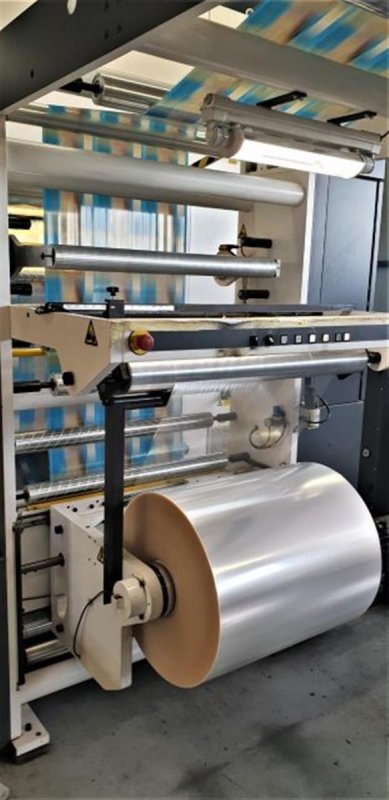

Unwinder type
Single position shaftless
Max reel diameter unwinder (mm)
1000
Rewinder type
Single position shaftless
Max reel diameter rewinder (mm)
1000
Drying
2 zones - 4 fans- Tunnel 3mt lomg 19 air knives 2 gas burners
Videocamera
BST Digital Super Handy Scan 4000 with automatic register control
Corona treatment
yes
Web guides
Yes in and out
Washing system
Yes automatic
Inking system
Closed chamber doctor blades with pneumatic ink pumps with mixer
Anilox
14 ceramic anilox sleeves 4 x360 lines/cm-vol3,5; 3x320 L/cm-vol.6,5 ; 1x260 L/cm.vol.6,2 ; 3x180 L/cm- vol.12; 1x 180 L/cm-vol.8; 1x140 L/cm-vol.10 ;1x 100 L/cm-vol.14
Print Sleeves
8x260, 8x270, 8x280, 8x290, 8x300, 8x320, 8x330, 8x350, 8x360, 8x380, 8x400, 8x430, 8x450, 8x490
Additional information
Materials: LDPE 0.020-0.160 mm, HDPE/OPP 0.010-0.150 mm, CPP 0.020-0.070 mm, BOPP 0.010-0.060 mm, PET 0.012-0.050 mm, OPA 0.015-0.050 mm, Laminates 0.020-0.150 mm, Paper 20-180 g Temperature control for CI drum and coolimg calender Servo unit for register control-motive reprint on already printed material
Machine Code FL883
Manufacturer SOMA
Model FLEX-OPTIMA 8 EG/WG
Year 2016
Number of colors 8
Print possibilityes 8+0
Overhaul/renovation Machine brand new . used only for printing test and demo in demo center , not for daily production .less than 1000 hours f operation
Gearless Yes
Fast sleeve change No
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 850
Print width (mm) 820
Min print repeat (mm) 280
Max print repeat (mm) 600
Unwinder type Single position shaftless
Max reel diameter unwinder (mm) 1000
Rewinder type Single position shaftless
Max reel diameter rewinder (mm) 1000
Drying 2 zones - 4 fans- Tunnel 3mt lomg 19 air knives 2 gas burners
Videocamera BST Digital Super Handy Scan 4000 with automatic register control
Corona treatment yes
Web guides Yes in and out
Washing system Yes automatic
Inking system Closed chamber doctor blades with pneumatic ink pumps with mixer
Anilox 14 ceramic anilox sleeves 4 x360 lines/cm-vol3,5; 3x320 L/cm-vol.6,5 ; 1x260 L/cm.vol.6,2 ; 3x180 L/cm- vol.12; 1x 180 L/cm-vol.8; 1x140 L/cm-vol.10 ;1x 100 L/cm-vol.14
Print Sleeves 8x260, 8x270, 8x280, 8x290, 8x300, 8x320, 8x330, 8x350, 8x360, 8x380, 8x400, 8x430, 8x450, 8x490
Additional information Materials: LDPE 0.020-0.160 mm, HDPE/OPP 0.010-0.150 mm, CPP 0.020-0.070 mm, BOPP 0.010-0.060 mm, PET 0.012-0.050 mm, OPA 0.015-0.050 mm, Laminates 0.020-0.150 mm, Paper 20-180 g Temperature control for CI drum and coolimg calender Servo unit for register control-motive reprint on already printed material
