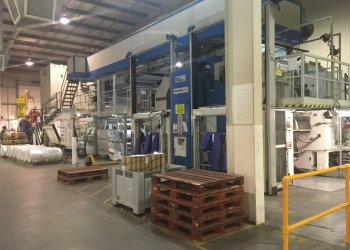

UTECO EMERALD 812 4M Flexo central drum printing press 8 colors

** SOLD **

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Ask more informations
about a similar one
Machine Code
FL797
Manufacturer
UTECO
Model
EMERALD 812 4M
Year
2010
Number of colors
8
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1650
Print width (mm)
1600
Max print repeat (mm)
1250
Unwinder type
TURRET with flying splice
Max reel diameter unwinder (mm)
1000
Rewinder type
TURRET with flying splice
Max reel diameter rewinder (mm)
1000
Drying
Gas
Videocamera
BST Premius camera
Corona treatment
Provision for corona system
Web guides
BST edge guide
Vyscosity control
Fasnacht viscosity control
Washing system
Yes
Inking system
Type of inks: solvent based
Anilox
Anilox sleeves 15
Print Sleeves
Carrier sleeves x 24
Print cylinders
Printing sleeves approximately: 140
Additional information
Airshafts for winder: 2 x 76mm, 2 x 152mm Maximum mechanical speed: 450m/min
Machine Code FL797
Manufacturer UTECO
Model EMERALD 812 4M
Year 2010
Number of colors 8
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1650
Print width (mm) 1600
Max print repeat (mm) 1250
Unwinder type TURRET with flying splice
Max reel diameter unwinder (mm) 1000
Rewinder type TURRET with flying splice
Max reel diameter rewinder (mm) 1000
Drying Gas
Videocamera BST Premius camera
Corona treatment Provision for corona system
Web guides BST edge guide
Vyscosity control Fasnacht viscosity control
Washing system Yes
Inking system Type of inks: solvent based
Anilox Anilox sleeves 15
Print Sleeves Carrier sleeves x 24
Print cylinders Printing sleeves approximately: 140
Additional information Airshafts for winder: 2 x 76mm, 2 x 152mm Maximum mechanical speed: 450m/min
