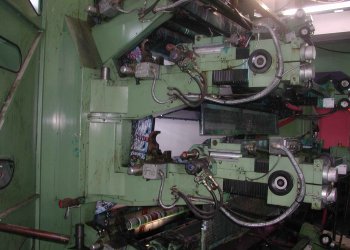

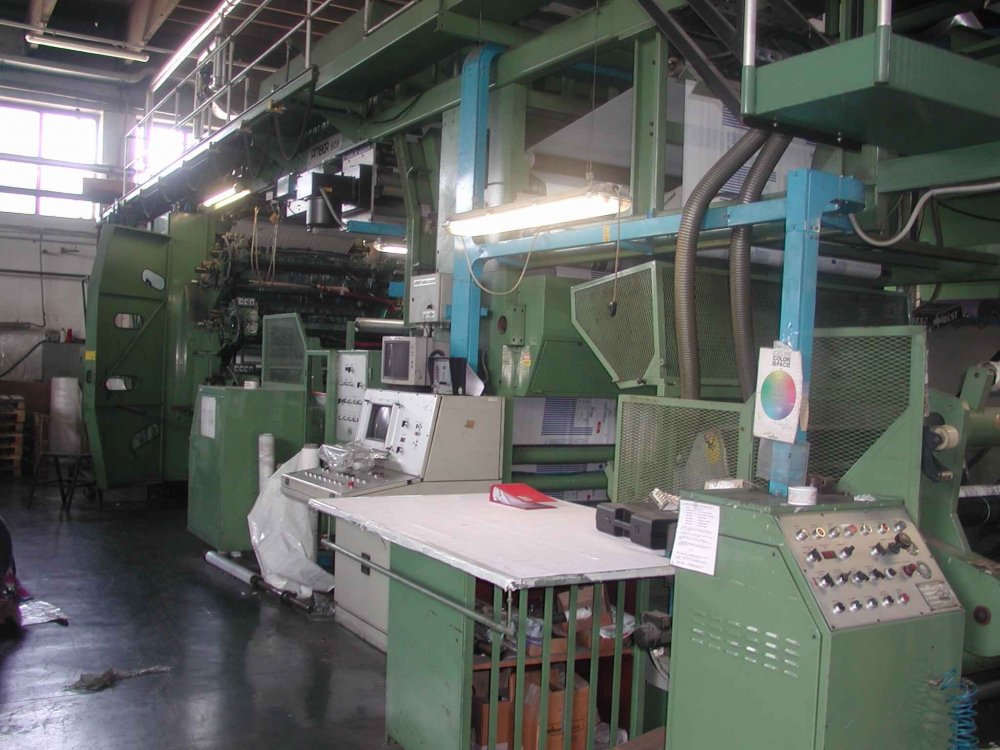

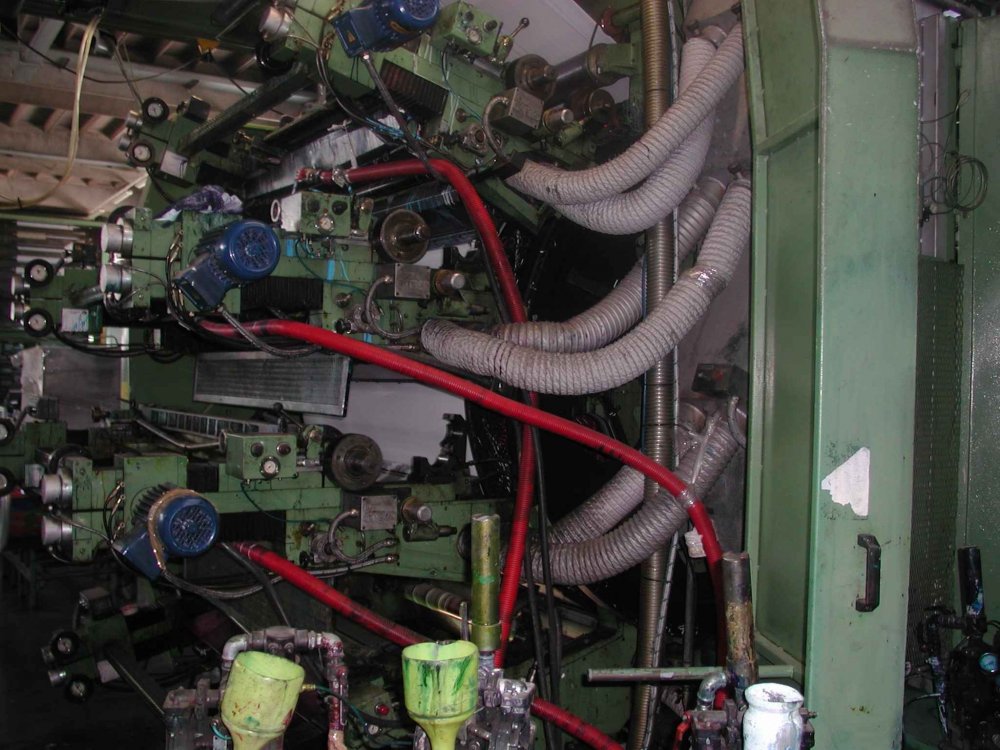

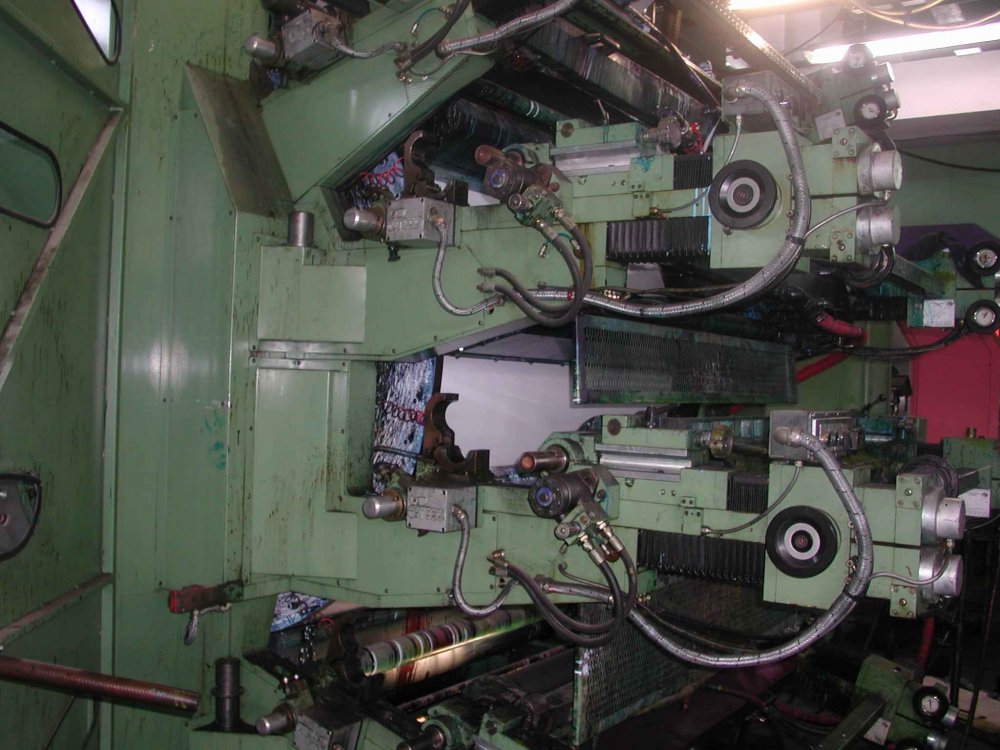

UTECO AMBER 808 Flexo central drum printing press 8 colors

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Machine Code FL047
Manufacturer UTECO
Model AMBER 808
Year 1995
Number of colors 8
Gearless No
Fast sleeve change No

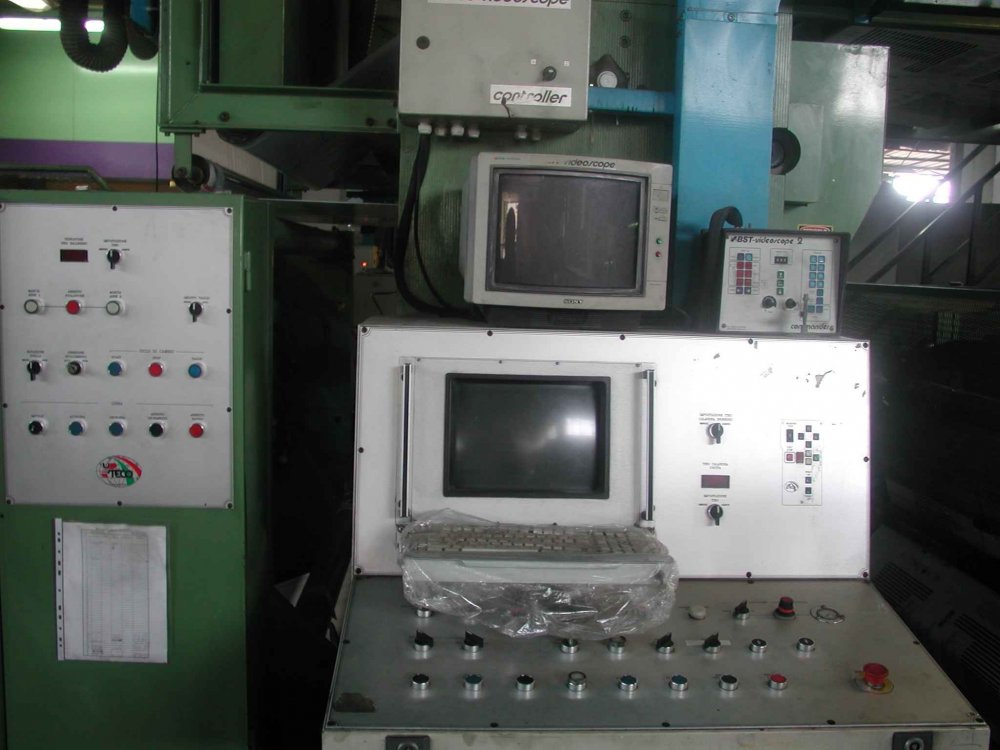

Computer supervision Yes
Web width (mm) 1550
Print width (mm) 1500
Min print repeat (mm) 340
Max print repeat (mm) 850
Unwinder type Turret automatic
Max reel diameter unwinder (mm) 1000
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 1000

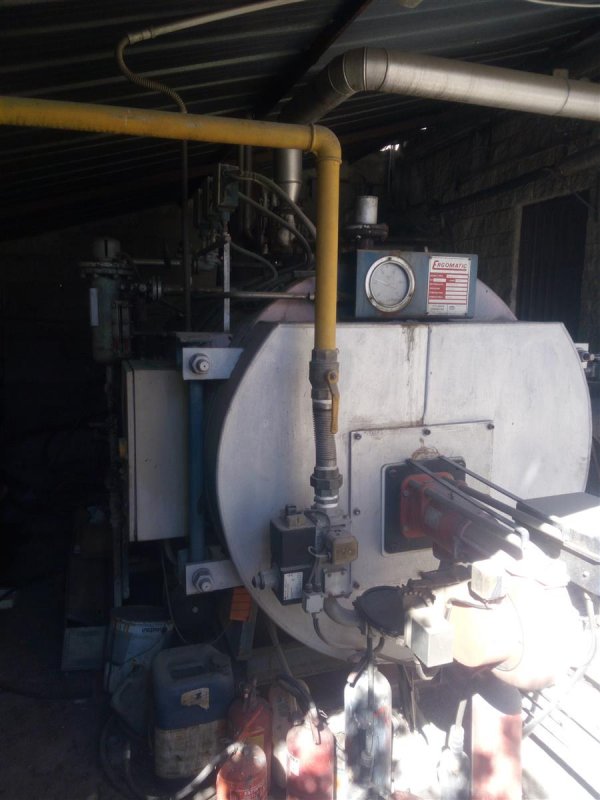

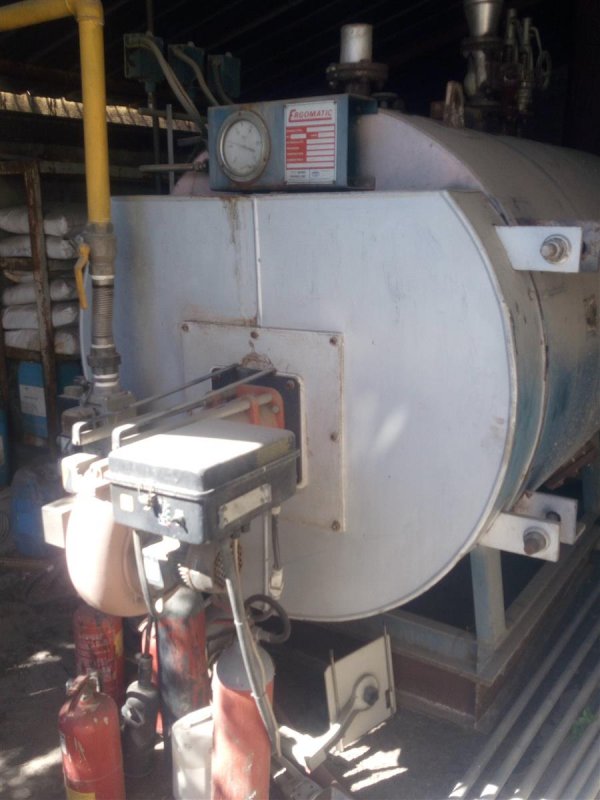

Drying 2 zones 4 fans -4 mt tunnel- steam heat exchangers
Videocamera included
Corona treatment FERRARINI BENELLI suitable for metallized
Web guides FIFE in and out
Vyscosity control 8 GRAFIKONTROL
Anilox Ceramics anilox : 17 ( 1x 500, 2x300, 6x260, 2x200, 2x120, 1x110, 2x100, 1x80 L/cm),
Print Sleeves 32

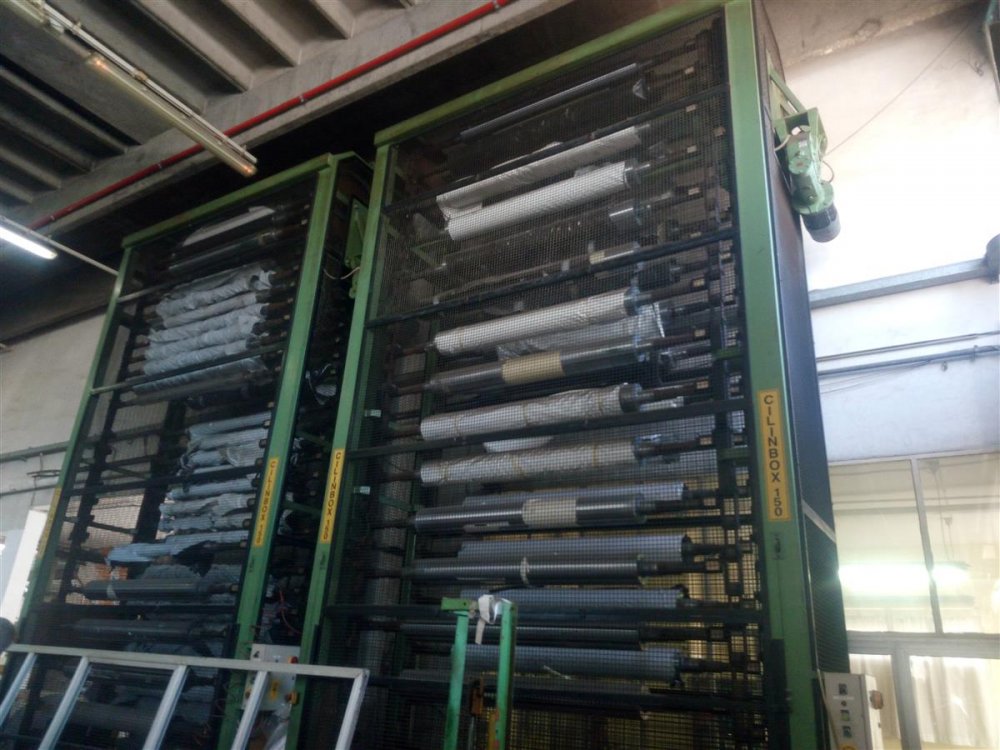

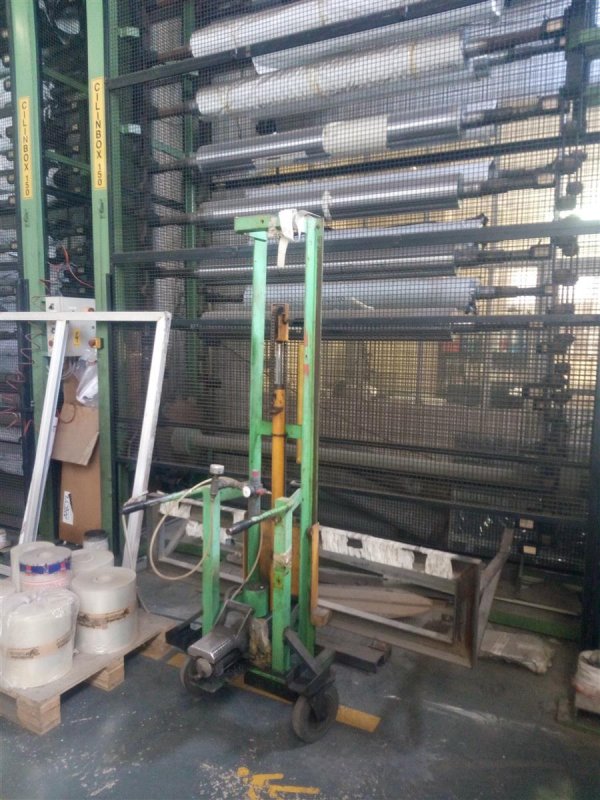

Print cylinders Cylinders : 136 8x320,330,340,360,390,410,440,470,490,520,540,560,580,590,610,650,690mm
Additional information Gear pitch 5mm , Material : all plastic films and laminated; Motorized print station positioning with repeat preset, preregister, motorized long. registers , Driven Infeed roller with automatic web tension control ; Slitter in line Helios Banana roller.
