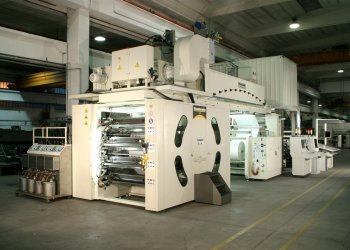

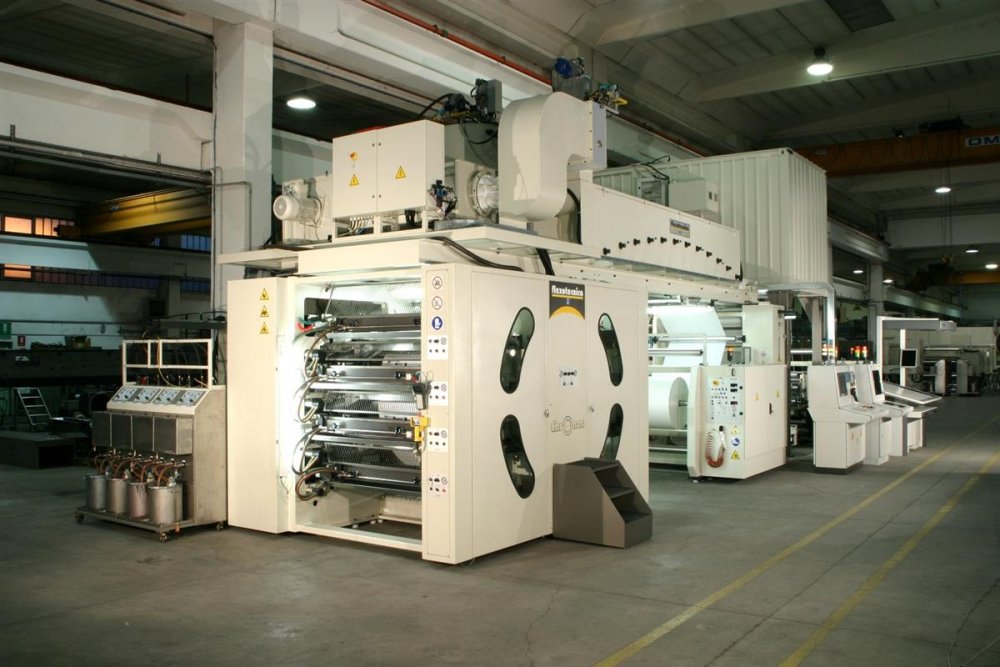

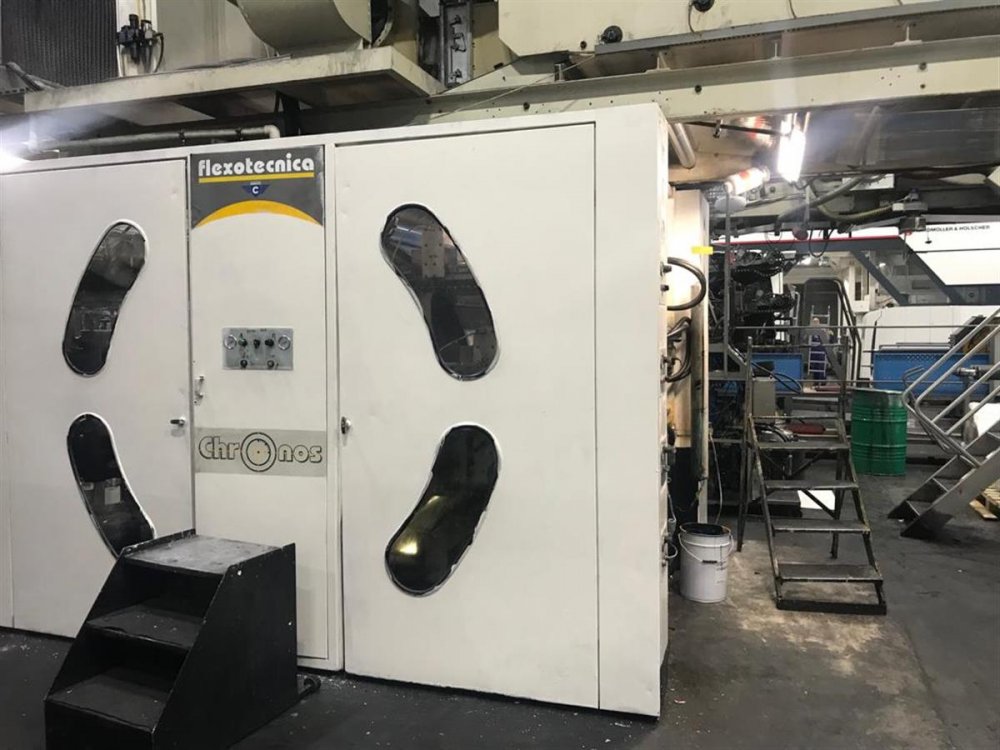

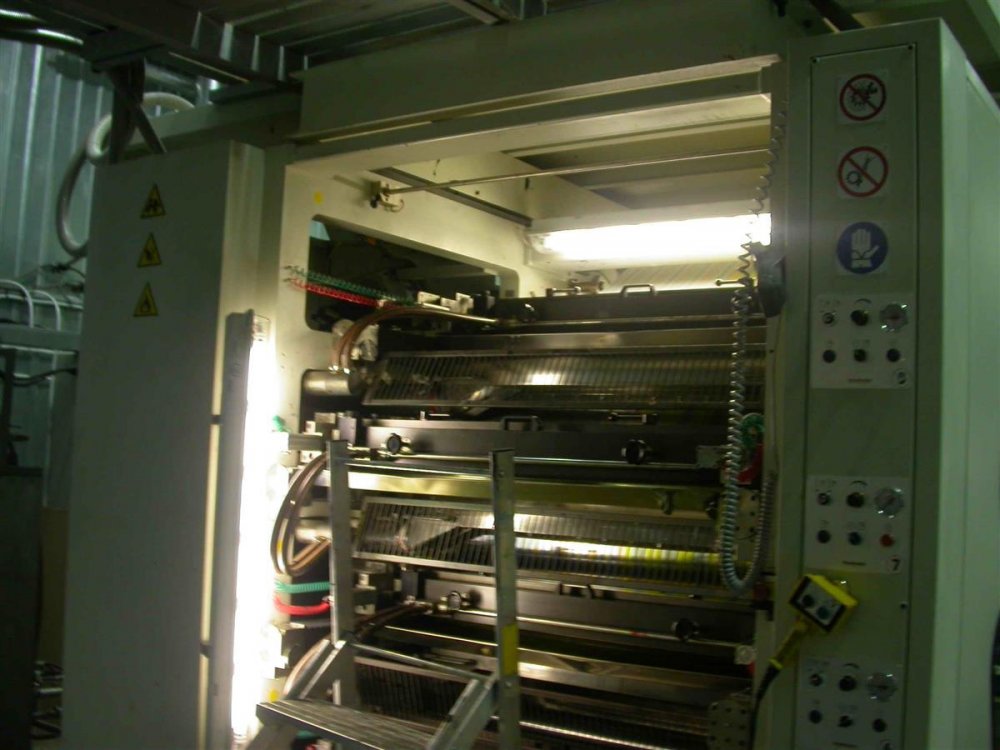

FLEXOTECNICA CHRONOS flexographic printing machine 8 colors

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Machine Code FL793
Manufacturer FLEXOTECNICA
Model CHRONOS
Year 2004
Number of colors 8
Print possibilities 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes

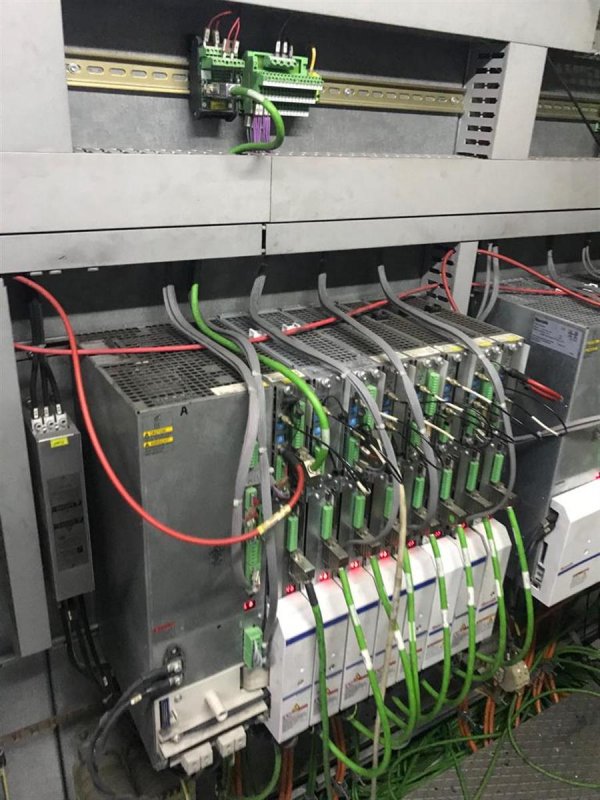

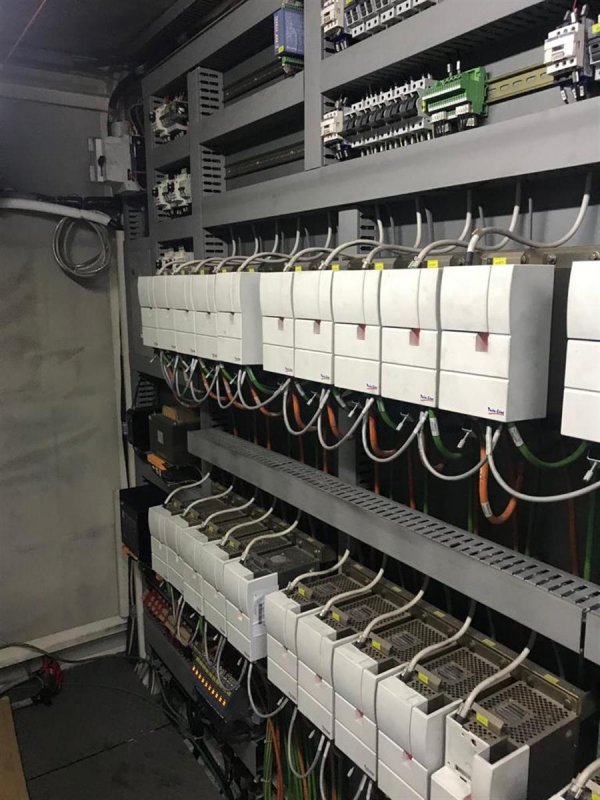

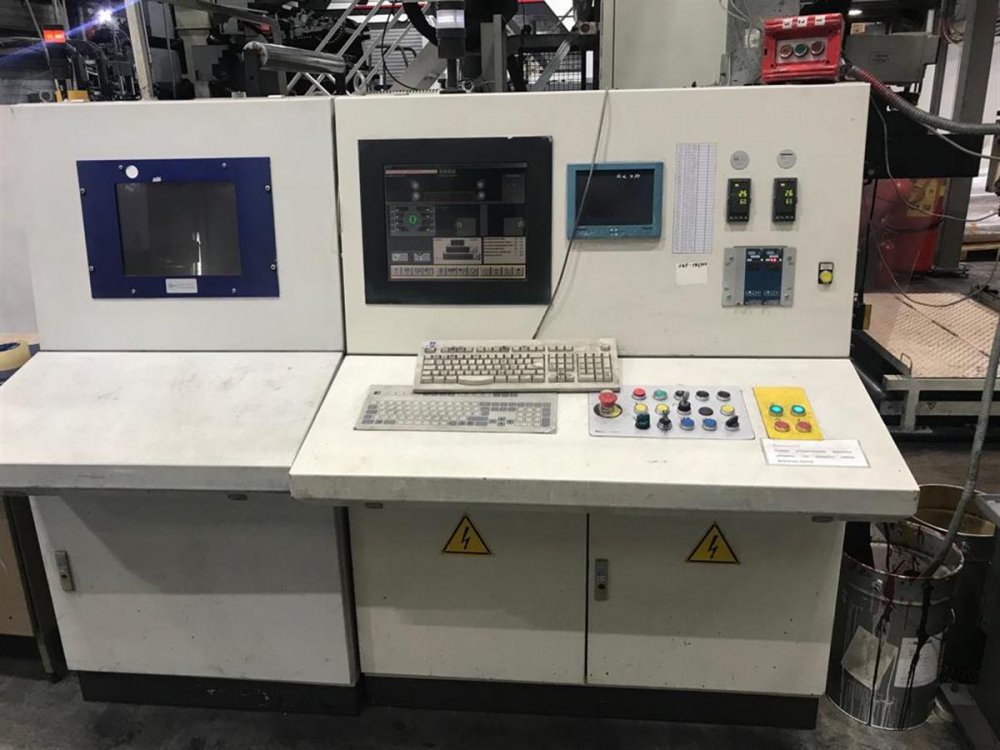

Computer supervision Yes
Web width (mm) 1320
Print width (mm) 1270
Min print repeat (mm) 350
Max print repeat (mm) 750

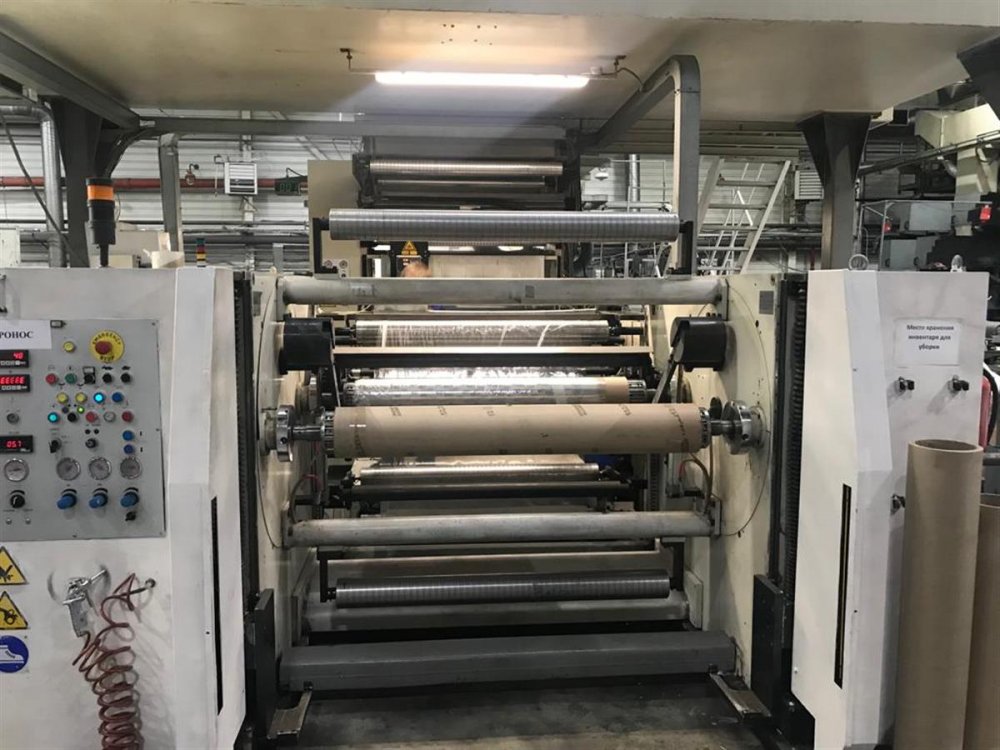

Unwinder type Turret automatic
Max reel diameter unwinder (mm) 800

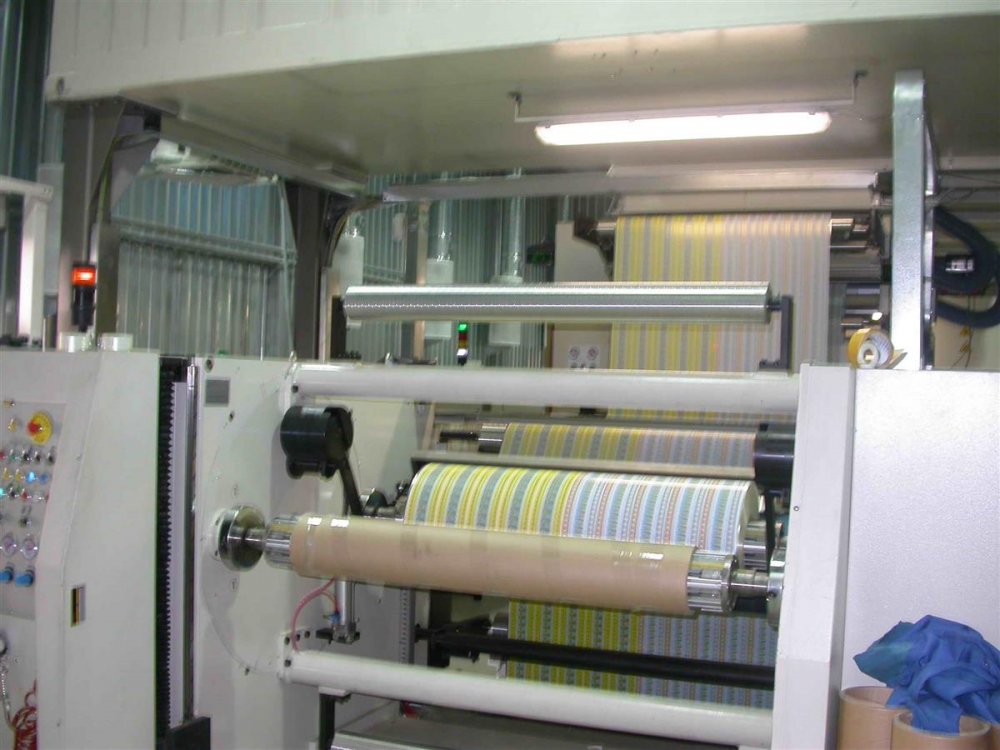

Rewinder type Turret automatic
Max reel diameter rewinder (mm) 800
Drying 2 zones - 4 fans final tunnel -thermo oil heat exchangers - Automatric air recirculation system with LEL control
Videocamera Yes ELTROMAT
Corona treatment Yes FERRARINI BENELLI
Web guides Yes in and oiut
Vyscosity control Yes VISCOLOR 2200
Washing system Yes

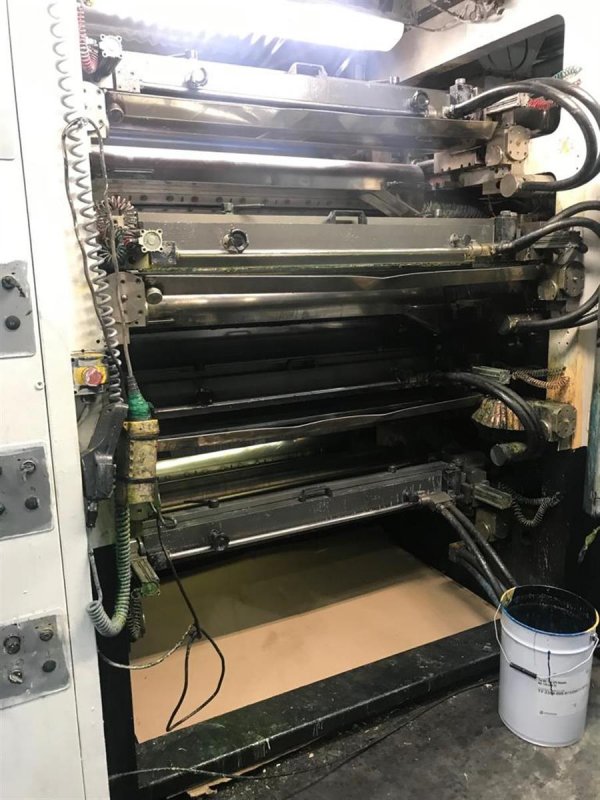

Inking system Closed chamber doctor blades
Anilox 1x80lines ink transfer 16,4, 1x100l x 14,4, 1x120l x 13,2, 3x140l x (9,05,9,6, 11,87), 5x160l x(10.4,10.46, 10.5,10.7, 11.67), 2x260lx(6.1,7.2), 4x220lx(8.4,10,4), 2x300lx(5, 4.96), 1x260lx(7.2), 5x360lx(4.5,4.4,4.2,4.4,4.4)
Print Sleeves 4x40cm, 8x43, 7x44, 9x45, 8x46, 9x47, 8x49, 4x50, 6x51, 8x55, 10x57, 10x58, 7x62, 7x64 + 1 set of Carriers
