** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL771
- Manufacturer
- SCHIAVI
- Modello

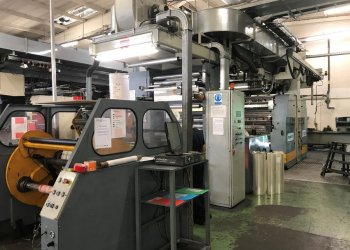

- POLARIS 136
- Year
- 1997
- Number of colors
- 6
- Gearless
- No
- Fast sleeve change
- No
- Computer supervision
- Yes
- Web width (mm)
- 920
- Print width (mm)
- 870
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 800
- Unwinder type
- Double spindle turret drop splice
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Double spindle turret flying splice
- Max reel diameter rewinder (mm)
- 800
- Drying
- Gas burner.Drying system:Hot air
- Inking system
- solvent based.Enclosed doctor blade chambers with ceramic anilox rollers.6 ink pumps.
- Anilox
- anilox rollers ceramic coated and laser engraved, as following: 1 roller engraved with screen 280 lines/inch, volumes 5;3 rollers engraved with screen 280 lines/inch, volumes 12;2 rollers engraved with screen 300 lines/inch, volumes 14;2 rollers engraved with screen 350 lines/inch, volumes 9;2 rollers engraved with screen 450 lines/inch, volumes 7;2 rollers engraved with screen 550 lines/inch, volumes 5.
- Note
- Substrates able to process :Plastic films Speed: 250 m./min. Bull-gear, pitch 10 mm. Lenght registers : motorized remote controlled. Side registers: manual. Decks’ positioning system :motorized. Locking system of the printing units: manual. Video inspection system
| Machine Code | FL771 |
| Manufacturer | SCHIAVI |
| Modello | POLARIS 136 |
| Year | 1997 |
| Number of colors | 6 |
| Gearless | No |
| Fast sleeve change | No |
| Computer supervision | Yes |
| Web width (mm) | 920 |
| Print width (mm) | 870 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 800 |
| Unwinder type | Double spindle turret drop splice |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Double spindle turret flying splice |
| Max reel diameter rewinder (mm) | 800 |
| Drying | Gas burner.Drying system:Hot air |
| Inking system | solvent based.Enclosed doctor blade chambers with ceramic anilox rollers.6 ink pumps. |
| Anilox | anilox rollers ceramic coated and laser engraved, as following: 1 roller engraved with screen 280 lines/inch, volumes 5;3 rollers engraved with screen 280 lines/inch, volumes 12;2 rollers engraved with screen 300 lines/inch, volumes 14;2 rollers engraved with screen 350 lines/inch, volumes 9;2 rollers engraved with screen 450 lines/inch, volumes 7;2 rollers engraved with screen 550 lines/inch, volumes 5. |
| Note | Substrates able to process :Plastic films Speed: 250 m./min. Bull-gear, pitch 10 mm. Lenght registers : motorized remote controlled. Side registers: manual. Decks’ positioning system :motorized. Locking system of the printing units: manual. Video inspection system |
