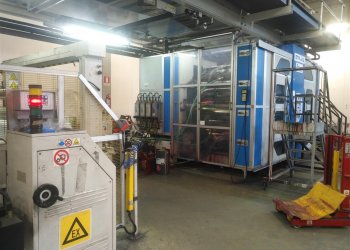

UTECO ONYX 808 Flexo central drum printing press 8 colors

** SOLD **

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Ask more informations
about a similar one
Machine Code
FL738
Manufacturer
UTECO
Model
ONYX 808
Year
2007
Number of colors
8
Print possibilityes
8+0
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1250
Print width (mm)
1200
Min print repeat (mm)
380
Max print repeat (mm)
850
Unwinder type
Turret Automatic flying splice - roll loading system
Max reel diameter unwinder (mm)
800
Rewinder type
Turret Automatic flying splice - roll loading system
Max reel diameter rewinder (mm)
800
Drying
2 zones - 4 fans- 4 mt tunnel - 2 thermo il heaters - automtic recircultion system with LEL control system
Videocamera
yes
Corona treatment
No
Web guides
yes
Vyscosity control
yes
Washing system
yes
Inking system
Close dchamber doctor blades
Anilox
12 ceramic anilox sleeves
Print Sleeves
15 sets of print sleeves
Machine Code FL738
Manufacturer UTECO
Model ONYX 808
Year 2007
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1250
Print width (mm) 1200
Min print repeat (mm) 380
Max print repeat (mm) 850
Unwinder type Turret Automatic flying splice - roll loading system
Max reel diameter unwinder (mm) 800
Rewinder type Turret Automatic flying splice - roll loading system
Max reel diameter rewinder (mm) 800
Drying 2 zones - 4 fans- 4 mt tunnel - 2 thermo il heaters - automtic recircultion system with LEL control system
Videocamera yes
Corona treatment No
Web guides yes
Vyscosity control yes
Washing system yes
Inking system Close dchamber doctor blades
Anilox 12 ceramic anilox sleeves
Print Sleeves 15 sets of print sleeves
** SOLD **
WINDMOELLER & HOLSCHER NOVOFLEX
BIELLONI THEOREMA
WINDMÖLLER & HÖLSCHER OLYMPIA
CARINT GEMINI 1206 DFB – MOD. 120
FISCHER & KRECKE 12 DF

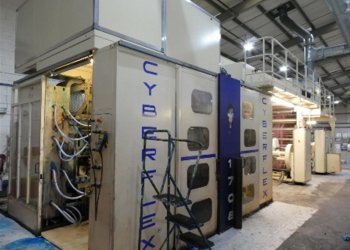

CARINT- C&C FLEXO Cyberflex 1708
