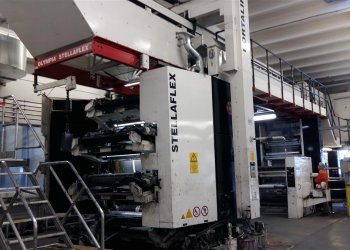

WINDMOLLER & HOLSCHER STELLAFLEX Flexo central drum printing press 8 colors

** SOLD **

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Ask more informations
about a similar one
Machine Code
FL704
Manufacturer
WINDMOLLER & HOLSCHER
Model
STELLAFLEX
Year
1997
Number of colors
8
Print possibilityes
8+0
Gearless
No
Fast sleeve change
No
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1320
Print width (mm)
1270
Min print repeat (mm)
350
Max print repeat (mm)
1060
Unwinder type
Turret Automatic
Max reel diameter unwinder (mm)
1000
Rewinder type
Turret Automatic
Max reel diameter rewinder (mm)
1000
Drying
2 zones 4 fans - steam heat exchangers
Videocamera
BST
Web guides
BST in and out
Vyscosity control
yes automatic
Inking system
closed chamber doctor blades
Anilox
16 ceramic anilox
Print Sleeves
approx 180
Print cylinders
2 sets of mandrels
Additional information
Electric controls in air conditioned container Portalift Robotized system to change print cylinders and anilox rollers
Machine Code FL704
Manufacturer WINDMOLLER & HOLSCHER
Model STELLAFLEX
Year 1997
Number of colors 8
Print possibilityes 8+0
Gearless No
Fast sleeve change No
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1320
Print width (mm) 1270
Min print repeat (mm) 350
Max print repeat (mm) 1060
Unwinder type Turret Automatic
Max reel diameter unwinder (mm) 1000
Rewinder type Turret Automatic
Max reel diameter rewinder (mm) 1000
Drying 2 zones 4 fans - steam heat exchangers
Videocamera BST
Web guides BST in and out
Vyscosity control yes automatic
Inking system closed chamber doctor blades
Anilox 16 ceramic anilox
Print Sleeves approx 180
Print cylinders 2 sets of mandrels
Additional information Electric controls in air conditioned container Portalift Robotized system to change print cylinders and anilox rollers
