** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL659
- Manufacturer
- FISCHER & KRECKE
- Modello
- 34 DF
- Year
- 2000
- Number of colors
- 8
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- No
- Web width (mm)
- 1450
- Print width (mm)
- 1400
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 1000
- Max reel diameter unwinder (mm)
- 1000
- Max reel diameter rewinder (mm)
- 1000
- Videocamera
- AVT optical web scanner
- Corona treatment
- no
- Web guides
- Yes
- Vyscosity control
- Yes

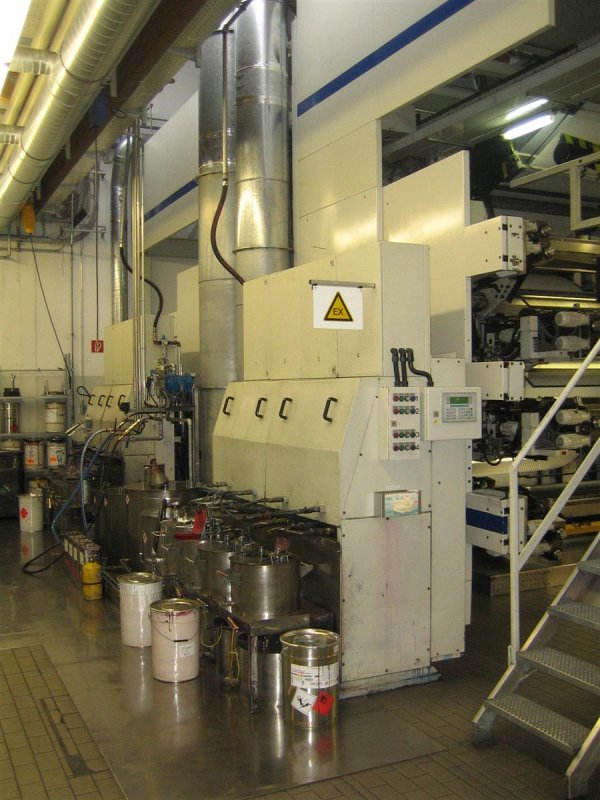

- Inking system
- Ink pump system with cleaning function
- Anilox
- Not available
- Print Sleeves
- 76
- Note
- Speed 300m/min Reel width min 400mm -max 1500mm Cores diameters unwind/rewind 76mm Turn bar for 1/2 web Cutt off 300mm-1160mm = 6 colors 300mm-1000mm = 8 colors AVT optical web scanner reel slitter +extraction reel width min 400 -max 1500mm
| Machine Code | FL659 |
| Manufacturer | FISCHER & KRECKE |
| Modello | 34 DF |
| Year | 2000 |
| Number of colors | 8 |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | No |
| Web width (mm) | 1450 |
| Print width (mm) | 1400 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 1000 |
| Max reel diameter unwinder (mm) | 1000 |
| Max reel diameter rewinder (mm) | 1000 |
| Videocamera | AVT optical web scanner |
| Corona treatment | no |
| Web guides | Yes |
| Vyscosity control | Yes |
| Inking system | Ink pump system with cleaning function |
| Anilox | Not available |
| Print Sleeves | 76 |
| Note | Speed 300m/min Reel width min 400mm -max 1500mm Cores diameters unwind/rewind 76mm Turn bar for 1/2 web Cutt off 300mm-1160mm = 6 colors 300mm-1000mm = 8 colors AVT optical web scanner reel slitter +extraction reel width min 400 -max 1500mm |
