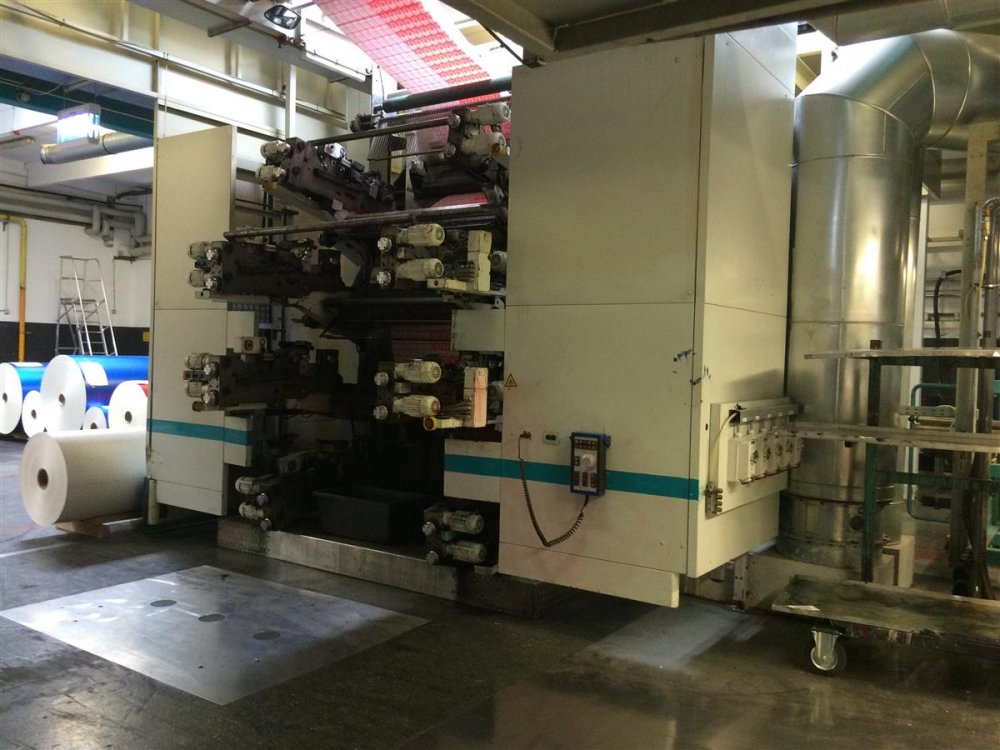

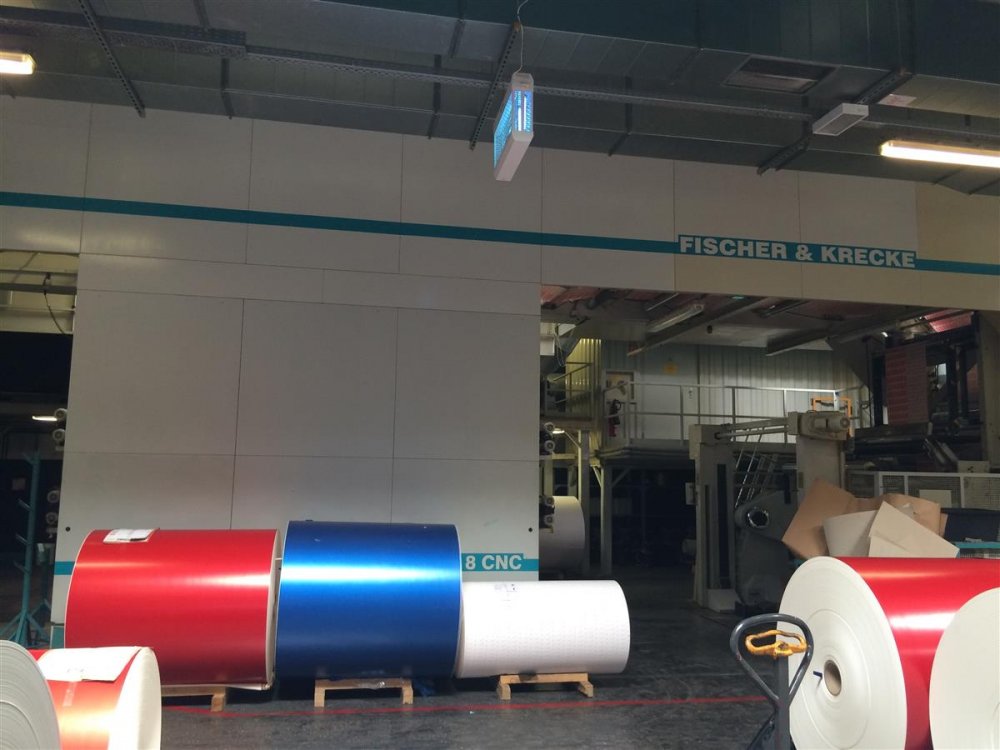

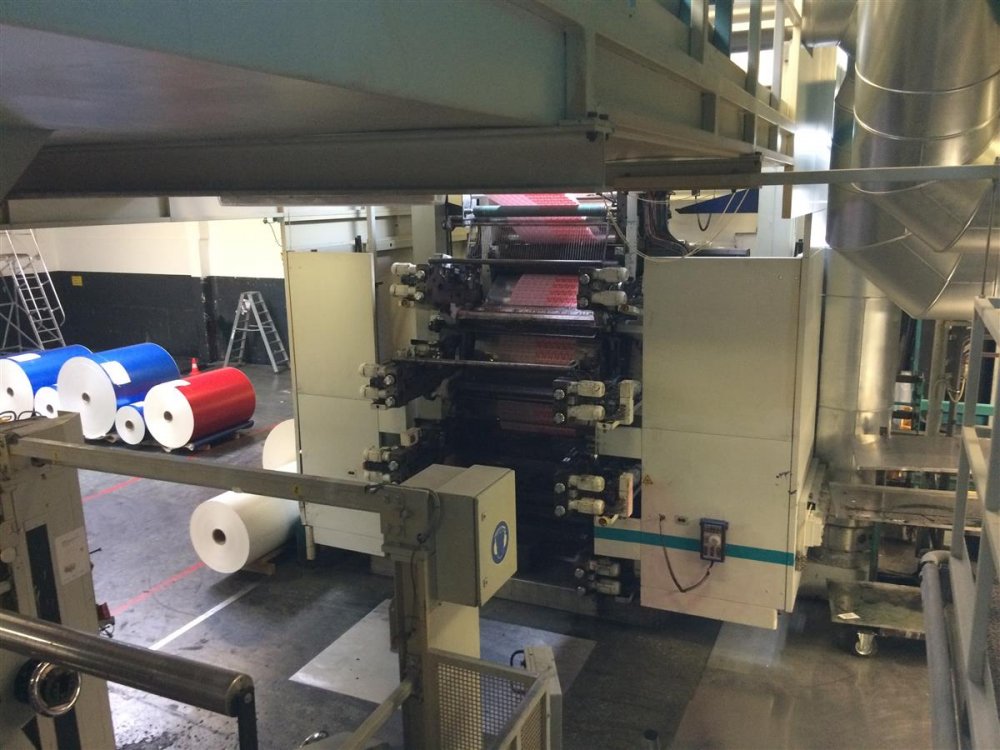

FISCHER & KRECKE 34 DF Flexo central drum printing press 9 colors ** SOLD ** Ask more informations about a similar one

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Machine Code FL643
Manufacturer FISCHER & KRECKE
Model 34 DF
Year 1999
Number of colors 9
Print possibilities 8 colors flexo + 1 rotogravure. 9 col printing or 8 col printing and 1 for cold/hot seal or laquers.
Gearless No
Fast sleeve change No
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1280
Print width (mm) 1250
Min print repeat (mm) 380
Max print repeat (mm) 1030

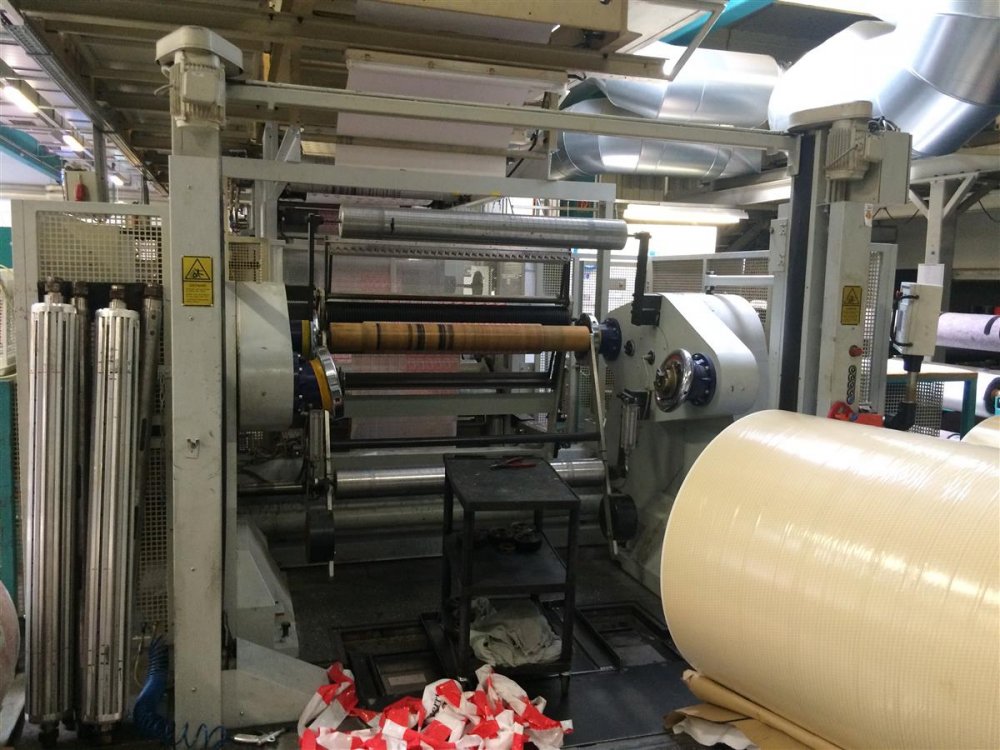

Unwinder type Turret
Max reel diameter unwinder (mm) 1250

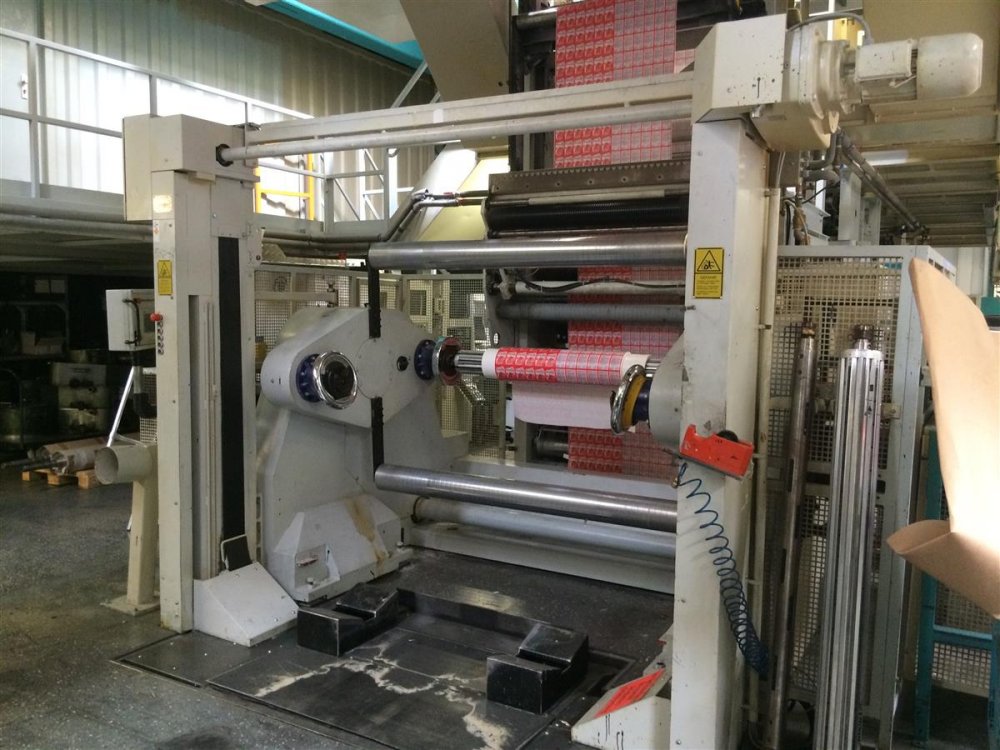

Rewinder type Turret
Max reel diameter rewinder (mm) 1000

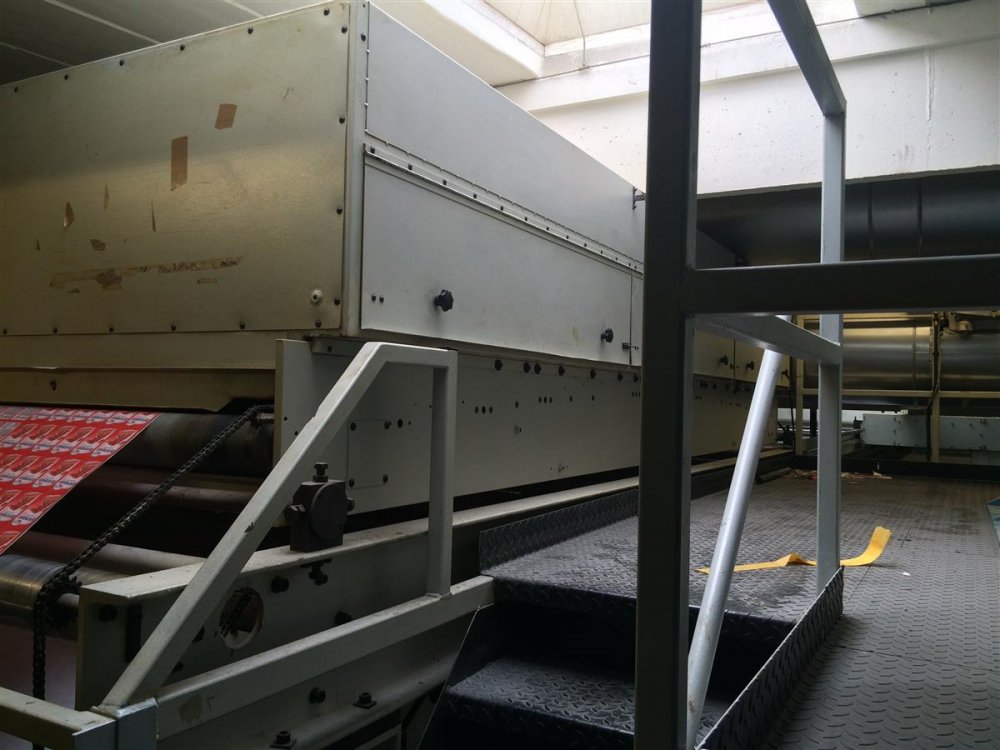

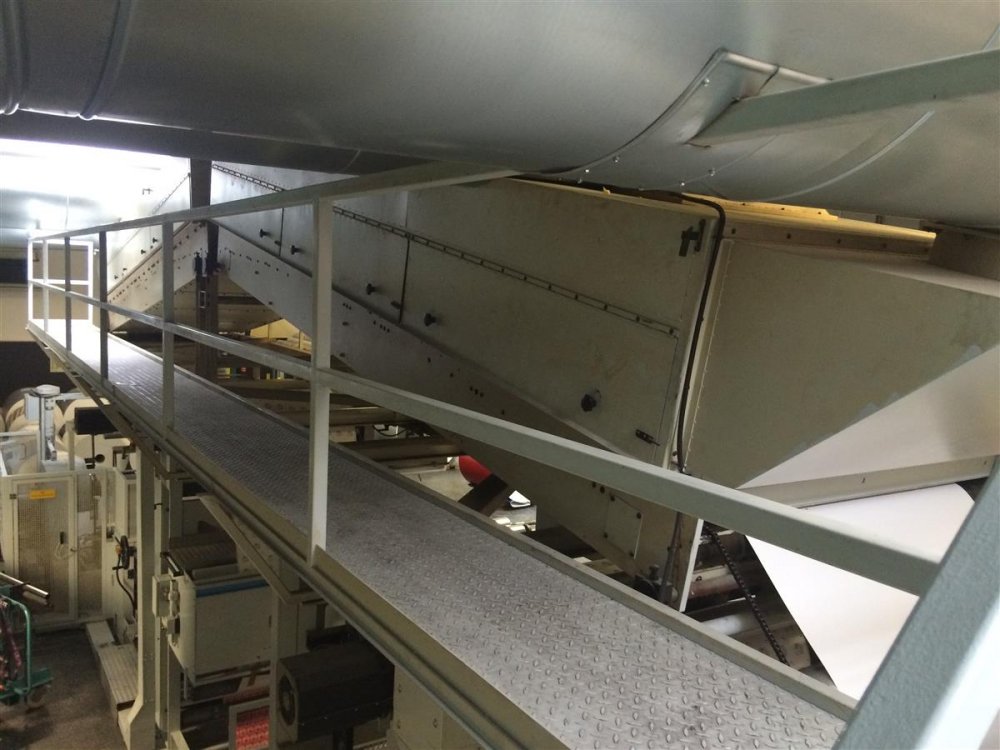

Drying 4 Gas burners 4 fans. Flexo unit drying: 2 zones one for inter- color flexo on CI and second is a 5m long drying tunnel. Rotogravure drying: 2 drying hood 6m length eachwith independent ventilations and heaters. tot 12 m.
Videocamera 2 x Eltromat High resolution camera. for fron side and back side
Web guides BST web control
Inking system Chamber doctor blades. 7 chamber in carbon fibers and 5 in alluminium. Ink tanks.Electric Ink pumps. motor under inverter
Anilox 16 anilox roller: 2x 400 l/cm -60°-5,2 cm³/m² ; 3x 380 i/cm -60°-3,8/4,9cm³/m² ; 6x 340 l/cm -60°-5,5cm³/m² ; 6x 300 l/cm –60°-4,3-7,7cm³/m² ; 2x 255 l/cm –60°-6,0 -9 cm³/m² ; 2x 240 l/cm –60°-7,9 -9,3 cm³/m² ; 4x 220 l/cm –60°-8,2 cm³/m² ; 6x 180 l/cm –60°-7,2 cm³/m² ; 2x 160 l/cm –60°-10 cm³/m² ; 2x 150 l/cm –60°-9,4cm³/m² ; 2x 140 l/cm –60°-7,3 cm³/m² ; 2x 120 l/cm –60°-7,7cm³/m²
Print Sleeves No. Several gears and air mandrels available
Print cylinders 127,388x 8:420 ;136,942x2: 450 ; 143,312x8:470 ; 152,866x8:500 ; 162,420x16:530 ; 168,789x16:550 ; 175,159x8:570 ; 191,082x8:620 ; 210,191x8:680 ; 219,745x8: 710 ; 229.229x8:740 ; 245,215x8:790
Additional information •V= max.365m/min •temperature control unit and cold water composition •Gravure unit for front or reverse side (turn-cross in the ground) UNWINDING: •possibility to unwind front or reverse side to be preferred printing side •winding shafts 2x 76mm and 2x 150mm •automatic reel change REWINDING: •Possibility to rewind front or reverse side to be preferred reel outside •winding shafts 2 x 76mm und 2 x 150mm DIMENSIONS: •Width: 11m •Length: 30m •Height: 6m •Diameter central cylinder 2,26 mm = 7,1 m circumference

** SOLD **
