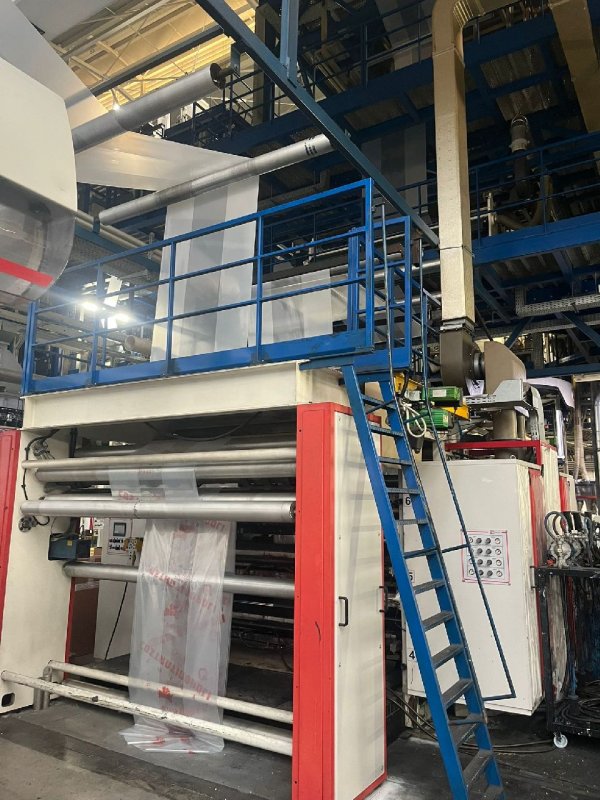

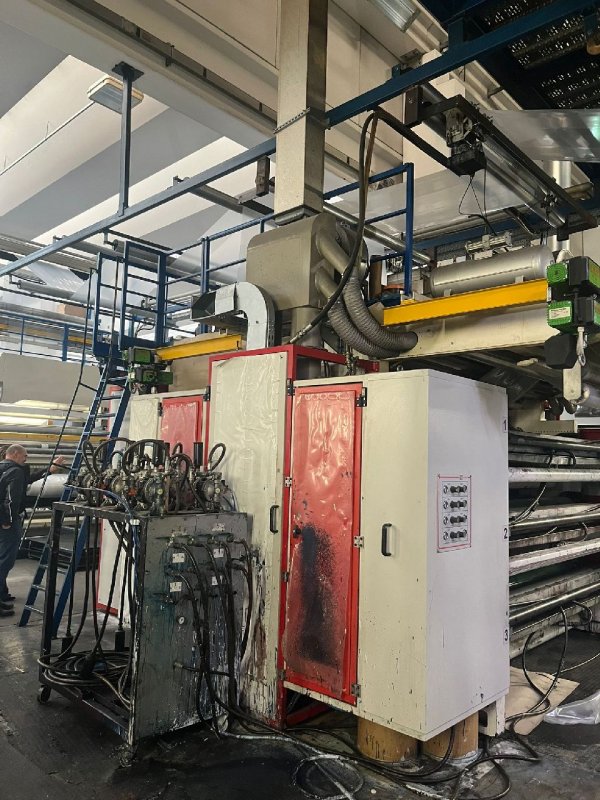

- Code Machine
- ST278
- Fabricant
- FLEXOSTAR
- Modello
- Anthares 6
- Année
- 2016
- Number of colors
- 6
- Print possibilityes
- 6+0 , 3+3
- Taper
- Inline Print Section
- Web width (mm)
- 2650
- Print width (mm)
- 2600
- Print repeat (mm)
- Min : 500 - Max : 1200 mm
- Drying
- 1 zone two fans -
- Inking sysytem
- Closed chamber doctor blades and ceramic anilox roller
- Anilox
- Ceramic
- Print Sleeves
- 6x 520 mm, 6x 610 mm, 6x 710 mm, 6x 810 mm, 4x 850 mm, 2x 960 mm
- Print cylinders
- 1 set of 6 carriers for repeat > 700 mm
- Note
- In Line to extrusion line Sleeve change system for printign cylinders Motorized , remote controlled longitudinal and side register Four motor per station , print positioning system
| Code Machine | ST278 |
| Fabricant | FLEXOSTAR |
| Modello | Anthares 6 |
| Année | 2016 |
| Number of colors | 6 |
| Print possibilityes | 6+0 , 3+3 |
| Taper | Inline Print Section |
| Web width (mm) | 2650 |
| Print width (mm) | 2600 |
| Print repeat (mm) | Min : 500 - Max : 1200 mm |
| Drying | 1 zone two fans - |
| Inking sysytem | Closed chamber doctor blades and ceramic anilox roller |
| Anilox | Ceramic |
| Print Sleeves | 6x 520 mm, 6x 610 mm, 6x 710 mm, 6x 810 mm, 4x 850 mm, 2x 960 mm |
| Print cylinders | 1 set of 6 carriers for repeat > 700 mm |
| Note | In Line to extrusion line Sleeve change system for printign cylinders Motorized , remote controlled longitudinal and side register Four motor per station , print positioning system |
