- Code Machine
- LA393
- Fabricant
- CERUTTI
- Année
- 2004
- Application
- Lamination + coating
- Type of lamination/coating
- COMBI / INTECHANGEABLE TROLLEY
- Working width (mm)
- 1350
- Materials
- BOPP, PET, LDPE, Al foil , CPP and Paper
- Speed
- 500 mpm
- First unwinder type
- Turret automatic web tensiuon 4-60 kg
- Max diameter reel unwinder
- 1000
- Secondary unwinder type
- Turret automatic
- Max diameter reel unwinder
- 800
- Rewinder type
- Turret automatic - web tension 4- 80 kg - Helios slitter
- Max diameter reel rewinder
- 1000
- Coating unit
- with Gravure trolley for slovent based , Solventless trolley
- Drying
- Pre heating Oven, Main oven DecATech high efficiency 5mt 15 nozzles , air velocity 40 mt/sec
- Register controll
- Yes BST -Eltromat for cold seal
- pumping mixing unit
- Yes Vea Matrix
- Corona treatment
- Yes MERO

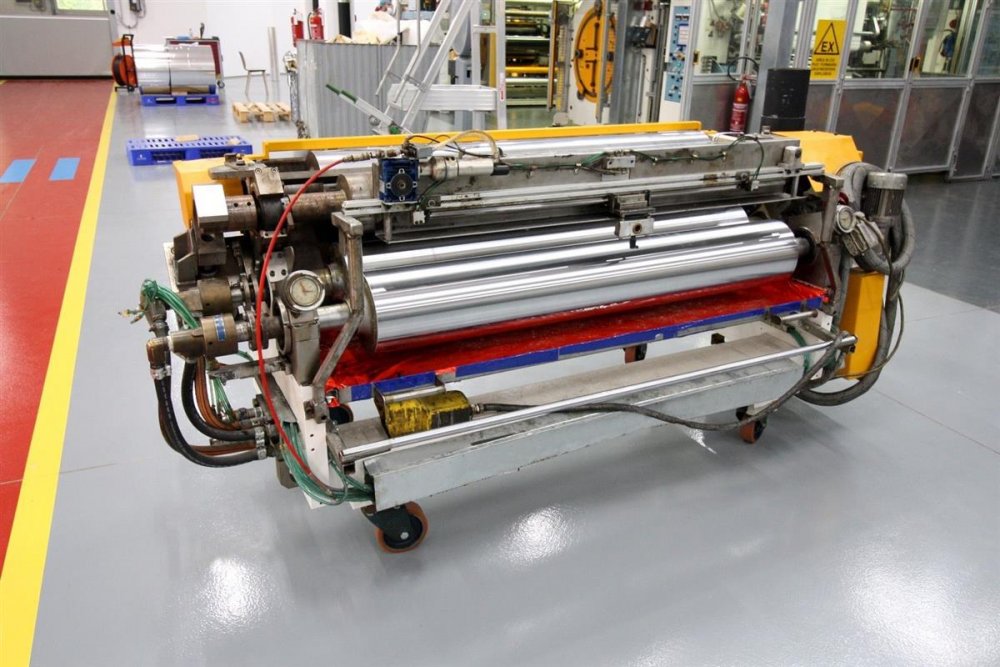

- Coating rollers
- 72 transfer roller sleeves ( for solventless trolley) , 24 counter impression roller sleeves ( for gravure-solvent )
| Code Machine | LA393 |
| Fabricant | CERUTTI |
| Année | 2004 |
| Application | Lamination + coating |
| Type of lamination/coating | COMBI / INTECHANGEABLE TROLLEY |
| Working width (mm) | 1350 |
| Materials | BOPP, PET, LDPE, Al foil , CPP and Paper |
| Speed | 500 mpm |
| First unwinder type | Turret automatic web tensiuon 4-60 kg |
| Max diameter reel unwinder | 1000 |
| Secondary unwinder type | Turret automatic |
| Max diameter reel unwinder | 800 |
| Rewinder type | Turret automatic - web tension 4- 80 kg - Helios slitter |
| Max diameter reel rewinder | 1000 |
| Coating unit | with Gravure trolley for slovent based , Solventless trolley |
| Drying | Pre heating Oven, Main oven DecATech high efficiency 5mt 15 nozzles , air velocity 40 mt/sec |
| Register controll | Yes BST -Eltromat for cold seal |
| pumping mixing unit | Yes Vea Matrix |
| Corona treatment | Yes MERO |
| Coating rollers | 72 transfer roller sleeves ( for solventless trolley) , 24 counter impression roller sleeves ( for gravure-solvent ) |
