- Code Machine
- LA310
- Fabricant
- NORDSON
- Modello
- CT6000
- Année
- 2006
- Application
- Coating
- Type of lamination/coating
- HOT MELT
- Working width (mm)
- 1800
- Materials
- Non wovens, paper film (depending on specifications
- First unwinder type
- Center surface driven, automatic change
- Max diameter reel unwinder
- 1300
- Rewinder type
- POPE roller system
- Max diameter reel rewinder
- 1300
- Coating unit
- Hot melt coating head Nordson, thermo regulated coating calender, chiller calender
- Second Coating unitr
- Hot melt coating head Nordson, thermo regulated coating calender, chiller calender
- pumping mixing unit
- 2x NBM hot melt coater premelters from drum, 2 x NPS Bulke metering and pumping system, both allowing continous supply of premelted coatings to coating heads/slots
- Note
- - Complete reel extraction syste, reels stretch wrapping on 100% of surface , reel turning and handling - Each coating unit has a spare coating die, therefore tot 4 coating heads supplied with machine - Quality inspection Isra system
| Code Machine | LA310 |
| Fabricant | NORDSON |
| Modello | CT6000 |
| Année | 2006 |
| Application | Coating |
| Type of lamination/coating | HOT MELT |
| Working width (mm) | 1800 |
| Materials | Non wovens, paper film (depending on specifications |
| First unwinder type | Center surface driven, automatic change |
| Max diameter reel unwinder | 1300 |
| Rewinder type | POPE roller system |
| Max diameter reel rewinder | 1300 |
| Coating unit | Hot melt coating head Nordson, thermo regulated coating calender, chiller calender |
| Second Coating unitr | Hot melt coating head Nordson, thermo regulated coating calender, chiller calender |
| pumping mixing unit | 2x NBM hot melt coater premelters from drum, 2 x NPS Bulke metering and pumping system, both allowing continous supply of premelted coatings to coating heads/slots |
| Note | - Complete reel extraction syste, reels stretch wrapping on 100% of surface , reel turning and handling - Each coating unit has a spare coating die, therefore tot 4 coating heads supplied with machine - Quality inspection Isra system |

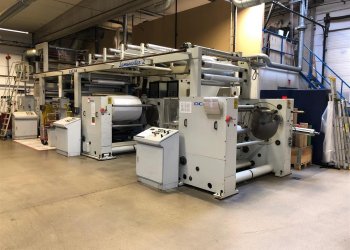

DCM Laminastar 2
-
