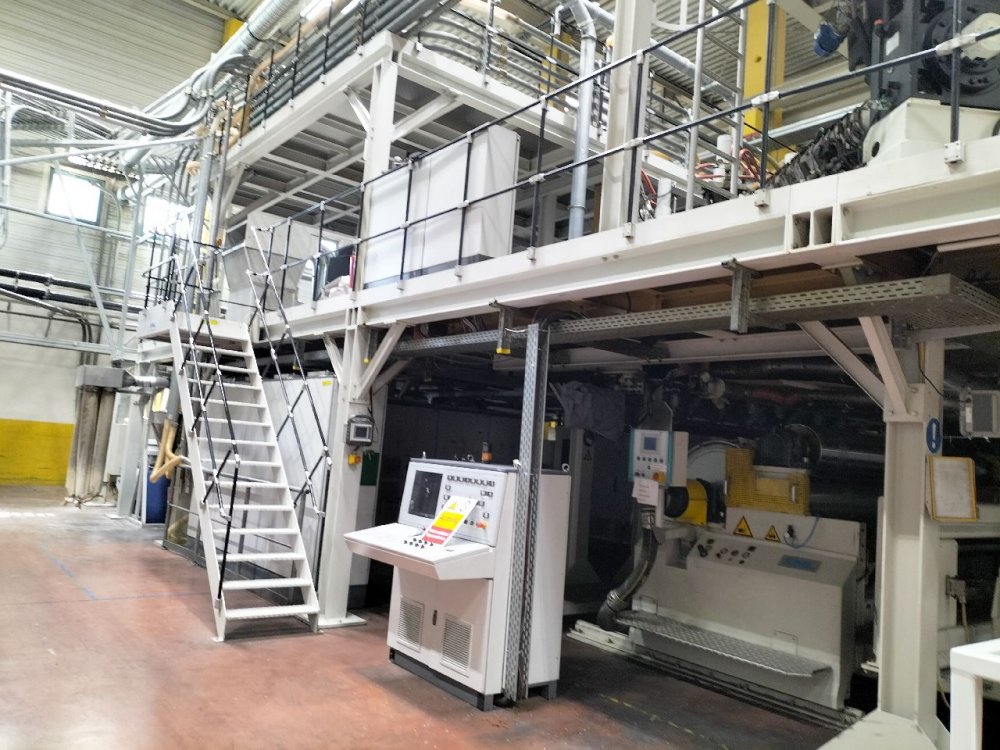

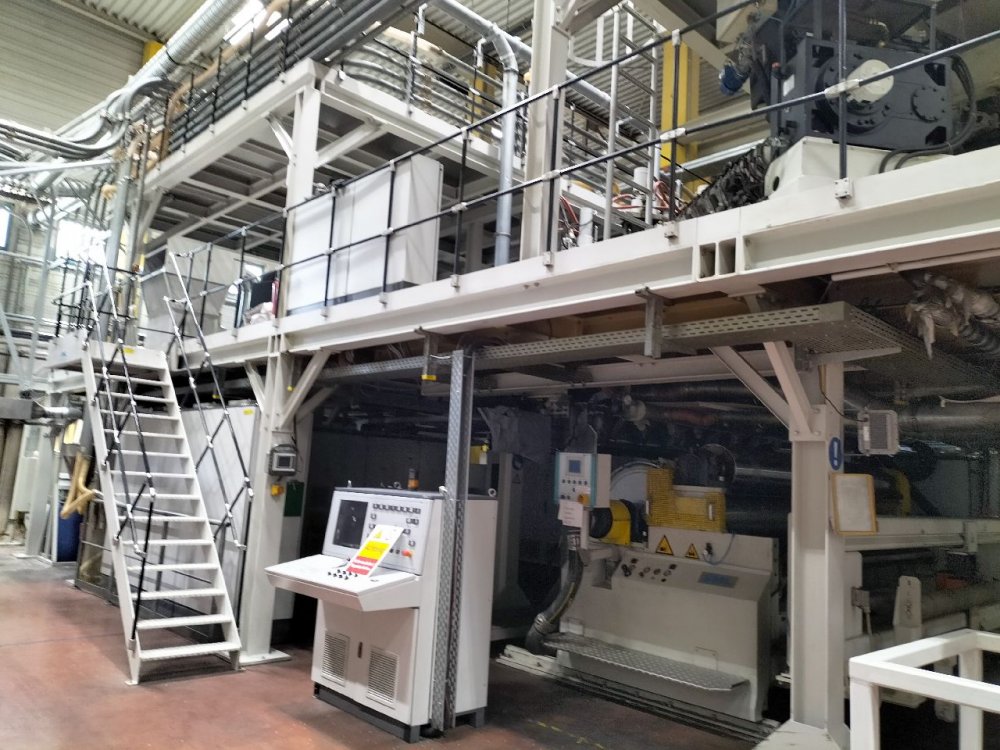

- Code Machine
- CA258
- Fabricant
- SML
- Modello
- CAST COEX 7
- Année
- 2008
- Number of layers
- 7
- Material
- Stretch film LLDPE
- Film width (mm)
- 2500
- Output (Kg/h)
- Nominal capacity 4600 kg /h Max net capacity at rewinder 2750 kg/h .

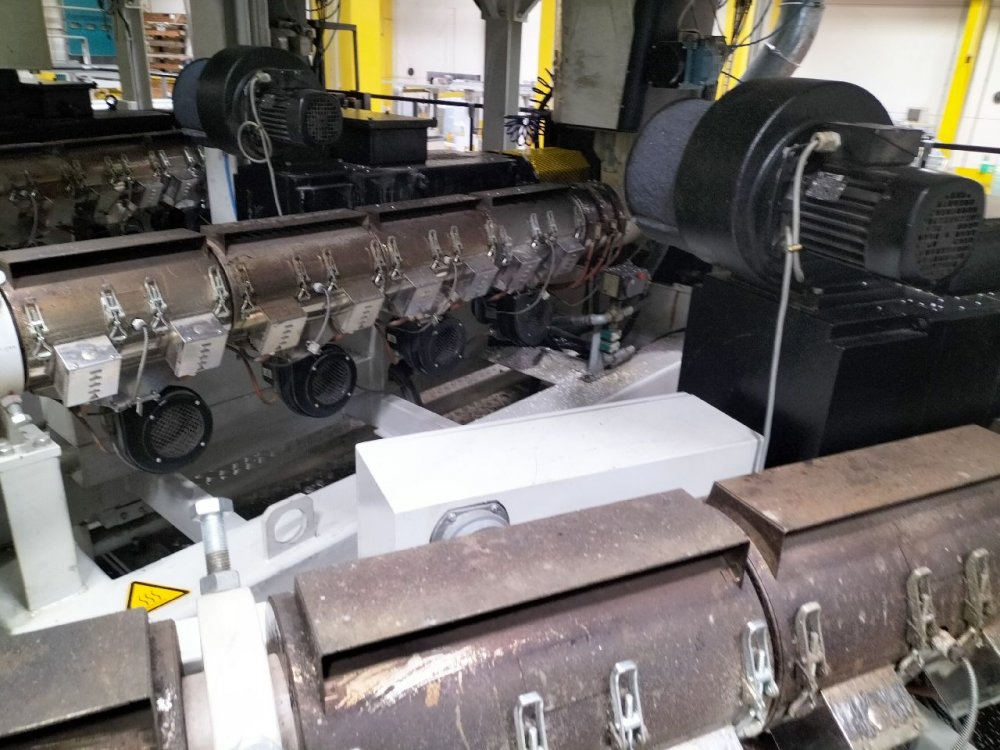

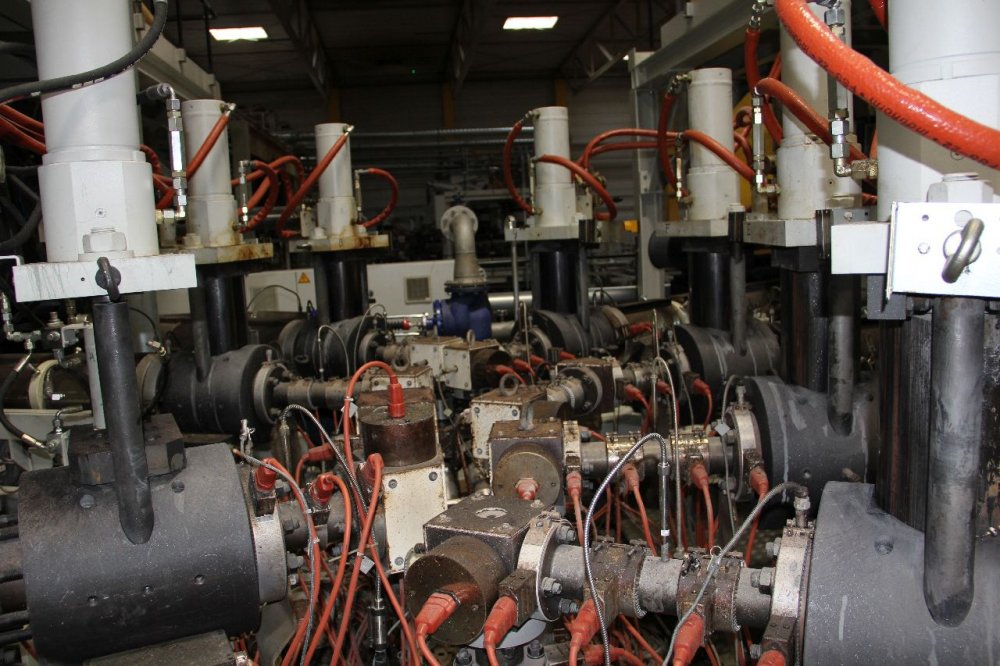

- Extruder 1 Layer ref:
- A
- Screw diam 1
- 75
- Description 1

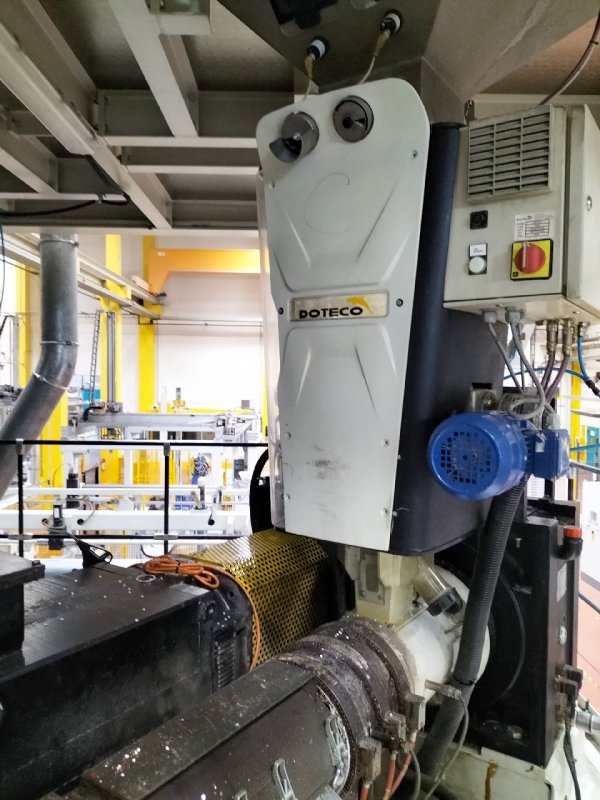

- Gravimetric dosing units 4 components make Doteco, hydraulic screen changer. AC motors
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 75
- Description 2
- Gravimetric dosing units 4 components make Doteco, hydraulic screen changer. AC motors
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 75
- Description 3
- Gravimetric dosing units 4 components make Doteco, hydraulic screen changer. AC motors
- Extruder 4 Layer ref:
- D
- Screw diam 4
- 90
- Description 4
- Gravimetric dosing units 4 components make Doteco, hydraulic screen changer. AC motors
- Extruder 5 Layer ref:
- E
- Screw diam 5
- 75
- Description 5
- Gravimetric dosing units 4 components make Doteco, hydraulic screen changer. AC motors
- Extruder 6 Layer ref:
- F
- Screw diam 6
- 75
- Description 6
- Gravimetric dosing units 4components make Doteco, hydraulic screen changer. AC motors
- Extruder 7 Layer ref:
- G
- Screw diam 7
- 75
- Description 7
- Gravimetric dosing units 4 components make Doteco, hydraulic screen changer. AC motors
- Head description
- Automatic thickness profile control via thermal bolts. Internal deckling system,
- Die width (mm)
- 3100 mm with Internal deckling

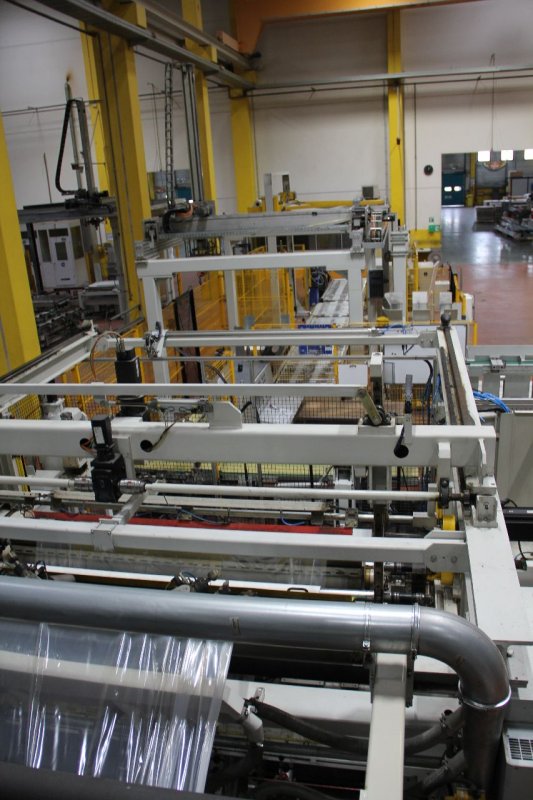

- Chill roll unit
- Double chill roller
- Thickness controll system
- Automatic thickness control system. double thickness gauge type with beta rays by Electronic System.
- Web guide
- Oscillating frame
- Rewinder max reel diameter (mm)
- max single reel weight 80 Kg
- Rewinder description

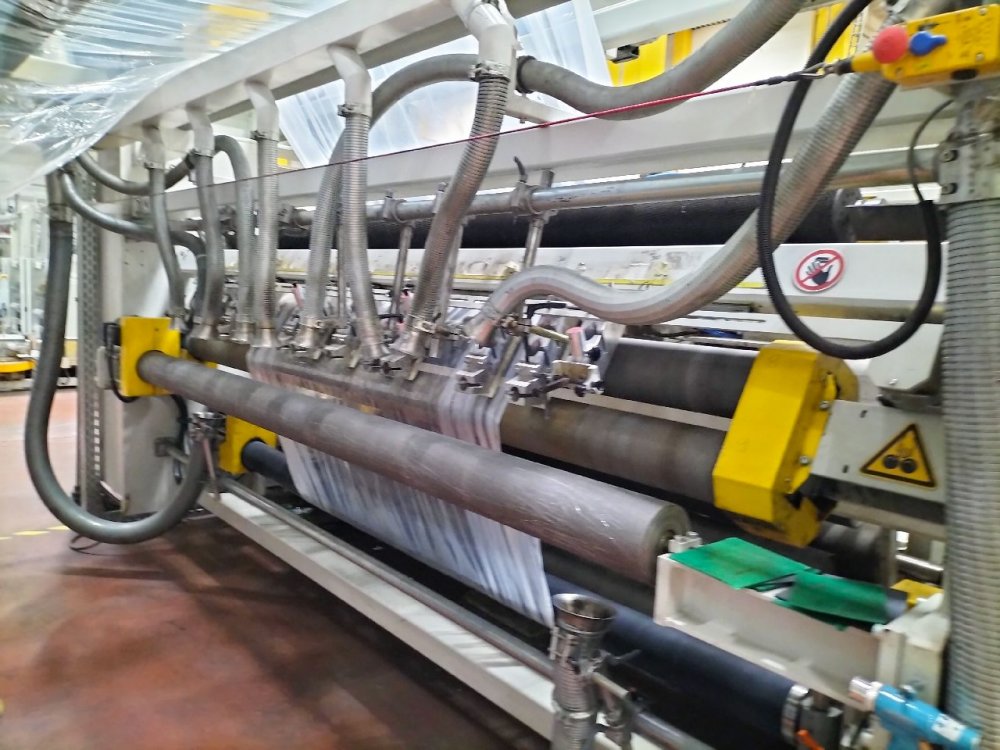

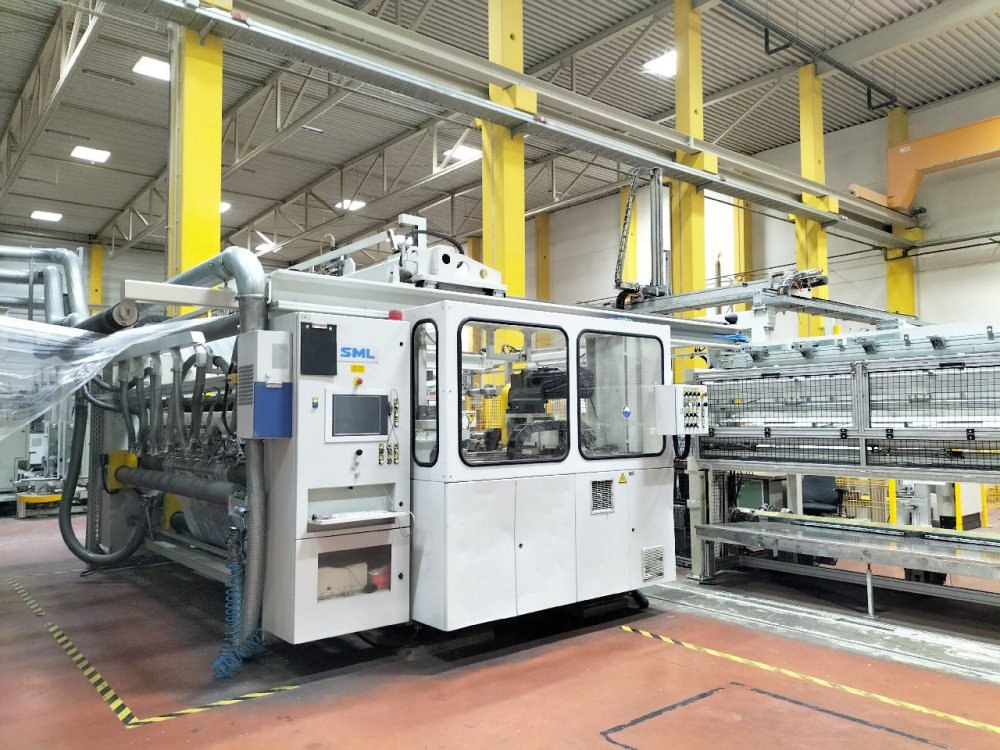

- Winder for machine rolls
- Note

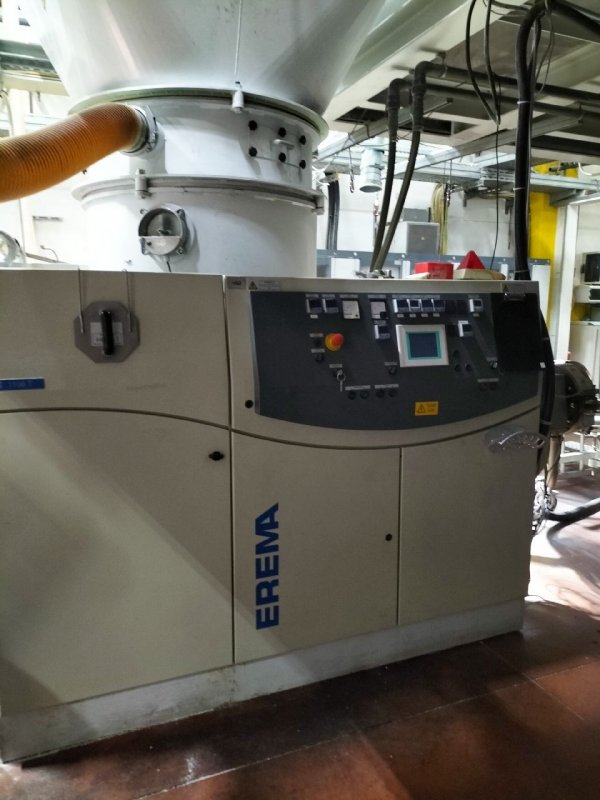

- Nominal capacity 4600 kg /h Max net capacity at rewinder 2750 kg/h Thickness range 12- 70 micron Complete recycling system including : 3 Kongskilde exhaust for edge trims EREMA recycling regranulation unit Additional extruder. 8 for recycled material supplied by Erema unit . Provision for edge encapsulation . Complete end of the line rolls handling and palletizing
| Code Machine | CA258 |
| Fabricant | SML |
| Modello | CAST COEX 7 |
| Année | 2008 |
| Number of layers | 7 |
| Material | Stretch film LLDPE |
| Film width (mm) | 2500 |
| Output (Kg/h) | Nominal capacity 4600 kg /h Max net capacity at rewinder 2750 kg/h . |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 75 |
| Description 1 | Gravimetric dosing units 4 components make Doteco, hydraulic screen changer. AC motors |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 75 |
| Description 2 | Gravimetric dosing units 4 components make Doteco, hydraulic screen changer. AC motors |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 75 |
| Description 3 | Gravimetric dosing units 4 components make Doteco, hydraulic screen changer. AC motors |
| Extruder 4 Layer ref: | D |
| Screw diam 4 | 90 |
| Description 4 | Gravimetric dosing units 4 components make Doteco, hydraulic screen changer. AC motors |
| Extruder 5 Layer ref: | E |
| Screw diam 5 | 75 |
| Description 5 | Gravimetric dosing units 4 components make Doteco, hydraulic screen changer. AC motors |
| Extruder 6 Layer ref: | F |
| Screw diam 6 | 75 |
| Description 6 | Gravimetric dosing units 4components make Doteco, hydraulic screen changer. AC motors |
| Extruder 7 Layer ref: | G |
| Screw diam 7 | 75 |
| Description 7 | Gravimetric dosing units 4 components make Doteco, hydraulic screen changer. AC motors |
| Head description | Automatic thickness profile control via thermal bolts. Internal deckling system, |
| Die width (mm) | 3100 mm with Internal deckling |
| Chill roll unit | Double chill roller |
| Thickness controll system | Automatic thickness control system. double thickness gauge type with beta rays by Electronic System. |
| Web guide | Oscillating frame |
| Rewinder max reel diameter (mm) | max single reel weight 80 Kg |
| Rewinder description | Winder for machine rolls |
| Note | Nominal capacity 4600 kg /h Max net capacity at rewinder 2750 kg/h Thickness range 12- 70 micron Complete recycling system including : 3 Kongskilde exhaust for edge trims EREMA recycling regranulation unit Additional extruder. 8 for recycled material supplied by Erema unit . Provision for edge encapsulation . Complete end of the line rolls handling and palletizing |
