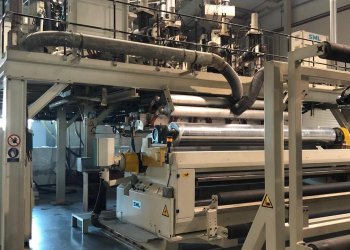

5 couches SML Machine de extrusion de film cast

Code Machine
CA170
Fabricant
SML
Année
2009
Number of layers
5
Material
Stretch film LLDPE
Film width (mm)
3000
Speed (m/min)
600
Extruder 1 Layer ref:
A
Screw diam 1
75mm
Description 1
75/33D, AC drive, bimetallic cylinder, hydraulic screen changer, max 300 kg/h . Doteco Gravimetric dosing units Grado K40, A - 2 components,
Extruder 2 Layer ref:
B
Screw diam 2
90mm
Description 2
90/33D, AC drive, bimetallic cylinder, hydraulic screen changer, max 950 kg/h . Doteco Gravimetric dosing units Grado K40, - 3 components,
Extruder 3 Layer ref:
C
Screw diam 3
90mm
Description 3
90/33D, AC drive, bimetallic cylinder, hydraulic screen changer, max 950 kg/h. Doteco Gravimetric dosing units Grado K40, - 3 components,
Extruder 4 Layer ref:
D
Screw diam 4
75mm
Description 4
75/33D, AC drive, bimetallic cylinder, hydraulic screen changer, max 300 kg/h . Doteco Gravimetric dosing units Grado K40, - 2 components,
Head description
5 layers die head and feedblock Verbruggen . Bi-Vaccum box 3800 mm, 2 vacuum chamber
Thickness controll system
Electronic Systems ; infrared tickness sensor
Web guide
Web Guider OF/3800
Rewinder max reel diameter (mm)
400
Rewinder description
Type of reels: Jumbo and machine reels. Winder W3000/stretch/3400/3''/6up/700, Cycle 30 seconds
Note
Thickness 15-40 my Flat film width 6x500 mm Electrostatic edge pin device ACE Cooling and take off unit CS/600/3800 stretch wrap Cooling roll C1 width 3800 mm, diam 1000 mm, Ac servodrive Cooling roll C2 , width 3800 mm, diam 400 mm, Ac servodrive Cleaning roll width 3800 mm, diam 200 mm Pneumatic edge cooling device Infrared automatic thickness control system EL Edge trim suction Tria Antistatic pipe Web Guider OF/3800 Starlinger Recostar -85-Basic recycling unit Cores magazine and core feeder Inocon
Code Machine CA170
Fabricant SML
Année 2009
Number of layers 5
Material Stretch film LLDPE
Film width (mm) 3000
Speed (m/min) 600
Extruder 1 Layer ref: A
Screw diam 1 75mm
Description 1 75/33D, AC drive, bimetallic cylinder, hydraulic screen changer, max 300 kg/h . Doteco Gravimetric dosing units Grado K40, A - 2 components,
Extruder 2 Layer ref: B
Screw diam 2 90mm
Description 2 90/33D, AC drive, bimetallic cylinder, hydraulic screen changer, max 950 kg/h . Doteco Gravimetric dosing units Grado K40, - 3 components,
Extruder 3 Layer ref: C
Screw diam 3 90mm
Description 3 90/33D, AC drive, bimetallic cylinder, hydraulic screen changer, max 950 kg/h. Doteco Gravimetric dosing units Grado K40, - 3 components,
Extruder 4 Layer ref: D
Screw diam 4 75mm
Description 4 75/33D, AC drive, bimetallic cylinder, hydraulic screen changer, max 300 kg/h . Doteco Gravimetric dosing units Grado K40, - 2 components,
Head description 5 layers die head and feedblock Verbruggen . Bi-Vaccum box 3800 mm, 2 vacuum chamber
Thickness controll system Electronic Systems ; infrared tickness sensor
Web guide Web Guider OF/3800
Rewinder max reel diameter (mm) 400
Rewinder description Type of reels: Jumbo and machine reels. Winder W3000/stretch/3400/3''/6up/700, Cycle 30 seconds
Note Thickness 15-40 my Flat film width 6x500 mm Electrostatic edge pin device ACE Cooling and take off unit CS/600/3800 stretch wrap Cooling roll C1 width 3800 mm, diam 1000 mm, Ac servodrive Cooling roll C2 , width 3800 mm, diam 400 mm, Ac servodrive Cleaning roll width 3800 mm, diam 200 mm Pneumatic edge cooling device Infrared automatic thickness control system EL Edge trim suction Tria Antistatic pipe Web Guider OF/3800 Starlinger Recostar -85-Basic recycling unit Cores magazine and core feeder Inocon
** SOLD **
