- Code Machine
- EX781
- Fabricant
- BANDERA
- Modello
- Coex 7
- Année
- 2006
- Number of layers
- 7
- Film structure
- ABCDEFG
- Material
- Barrier film 23-200 μ, LDPE films 20-150 μ
- Film Width
- 1800
- Output (Kg/h)
- max. 400kg/h

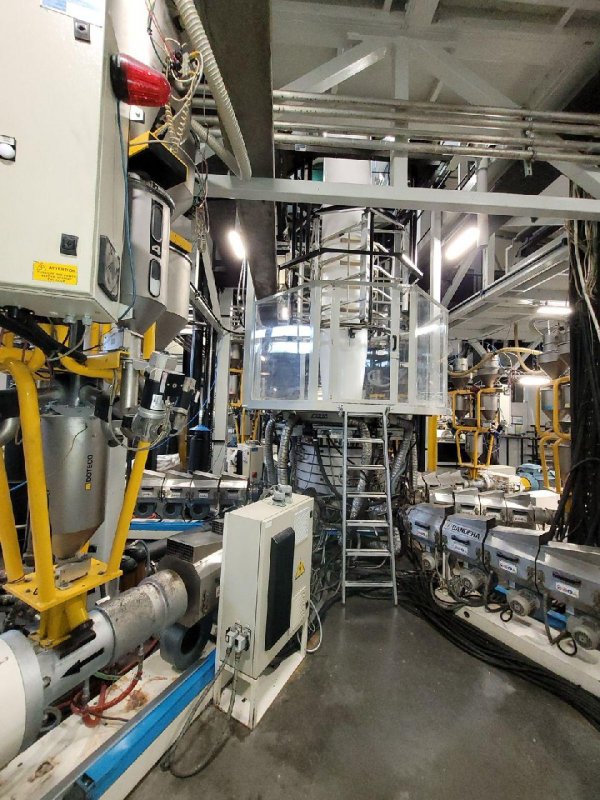

- Extruder 1 Layer ref:
- A
- Screw diam 1
- 75mm,L/D 30/1

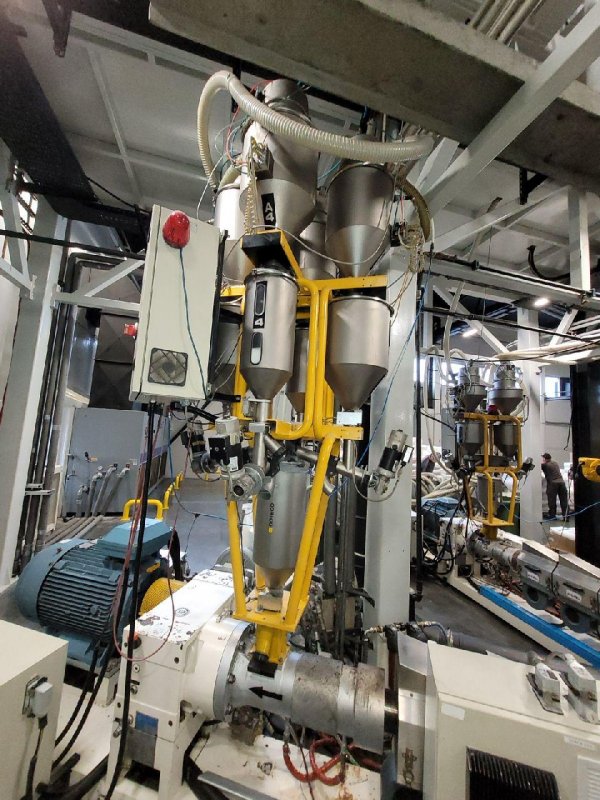

- Description 1
- Gravimetric Dosing units - 4-comp.
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 50mm,L/D 30/1
- Description 2
- Gravimetric Dosing units - 2-comp.
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 65mm, L/D 30/1
- Description 3
- Gravimetric Dosing units - 2-comp.
- Extruder 4 Layer ref:
- D
- Screw diam 4
- 65mm, L/D 30/1
- Description 4
- Gravimetric Dosing units - 2-comp.
- Extruder 5 Layer ref:
- E
- Screw diam 5
- 65mm, L/D 30/1
- Description 5
- Gravimetric Dosing units - 2-comp.
- Extruder 6 Layer ref:
- F
- Screw diam 6
- 50mm, L/D 30/1
- Description 6
- Gravimetric Dosing units - 2-comp.
- Extruder 7 Layer ref:
- G
- Screw diam 7
- 75mm, L/D 30/1
- Description 7
- Gravimetric Dosing units - 4-comp.
- Head description
- mod. EXPH 500 CO7, 7 layers.
- Die diam (mm)
- 570 mm, 400mm
- Thickness controll system
- Automatic thickness profile control. Thickness gauge beta rays, no touch, from 1-500my

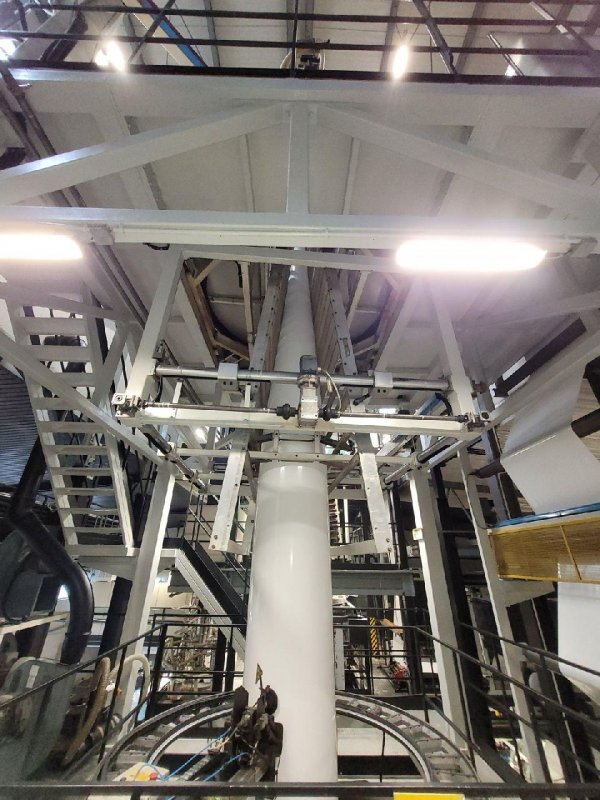

- Bubble cage
- Yes

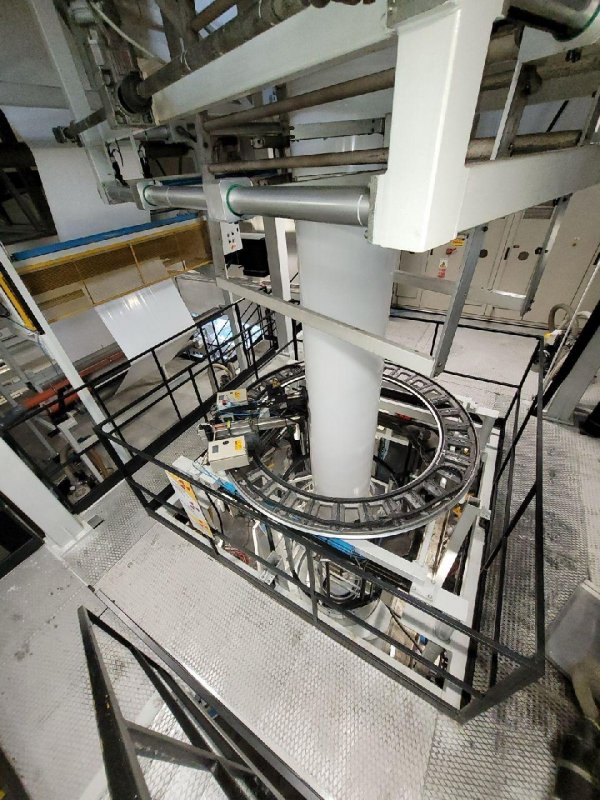

- Take off unit
- Rotating
- Corona treatment
- Yes, max treatment 42 Dynes
- Web guide
- Yes

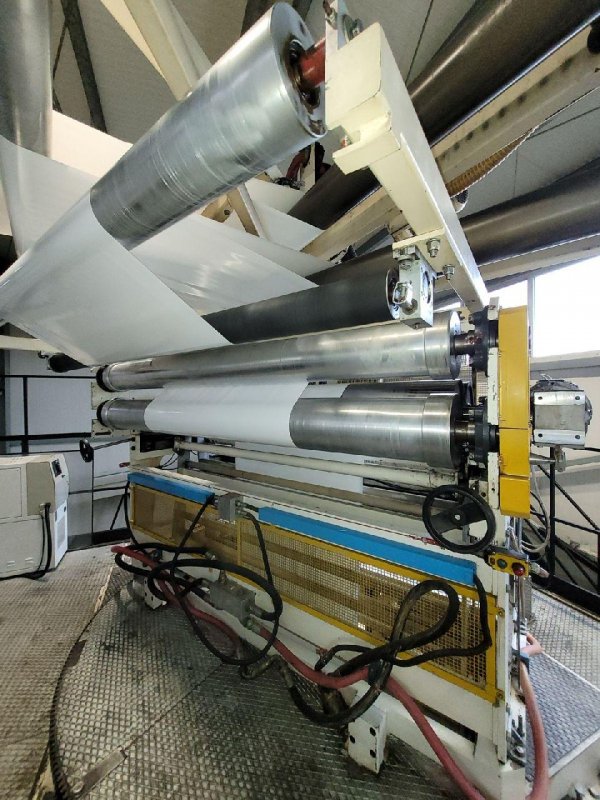

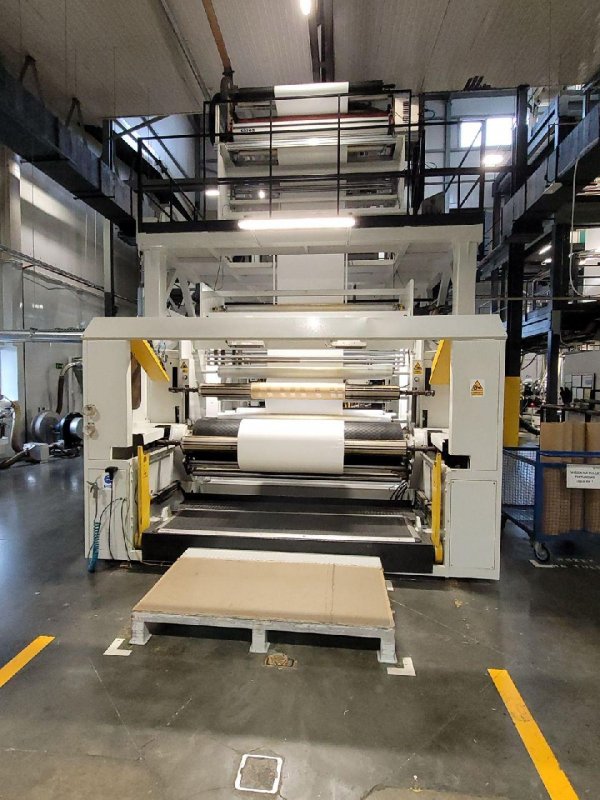

- Rewinder Type
- Double back to back
- Rewinder max reel diameter
- 1200
- Rewinder description
- center and surface driven. Gap winding possible
- Note
- CHILLER AX-A 190 Unit for relaxation of internal tension
| Code Machine | EX781 |
| Fabricant | BANDERA |
| Modello | Coex 7 |
| Année | 2006 |
| Number of layers | 7 |
| Film structure | ABCDEFG |
| Material | Barrier film 23-200 μ, LDPE films 20-150 μ |
| Film Width | 1800 |
| Output (Kg/h) | max. 400kg/h |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 75mm,L/D 30/1 |
| Description 1 | Gravimetric Dosing units - 4-comp. |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 50mm,L/D 30/1 |
| Description 2 | Gravimetric Dosing units - 2-comp. |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 65mm, L/D 30/1 |
| Description 3 | Gravimetric Dosing units - 2-comp. |
| Extruder 4 Layer ref: | D |
| Screw diam 4 | 65mm, L/D 30/1 |
| Description 4 | Gravimetric Dosing units - 2-comp. |
| Extruder 5 Layer ref: | E |
| Screw diam 5 | 65mm, L/D 30/1 |
| Description 5 | Gravimetric Dosing units - 2-comp. |
| Extruder 6 Layer ref: | F |
| Screw diam 6 | 50mm, L/D 30/1 |
| Description 6 | Gravimetric Dosing units - 2-comp. |
| Extruder 7 Layer ref: | G |
| Screw diam 7 | 75mm, L/D 30/1 |
| Description 7 | Gravimetric Dosing units - 4-comp. |
| Head description | mod. EXPH 500 CO7, 7 layers. |
| Die diam (mm) | 570 mm, 400mm |
| Thickness controll system | Automatic thickness profile control. Thickness gauge beta rays, no touch, from 1-500my |
| Bubble cage | Yes |
| Take off unit | Rotating |
| Corona treatment | Yes, max treatment 42 Dynes |
| Web guide | Yes |
| Rewinder Type | Double back to back |
| Rewinder max reel diameter | 1200 |
| Rewinder description | center and surface driven. Gap winding possible |
| Note | CHILLER AX-A 190 Unit for relaxation of internal tension |

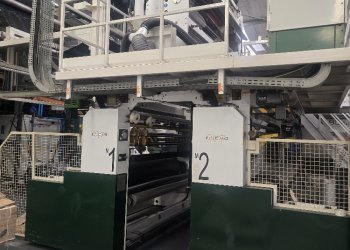

MACCHI
-
