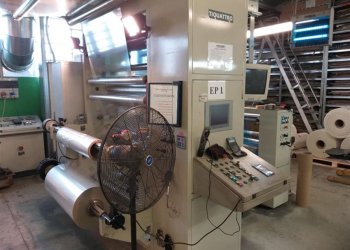

- Code Machine
- ST237
- Fabricant
- TIQUATTRO
- Année
- 2004
- Number of colors
- 6
- Taper
- Reel to Reel
- Web width (mm)
- 1300
- Print width (mm)
- 1200
- Print repeat (mm)
- max 800
- unwinder type
- Double bracket
- Max diameter reel unwinder (mm)
- 800
- Rewinder type
- Double bracket
- Max diameter reel rewinder (mm)
- 800
- Drying
- gas
- Videocamera
- yes
- Corona treatment
- yes
- Inking sysytem
- Closed chamber doctor blades
- Anilox
- Qty x lines/cm: 1x60; 1x80; 2x120; 1x160; 1x220; 1x280; 3x320; 1x360
- Print Sleeves
- 6x (320,340,360,400,420,450,560,480,520,560,600,650 mm); 10x500mm; 4x680mm; + 11 rubber sleeves
- Note
- Sleeves for plate 1,14mm
Code Machine | ST237 |
Fabricant | TIQUATTRO |
Année | 2004 |
Number of colors | 6 |
Taper | Reel to Reel |
Web width (mm) | 1300 |
Print width (mm) | 1200 |
Print repeat (mm) | max 800 |
unwinder type | Double bracket |
Max diameter reel unwinder (mm) | 800 |
Rewinder type | Double bracket |
Max diameter reel rewinder (mm) | 800 |
Drying | gas |
Videocamera | yes |
Corona treatment | yes |
Inking sysytem | Closed chamber doctor blades |
Anilox | Qty x lines/cm: 1x60; 1x80; 2x120; 1x160; 1x220; 1x280; 3x320; 1x360 |
Print Sleeves | 6x (320,340,360,400,420,450,560,480,520,560,600,650 mm); 10x500mm; 4x680mm; + 11 rubber sleeves |
Note | Sleeves for plate 1,14mm |
