- Code Machine
- RO287
- Fabricant
- WINDMÖLLER & HÖLSCHER
- Modello

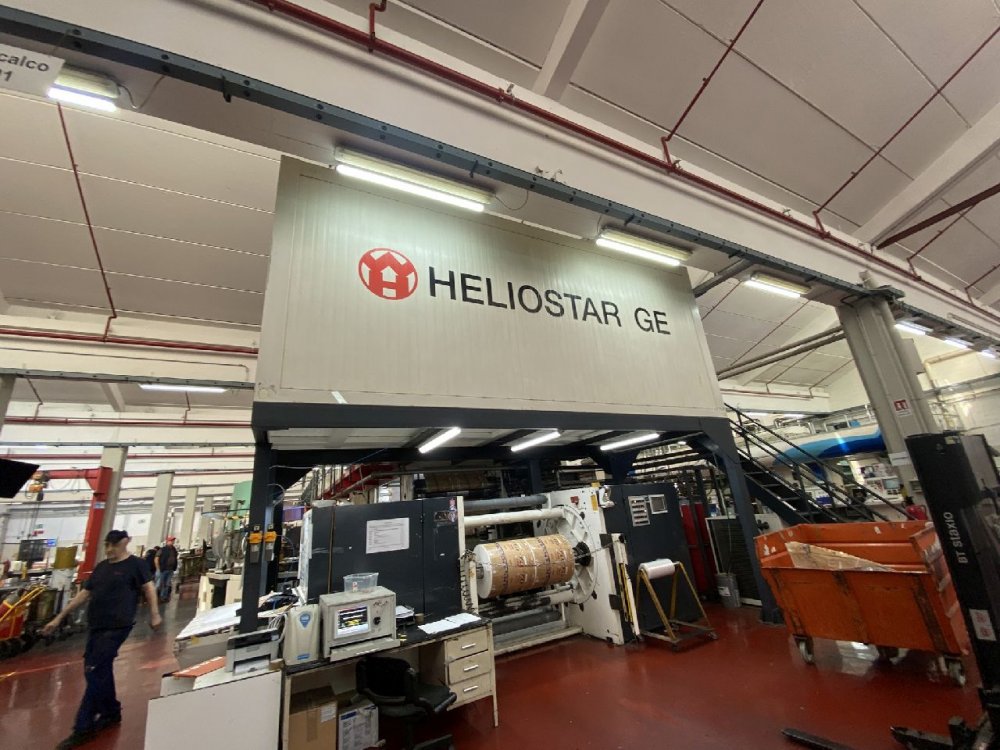

- HELIOSTAR GE
- Année
- 2005
- Number of colors
- 10
- Drive
- Electronic shaft
- Trolley system
- Yes
- Web width (mm)
- 1270
- Print width (mm)
- 1320
- Print repeat range (mm)
- 400 - 850
- Drying specifications
- Unit 1 Double hood 2x 2,5 mt 1 blowing fan 1 exhaust fan- Units 2-8 each one singke hood , 2,5 mt , one blowing fan- Units 9 and 10 each one dounle hood - 2 x 2,5 mt, one blowing fan , one exhaust fan
- Drying heat surce
- Thermo oil heat exchangers

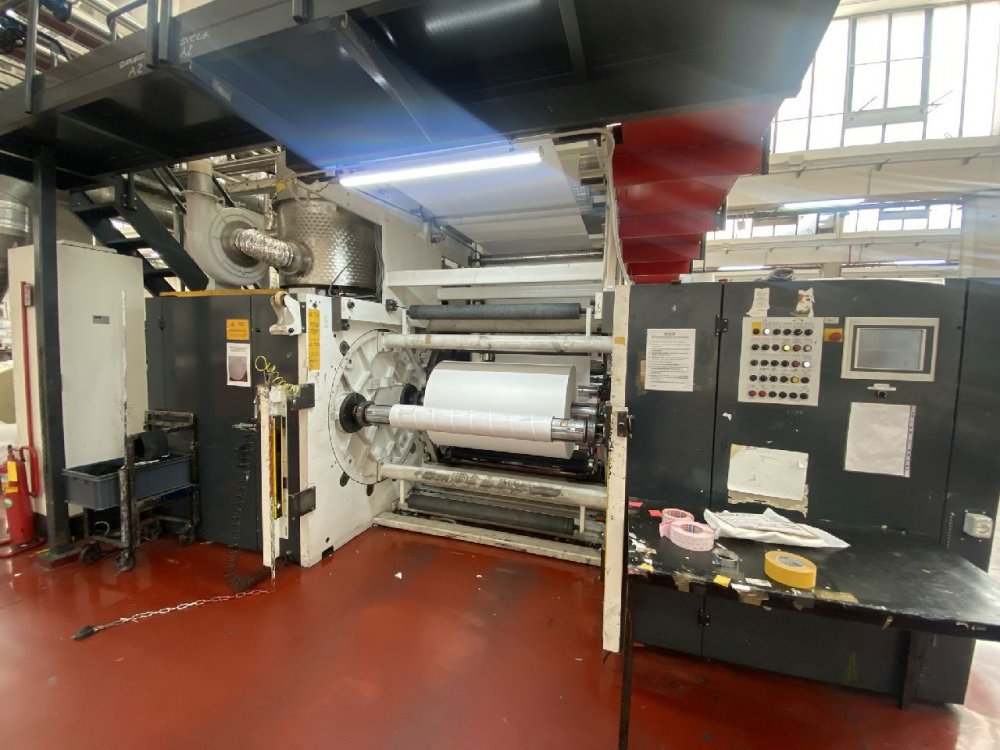

- Unwinder type
- Turret Automatic non stop 1000 mm
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret automatic non stop
- Max reel diameter rewinder (mm)
- 1000
- Videocamera
- Yes BST MATRIX AND 100% INSPECTION
- Register controll
- Yes BST
- Vyscosity control
- Yes NEW Celio
- Corona treatment
- AFS
- Print cylinders
- 500
- Note
- Automatic cylinder change in machine ESA system Enulec on all colro stations Automatic air recircukation system by Honeywell Preconditioning heating hood 2,5 mt
| Code Machine | RO287 |
| Fabricant | WINDMÖLLER & HÖLSCHER |
| Modello | HELIOSTAR GE |
| Année | 2005 |
| Number of colors | 10 |
| Drive | Electronic shaft |
| Trolley system | Yes |
| Web width (mm) | 1270 |
| Print width (mm) | 1320 |
| Print repeat range (mm) | 400 - 850 |
| Drying specifications | Unit 1 Double hood 2x 2,5 mt 1 blowing fan 1 exhaust fan- Units 2-8 each one singke hood , 2,5 mt , one blowing fan- Units 9 and 10 each one dounle hood - 2 x 2,5 mt, one blowing fan , one exhaust fan |
| Drying heat surce | Thermo oil heat exchangers |
| Unwinder type | Turret Automatic non stop 1000 mm |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic non stop |
| Max reel diameter rewinder (mm) | 1000 |
| Videocamera | Yes BST MATRIX AND 100% INSPECTION |
| Register controll | Yes BST |
| Vyscosity control | Yes NEW Celio |
| Corona treatment | AFS |
| Print cylinders | 500 |
| Note | Automatic cylinder change in machine ESA system Enulec on all colro stations Automatic air recircukation system by Honeywell Preconditioning heating hood 2,5 mt |
