- Code Machine
- FL1173
- Fabricant
- UTECO
- Modello
- ONYX 876 + 1
- Année
- 2007
- Print possibilityes
- 8+1
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1550
- Print width (mm)
- 1500
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 760
- Unwinder type
- Single position with roll loading system
- Max reel diameter unwinder (mm)
- 1250
- Rewinder type
- Single position with roll loading system
- Max reel diameter rewinder (mm)
- 1250
- Drying
- 2 zones on CI section, 2 blowing and two exhaust fans Tunnel 4 mt length. One additional drying zone for stack unit downstream with 1 blowing, 1 exhaust and vertical drying good 2,5 mt . Electric heaters
- Videocamera
- Yes , Selectra
- Web guides
- Yes in and out Fife OPG
- Inking system
- Closed chamber doctor blades
- Anilox
- 9 ceramic anilox sleeves
- Print Sleeves
- to be agreed
- Note
- Flexo stack coating unit downsytream with Graqfykontrol register control Carbon fiber printing mandrels Materials Paper and board up to 200 gsm Machine web tension 4- 60 kg
| Code Machine | FL1173 |
| Fabricant | UTECO |
| Modello | ONYX 876 + 1 |
| Année | 2007 |
| Print possibilityes | 8+1 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1550 |
| Print width (mm) | 1500 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 760 |
| Unwinder type | Single position with roll loading system |
| Max reel diameter unwinder (mm) | 1250 |
| Rewinder type | Single position with roll loading system |
| Max reel diameter rewinder (mm) | 1250 |
| Drying | 2 zones on CI section, 2 blowing and two exhaust fans Tunnel 4 mt length. One additional drying zone for stack unit downstream with 1 blowing, 1 exhaust and vertical drying good 2,5 mt . Electric heaters |
| Videocamera | Yes , Selectra |
| Web guides | Yes in and out Fife OPG |
| Inking system | Closed chamber doctor blades |
| Anilox | 9 ceramic anilox sleeves |
| Print Sleeves | to be agreed |
| Note | Flexo stack coating unit downsytream with Graqfykontrol register control Carbon fiber printing mandrels Materials Paper and board up to 200 gsm Machine web tension 4- 60 kg |
UTECO TOPAZ 808 GL
-
Code Machine: FL1006
-
Année: 2014
-
Web width (mm): 650

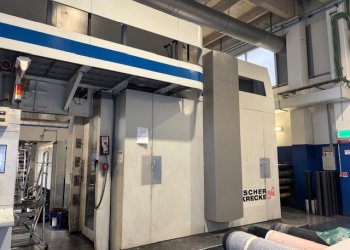

BOBST FISCHER & KRECKE FK 20 / 6 CS
-
