- Code Machine
- FL0737
- Fabricant

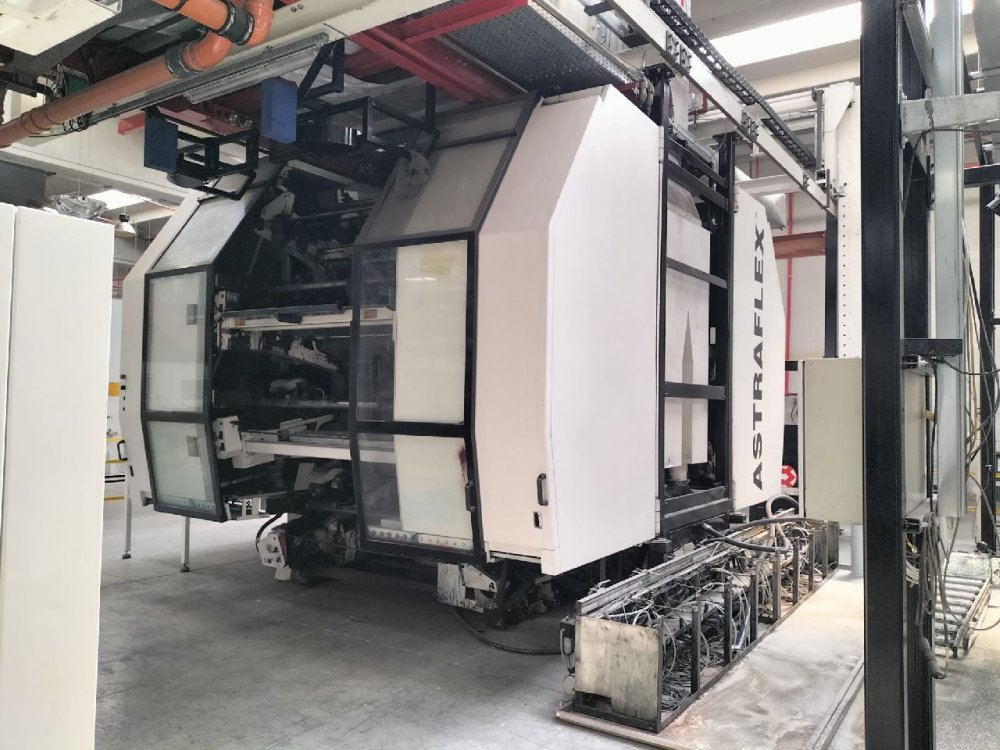

- WINDMÖLLER & HÖLSCHER
- Modello
- ASTRAFLEX
- Année
- 1999
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1620
- Print width (mm)
- 1570
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 1010
- Unwinder type
- Turret Automatic with roll loading system
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic with roll unloading system
- Max reel diameter rewinder (mm)
- 1000
- Drying
- Gas drying, inter colour dryers and overhead dryer 6 mt
- Videocamera
- Eltromat
- Web guides
- BST Web Stroboscope
- Vyscosity control
- Yes
- Inking system
- closed chamber doctor blades
- Anilox
- 24 ceramic anilox rollers
- Print cylinders
- 200
- Note
- Trolleys for porta lift system, for change over sleeeve change for print cylinders on the trolley Gearless direct drive on printing cylinders Material : LDPE , PP , PA 20-50µ , HDPE 12 - 100µ , Composities max. 150µ , Paper 30 - 120 gsm Speed : mechanical 365 m/min Necessary retrofit of 6 new chambers doctor blades. Price 95.000 Euro
| Code Machine | FL0737 |
| Fabricant | WINDMÖLLER & HÖLSCHER |
| Modello | ASTRAFLEX |
| Année | 1999 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1620 |
| Print width (mm) | 1570 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 1010 |
| Unwinder type | Turret Automatic with roll loading system |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic with roll unloading system |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | Gas drying, inter colour dryers and overhead dryer 6 mt |
| Videocamera | Eltromat |
| Web guides | BST Web Stroboscope |
| Vyscosity control | Yes |
| Inking system | closed chamber doctor blades |
| Anilox | 24 ceramic anilox rollers |
| Print cylinders | 200 |
| Note | Trolleys for porta lift system, for change over sleeeve change for print cylinders on the trolley Gearless direct drive on printing cylinders Material : LDPE , PP , PA 20-50µ , HDPE 12 - 100µ , Composities max. 150µ , Paper 30 - 120 gsm Speed : mechanical 365 m/min Necessary retrofit of 6 new chambers doctor blades. Price 95.000 Euro |
