- Code Machine
- FL0901
- Fabricant
- FISCHER & KRECKE
- Modello
- 16S
- Année
- 2004
- Number of colors
- 8
- Overhaul/renovation
- Overhauled in 2019: Complete overhaul of prin decks roller bearing positioning balls screws and screws' housings, bushings, side registers, Toot head wheels, Flanges, Print unit's guide rails. New chamber doctor blades Inspection system improved
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes

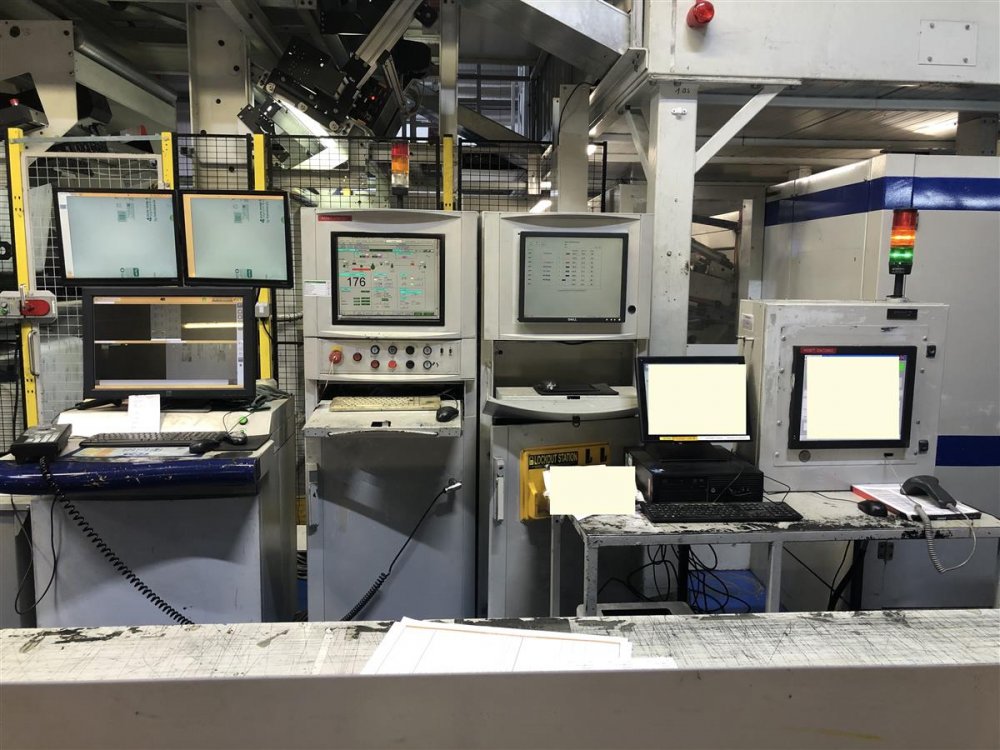

- Computer supervision
- Yes
- Web width (mm)
- 1300
- Print width (mm)
- 1250
- Min print repeat (mm)
- 370
- Max print repeat (mm)
- 800
- Unwinder type
- Turret
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones 4 fans 2 thermo oil oil heat exchangers
- Videocamera
- year 2016 BST Eltromat with quality control
- Web guides
- yes in and out
- Vyscosity control
- yes
- Washing system
- Yes automatic
- Inking system
- closed chamber doctor blades
| Code Machine | FL0901 |
| Fabricant | FISCHER & KRECKE |
| Modello | 16S |
| Année | 2004 |
| Number of colors | 8 |
| Overhaul/renovation | Overhauled in 2019: Complete overhaul of prin decks roller bearing positioning balls screws and screws' housings, bushings, side registers, Toot head wheels, Flanges, Print unit's guide rails. New chamber doctor blades Inspection system improved |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1300 |
| Print width (mm) | 1250 |
| Min print repeat (mm) | 370 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones 4 fans 2 thermo oil oil heat exchangers |
| Videocamera | year 2016 BST Eltromat with quality control |
| Web guides | yes in and out |
| Vyscosity control | yes |
| Washing system | Yes automatic |
| Inking system | closed chamber doctor blades |
