- Código Máquina
- SA47
- Constructor
- WINDMÖLLER & HÖLSCHER
- Modello
- AM2185 + AD2390
- Año
- 2006
- Tipo
- Complete line
- Sack dimensions (mm)
- 250 - 1400
- Description
- Capacity max. 200.000 per day / 60 Mio per year
- Note

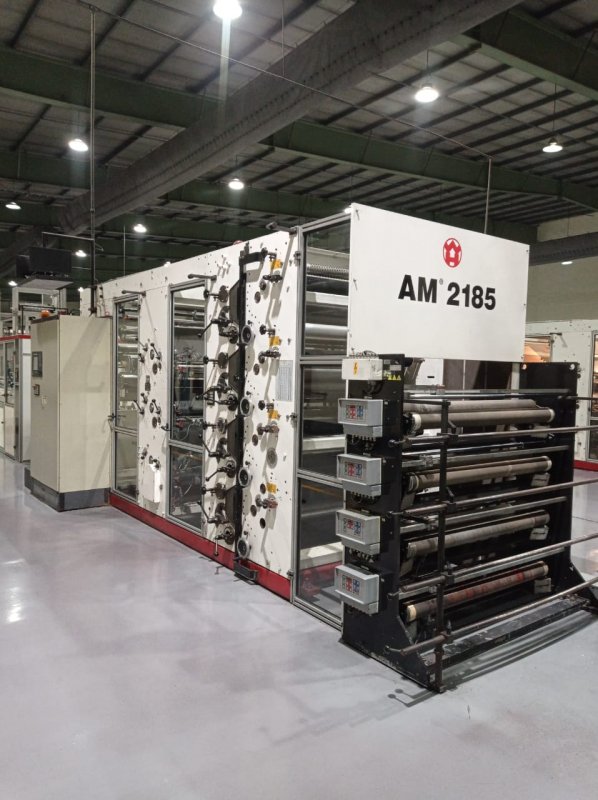

- TUBER Brand: W&H Model: AM 2185 Year: 2006 Plies 4 Stepped end and flush cut Min-max tube width: 260 – 500 mm Min tube length stepped end: 480 mm Min-max tube length flush cut: 450 – 850 mm Max paper roll width: 1030 mm Max paper roll diameter: 1350 mm Number of unwind stands: min 4 Core i.d.: 76 mm Output: 350 tubes/min. The owner makes 250 tubes/min. Max web speed: 300 m/min Photocell for PCS Rated power: approx. 80 kW (without printer) Power characteristics: 400V, 50Hz without neutral Required space: (4-ply machine): according to layout plan BOTTOMER ( with valve unit ) Brand: W&H Model: AD 2390 Year: 2006 Type of valve: Two valve types are produced by the owner – flat and tubular. The valve with PE liner is not possible to produce Min-max tube lengths: 540 -940 mm Min-max tube width: 320 – 550 mm Min-max sack length (stepped end and flush cut): 410 – 740 mm Min-max sack width: 320 – 550 mm Bottom center distance: 320 – 600 mm Bottom : For stepped-end sacks: 90 – 140 mm (valid for 3-ply stepped end sack) For flush-cut sacks: 90 – 140 mm Min-max valve length: 100 – 220 mm Min-max valve cut-off length: 100 – 220 mm Min-max roll width: 100 – 300 mm There is a bottom patch but the owner doesn’t use because not requirement by the customers With printer for bottom patch 2 colors Printing cylinders: 2×280, 2×330, 2×380, 2×420, 2×520 mm Bottom cap: (option available against extra charge) Min-max cut-off length: 180 – 450 mm Min-max roll width: 80 – 180 mm Output: with 2-drum delivery maximum 300 sacks/min (depending on raw material quality, product design and operator qualification).The owner makes 230 sacks/min Packet frequency: with 2-drum delivery maximum 25 sacks/min Capacity: up to 200.000 sacks/per day, 60 million sacks/per year Glue preparation plant is not included Required space: according to the layout plan Power consumption: 35-40 kW Rated output of drive: 25 kW Connected load: 400 V Weight: without bottom cap unit ca. 17.000 kg,with bottom cap unit: ca. 20.000 kg IN -LINE PRINTER Brand: W&H Model: Flexa 820 Year: 2006 4 color; currently equipped with 2 printing decks Web width: 1370 mm Printing width: 1320 mm Print repeat range: 450 – 1500 mm Output speed when equipped with fountain roller inking system: max. 250 m/min (depending on job specification and print related factors) Materials: paper 40 – 250 gsm Water based inks Printing cylinders: 8×720, 7×730, 8×740, 7×750, 7×760 mm Required space: per W&H installation drawing Power consumption: 50 Hz 3×400 volts, without neutral W&H Transystem 1 with software SIMATIC S7-300 of SIEMENS PALLETIZER Brand: W&H Model: Arcomat 2 Year: 2006 Min-max sacks length: 250 – 1400 mm Min-max sacks width: 180-750 mm Pallet dimensions (per W&H-pallets specification): Min. 600×750 mm, max. 1400×1500 mm Min-max empty pallet height: 100 – 180 mm Palletizing surface: min 600×600 mm, max 1500×1600 mm Max packet height: not compressed 180 mm, compressed 80 mm Max empty pallet stack height: 1400 mm Max stacking height: 2500 mm Max stack weight: 1500 kg Min-max working range of pallet press: 850 – 2500 mm Stack pressing force: appr. N 10.000 Height of outfeed conveyor: 300 mm Max output: 25 packets/min (The indicated output relates to a maximum packet height of 8 cm, to a maximum sack width of 50 cm and a minimum of 6 packets per layer on the slide table. Output may be reduced when handling products differing from the above specifications, when handling bags with smooth surfaces, or when pallets are changed) Connected load: 43 kWa
| Código Máquina | SA47 |
| Constructor | WINDMÖLLER & HÖLSCHER |
| Modello | AM2185 + AD2390 |
| Año | 2006 |
| Tipo | Complete line |
| Sack dimensions (mm) | 250 - 1400 |
| Description | Capacity max. 200.000 per day / 60 Mio per year |
| Note | TUBER Brand: W&H Model: AM 2185 Year: 2006 Plies 4 Stepped end and flush cut Min-max tube width: 260 – 500 mm Min tube length stepped end: 480 mm Min-max tube length flush cut: 450 – 850 mm Max paper roll width: 1030 mm Max paper roll diameter: 1350 mm Number of unwind stands: min 4 Core i.d.: 76 mm Output: 350 tubes/min. The owner makes 250 tubes/min. Max web speed: 300 m/min Photocell for PCS Rated power: approx. 80 kW (without printer) Power characteristics: 400V, 50Hz without neutral Required space: (4-ply machine): according to layout plan BOTTOMER ( with valve unit ) Brand: W&H Model: AD 2390 Year: 2006 Type of valve: Two valve types are produced by the owner – flat and tubular. The valve with PE liner is not possible to produce Min-max tube lengths: 540 -940 mm Min-max tube width: 320 – 550 mm Min-max sack length (stepped end and flush cut): 410 – 740 mm Min-max sack width: 320 – 550 mm Bottom center distance: 320 – 600 mm Bottom : For stepped-end sacks: 90 – 140 mm (valid for 3-ply stepped end sack) For flush-cut sacks: 90 – 140 mm Min-max valve length: 100 – 220 mm Min-max valve cut-off length: 100 – 220 mm Min-max roll width: 100 – 300 mm There is a bottom patch but the owner doesn’t use because not requirement by the customers With printer for bottom patch 2 colors Printing cylinders: 2×280, 2×330, 2×380, 2×420, 2×520 mm Bottom cap: (option available against extra charge) Min-max cut-off length: 180 – 450 mm Min-max roll width: 80 – 180 mm Output: with 2-drum delivery maximum 300 sacks/min (depending on raw material quality, product design and operator qualification).The owner makes 230 sacks/min Packet frequency: with 2-drum delivery maximum 25 sacks/min Capacity: up to 200.000 sacks/per day, 60 million sacks/per year Glue preparation plant is not included Required space: according to the layout plan Power consumption: 35-40 kW Rated output of drive: 25 kW Connected load: 400 V Weight: without bottom cap unit ca. 17.000 kg,with bottom cap unit: ca. 20.000 kg IN -LINE PRINTER Brand: W&H Model: Flexa 820 Year: 2006 4 color; currently equipped with 2 printing decks Web width: 1370 mm Printing width: 1320 mm Print repeat range: 450 – 1500 mm Output speed when equipped with fountain roller inking system: max. 250 m/min (depending on job specification and print related factors) Materials: paper 40 – 250 gsm Water based inks Printing cylinders: 8×720, 7×730, 8×740, 7×750, 7×760 mm Required space: per W&H installation drawing Power consumption: 50 Hz 3×400 volts, without neutral W&H Transystem 1 with software SIMATIC S7-300 of SIEMENS PALLETIZER Brand: W&H Model: Arcomat 2 Year: 2006 Min-max sacks length: 250 – 1400 mm Min-max sacks width: 180-750 mm Pallet dimensions (per W&H-pallets specification): Min. 600×750 mm, max. 1400×1500 mm Min-max empty pallet height: 100 – 180 mm Palletizing surface: min 600×600 mm, max 1500×1600 mm Max packet height: not compressed 180 mm, compressed 80 mm Max empty pallet stack height: 1400 mm Max stacking height: 2500 mm Max stack weight: 1500 kg Min-max working range of pallet press: 850 – 2500 mm Stack pressing force: appr. N 10.000 Height of outfeed conveyor: 300 mm Max output: 25 packets/min (The indicated output relates to a maximum packet height of 8 cm, to a maximum sack width of 50 cm and a minimum of 6 packets per layer on the slide table. Output may be reduced when handling products differing from the above specifications, when handling bags with smooth surfaces, or when pallets are changed) Connected load: 43 kWa |
