- Código Máquina
- SO282
- Constructor

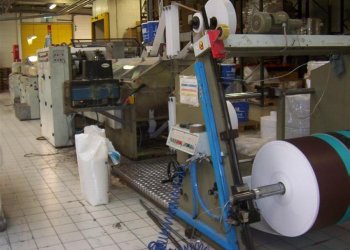

- CURIONI
- Modello
- SUN MASTER 540
- Año
- 1998
- Width (mm)
- 540
- Materials
- Paper 80 to 130 g/m2
- Feed:
- Reel fed
- Handel unit
- Twisted
- Bag length max (mm)
- 650
- Bag length min (mm)
- 320
- Bag width max (mm)
- 540
- Bag width min (mm)
- 220
- Bottom width max (mm)
- 200
- Bottom width (mm)
- 80
- Cycle / min
- 6000 bags/hour
- Unwinder
- 1500mm . Mono-type with pneumatics shafts: 70 et 76 mm .Lifting device
- Note
- Cutting lenght 400-780mm Reels width 720 to 1430mm Infeed unit avec length gluing device Insertion unit - Gluing and positioning for paper twisted handles Gusset and tube forming table. Main frame with cutting, creasing and bottom opening devices Gluing and bottom closing section Counting table unit Possibility to product bags without handles Main Motor, Vacuum pump Former gears: x10 Photocell device control for pre-printed reels
| Código Máquina | SO282 |
| Constructor | CURIONI |
| Modello | SUN MASTER 540 |
| Año | 1998 |
| Width (mm) | 540 |
| Materials | Paper 80 to 130 g/m2 |
| Feed: | Reel fed |
| Handel unit | Twisted |
| Bag length max (mm) | 650 |
| Bag length min (mm) | 320 |
| Bag width max (mm) | 540 |
| Bag width min (mm) | 220 |
| Bottom width max (mm) | 200 |
| Bottom width (mm) | 80 |
| Cycle / min | 6000 bags/hour |
| Unwinder | 1500mm . Mono-type with pneumatics shafts: 70 et 76 mm .Lifting device |
| Note | Cutting lenght 400-780mm Reels width 720 to 1430mm Infeed unit avec length gluing device Insertion unit - Gluing and positioning for paper twisted handles Gusset and tube forming table. Main frame with cutting, creasing and bottom opening devices Gluing and bottom closing section Counting table unit Possibility to product bags without handles Main Motor, Vacuum pump Former gears: x10 Photocell device control for pre-printed reels |
