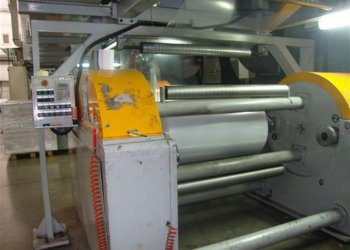

- Código Máquina
- LA301
- Constructor
- COSMOPLASTICS
- Año
- 1997
- Application
- Coating
- Type of lamination/coating
- SOLVENT / WATER BASED
- Overhaul/renovation
- 2006 electric/electronic parts fully rebuilt, some mechanic too.
- Working width (mm)
- 1300
- Materials
- Protection tape (solvent + water based ) + packing tape + masking tape+ double-sided tape
- Speed
- Mechanic 200 m/min Production 40-110 m/min

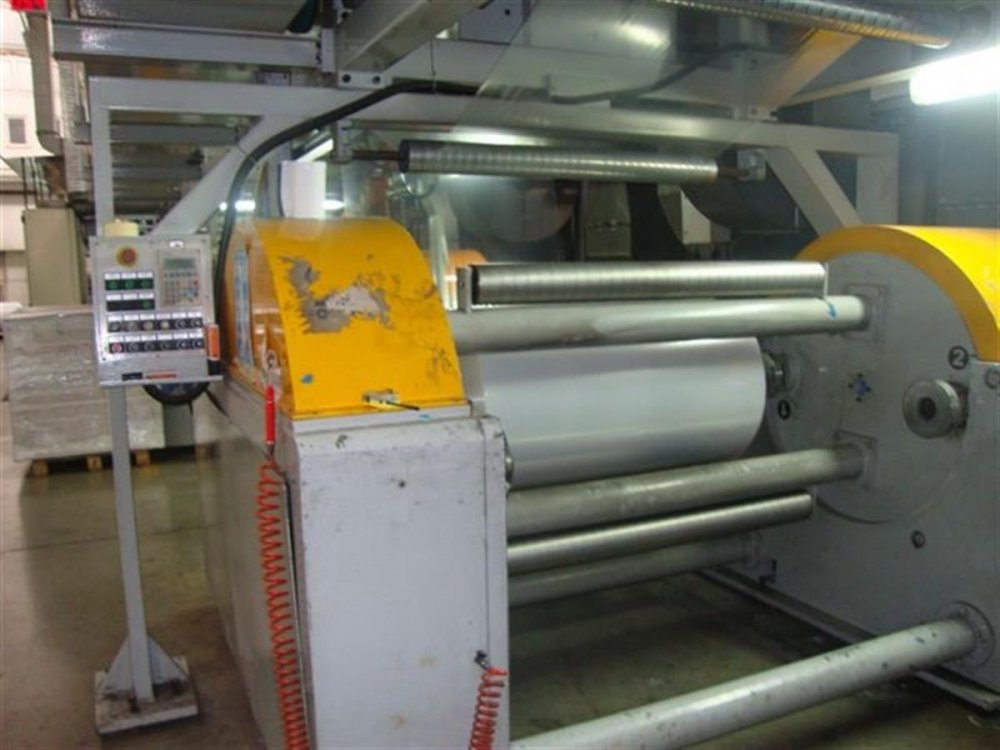

- First unwinder type
- Turret flying splice
- Max diameter reel unwinder
- 800
- Secondary unwinder type
- Simplex single shaft for lamination
- Max diameter reel unwinder
- 800
- Rewinder type
- Turret flying splice
- Max diameter reel rewinder
- 800

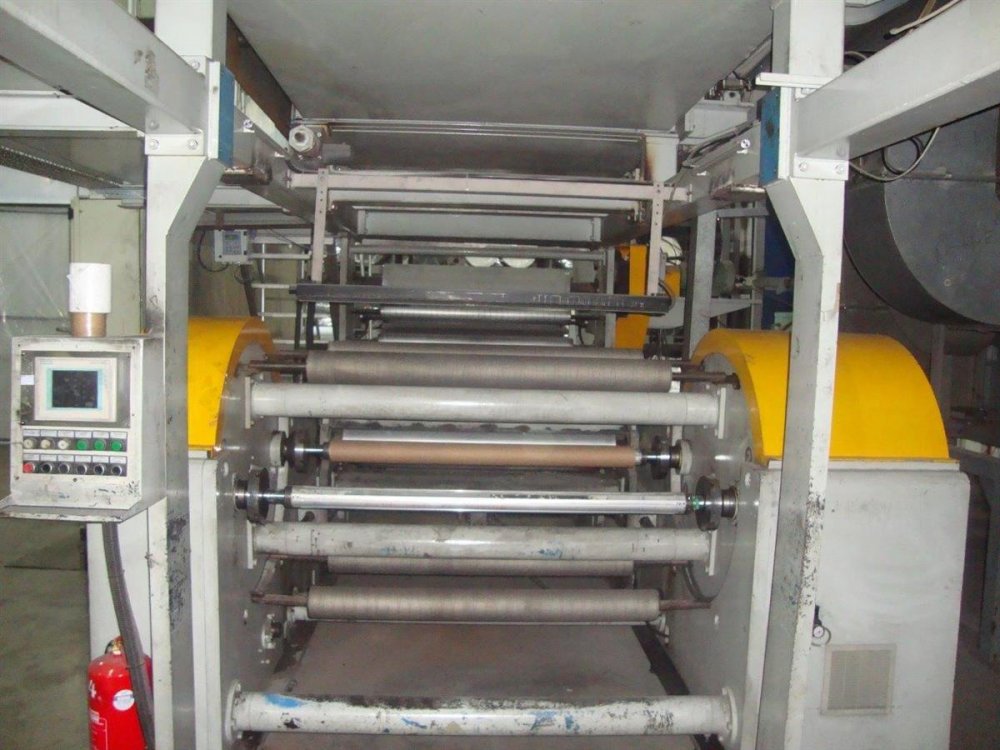

- Coating unit
- Mayer bar
- Second Coating unitr
- Roll over roll

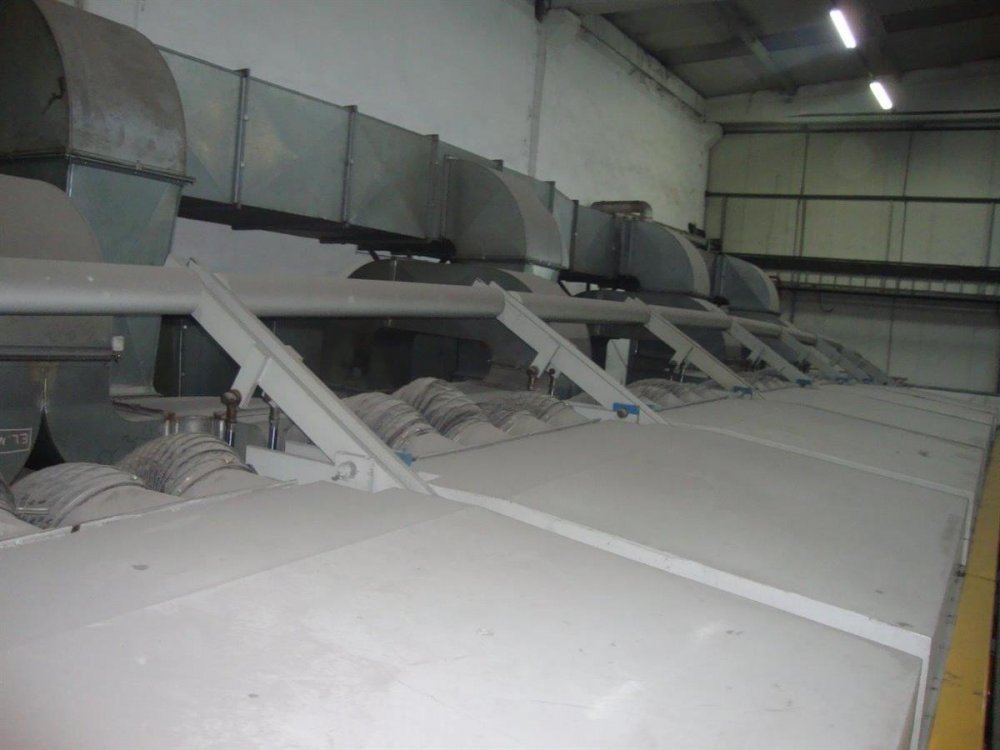

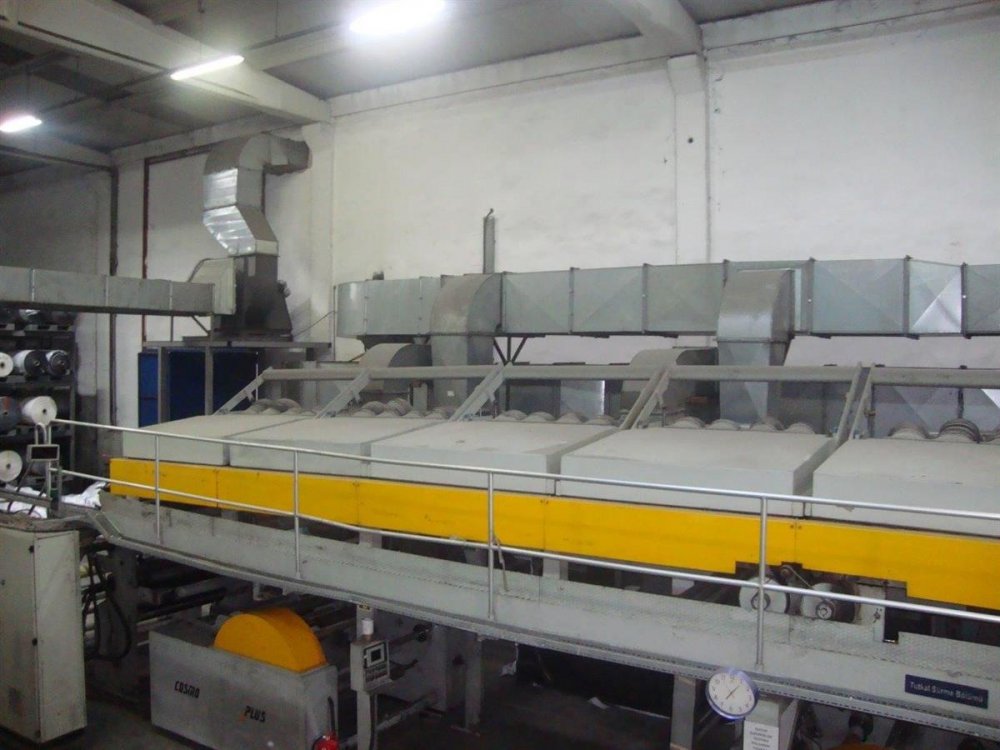

- Drying

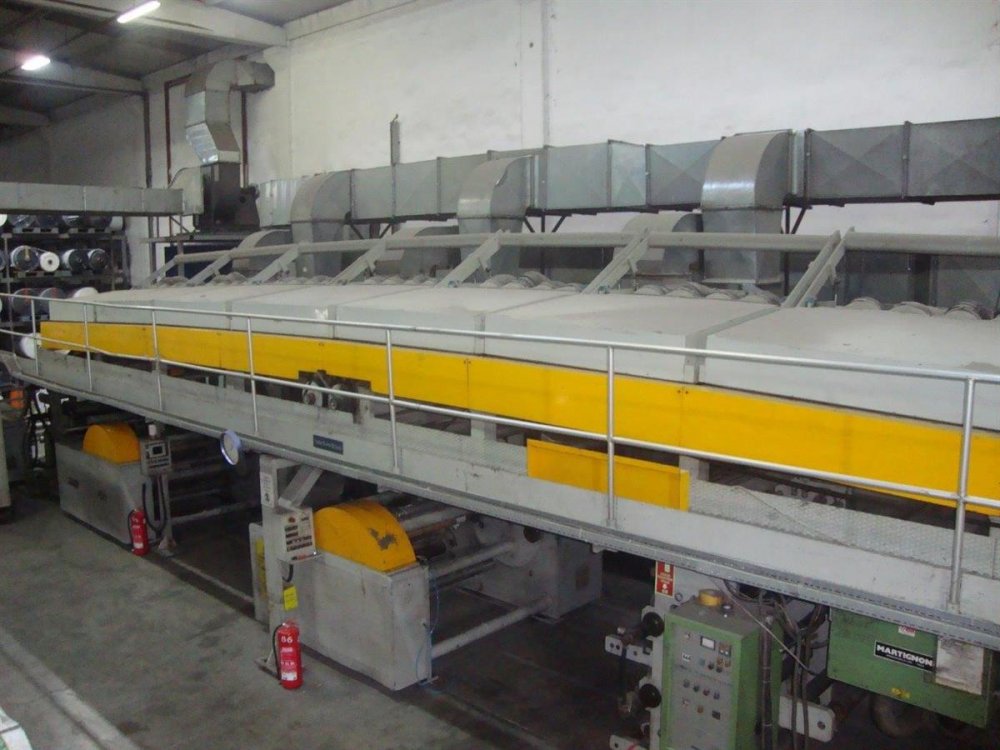

- Thermic oil . Oven length: 16m
- pumping mixing unit
- 1 reservoir
- Corona treatment
- Martignoni
- Note

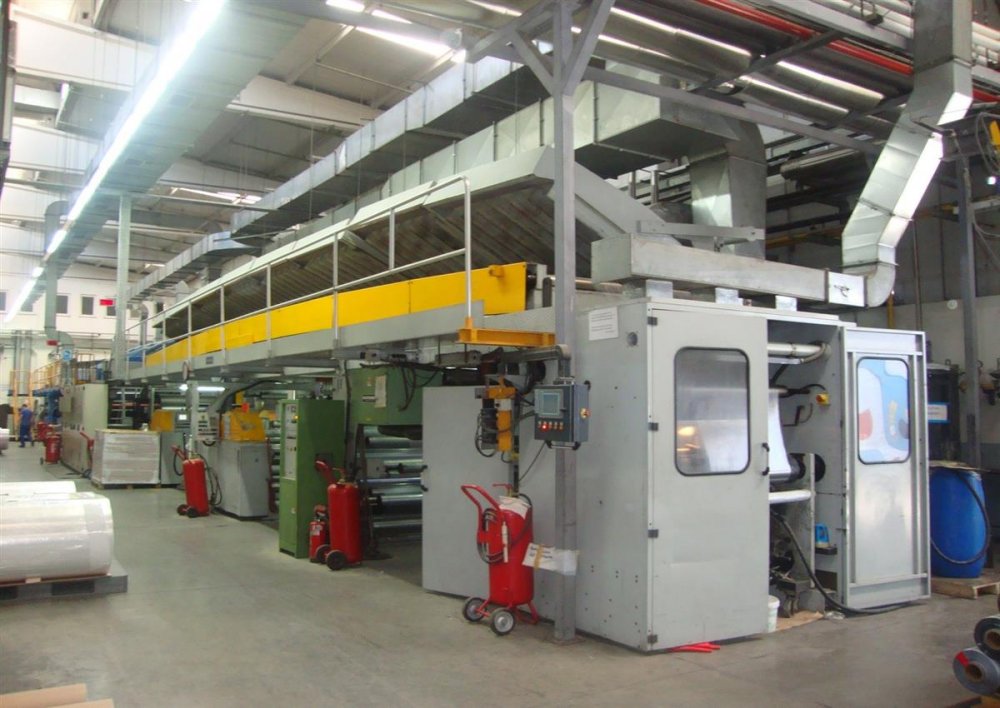

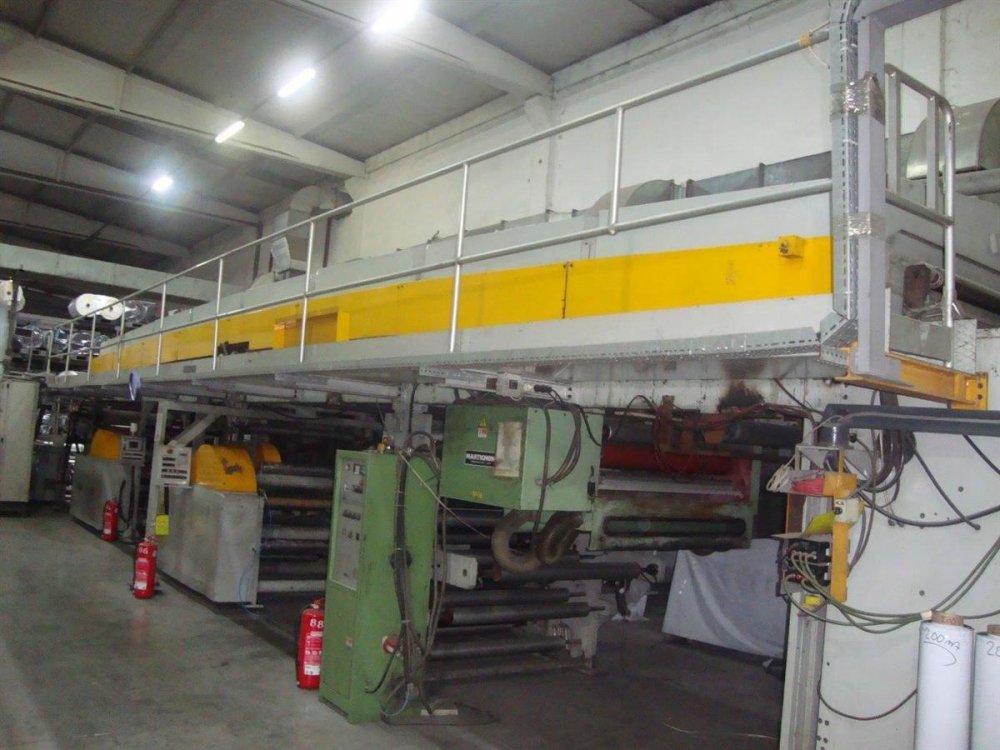

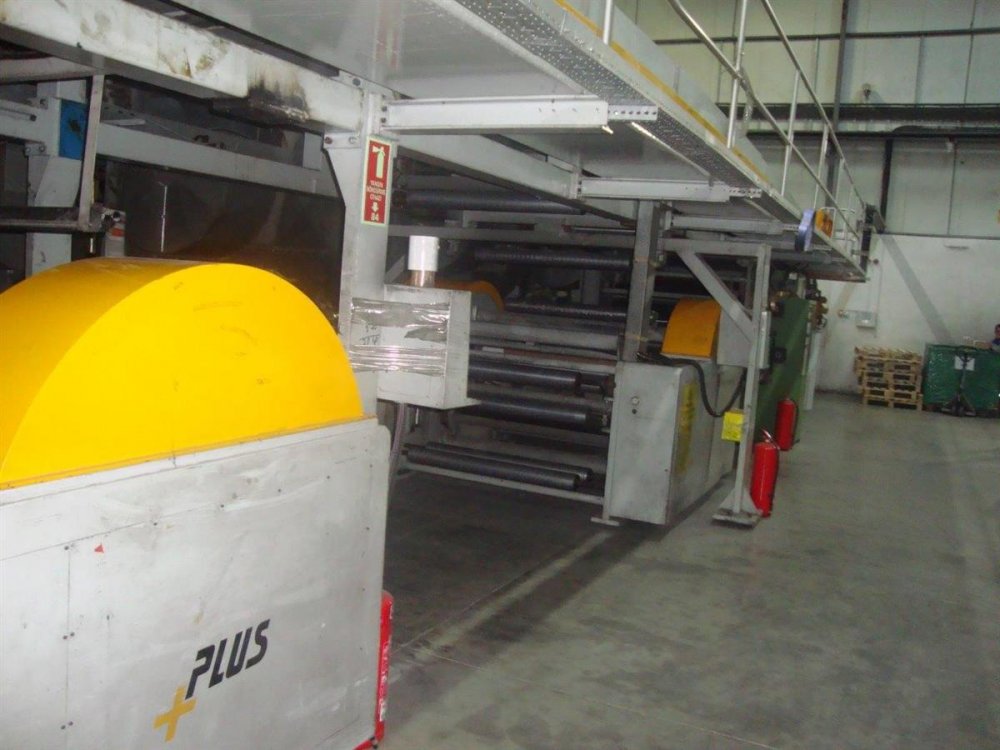

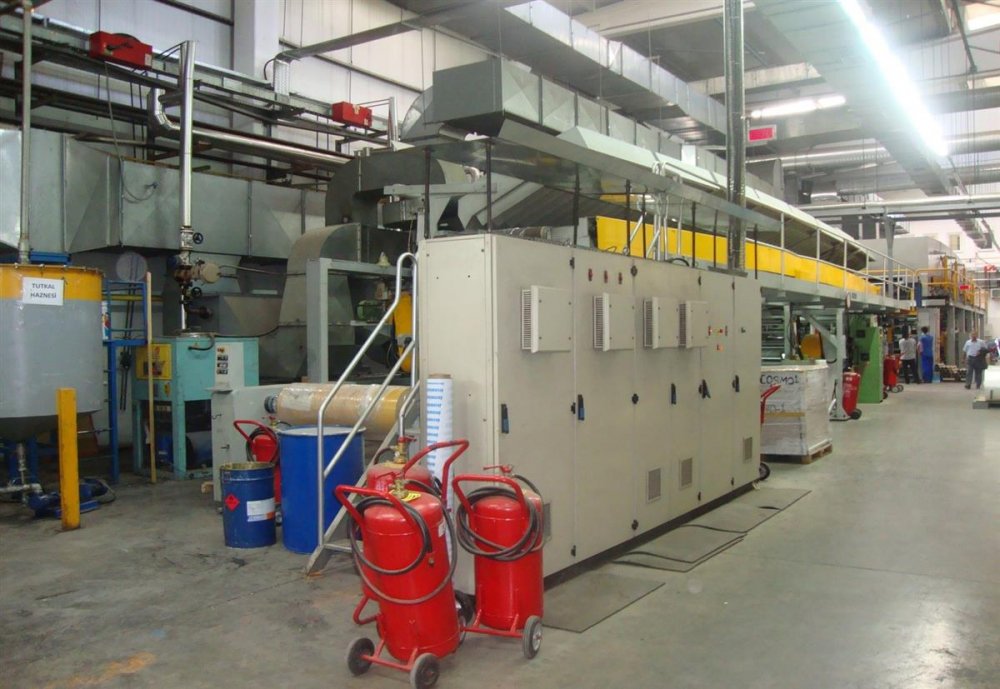

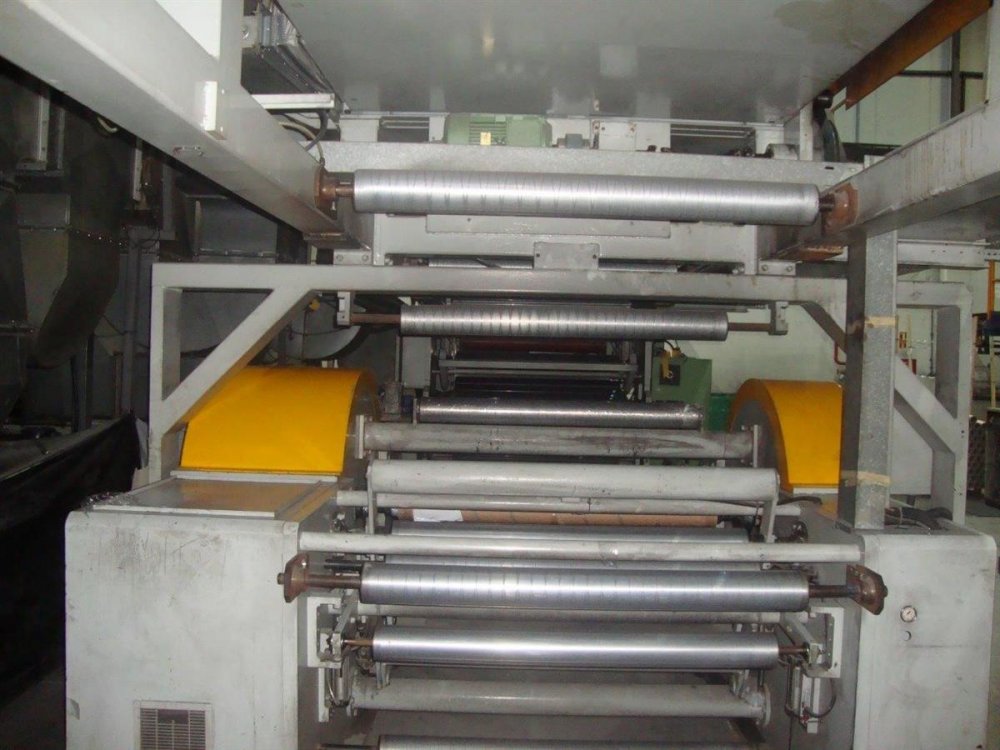

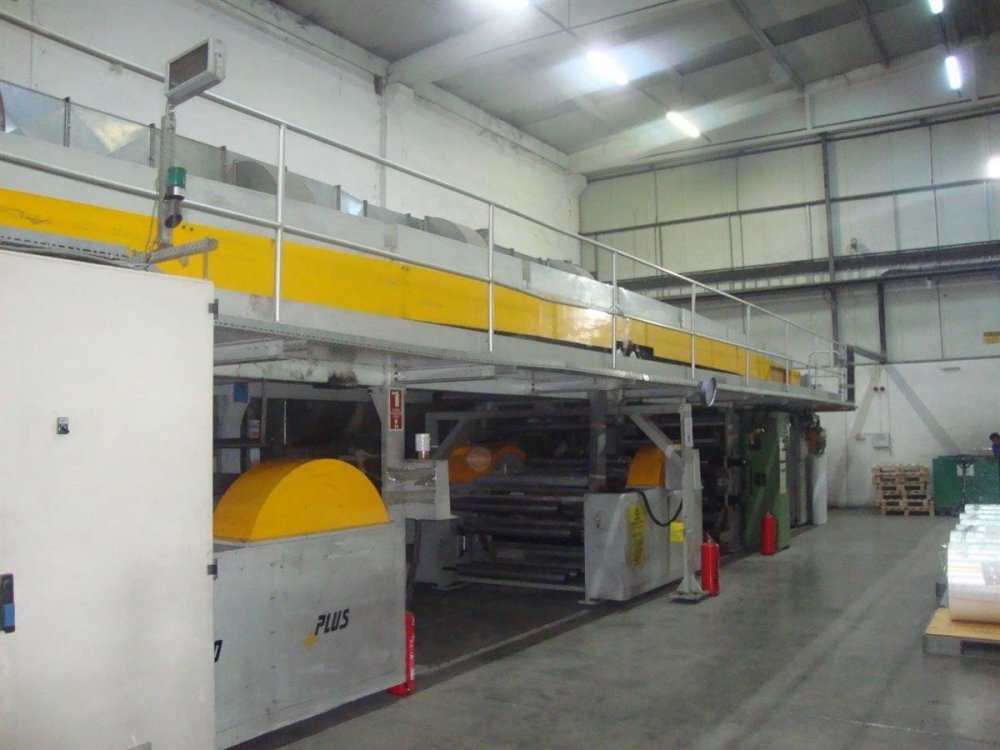

- 2 coating units with trolley One station with mayer bar – one station roll over roll. Total length 22 m Before adhesive applying unit there is a calendar unit. After drying oven chill roll All cylinders are plasma coated where is necessary.
| Código Máquina | LA301 |
| Constructor | COSMOPLASTICS |
| Año | 1997 |
| Application | Coating |
| Type of lamination/coating | SOLVENT / WATER BASED |
| Overhaul/renovation | 2006 electric/electronic parts fully rebuilt, some mechanic too. |
| Working width (mm) | 1300 |
| Materials | Protection tape (solvent + water based ) + packing tape + masking tape+ double-sided tape |
| Speed | Mechanic 200 m/min Production 40-110 m/min |
| First unwinder type | Turret flying splice |
| Max diameter reel unwinder | 800 |
| Secondary unwinder type | Simplex single shaft for lamination |
| Max diameter reel unwinder | 800 |
| Rewinder type | Turret flying splice |
| Max diameter reel rewinder | 800 |
| Coating unit | Mayer bar |
| Second Coating unitr | Roll over roll |
| Drying | Thermic oil . Oven length: 16m |
| pumping mixing unit | 1 reservoir |
| Corona treatment | Martignoni |
| Note | 2 coating units with trolley One station with mayer bar – one station roll over roll. Total length 22 m Before adhesive applying unit there is a calendar unit. After drying oven chill roll All cylinders are plasma coated where is necessary. |
