- Código Máquina
- LA354
- Constructor
- SCHIAVI
- Modello
- CONCORDE
- Año
- 1994
- Application
- Coating
- Working width (mm)
- 1220
- First unwinder type
- Turret automatic
- Max diameter reel unwinder
- 1200
- Rewinder type
- Turret automatic
- Max diameter reel rewinder
- 1200
- Coating unit
- Gravure solvent based
- Second Coating unitr
- Gravure solvent based
- Drying
- One preconditiong hood, each unit double hood after each coating unit with two blowing fans one exhaust fan Heating source 2 gas burners

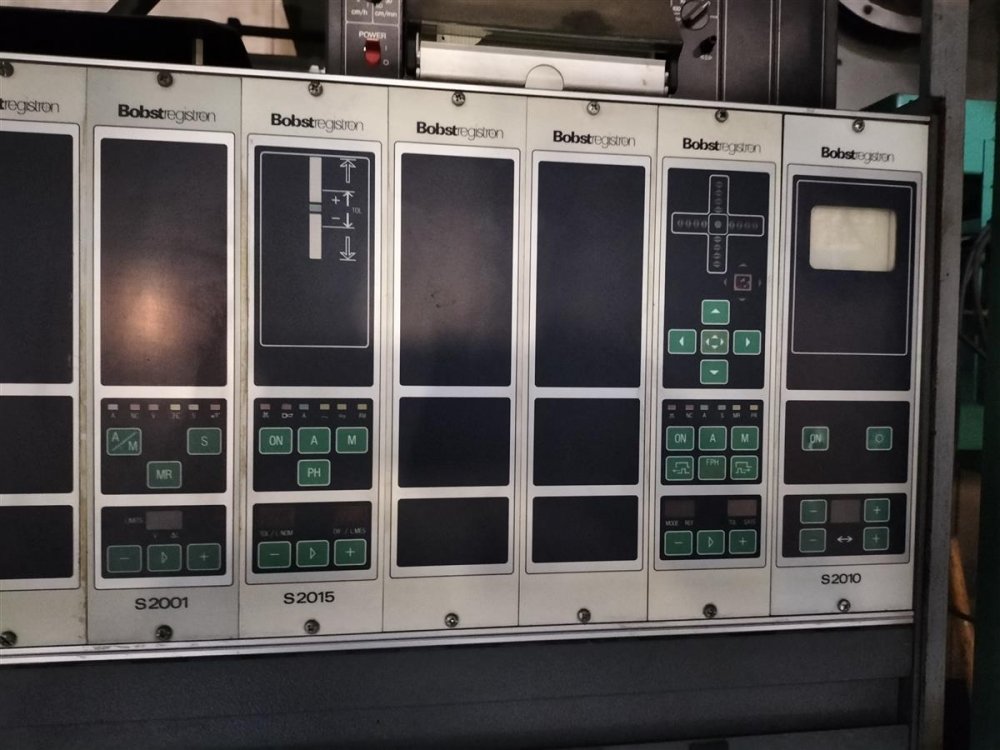

- Register controll
- Yes Bobst Registron before second coating unit
- Note
- 2 coating unit , possible two coating one side or 1 each side ( fron and back ) totally 4 trolleys, 2 in the machine and 2 spare 10 gravure cylinders
| Código Máquina | LA354 |
| Constructor | SCHIAVI |
| Modello | CONCORDE |
| Año | 1994 |
| Application | Coating |
| Working width (mm) | 1220 |
| First unwinder type | Turret automatic |
| Max diameter reel unwinder | 1200 |
| Rewinder type | Turret automatic |
| Max diameter reel rewinder | 1200 |
| Coating unit | Gravure solvent based |
| Second Coating unitr | Gravure solvent based |
| Drying | One preconditiong hood, each unit double hood after each coating unit with two blowing fans one exhaust fan Heating source 2 gas burners |
| Register controll | Yes Bobst Registron before second coating unit |
| Note | 2 coating unit , possible two coating one side or 1 each side ( fron and back ) totally 4 trolleys, 2 in the machine and 2 spare 10 gravure cylinders |
