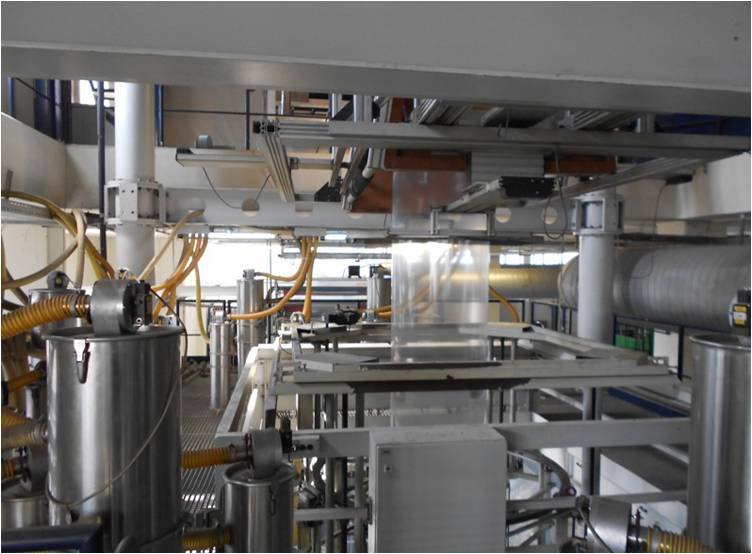

7 capas KIEFEL KIRION W2200 PLUS 2 Maquina de extrusion ** VENDIDA ** Informaciones adicionales sobre una similar

Código Máquina EX276
Constructor KIEFEL
Modelo KIRION W2200 PLUS 2
Año 2006
Numero de capas 7
Estructura film ABCDEFG
Material LDPE, PP, Barrier Film (Evoh, PA)
Ancho del film 2200
Producción (kg/h) 350 Kg/h
Extrusora 1 capa rif: A
Diametro tornillo 70
Descripción Kirion 30 L/D;for the processing PE,PP EVA, PA and other non heat sensitive materials for maximum output. 4 heating zones;78 kw main drive size; 3 Gravimetric Dosing of an additional component for extruder A
Extrusora 2 capa rif: B
Diametro tornillo 50
Descripción Kirion 30 L/D;for the processing PE,PP EVA, PA and other non heat sensitive materials for maximum output. 4 heating zones;31 kw main drive size; 2 Gravimetric Dosing of an additional component for extruder B
Extrusora 3 capa rif: C
Diametro tornillo 60
Descripción Kirion 30 L/D;for the processing PE,PP EVA, PA and other non heat sensitive materials for maximum output. 4 heating zones;56 kw main drive size; 2 Gravimetric Dosing of an additional component for extruder C
Extrusora 4 capa rif: D
Diametro tornillo 50
Descripción Kirion 30 L/D;for the processing PP, PS ,PA, EVOH and polyolefins with medium to high output; 4 heating zones;31 kw main drive size; 2 Gravimetric Dosing of an additional component for extruder D
Extrusora 5 capa rif: E
Diametro tornillo 60
Descripción Kirion 30 L/D;for the processing PE,PP EVA, PA and other non heat sensitive materials for maximum output. 4 heating zones;56 kw main drive size; 2 Gravimetric Dosing of an additional component for extruder E
Extrusora 6 capa rif: F
Diametro tornillo 50
Descripción Kirion 30 L/D;for the processing PE,PP EVA, PA and other non heat sensitive materials for maximum output. 4 heating zones;31 kw main drive size; 2 Gravimetric Dosing of an additional component for extruder F
Extrusora 7 capa rif: G
Diametro tornillo 70
Descripción Kirion 30 L/D;for the processing PE,PP EVA, PA and other non heat sensitive materials for maximum output. 4 heating zones;78 kw main drive size;3 Gravimetric Dosing of an additional component for extruder G

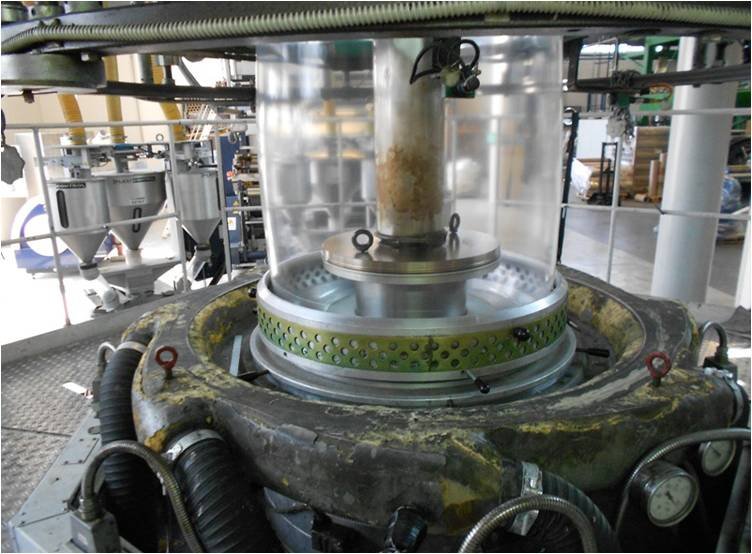

Descripción cabezal 1 Kirion 450/550-7; 7 layer die head for die diameters from 450mm - 550mm prepared for IBC installation; temperature controls with wear-free solid state relays; 10 heating zones; 1 Die Insert Set for die diameter of 500mm ; for Kirion 450/550-7 die gap 1.7 - 2.5 mm decompressive; 1 Gap Ring for die diameter of 500mm;
Diámetro hilera (mm) 500 mm
Sistema control de espesor Yes

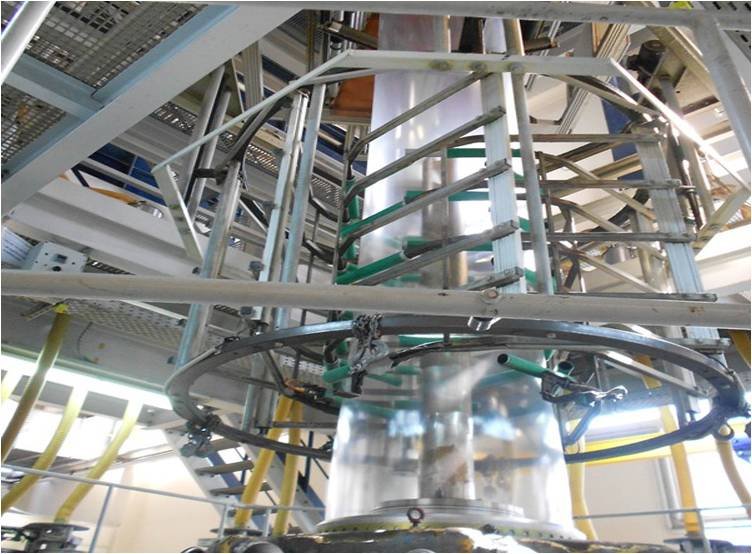

Bubble cage 1 Internal Bubble Cooling System, one supply blower and one exhaust air blower; Blower size 2x11kw (14.75HP ) ; 1 Ultrasonic Bubble Control;
Panel for gussets Yes

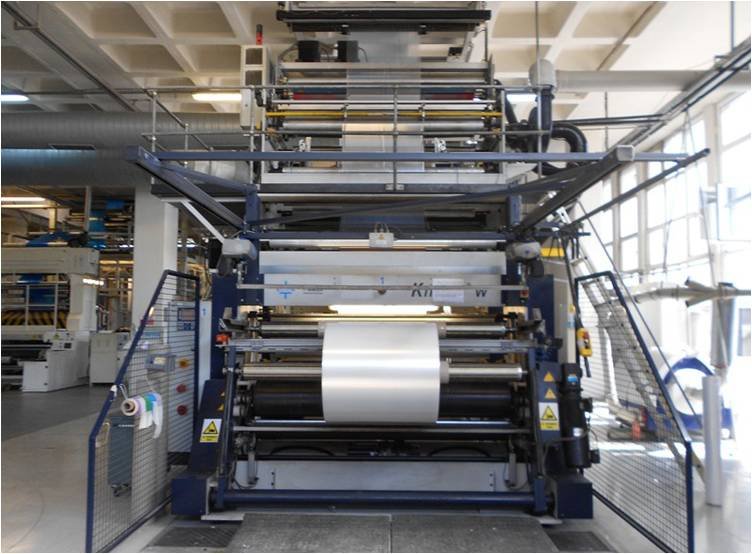

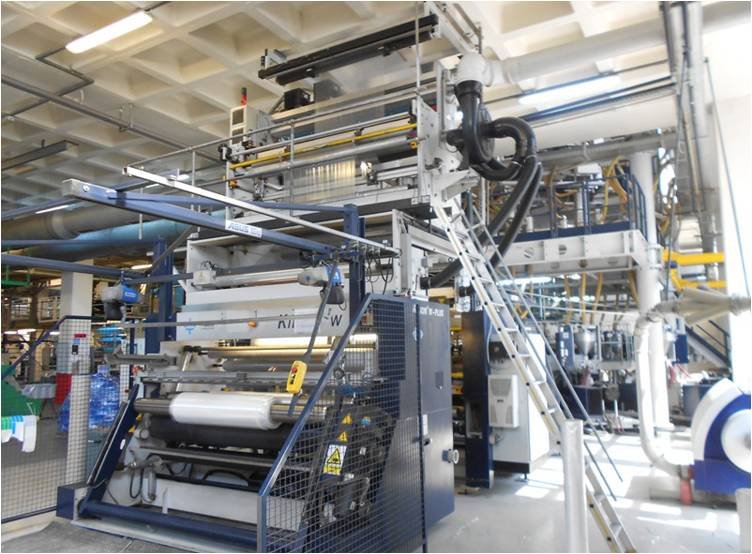

Unidad de arrastre take off 1 Take off Control Cabinet Cooling Device ; 1 Kirion T 2200 reversing Take off with AC Vector drive, motorized adjustement;manual adjustement at entrance to the nip rolls; Web turning bar system;
Corona treatment 1 Corona Treatment Type CMDS 2200 for single or two sided treatment of a tubular film;
Alineador 1 web guide 2200F including ultrasonic sensors and motorized adjustement of the sensors with mounting parts, oscilation +/- 4mm, maximum layflat width 2200mm; 7 Idle rolls 200 for web guidance between draw roller and winder diam 120mm
Diametro max bobina enrollador 1200

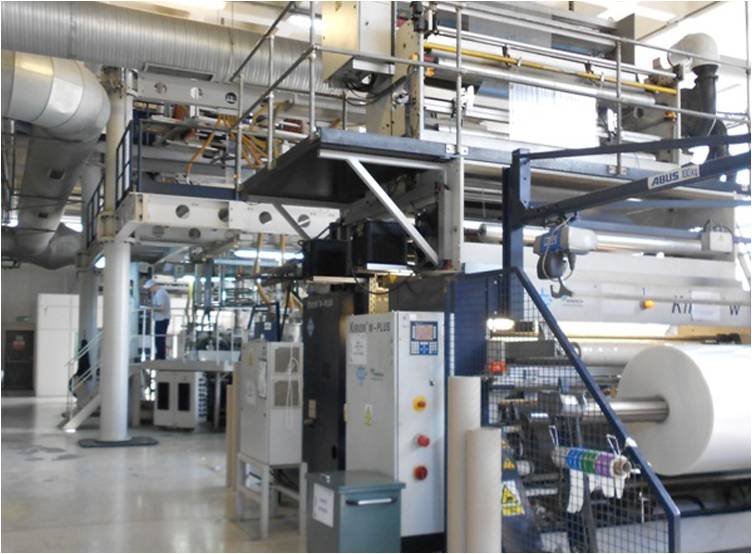

Descripción enrollador Each winder includes : linear knife; winding shaft magazine for 2 winding shafts; banana spread roll; AC vector drives; roll lay-down ramp for automatic changes; Maximum layflat width 2200mm, Max winding speed : 200m/min; web tension range : 40-250N; Suitable for winding shafts : 76 & 152mm;Max weight for winding shafts including core : 100kg;

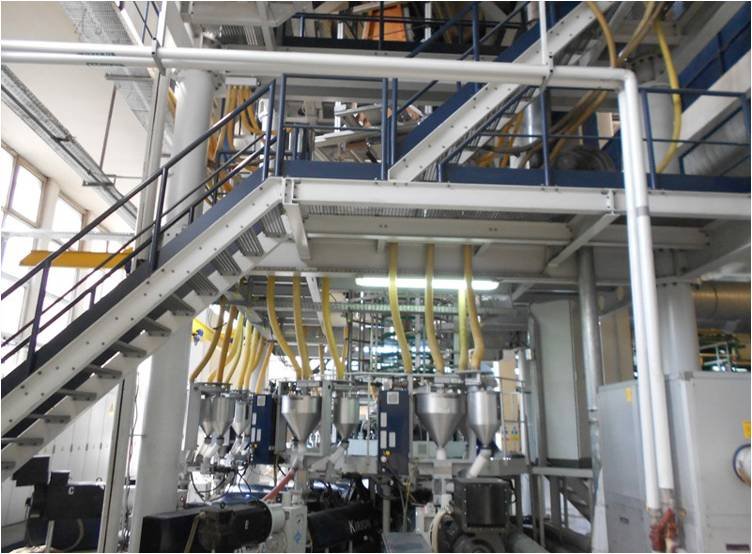

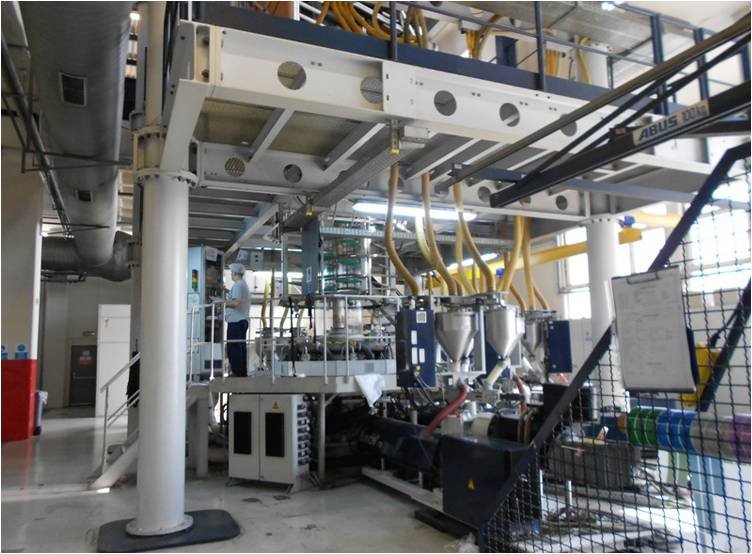

Informaciones adicionales - water cooled gear boxes with integral thrust bearings; heating/cooling combination with ceramic heating bands and blowers; material feeding with magnetic separator, flat side valve and level control; temperature control with heating circuit control/monitoring with wear-free solid state relays; AC Vector direct drives; - 3 Pivoting Screen Changer Type Kiefel for Kirion 50; 2 Pivoting screen changer type Kiefel for Kirion 60; 2 Pivoting Screen Changer Type Kiefel for Kirion 70; - 7 Melt Temperature Measurement Instruments; 7 Melt Pressure Measurement Instruments prior to screen changer with over-pressure interlock; 7 Melt pressure measurement instruments after screen changer; - 1 adapter; 3 Sound insulation plate for blower Kirion 50; 2 Sound insulation box Kirion 60; 2 Sound insulation box Kirion 70; 7 Heat Exchanger for Extruder Drive; - 1 Moveable Die cart; 1 preparation of Profile Control for the installation of heating cartdges in the centering ring or air ring; 1 Frequency Control for IBC supply and exhaust air blowers;1 IBC for low stalk production for die diameter 500mm; 1 High Capacity Air Ring HL 500/600; 1 Profile Control C2 equipped with 64 heating inserts for control of cooling ring air temperature with cooling ring HL 500/600;1 Air Ring Insert 500S dual lip Venturi insert for LLDPE/ lDPE low stalk production for die diameter 500mm;1 Extra Piping for blowes located on intermediate tower platform, operator controls located at floor level; 1 Twin Chiller; 1 Calibration Cage; - 1 Brush rolls with spread Effect 2200; 1 aluminium side guides 2200; 1 package for friction control; 1 Driven banana Spreader roll 2200; - 1 edge Fold Slitter 2200; 1 Edge Trim Slitting Station 2200; 1 Linear and Horizontal Blade Oscillation 2200; 2 Antistatic System; 2 Edge Trim and Multi-Web sliting Station; 4 additional twin blade holders; 2 horizontal oscillation; 4 pneumatic winding shaft; 2 winder control cabinet cooling device; 2 electric roll shaft hoists with frames; 1 edge trim guide fingers; Vacuum Suction System;1 Control of average Layer Thikness; - Accessories : Reversing haul-­-off, back to back winder; - Auxiliary Equipments : Corona Treater Softal (4-sided treatment);Electronic Systems Radiometric thickness control system; WaterBath for the Asymmetric Barrier Structures;Plastcontrol gravimetric dosing unit,running meter control, including material feeding.Gusset Boards for producing gusseted film; 1 main and 3 dosing components for the skin layers (Layer A&G), 1+2 dosing components for the core layers ( Layer B,C,D,E,F ). Thickness range: 20-250µ Thickness variation: +/- %5

** VENDIDA **


Usted tal vez también interesado en:

194720 - KIEFEL

KIEFEL

Categoría: Film extrusion lines

Subcategoría: Blown film

Ancho del film: 1800

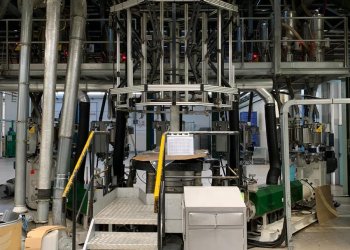

203172 - MACCHI COEX 5
