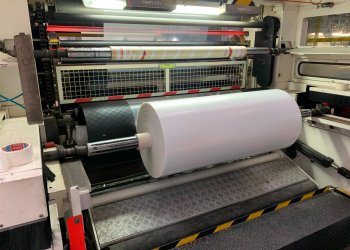

3 capas MACCHI COEX3 Linea de extrusion

Código Máquina
EX665
Constructor
MACCHI
Modello
COEX3
Año
2010
Number of layers
3
Film structure
ABC
Material
LDPE, LLDPE Thicknes 20 - 200 microns
Film Width
1700
Output (Kg/h)
400 Kg / h
Extruder 1 Layer ref:
A
Screw diam 1
65 / 30D
Description 1
4 heating zones - AC motor 74 Kw- Hydraulic screen change gravimetric blendeer Doteco 5 comp
Extruder 2 Layer ref:
B
Screw diam 2
100 / 30 D
Description 2
5 heating zones -AC motor 180 Kw, hydraulic screen changer, gravimetric blendeer Doteco 5 comp
Extruder 3 Layer ref:
C
Screw diam 3
65
Description 3
4 heating zones - AC motor 74 Kw- Hydraulicscreen changer, gravimetric blendeer Doteco 5 comp
Head description
Coex Flex TE 503-; die range 300-500mm, IBC with Jet 6 system - blowing and exhaust fan 11kW controlled by inverters
Die diam (mm)
400 gap 2mm
Thickness controll system
Automatic profil control, Plascontrol magic flow
Bubble cage
No marking system GSRC 2350/8 -5 with 5 lavels and 8 syncro arms with motorized remote controlled opening and height adjustment , 4 x Ultrasonic sensors for auto control of IBC,
Panel for gussets
Yes, motor driven
Take off unit
Oscillating ST 199- 1800oscillating width 1800 mm useful 1700 mm- S shape double cooling
Corona treatment
Yes
Web guide
E&L
Rewinder Type
Double back to back
Rewinder max reel diameter
1200
Rewinder description
BOPLUS + Easy load - Roll diam 1200 mm
Note
TOWER STRUCTURE NOT INCLUDED total suggested height 15 mt Mechanical speed 150m/min Total installed power 540 Kw Recotrim recycling system
Código Máquina EX665
Constructor MACCHI
Modello COEX3
Año 2010
Number of layers 3
Film structure ABC
Material LDPE, LLDPE Thicknes 20 - 200 microns
Film Width 1700
Output (Kg/h) 400 Kg / h
Extruder 1 Layer ref: A
Screw diam 1 65 / 30D
Description 1 4 heating zones - AC motor 74 Kw- Hydraulic screen change gravimetric blendeer Doteco 5 comp
Extruder 2 Layer ref: B
Screw diam 2 100 / 30 D
Description 2 5 heating zones -AC motor 180 Kw, hydraulic screen changer, gravimetric blendeer Doteco 5 comp
Extruder 3 Layer ref: C
Screw diam 3 65
Description 3 4 heating zones - AC motor 74 Kw- Hydraulicscreen changer, gravimetric blendeer Doteco 5 comp
Head description Coex Flex TE 503-; die range 300-500mm, IBC with Jet 6 system - blowing and exhaust fan 11kW controlled by inverters
Die diam (mm) 400 gap 2mm
Thickness controll system Automatic profil control, Plascontrol magic flow
Bubble cage No marking system GSRC 2350/8 -5 with 5 lavels and 8 syncro arms with motorized remote controlled opening and height adjustment , 4 x Ultrasonic sensors for auto control of IBC,
Panel for gussets Yes, motor driven
Take off unit Oscillating ST 199- 1800oscillating width 1800 mm useful 1700 mm- S shape double cooling
Corona treatment Yes
Web guide E&L
Rewinder Type Double back to back
Rewinder max reel diameter 1200
Rewinder description BOPLUS + Easy load - Roll diam 1200 mm
Note TOWER STRUCTURE NOT INCLUDED total suggested height 15 mt Mechanical speed 150m/min Total installed power 540 Kw Recotrim recycling system
** SOLD **
