- Código Máquina
- CA226
- Constructor
- COLINES

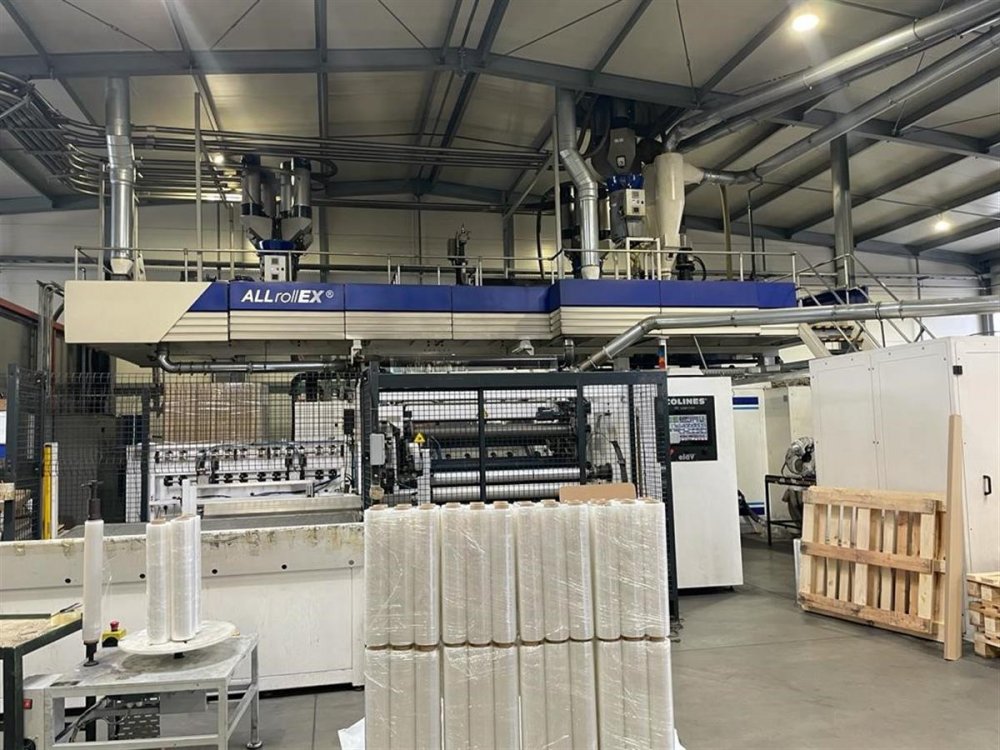

- Modello
- ALLrollEX
- Año
- 2017
- Number of layers
- 5
- Film structure
- ABCD
- Material
- Stretch film LLDPE
- Film width (mm)
- 1500
- Speed (m/min)
- max 800
- Output (Kg/h)
- 1320

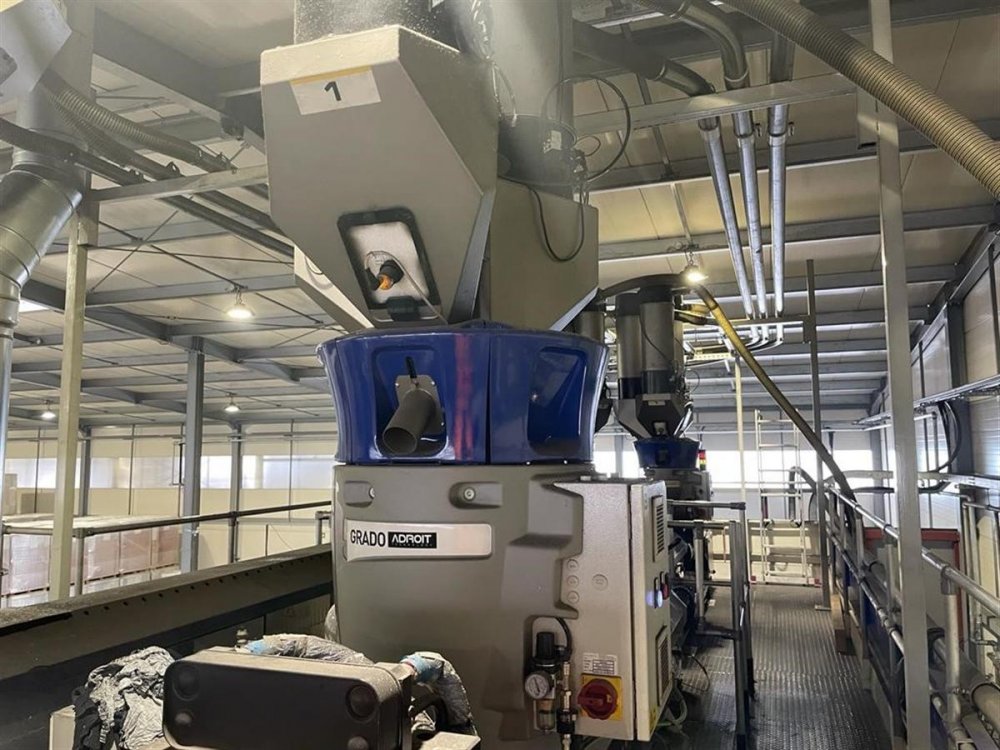

- Extruder 1 Layer ref:
- A
- Screw diam 1
- 55/34 mm
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 80/30 mm

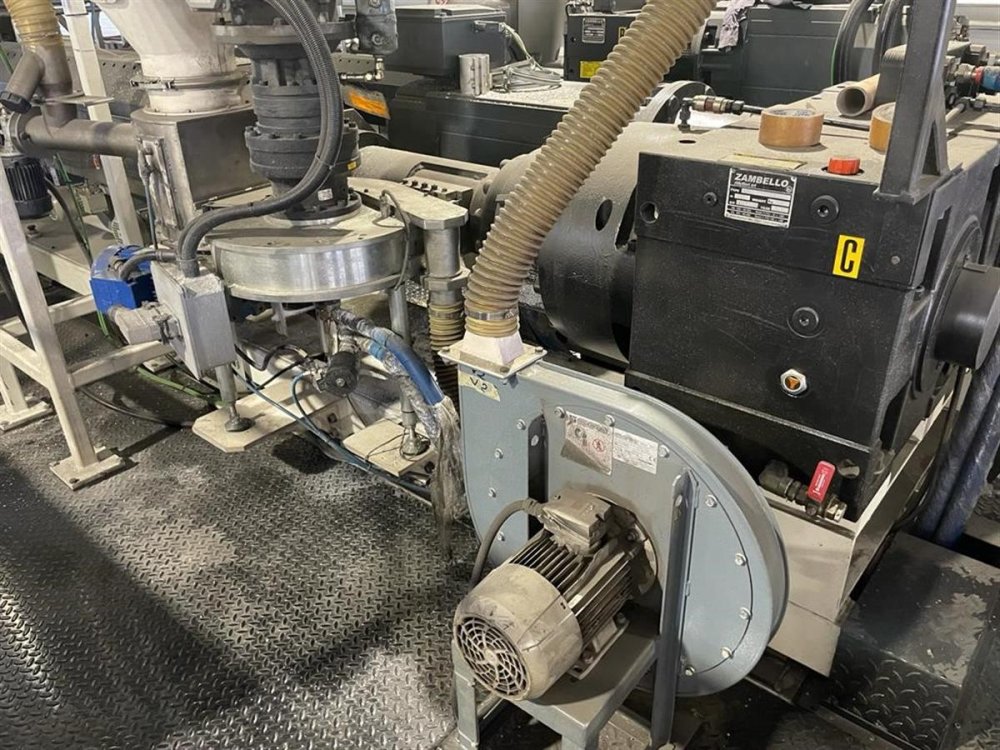

- Extruder 3 Layer ref:
- C
- Screw diam 3
- 120/30 mm
- Extruder 4 Layer ref:
- D
- Screw diam 4
- 55/34 mm

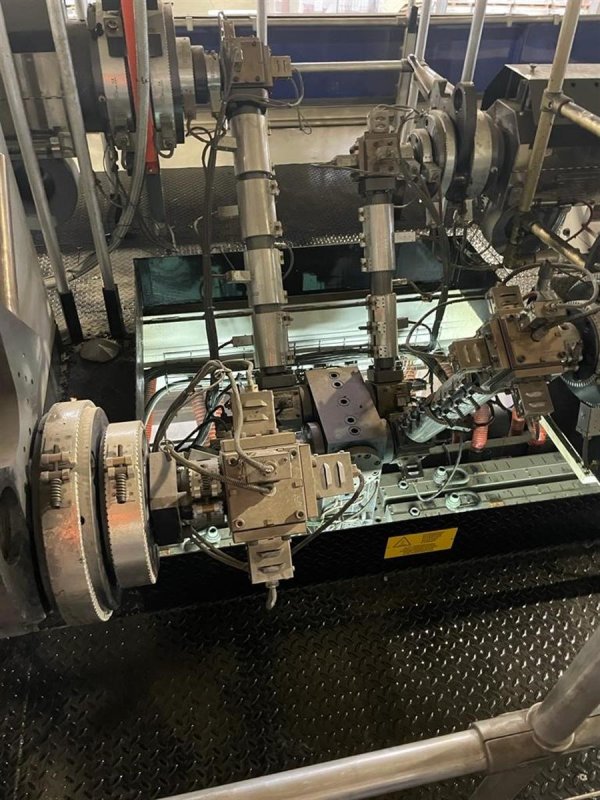

- Head description
- CLOEREN automatic and 5 layer feedblock
- Die width (mm)
- 2100

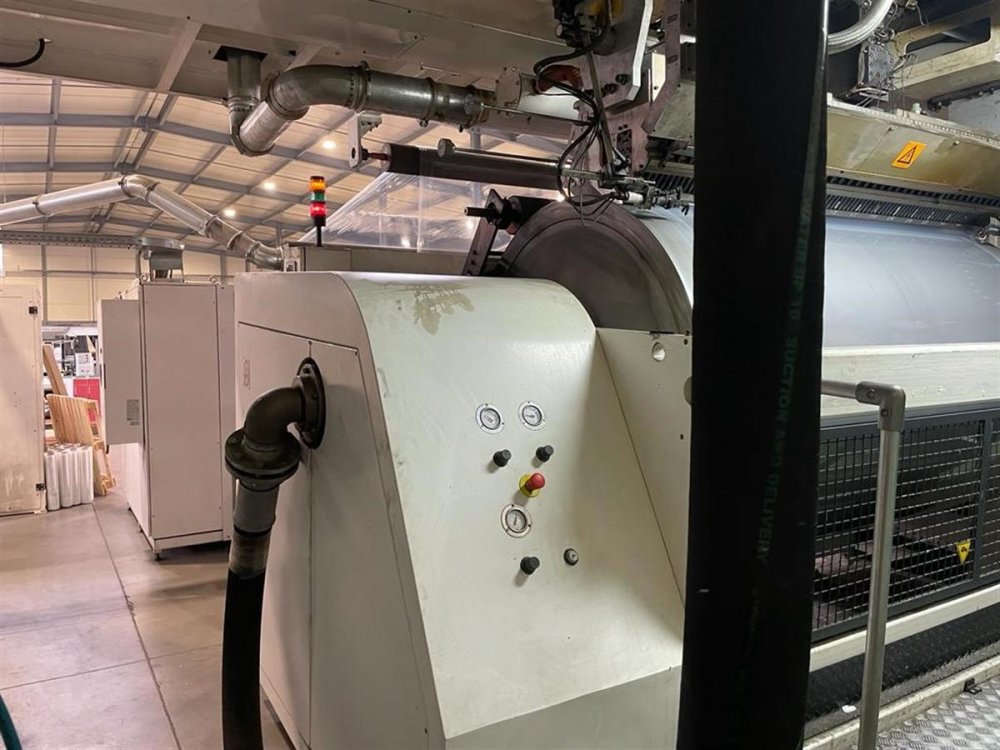

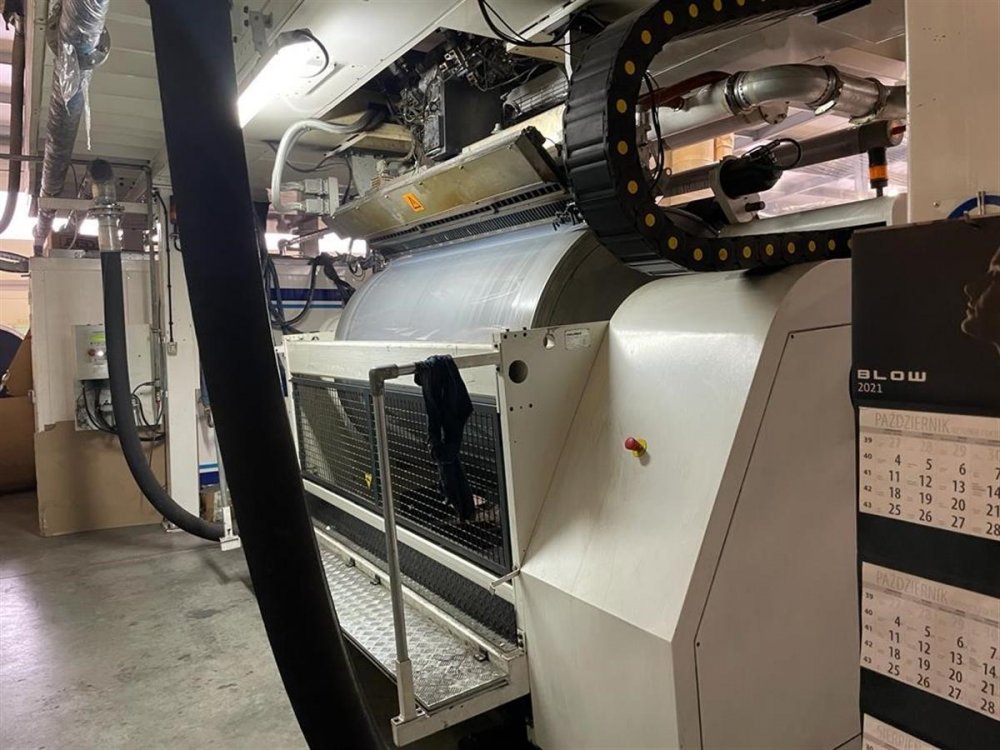

- Chill roll unit
- Chill-roll unit with a cylinder diam.1400 mm

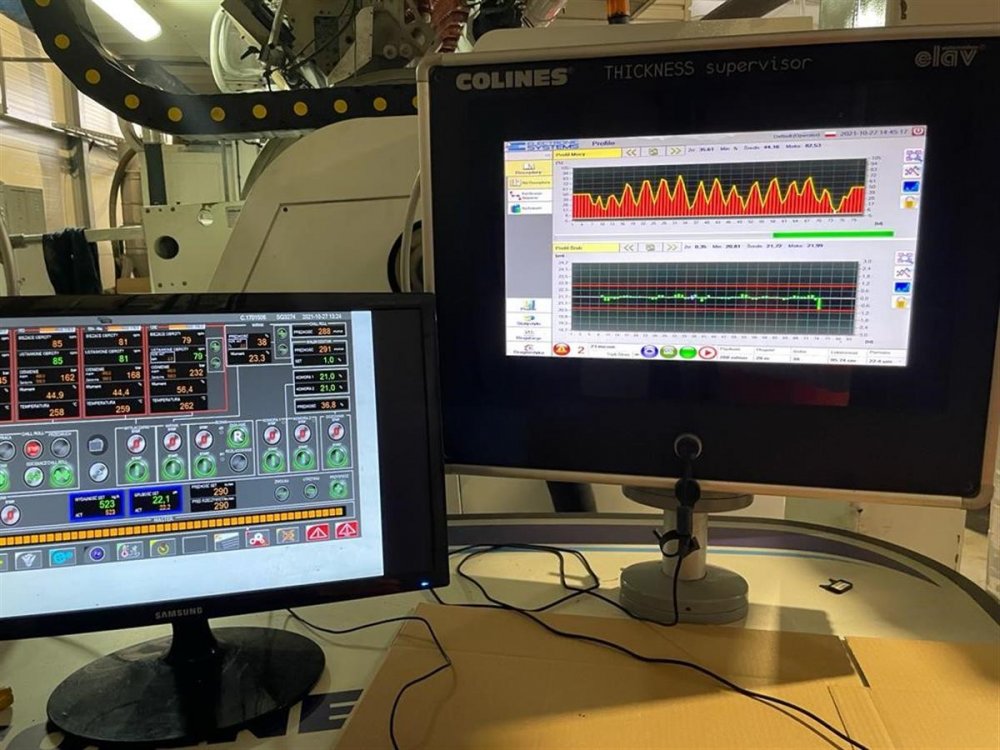

- Thickness controll system
- Thickness min.-max of film 10 µm ÷ 35µm
- Web guide
- Yes

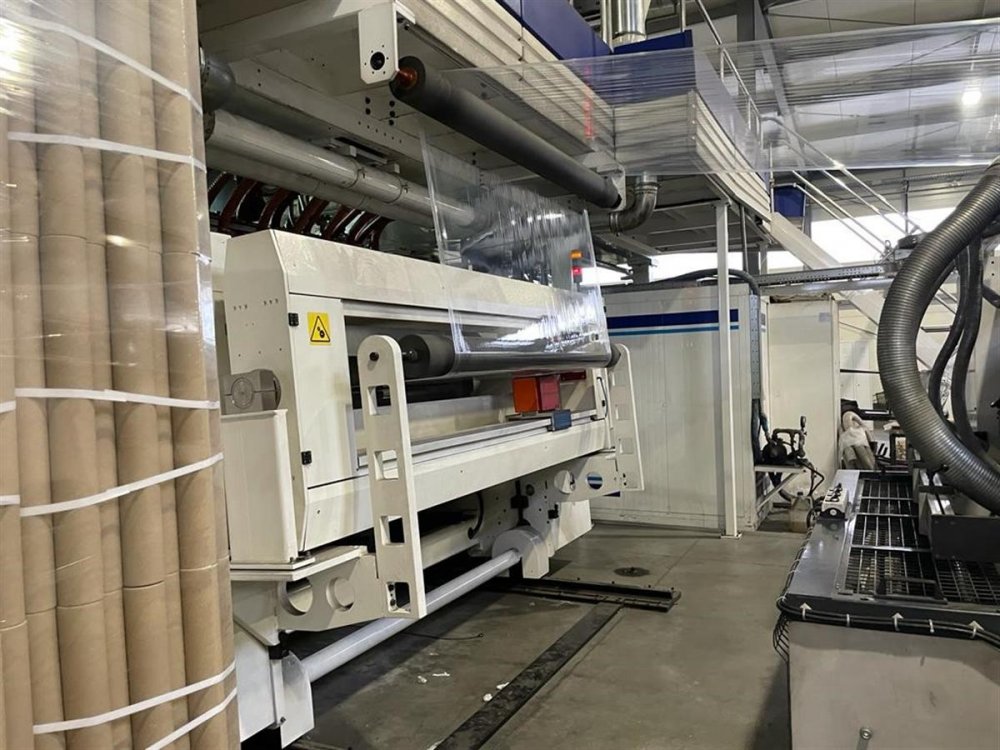

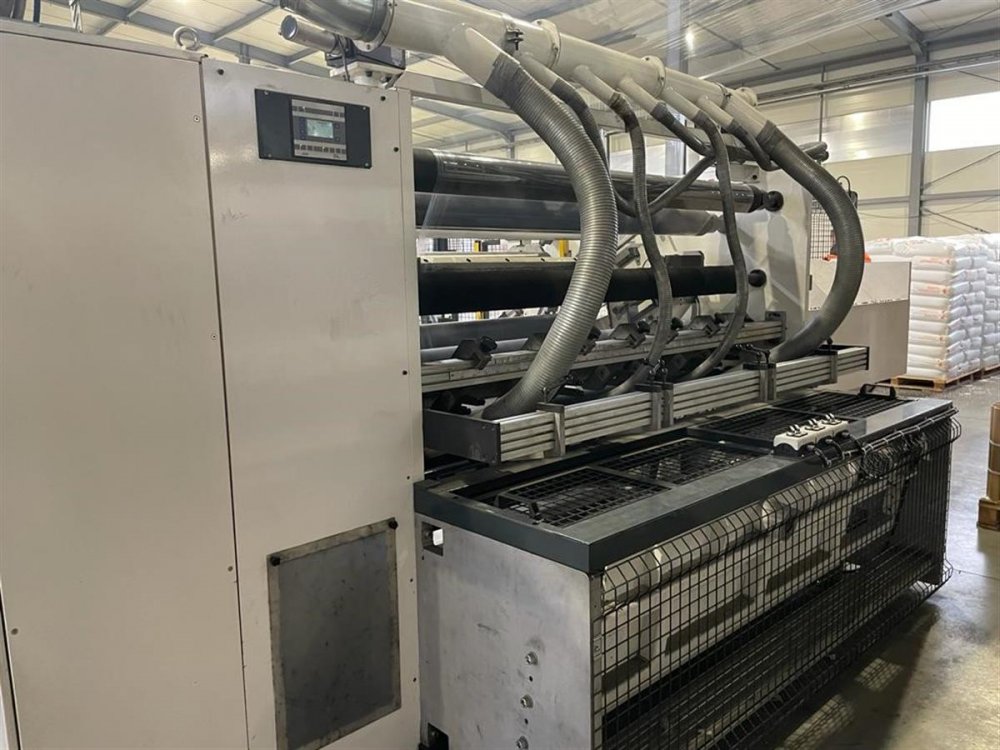

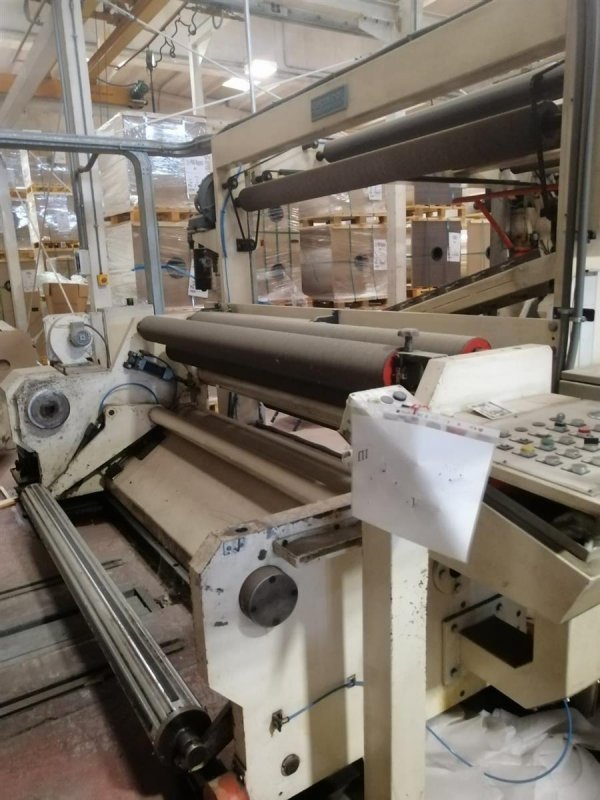

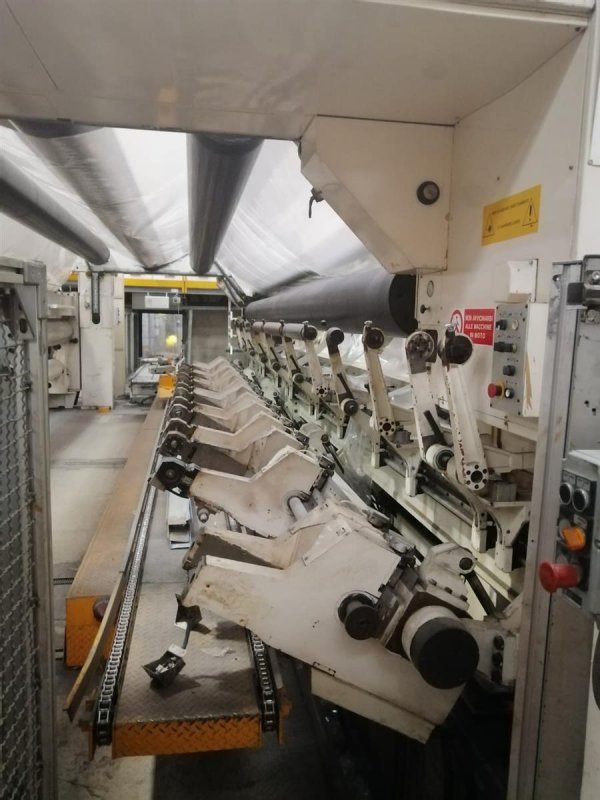

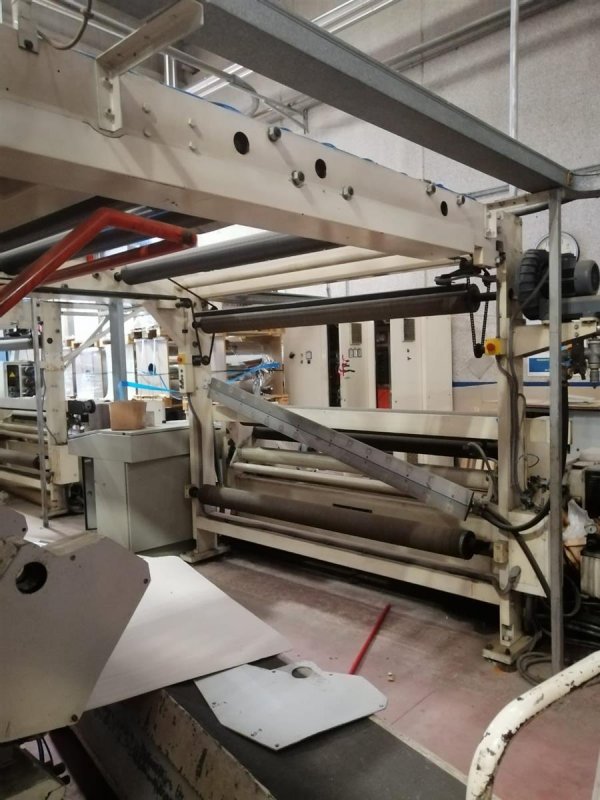

- Rewinder description
- 3x3" shafts for jumbo rolls and 3x2" shafts for hand rolls mod.ALLSPEEDY III
| Código Máquina | CA226 |
| Constructor | COLINES |
| Modello | ALLrollEX |
| Año | 2017 |
| Number of layers | 5 |
| Film structure | ABCD |
| Material | Stretch film LLDPE |
| Film width (mm) | 1500 |
| Speed (m/min) | max 800 |
| Output (Kg/h) | 1320 |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 55/34 mm |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 80/30 mm |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 120/30 mm |
| Extruder 4 Layer ref: | D |
| Screw diam 4 | 55/34 mm |
| Head description | CLOEREN automatic and 5 layer feedblock |
| Die width (mm) | 2100 |
| Chill roll unit | Chill-roll unit with a cylinder diam.1400 mm |
| Thickness controll system | Thickness min.-max of film 10 µm ÷ 35µm |
| Web guide | Yes |
| Rewinder description | 3x3" shafts for jumbo rolls and 3x2" shafts for hand rolls mod.ALLSPEEDY III |
