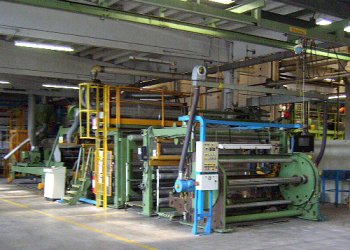

- Código Máquina
- CA017
- Constructor
- PRANDI
- Año
- 1984
- Number of layers
- 1
- Material
- CPP
- Film width (mm)
- 2000
- Output (Kg/h)
- 350 kg/h gross output
- Screw diam 1
- 160
- Head description
- fixed extrusion die manual adjustment,
- Die width (mm)
- 2300
- Chill roll unit
- Head: manual adjustment, air and smoke suction by fan and encapsulating hood\r\nChill roll: with two cylinders (diameter 750 and 300 mm UNION SELECT width 2400 mm, independent thermoregulation units for the two cylinders, rubber-covered pressure roller and brush cleaner; Thickness : 25 to 250 micron ;edge pinning system by air;
- Thickness controll system
- Electronic system thickness mesurement;
- Corona treatment
- single-face corona treatment unit, FERRARINI & BENELLI
- Web guide
- E+L
- Rewinder max reel diameter (mm)
- 800
- Rewinder description
- TURRET winder , transversal guillotine cut, control device: PLC Siemens
- Note
- In line slitting;automatic hopper loader (without dosing systems);air and smoke suction by fan and enca;side-slip unit ERHARDT + LEIMER;motor-drrevolver-type winder with lay-on roller and contact carriage, transversal guillotine cut, max. reel diameter 800 mmiven haul-off unit and trimming group with 4 rotary blades;control device: PLC Siemens
Código Máquina | CA017 |
Constructor | PRANDI |
Año | 1984 |
Number of layers | 1 |
Material | CPP |
Film width (mm) | 2000 |
Output (Kg/h) | 350 kg/h gross output |
Screw diam 1 | 160 |
Head description | fixed extrusion die manual adjustment, |
Die width (mm) | 2300 |
Chill roll unit | Head: manual adjustment, air and smoke suction by fan and encapsulating hood\r\nChill roll: with two cylinders (diameter 750 and 300 mm UNION SELECT width 2400 mm, independent thermoregulation units for the two cylinders, rubber-covered pressure roller and brush cleaner; Thickness : 25 to 250 micron ;edge pinning system by air; |
Thickness controll system | Electronic system thickness mesurement; |
Corona treatment | single-face corona treatment unit, FERRARINI & BENELLI |
Web guide | E+L |
Rewinder max reel diameter (mm) | 800 |
Rewinder description | TURRET winder , transversal guillotine cut, control device: PLC Siemens |
Note | In line slitting;automatic hopper loader (without dosing systems);air and smoke suction by fan and enca;side-slip unit ERHARDT + LEIMER;motor-drrevolver-type winder with lay-on roller and contact carriage, transversal guillotine cut, max. reel diameter 800 mmiven haul-off unit and trimming group with 4 rotary blades;control device: PLC Siemens |
