- Código Máquina
- LAB272
- Constructor
- OMET
- Modello

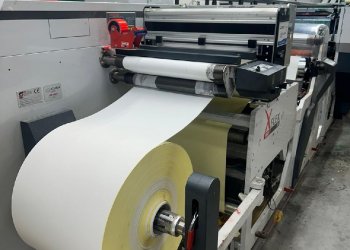

- XFLEX X6 530
- Año
- 2019
- Number of colors
- 7
- Web width (mm)
- 550
- Print width (mm)
- 530
- Print repeat range (mm)
- 315 - 508 mm
- Drying
- 7 UV drying sections E2C RHINO LIGHT UV system, power up to 6,6 kW and 3 Heated air drying systems with thermoregulation
- Unwinder
- - Automatic tension unwinder, for rolls up to 1000 mm (40”) diameter, with integrated roll pick up from the floor. Servo driven infeed section, with automatic web tension control,
- Rewinder
- Single shaft rewinder, with independent motor for constant tension control, for rolls up to 1000 mm (40”) diameter, including integrated roll discharge system,
- Note
- 3 Flexo units and 4 offset units, 2 die cutting units. SHAFTLESS and GEARLESS Direct Drive flexo printing unit Side registration Servo Motorized; - Automatic Longitudinal and Transverse pre-registration, setting position Web turning bar, sliding on rail Antistatic bars Corona Treater Double side web cleaner 7 closed loop circuitc chilling system for chill drums. Automatic wash-up system for the offset inking train, complete with nozzles, washing detergents supply driven by electro-valves, liquid tank next to the relevant offset printing station, cleaning-roll doctor blade and solvent recycling tray. Printing Tooling (sleeve and cams) repeat: 99;104;128;134;144;146;149;153;156;157;160 Z;
| Código Máquina | LAB272 |
| Constructor | OMET |
| Modello | XFLEX X6 530 |
| Año | 2019 |
| Number of colors | 7 |
| Web width (mm) | 550 |
| Print width (mm) | 530 |
| Print repeat range (mm) | 315 - 508 mm |
| Drying | 7 UV drying sections E2C RHINO LIGHT UV system, power up to 6,6 kW and 3 Heated air drying systems with thermoregulation |
| Unwinder | - Automatic tension unwinder, for rolls up to 1000 mm (40”) diameter, with integrated roll pick up from the floor. Servo driven infeed section, with automatic web tension control, |
| Rewinder | Single shaft rewinder, with independent motor for constant tension control, for rolls up to 1000 mm (40”) diameter, including integrated roll discharge system, |
| Note | 3 Flexo units and 4 offset units, 2 die cutting units. SHAFTLESS and GEARLESS Direct Drive flexo printing unit Side registration Servo Motorized; - Automatic Longitudinal and Transverse pre-registration, setting position Web turning bar, sliding on rail Antistatic bars Corona Treater Double side web cleaner 7 closed loop circuitc chilling system for chill drums. Automatic wash-up system for the offset inking train, complete with nozzles, washing detergents supply driven by electro-valves, liquid tank next to the relevant offset printing station, cleaning-roll doctor blade and solvent recycling tray. Printing Tooling (sleeve and cams) repeat: 99;104;128;134;144;146;149;153;156;157;160 Z; |
