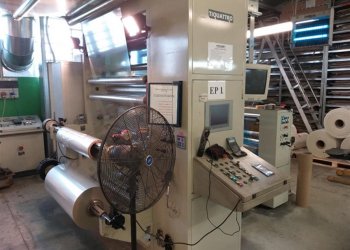

- Código Máquina
- ST237
- Constructor
- TIQUATTRO
- Año
- 2004
- Number of colors
- 6
- Tipo
- Reel to Reel
- Web width (mm)
- 1300
- Print width (mm)
- 1200
- Print repeat (mm)
- max 800
- unwinder type
- Double bracket
- Max diameter reel unwinder (mm)
- 800
- Rewinder type
- Double bracket
- Max diameter reel rewinder (mm)
- 800
- Drying
- gas
- Videocamera
- yes
- Corona treatment
- yes
- Inking sysytem
- Closed chamber doctor blades
- Anilox
- Qty x lines/cm: 1x60; 1x80; 2x120; 1x160; 1x220; 1x280; 3x320; 1x360
- Print Sleeves
- 6x (320,340,360,400,420,450,560,480,520,560,600,650 mm); 10x500mm; 4x680mm; + 11 rubber sleeves
- Note
- Sleeves for plate 1,14mm
| Código Máquina | ST237 |
| Constructor | TIQUATTRO |
| Año | 2004 |
| Number of colors | 6 |
| Tipo | Reel to Reel |
| Web width (mm) | 1300 |
| Print width (mm) | 1200 |
| Print repeat (mm) | max 800 |
| unwinder type | Double bracket |
| Max diameter reel unwinder (mm) | 800 |
| Rewinder type | Double bracket |
| Max diameter reel rewinder (mm) | 800 |
| Drying | gas |
| Videocamera | yes |
| Corona treatment | yes |
| Inking sysytem | Closed chamber doctor blades |
| Anilox | Qty x lines/cm: 1x60; 1x80; 2x120; 1x160; 1x220; 1x280; 3x320; 1x360 |
| Print Sleeves | 6x (320,340,360,400,420,450,560,480,520,560,600,650 mm); 10x500mm; 4x680mm; + 11 rubber sleeves |
| Note | Sleeves for plate 1,14mm |
