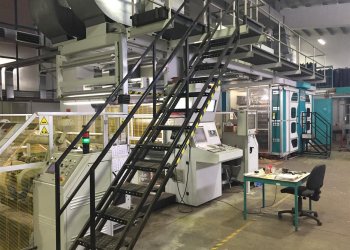

UTECO ONYX 876 GL MOD 130 Maquina flexografica 8 colores

Código Máquina
FL702
Constructor
UTECO
Modelo
ONYX 876 GL MOD 130
Año
2007
Número de colores
8
Posibilidades de impresión
8+0
Gearless
Yes
Cambio rápido mangas impresión
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Ancho del material (mm)
1350
Print width (mm)
1300
Min print repeat (mm)
350
Max print repeat (mm)
800
Unwinder type
AUTOMATIC TURRET "TA-U 800"
Diámetro máximo bobinas Desenrollador (mm)
800
Rewinder type
AUTOMATIC TURRET "TA-R 800"
Max reel diameter rewinder (mm)
800
Sistema de secado
With electrical batteries.Drying Tunnel 4 m long; Motorized air recirculation system with LEL system
Videocámera
Yes, BST Proscan 3000-3chip
Alineadores
Yes, type SHIFTING
Vyscosity control
n. 8 viscosimeters brand Inkspec
Sistema de tinta
n. 8 ink pumps
Anilox
16 ceramic anilox sleeves
Mangas de impresión
120 print sleeves
Informaciones adicionales
n.8 steel made printing sleeve air mandrel, diam 105.158mm n.8 closed chamber doctor blades Mechanical speed: up to 365m/min Total plate thickness : 1.69mm (including stickyback) Antistatic bar at web infeed Expandible shafts 3"
Código Máquina FL702
Constructor UTECO
Modelo ONYX 876 GL MOD 130
Año 2007
Número de colores 8
Posibilidades de impresión 8+0
Gearless Yes
Cambio rápido mangas impresión Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Ancho del material (mm) 1350
Print width (mm) 1300
Min print repeat (mm) 350
Max print repeat (mm) 800
Unwinder type AUTOMATIC TURRET "TA-U 800"
Diámetro máximo bobinas Desenrollador (mm) 800
Rewinder type AUTOMATIC TURRET "TA-R 800"
Max reel diameter rewinder (mm) 800
Sistema de secado With electrical batteries.Drying Tunnel 4 m long; Motorized air recirculation system with LEL system
Videocámera Yes, BST Proscan 3000-3chip
Alineadores Yes, type SHIFTING
Vyscosity control n. 8 viscosimeters brand Inkspec
Sistema de tinta n. 8 ink pumps
Anilox 16 ceramic anilox sleeves
Mangas de impresión 120 print sleeves
Informaciones adicionales n.8 steel made printing sleeve air mandrel, diam 105.158mm n.8 closed chamber doctor blades Mechanical speed: up to 365m/min Total plate thickness : 1.69mm (including stickyback) Antistatic bar at web infeed Expandible shafts 3"
** SOLD **
