- Código Máquina
- FL1156

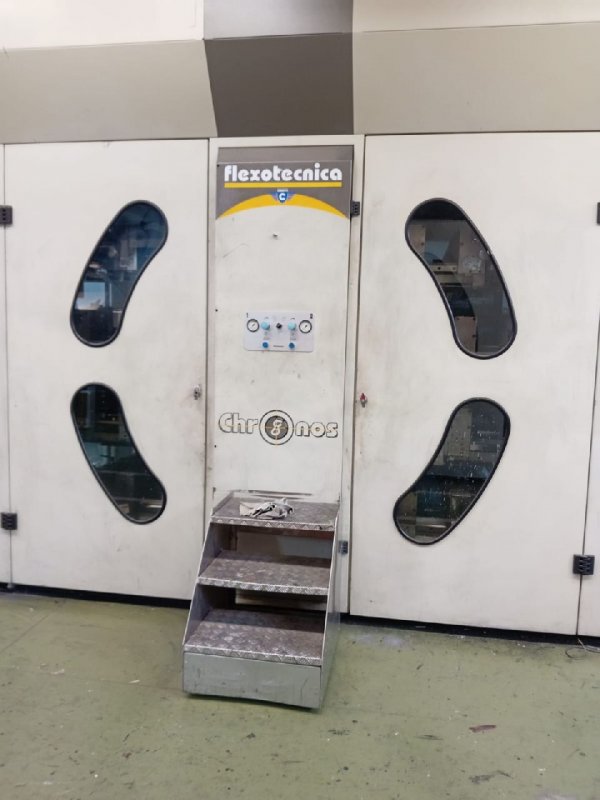

- Constructor
- FLEXOTECNICA
- Modello
- CHRONOS 8
- Año
- 2006
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes

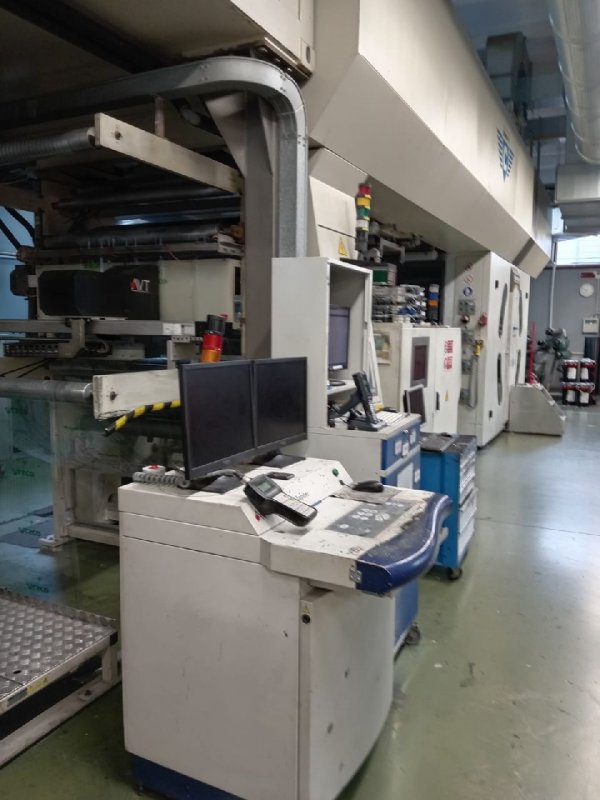

- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1270
- Min print repeat (mm)
- 340
- Max print repeat (mm)
- 800

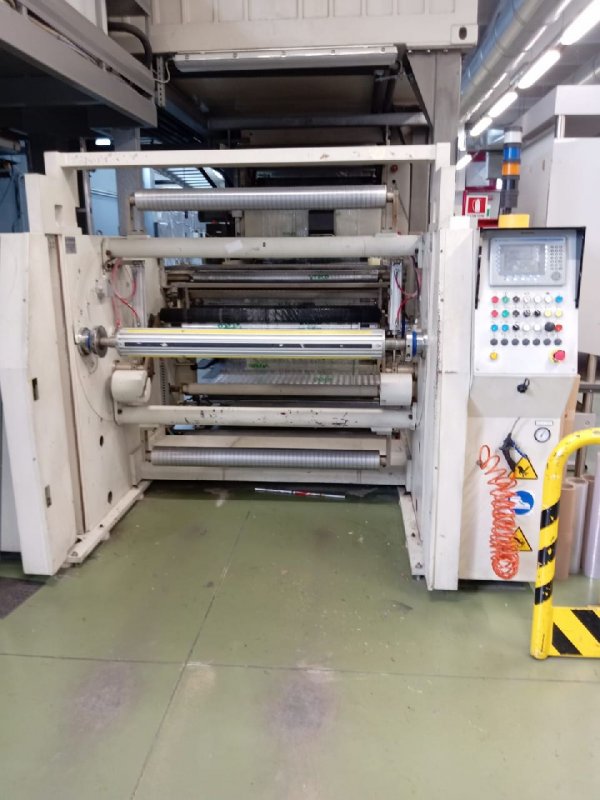

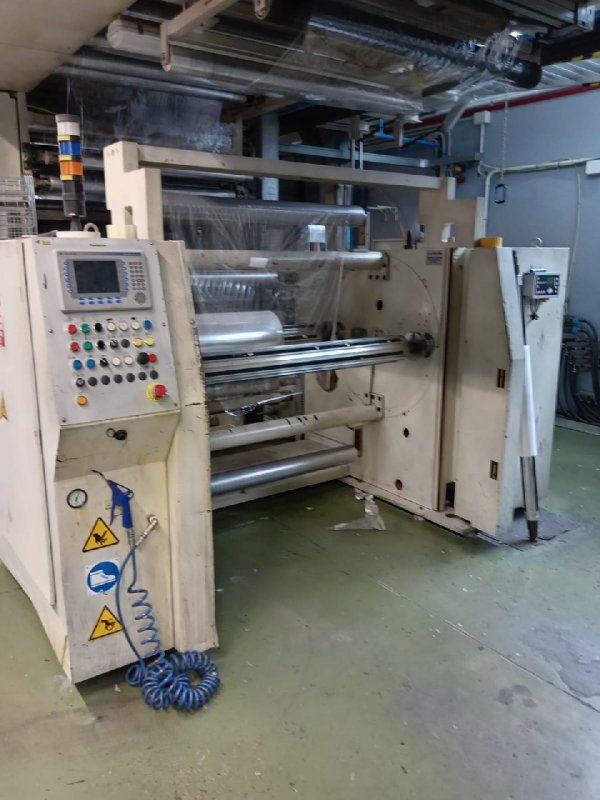

- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 1000

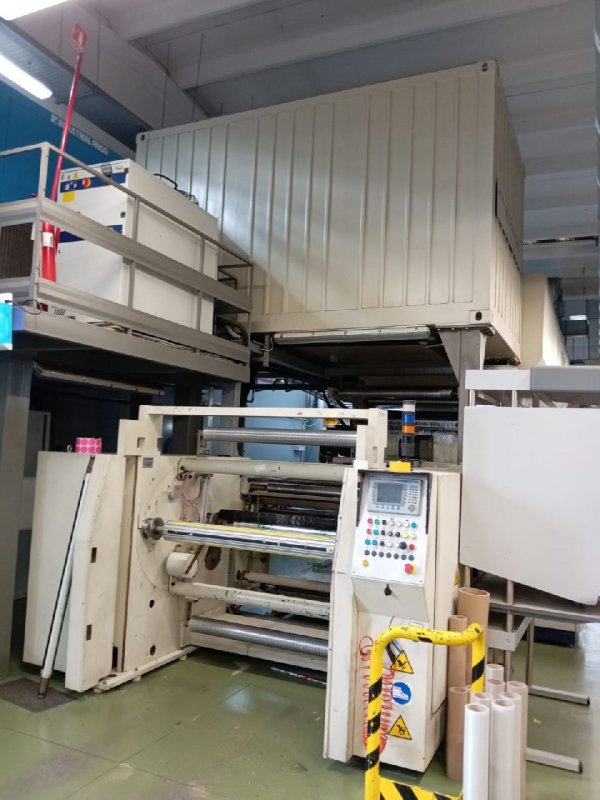

- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 Drying zones, 4 fans, 3,5 mt final tunnel , 2 Gas burners , automatic air recirculation system

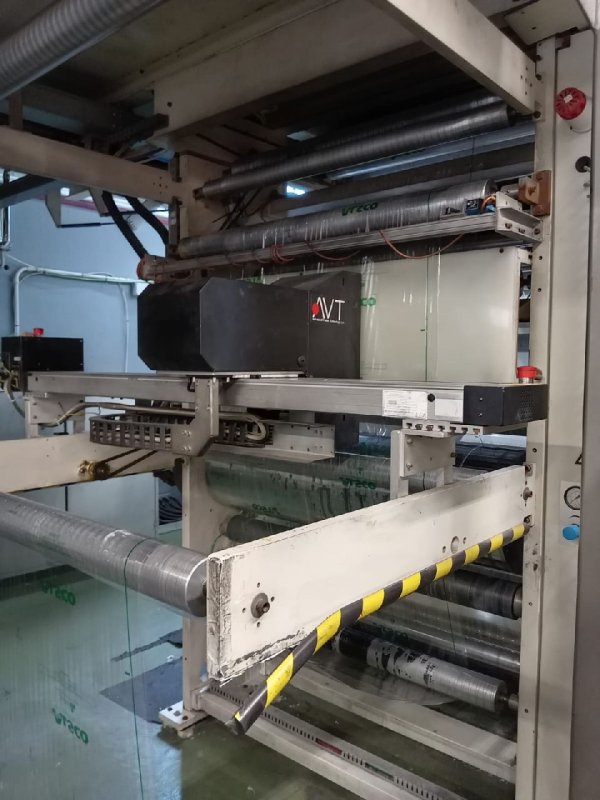

- Videocamera
- AVT

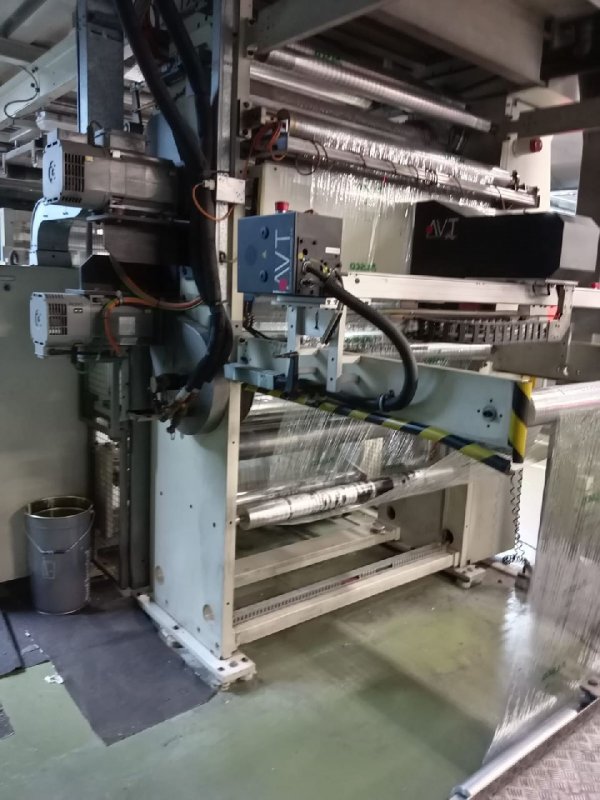

- Web guides
- yes in and out
- Vyscosity control
- Yes
- Washing system
- Yes

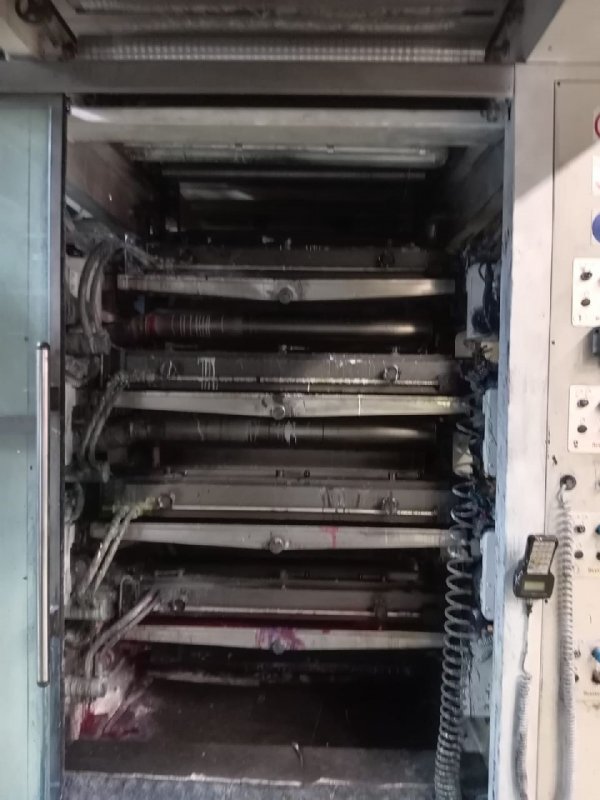

- Inking system
- Closed chamber doctor blades
- Anilox
- Anilox ceramic sleeves 1x 420 Lines/cm -Vol.4.2 , 1x 420Lines/cm -Vol.3.8, 2x 420Lines/cm -Vol.3.5 , 1x 460Lines/cm -Vol.4.2 , 2x 200Lines/cm -Vol.9 , 1x 160Lines/cm -Vol.11.5 , 1x 140Lines/cm -Vol. 12.5 , 1x 120Lines/cm -Vol.13.5, 1x 320Lines/cm -Vol.6.5, 1x 460Lines/cm -Vol.3, 1x 300Lines/cm -Vol.6.5, 1x 80Lines/cm -Vol.16.5
- Print Sleeves
- 64
| Código Máquina | FL1156 |
| Constructor | FLEXOTECNICA |
| Modello | CHRONOS 8 |
| Año | 2006 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1270 |
| Min print repeat (mm) | 340 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 Drying zones, 4 fans, 3,5 mt final tunnel , 2 Gas burners , automatic air recirculation system |
| Videocamera | AVT |
| Web guides | yes in and out |
| Vyscosity control | Yes |
| Washing system | Yes |
| Inking system | Closed chamber doctor blades |
| Anilox | Anilox ceramic sleeves 1x 420 Lines/cm -Vol.4.2 , 1x 420Lines/cm -Vol.3.8, 2x 420Lines/cm -Vol.3.5 , 1x 460Lines/cm -Vol.4.2 , 2x 200Lines/cm -Vol.9 , 1x 160Lines/cm -Vol.11.5 , 1x 140Lines/cm -Vol. 12.5 , 1x 120Lines/cm -Vol.13.5, 1x 320Lines/cm -Vol.6.5, 1x 460Lines/cm -Vol.3, 1x 300Lines/cm -Vol.6.5, 1x 80Lines/cm -Vol.16.5 |
| Print Sleeves | 64 |
