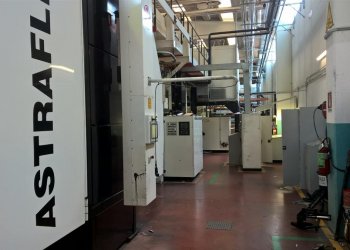

- Código Máquina
- FL682
- Constructor
- WINDMÖLLER & HÖLSCHER
- Modello
- ASTRAFLEX
- Año
- 2001
- Number of colors
- 8
- Overhaul/renovation
- 2015
- Gearless
- Yes
- Fast sleeve change
- No
- Computer supervision
- Yes
- Web width (mm)
- 1600
- Print width (mm)
- 1570
- Unwinder type
- Automatic
- Rewinder type
- Automatic
- Videocamera
- BST Premius Digital 1 chip
- Anilox
- 21 pieces from 80 to 340 L/cm
- Print Sleeves
- 252 from 400 to 1090 format
- Note
- Small format gears from 400 to 599: 16 pcs. Large format gears from 600 to 1.200: 16 pcs Cylinders Trolleys for handling and job change: 7 Automatic cylinder handling system Portalift Motors and operator interface touch screen upgrades in 2015. Upgrade of the machine controllers interface made in 2015, including the replacement of all drivers for the anilox motors. Slitter unit with trim aspirations at the rewinder.
| Código Máquina | FL682 |
| Constructor | WINDMÖLLER & HÖLSCHER |
| Modello | ASTRAFLEX |
| Año | 2001 |
| Number of colors | 8 |
| Overhaul/renovation | 2015 |
| Gearless | Yes |
| Fast sleeve change | No |
| Computer supervision | Yes |
| Web width (mm) | 1600 |
| Print width (mm) | 1570 |
| Unwinder type | Automatic |
| Rewinder type | Automatic |
| Videocamera | BST Premius Digital 1 chip |
| Anilox | 21 pieces from 80 to 340 L/cm |
| Print Sleeves | 252 from 400 to 1090 format |
| Note | Small format gears from 400 to 599: 16 pcs. Large format gears from 600 to 1.200: 16 pcs Cylinders Trolleys for handling and job change: 7 Automatic cylinder handling system Portalift Motors and operator interface touch screen upgrades in 2015. Upgrade of the machine controllers interface made in 2015, including the replacement of all drivers for the anilox motors. Slitter unit with trim aspirations at the rewinder. |
