** SOLD **
Machines may have different constructions depending on: the type of material, its dimensions and the key performances required.
Ask more informations
about a similar one
- Machine Code
- SR267
- Manufacturer
- KAMPF
- Modello

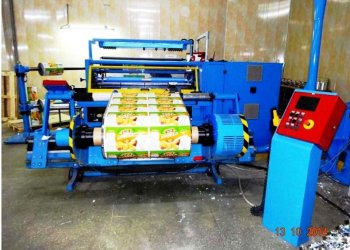

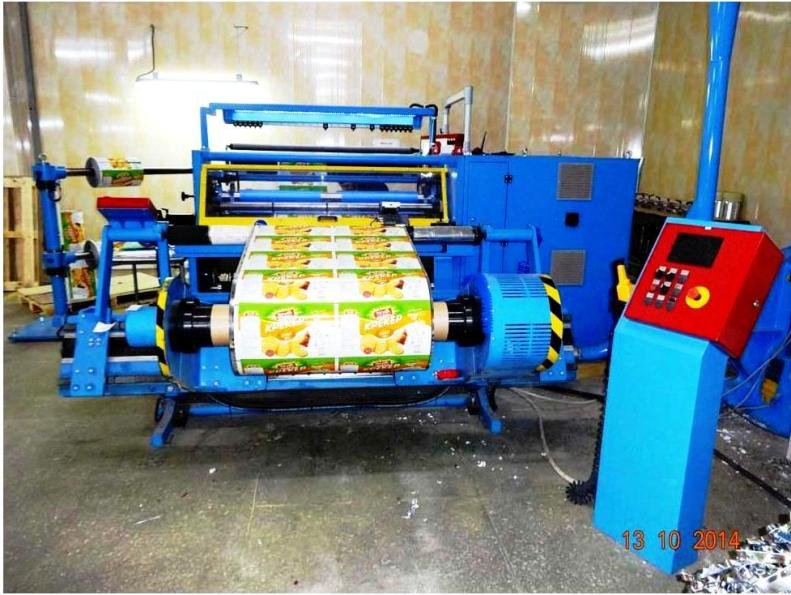

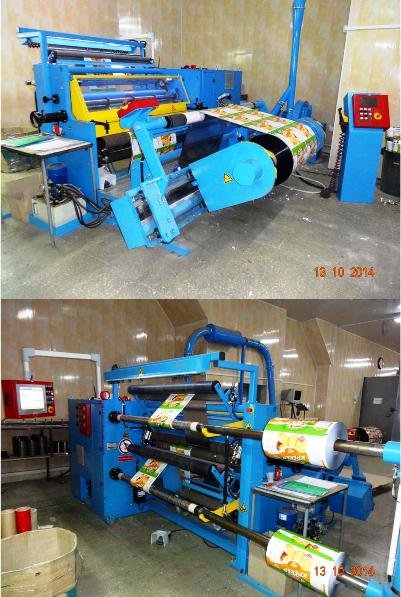

- STARSLIT ECO 1/06
- Year
- 2013
- Working width (mm)
- 1300
- Materials
- PE, PP, PA, PET, PVC, papers and laminate, films approx 10-500my (depending on slitting width, machine speed and material )
- Speed
- 450 m/min max.
- Unwinder type
- Single shaft
- Max diameter reel unwinder
- 1000
- Rewinder type
- Double shaft center driven
- Max diameter reel rewinder
- 610
- Min slit width
- from 35mm
- Knives
- Scissors cut and blade cut in grooves. Rotating knifes and fixed blades
- Note
- Cores unwinder 70,76 and 152mm. Cores rewinder 76,2 and 152mm. Winding tension max 500 N for both winding levels.
| Machine Code | SR267 |
| Manufacturer | KAMPF |
| Modello | STARSLIT ECO 1/06 |
| Year | 2013 |
| Working width (mm) | 1300 |
| Materials | PE, PP, PA, PET, PVC, papers and laminate, films approx 10-500my (depending on slitting width, machine speed and material ) |
| Speed | 450 m/min max. |
| Unwinder type | Single shaft |
| Max diameter reel unwinder | 1000 |
| Rewinder type | Double shaft center driven |
| Max diameter reel rewinder | 610 |
| Min slit width | from 35mm |
| Knives | Scissors cut and blade cut in grooves. Rotating knifes and fixed blades |
| Note | Cores unwinder 70,76 and 152mm. Cores rewinder 76,2 and 152mm. Winding tension max 500 N for both winding levels. |
