Coatings used in packaging industry are various. Cold and hot seal coating are common. Also, cold and hot seal coatings are commonly used, as well as hot melt and wax coatings. Silicon, Pvdc coating, ant mist and many others are employed. Materials which can be coated with a certain machine depends highly on the type of coating unit(s) available, on machine's construction and equipment.
Ask more informations
- Machine Code
- LA488
- Manufacturer
- CUSTOM MADE
- Year
- 1991
- Application
- Coating
- Type of lamination/coating
- lacquers, coating
- Working width (mm)
- 2946
- Materials
- papers and heavier films
- Speed
- 76 MPM

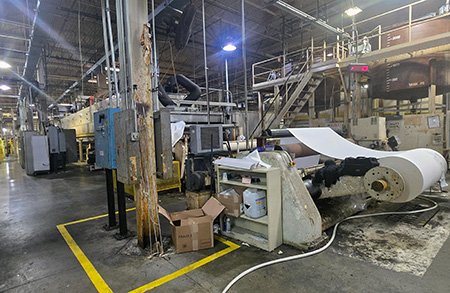

- First unwinder type
- Shaftless with Roll Lift
- Max diameter reel unwinder
- 1500

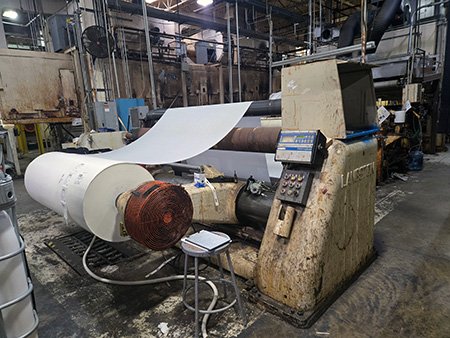

- Rewinder type
- Triple Turret
- Max diameter reel rewinder
- 610
- Coating unit
- Mayer rod coating head
- Drying

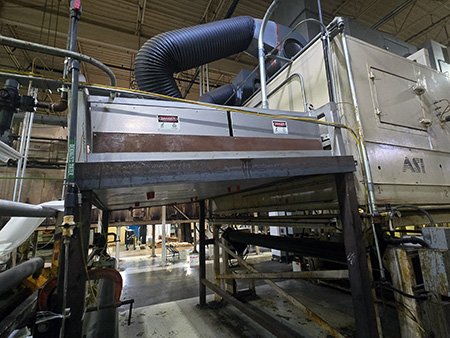

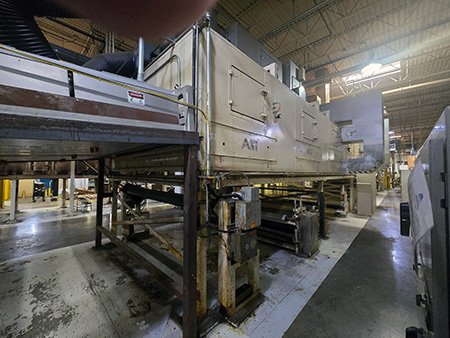

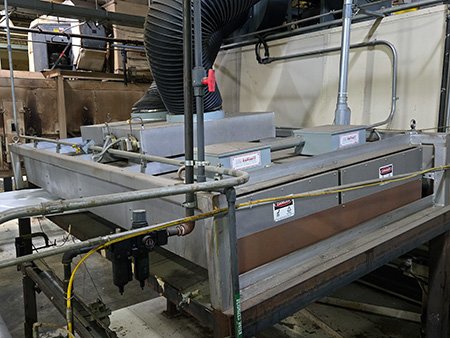

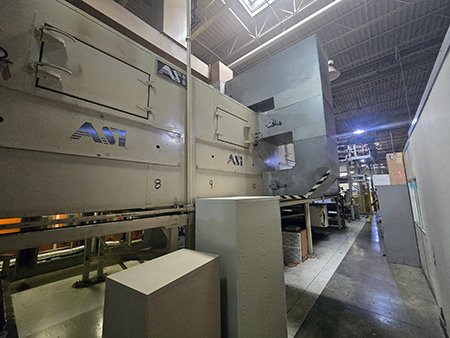

- 2 zones hot air. A + IR dryer up to 3 m width. Temperature material gauge at IR exit section 2 hot ait zones: ASI dryer with 2 x 10m. zones each , tendency driven idler rolls, nozzles for top only, variable speed fan in zone 1, single speed fan in zone 2, Maxson burners,. Max temperature 200C typical operation at 90-120 C . 2 chiil rollers at exit
- Note
- moisturizer with 120" roll face
| Machine Code | LA488 |
| Manufacturer | CUSTOM MADE |
| Year | 1991 |
| Application | Coating |
| Type of lamination/coating | lacquers, coating |
| Working width (mm) | 2946 |
| Materials | papers and heavier films |
| Speed | 76 MPM |
| First unwinder type | Shaftless with Roll Lift |
| Max diameter reel unwinder | 1500 |
| Rewinder type | Triple Turret |
| Max diameter reel rewinder | 610 |
| Coating unit | Mayer rod coating head |
| Drying | 2 zones hot air. A + IR dryer up to 3 m width. Temperature material gauge at IR exit section 2 hot ait zones: ASI dryer with 2 x 10m. zones each , tendency driven idler rolls, nozzles for top only, variable speed fan in zone 1, single speed fan in zone 2, Maxson burners,. Max temperature 200C typical operation at 90-120 C . 2 chiil rollers at exit |
| Note | moisturizer with 120" roll face |
