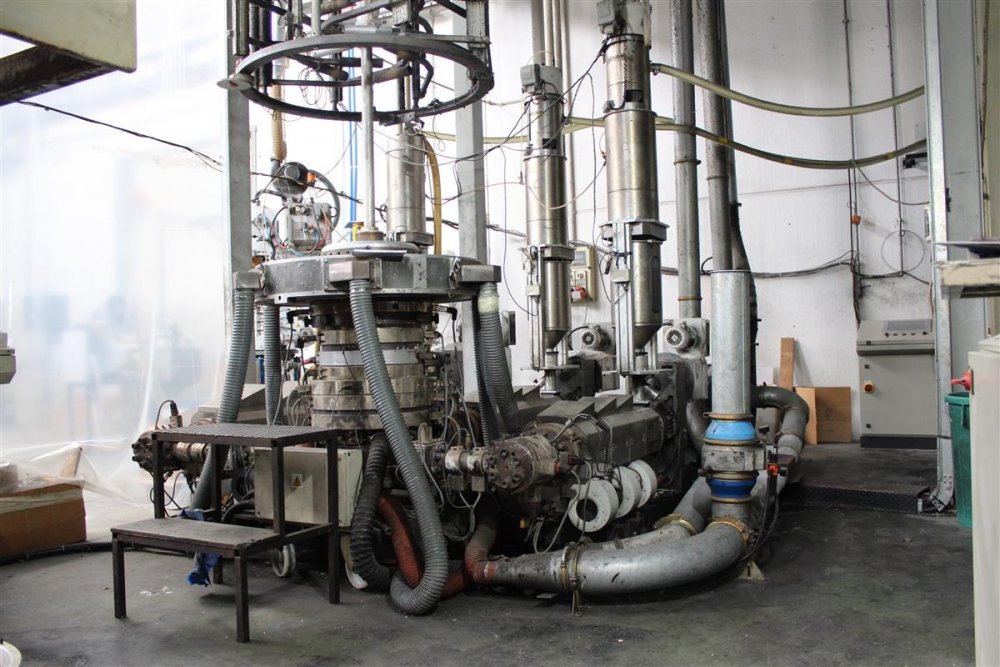

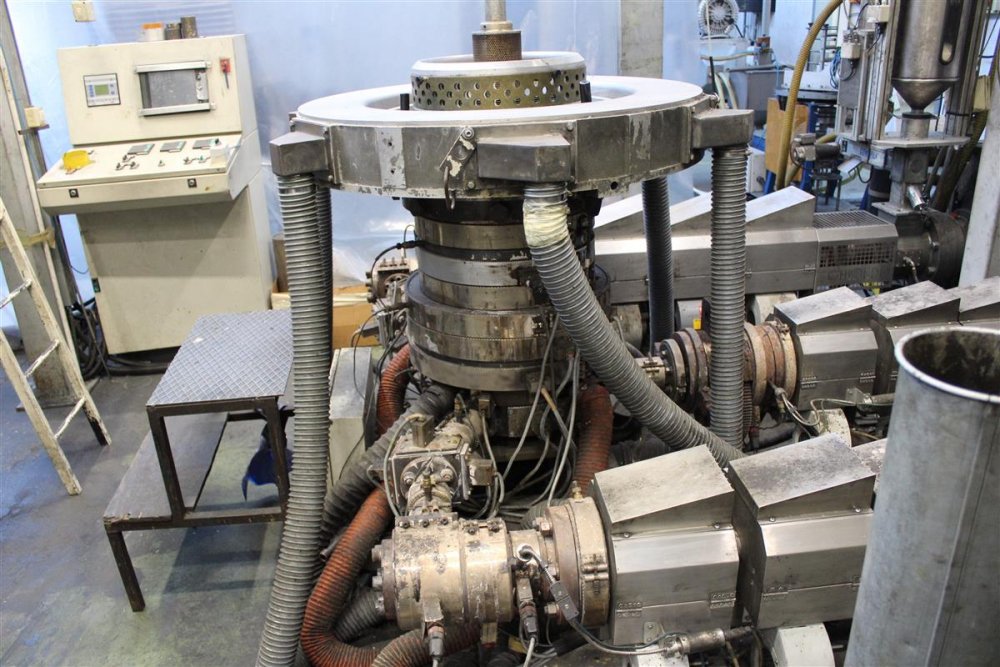

3 layers GHIOLDI blown film extruder

In a blown film extruder PE granulates (or other polymer) are melted in an extruder and pushed through a circular die extruding a tube of molten polymer. Tube is then inflated to multiples of its initial diameter and cooled to form a thin film. Bobble is later collapsed and re-winded.

Machine Code EX698
Manufacturer GHIOLDI
Year 2005
Number of layers 3
Material LDPE, HDPE, Biodegradabile
Film Width (mm) 1200
Extruder 1 Layer ref: A
Screw diam 40/30

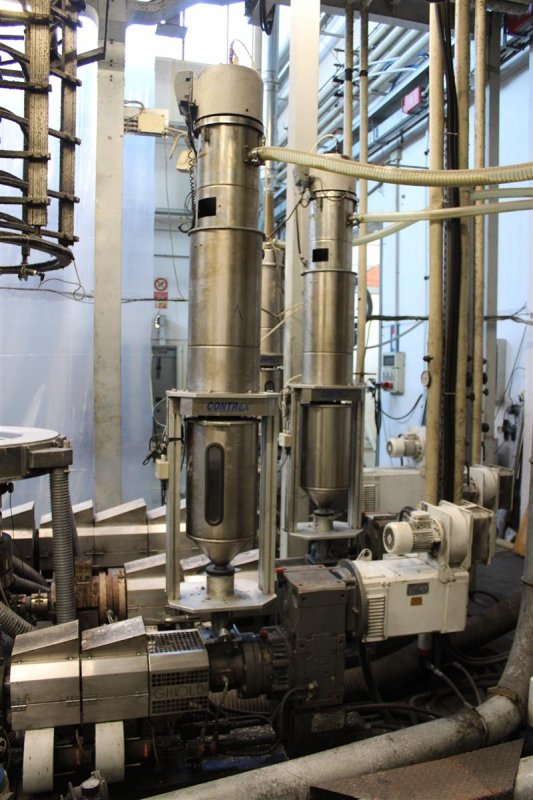

Description with gravimetric system Contrex
Extruder 2 Layer ref: B
Screw diam 65/30
Description with gravimetric system Contrex
Extruder 3 Layer ref: C
Screw diam 40/30
Description with gravimetric system Contrex

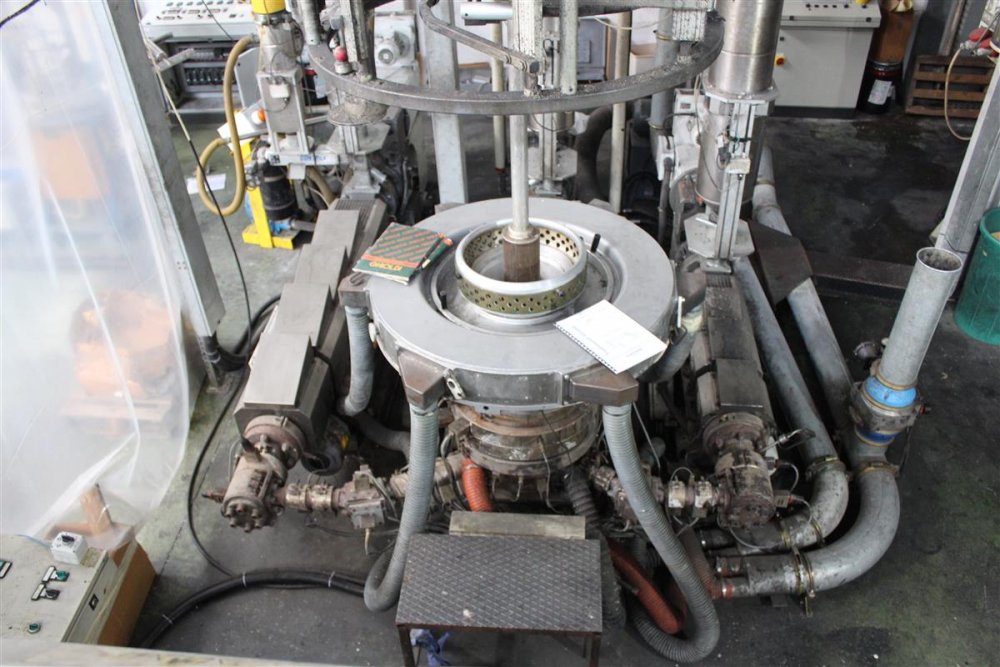

Head description 250 K/3F
Die diam (mm) 150
Thickness controll system No

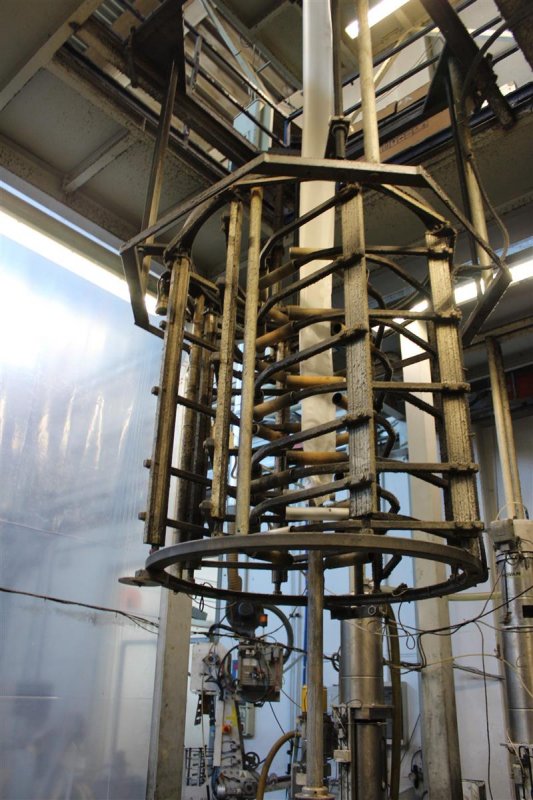

Bubble cage yes
Panel for gussets yes
Take off unit Oscillating
Corona treatment Cason
Web guide yes

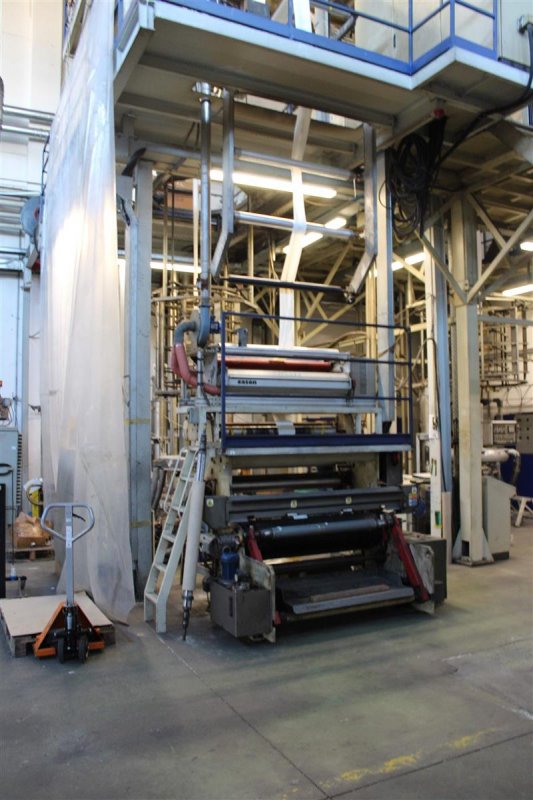

Rewinder max reel diameter 1000
Additional information Tower 11m included.
