3 layers MACCHI blown film extruder ** SOLD ** Ask more informations about a similar one

Blown film extrusion lines are commonly used to extrude plastic films for flexible packaging industry.

Machine Code EX688
Manufacturer MACCHI
Year 2015
Number of layers 3
Film structure ABC
Material LDPE, LLDPE, MDPE, HDPE (in blends)
Film Width (mm) 2100
Output (Kg/h) 600
Extruder 1 Layer ref: A
Screw diam 65mm

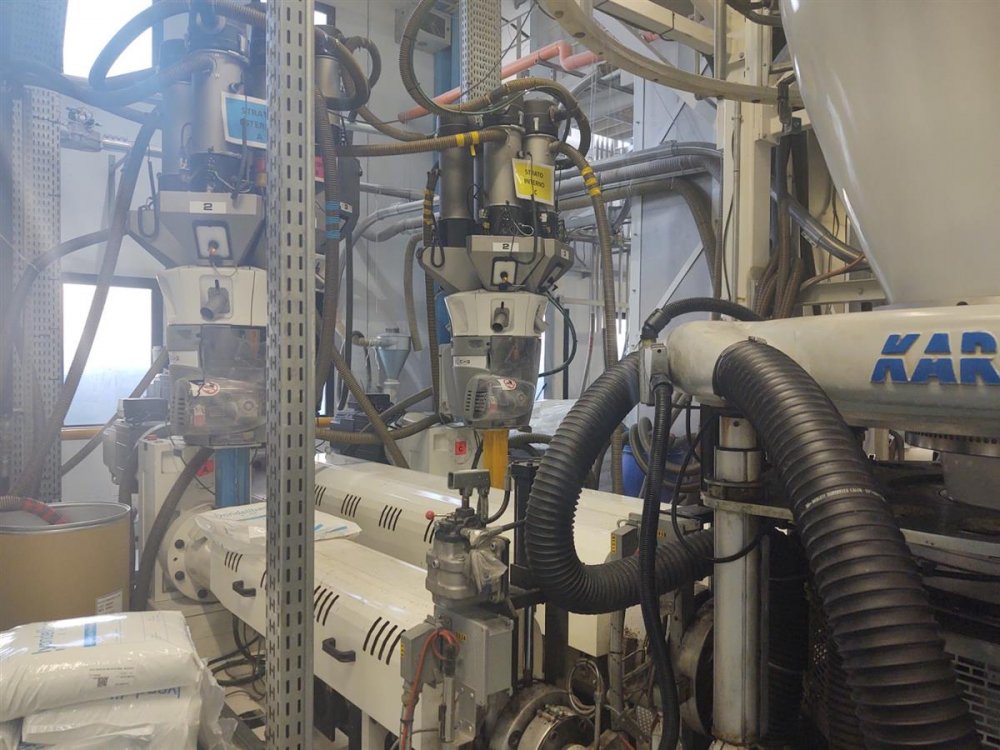

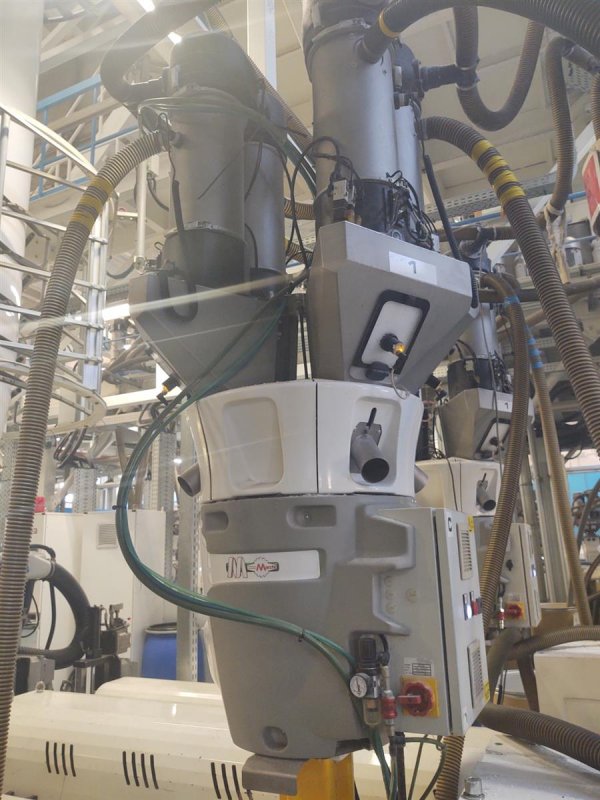

Description L/D30; Screw rpm: 0-170; AC motor 86KW, 4 heating zones, leverage screen changer, Gravimetric mixer 4 componentsDOTECO type Adroit with resin vacuum loaders
Extruder 2 Layer ref: B
Screw diam 105mm
Description L/D 30; Screw rpm: 0-110; AC motor 180KW, 5 heating zones, leverage screen changer, Gravimetric mixer 4 components DOTECO type Adroit with resin vacuum loaders
Extruder 3 Layer ref: C
Screw diam 65mm
Description L/D 30; Screw rpm: 0-170; AC motor 86KW, 4 heating zones, leverage screen changer, Gravimetric mixer 4 components DOTECO type Adroit with resin vacuum loaders

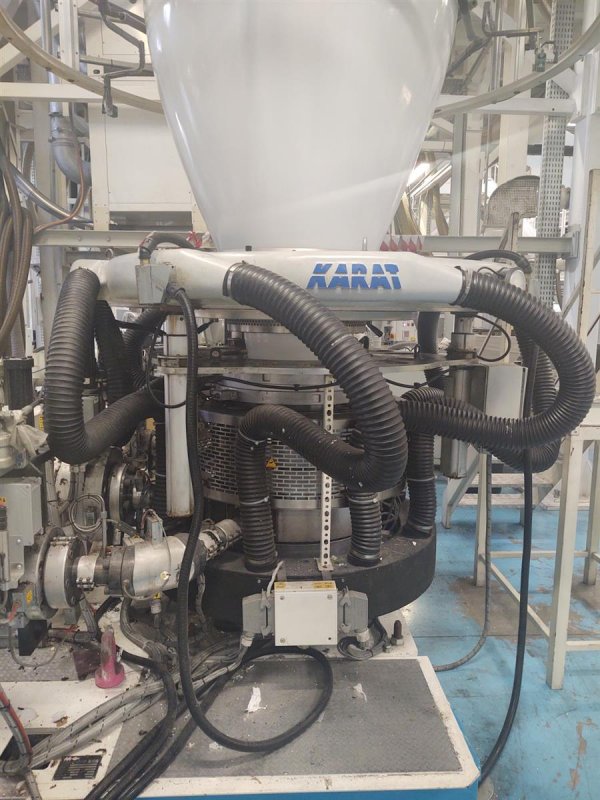

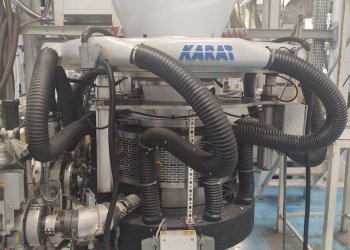

Head description Extrusion head Coex flex, dierange possibility 350-500mm Automatci air rink KARAT COM 3 with automatic thickness profile control; IBC JET 7 ultrasonic control 2 fans 18KW each
Die diam (mm) 400mm diam; 1,2mm gap

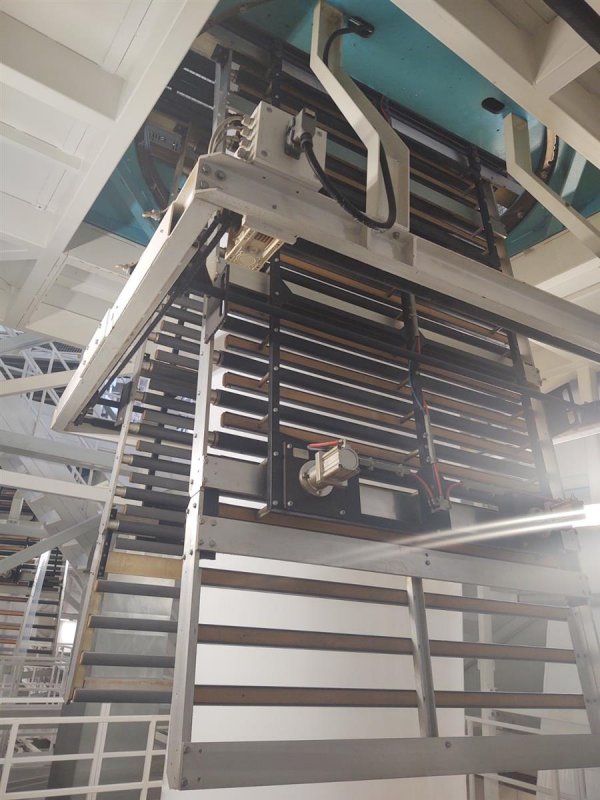

Bubble cage 4 Ultrasonic sensor for diameter, sensor for bouble breaks; bouble cage non marking 5+2 levels 8 arms each

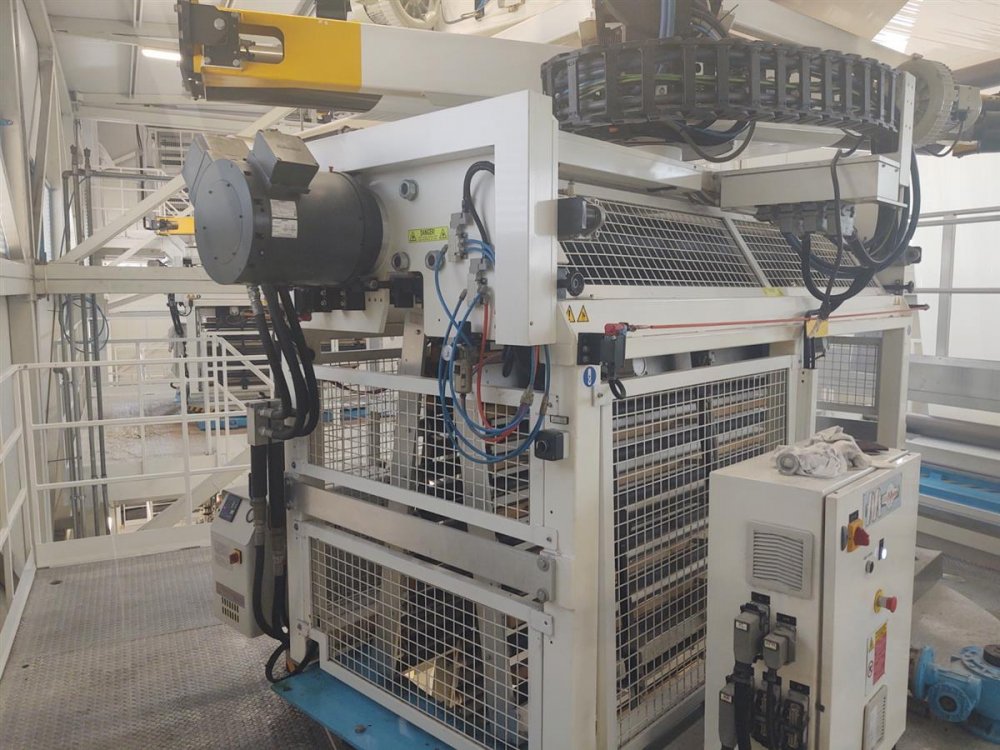

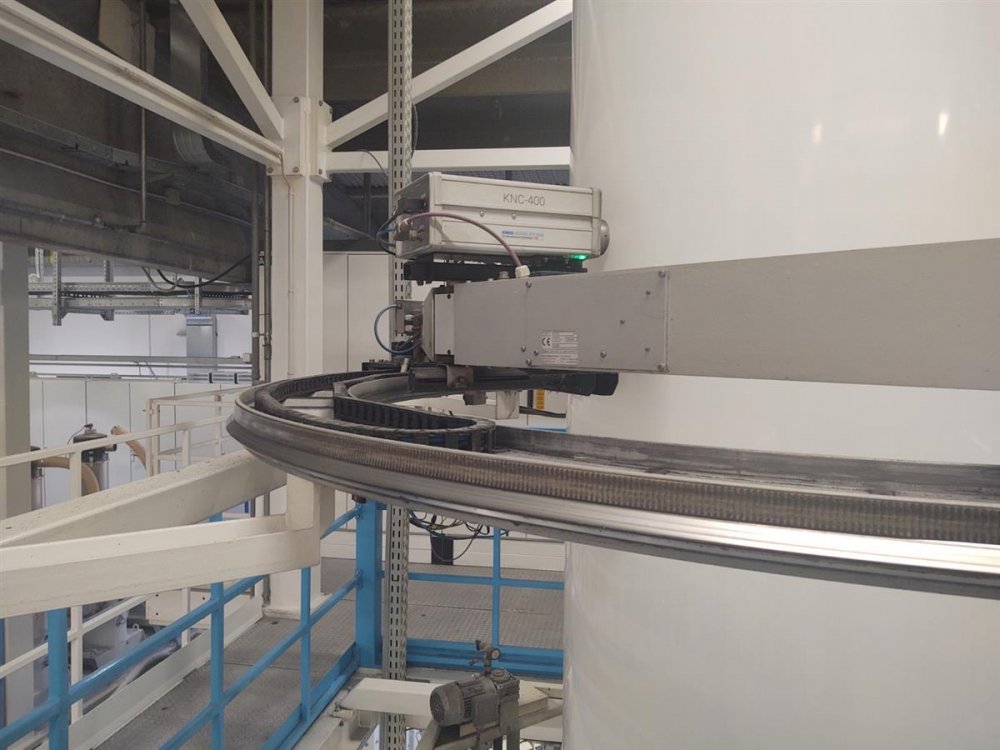

Take off unit Rotating 360 deg, cylinder width 2200mm, web width 2100mm, collapsing panels either with carbon fiber rollers or with wooden bars, double S shape cooling calander;
Corona treatment CASON
Web guide E+L

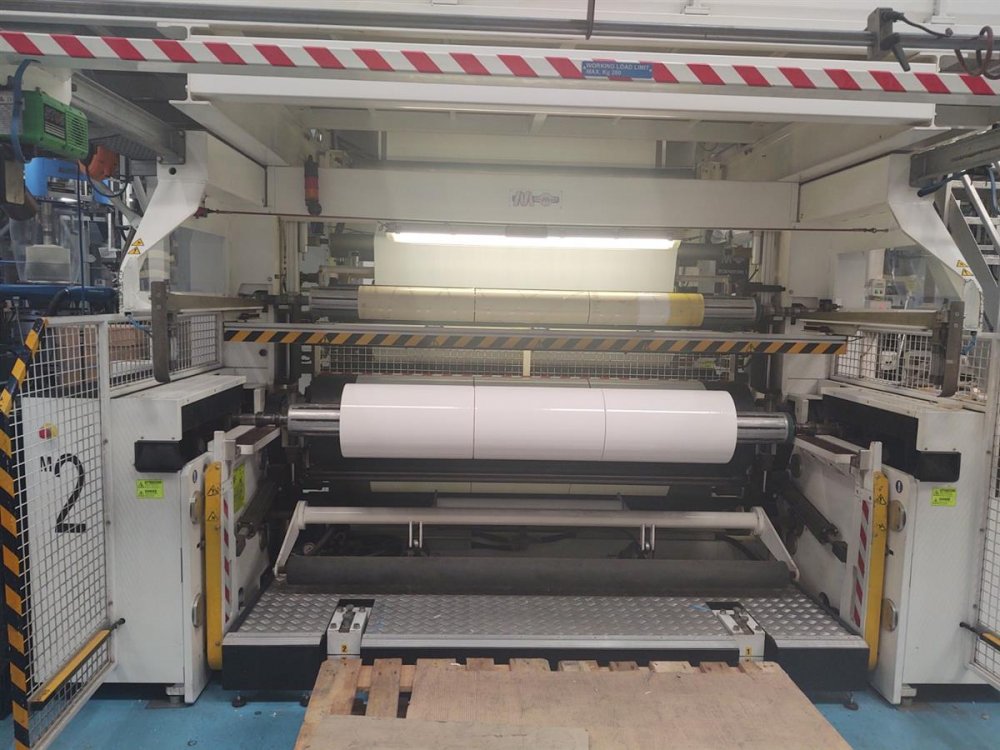

Rewinder max reel diameter 1200mm
Rewinder description Type BO-PLUS, possibility of reverse winding (both direction winding) with Easy load; in line slitting, laser for cores position, , Antistatic bar SIMCO, 76 mm shafts in steel, 152mm shafts in alluminum

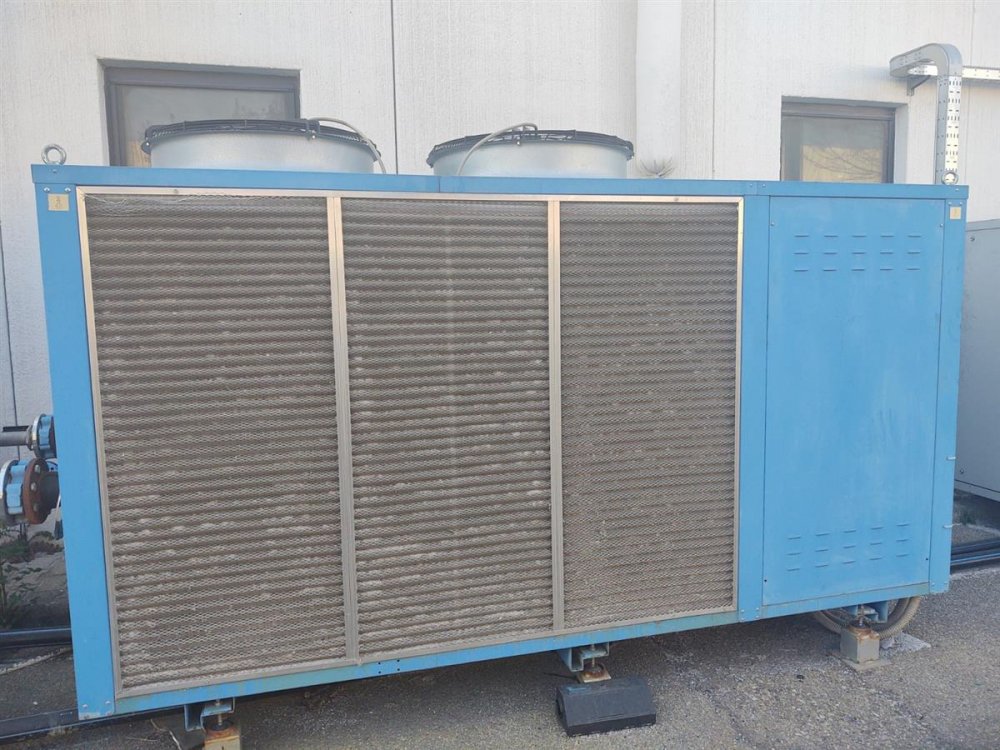

Additional information Mechanical speed: 7-150 m/min Tower included, height approx 15m Pulling calender between take off and winder Chiller included

** SOLD **
