1 layers KIEFEL blown film machine

Raw material most commonly used are low density polyethylene (LDPE) and High density polyethylene (HDPE). These are often used in blends with other polymers and additives.

Machine Code EX679
Manufacturer KIEFEL
Year 1995
Number of layers 1
Overhaul/renovation several mechanical and control renovations in 2006 Plastcontrol, 2016-2017 Screw, barrel and feeding zone, AC extruder motor, AC motors of winder and take up unit, K-Design gauge control
Material LDPE and HDPE (different die inserts)
Film Width (mm) 1800
Output (Kg/h) 200-230 Kg/h with low neck configuration (LD) and 180 with high neck configuration (HD)
Screw diam 80

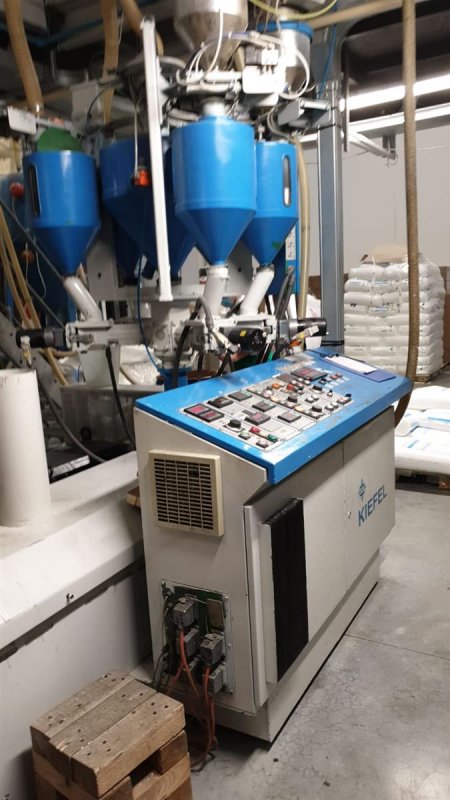

Description l/d 27, AC motor Baumuller year 2017. Screw new in 2017 and cylinder renovated in 2017. AC motor and inverter (225 KW) year 2017, gravimetri coser 5 components
Head description diameter control K design 2017 3 ultrasonic sensors

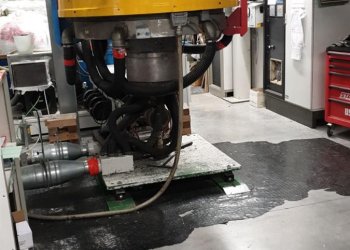

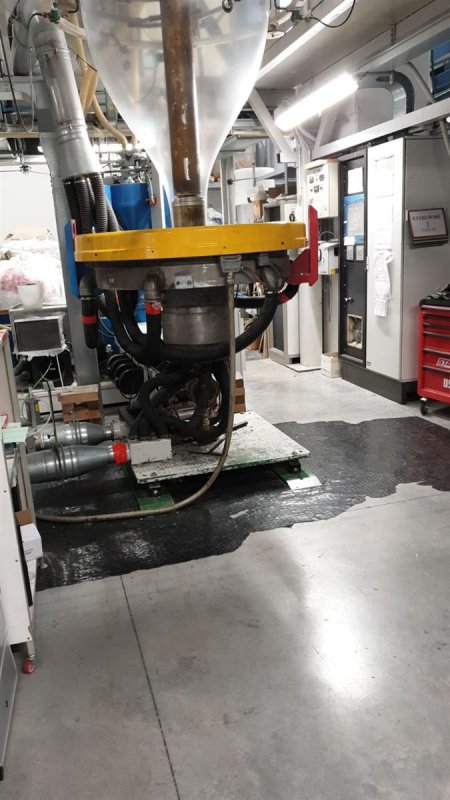

Die diam (mm) 300mm die with "low neck" configuration for LDPE, 225mm die with "high neck configuration (for HDPE)

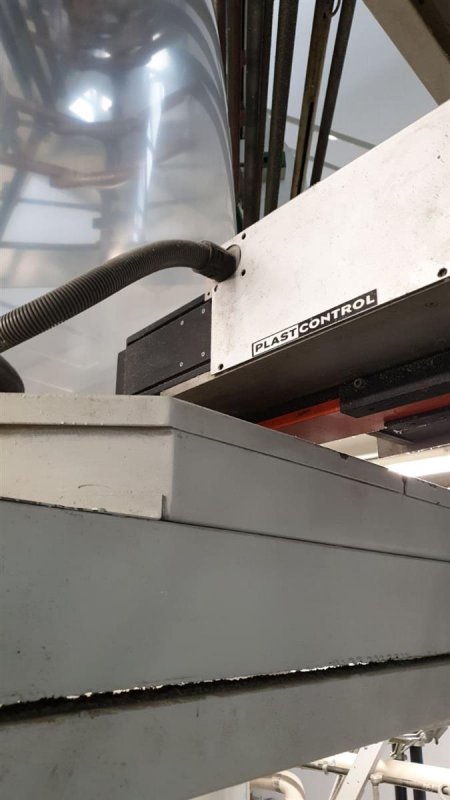

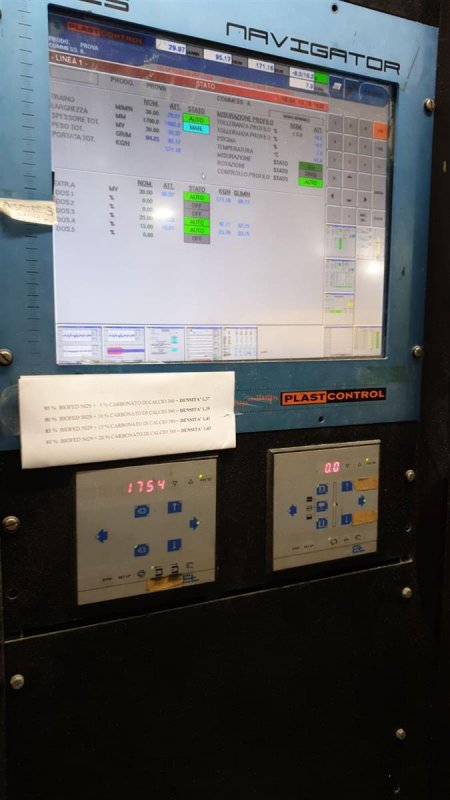

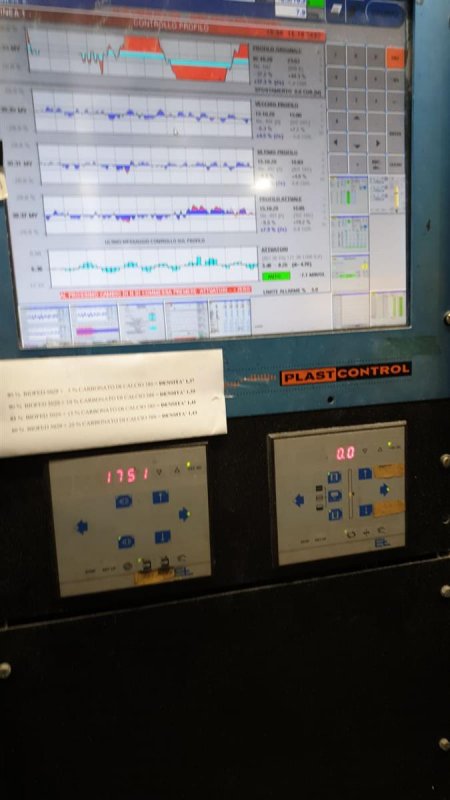

Thickness controll system Plast control Magic flow Procon, capacitive gauge and automatic profile regulation via air ring

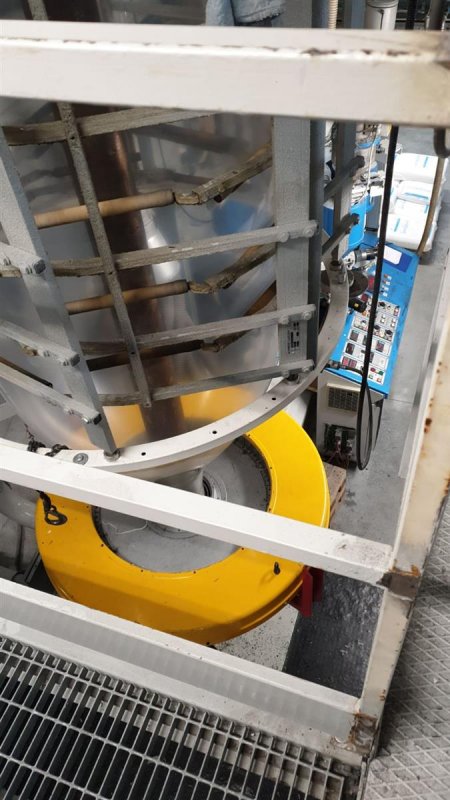

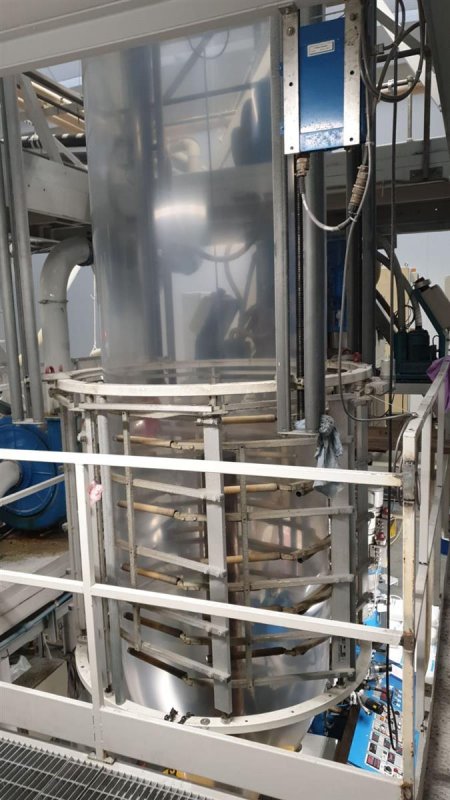

Bubble cage year 2016 for layflats 430-1950mm Gammatec brand
Panel for gussets yes

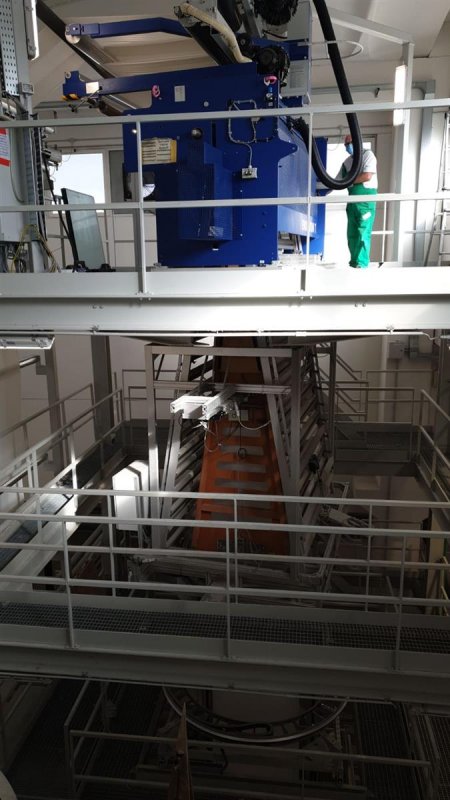

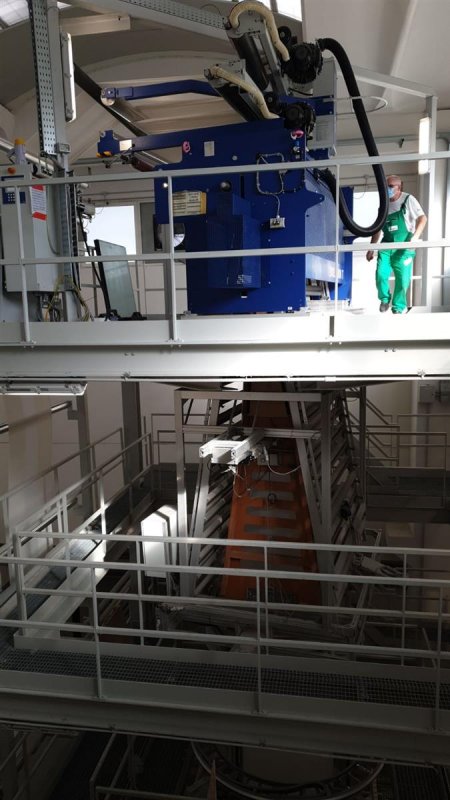

Take off unit rotating, new motors and inverters in 2016
Corona treatment Ferrarini Benelli double for 4 film side treatments
Web guide E+L
Rewinder max reel diameter 900mm
Rewinder description Make Dolci new motors and inverters in 2016, 9 shafts 76mm, 8 shafts 152mm, in cline slitting with 8 blades 2018
Additional information speed, mechanical up to 180 m/min
