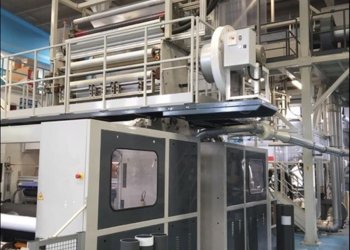

3 layers BANDERA TECHNOFLEX blown film plant

** SOLD **

In a blown film extruder PE granulates (or other polymer) are melted in an extruder and pushed through a circular die extruding a tube of molten polymer. Tube is then inflated to multiples of its initial diameter and cooled to form a thin film. Bobble is later collapsed and re-winded.

Ask more informations
about a similar one
Machine Code
EX616
Manufacturer
BANDERA
Modello
TECHNOFLEX
Year
2015
Number of layers
3
Film structure
ABC
Material
STRETCH ,LLDPE, LDPE, EVA, mLLDPE
Film Width
1700
Output (Kg/h)
Max production: Stretch hood with 280 mm die plate: 450 kg/h ;Shrink or lamination film with 400 mm die plate: 600 kg/h
Extruder 1 Layer ref:
A
Screw diam 1
60MM
Description 1
30D ,3 gravimetric batch dosing units 4 components
Extruder 2 Layer ref:
B
Screw diam 2
100MM
Description 2
30D ,3 gravimetric batch dosing units 4 components
Extruder 3 Layer ref:
C
Screw diam 3
60MM
Description 3
30D ,3 gravimetric batch dosing units 4 components
Head description
IBC ,,Air Ring Karat 3 Com with high adjustment
Die diam (mm)
280 and 400 mm
Thickness controll system
Automatic thickness control system Kundig
Panel for gussets
Gusseting
Take off unit
Rotating haul off with gusseting device
Corona treatment
Corona treatment Cason for both sides
Web guide
Web guide 1800 mm
Rewinder description
Double automatic rewinder TW 1800
Note
Line to produce stretch hood, lamination film and shrink film Manual screen changers Motorized calibration basket Automatic core loading system SAFE LOAD Antistatic bars Chiller ABF Tower Thickness 20-200 my
Machine Code EX616
Manufacturer BANDERA
Modello TECHNOFLEX
Year 2015
Number of layers 3
Film structure ABC
Material STRETCH ,LLDPE, LDPE, EVA, mLLDPE
Film Width 1700
Output (Kg/h) Max production: Stretch hood with 280 mm die plate: 450 kg/h ;Shrink or lamination film with 400 mm die plate: 600 kg/h
Extruder 1 Layer ref: A
Screw diam 1 60MM
Description 1 30D ,3 gravimetric batch dosing units 4 components
Extruder 2 Layer ref: B
Screw diam 2 100MM
Description 2 30D ,3 gravimetric batch dosing units 4 components
Extruder 3 Layer ref: C
Screw diam 3 60MM
Description 3 30D ,3 gravimetric batch dosing units 4 components
Head description IBC ,,Air Ring Karat 3 Com with high adjustment
Die diam (mm) 280 and 400 mm
Thickness controll system Automatic thickness control system Kundig
Panel for gussets Gusseting
Take off unit Rotating haul off with gusseting device
Corona treatment Corona treatment Cason for both sides
Web guide Web guide 1800 mm
Rewinder description Double automatic rewinder TW 1800
Note Line to produce stretch hood, lamination film and shrink film Manual screen changers Motorized calibration basket Automatic core loading system SAFE LOAD Antistatic bars Chiller ABF Tower Thickness 20-200 my
** SOLD **
