5 layers SML Cast film extruder
Cast film extrusion lines are commonly used to extrude plastic films especially for flexible packaging industry. / In a cast film extruder PE, PP or PA granulates (or other polymers) are melted inro an extruder and pushed through a flat extrusion die (T die), extruding a sheet of molten polymer onto a cooled roller (chill roll).
| Machine Code | CA175 |
| Manufacturer | SML |
| Year | 2009 |
| Number of layers | 5 |
| Overhaul/renovation | In 2018 |
| Material | STRETCH FILM |
| Film width (mm) | 2500 |
| Speed (m/min) | 550 m/min |
| Output (Kg/h) | 1200 kg/h |
| Screw diam | 120 mm |
| Description | Doteco gravimetric dosing unit |
| Screw diam | 60 mm |
| Description | Doteco gravimetric dosing unit |
| Screw diam | 60 mm |
| Description | Doteco gravimetric dosing unit |
| Screw diam | 60 mm |
| Description | Doteco gravimetric dosing unit |
| Head description | Automatic |
| Chill roll unit | First chill roll 1000, second 400 mm |

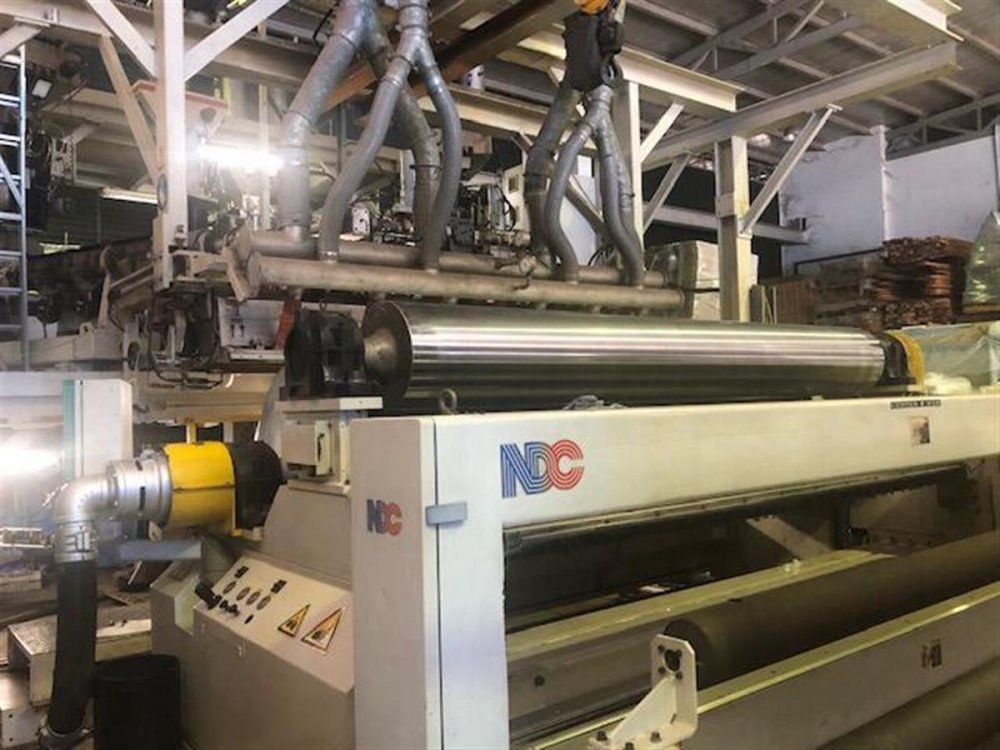

| Thickness controll system | NDC Thickness Gauge |
| Rewinder max reel diameter (mm) | 3000 |
| Rewinder description | Turret Type Shaftless for 2” & 3” cores |

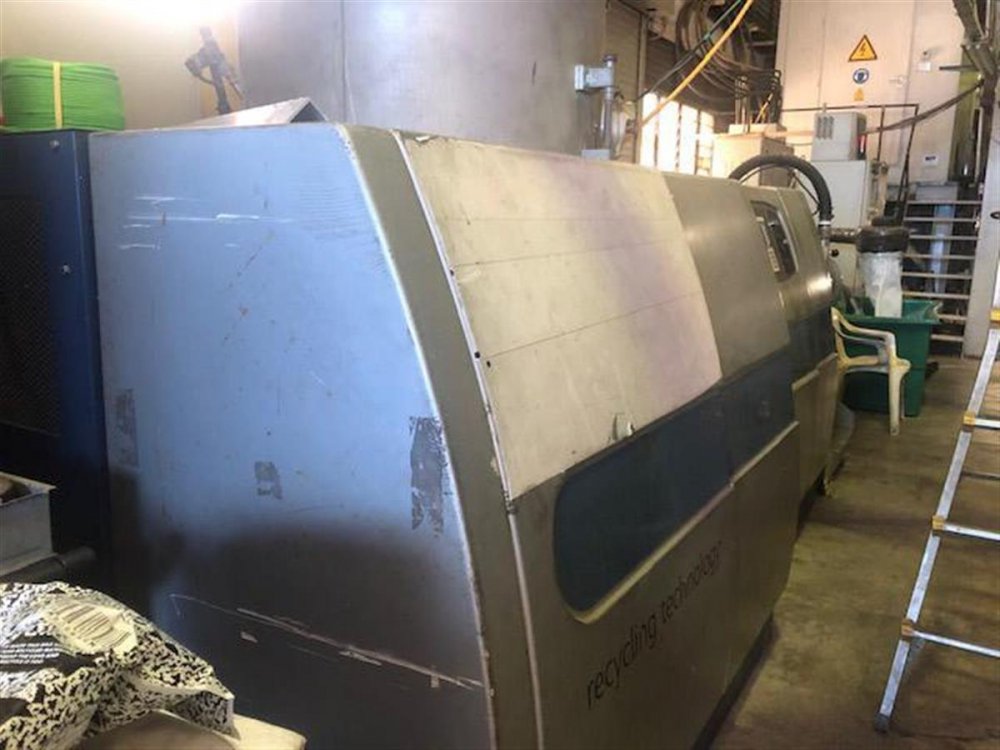

| Additional information | Starlinger recycling and re-pelletizing machine included Offline Recycling Line |
