** SOLD **

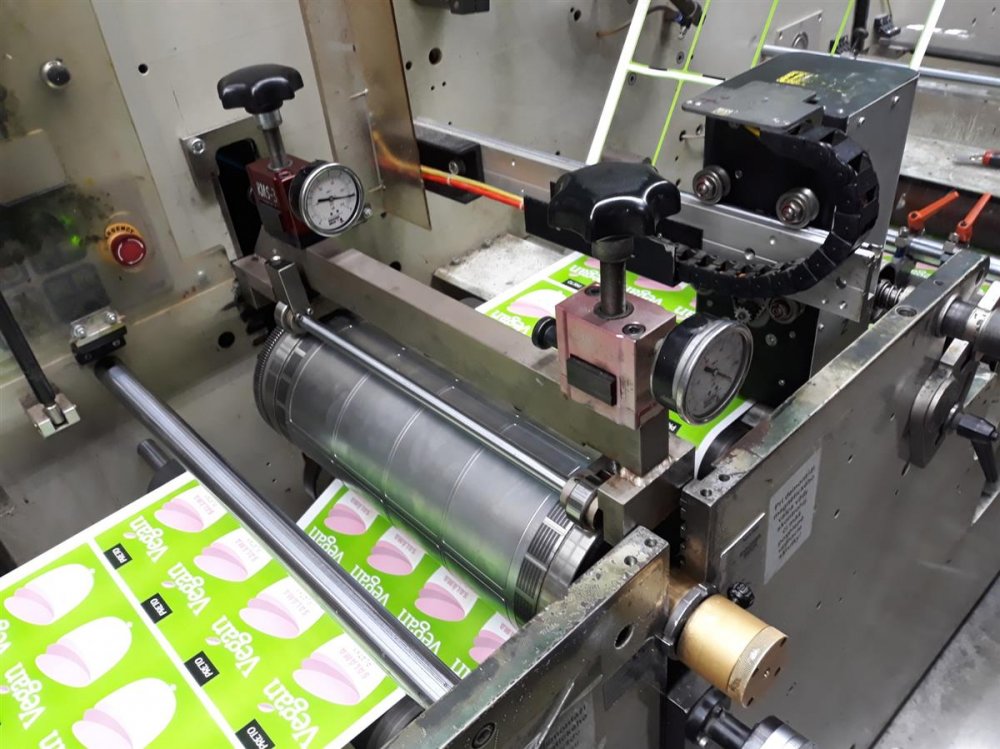

Flexographic printing machines (often abbreviated as flexo printer) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
about a similar one
- Machine Code
- LAB221
- Manufacturer
- BOBST GIDUE
- Modello
- XPANND
- Year
- 2010
- Number of colors
- 10
- Web width (mm)
- 370
- Print width (mm)
- 360
- Drying
- stations flexo 1 and 2 Heated air - stations 3 to 8 offset , stations 9 and 10 UV flexo
- Unwinder
- Diam 700
- Rewinder
- Single rewinder diam 700 mm - Second Single rewinder for waste trims
- Note
- 4 UV flexo + 6 UV offset as follows Unwinder - Corona teater Web cleaner 2 flexo station 6 offset stations 2 flexo UV stations Secoindary unwinder for lamination or for cold foil cold stamp (in 9th unit) 2 rotary diecutters Rewinder Web turning bar (after 2nd unit) Magnetic cylinders: 144, 160, 176, 192 teeth Ofset printing cylinders: 5x (144, 160, 176, 192 teeth) Flexo printing cylinders: 4x (144, 160, 176, 192 teeth Anilox rollers: 140/14, 150/36, 160/12, 120/16, 280/7, 360/6, 360/4,5
| Machine Code | LAB221 |
| Manufacturer | BOBST GIDUE |
| Modello | XPANND |
| Year | 2010 |
| Number of colors | 10 |
| Web width (mm) | 370 |
| Print width (mm) | 360 |
| Drying | stations flexo 1 and 2 Heated air - stations 3 to 8 offset , stations 9 and 10 UV flexo |
| Unwinder | Diam 700 |
| Rewinder | Single rewinder diam 700 mm - Second Single rewinder for waste trims |
| Note | 4 UV flexo + 6 UV offset as follows Unwinder - Corona teater Web cleaner 2 flexo station 6 offset stations 2 flexo UV stations Secoindary unwinder for lamination or for cold foil cold stamp (in 9th unit) 2 rotary diecutters Rewinder Web turning bar (after 2nd unit) Magnetic cylinders: 144, 160, 176, 192 teeth Ofset printing cylinders: 5x (144, 160, 176, 192 teeth) Flexo printing cylinders: 4x (144, 160, 176, 192 teeth Anilox rollers: 140/14, 150/36, 160/12, 120/16, 280/7, 360/6, 360/4,5 |
