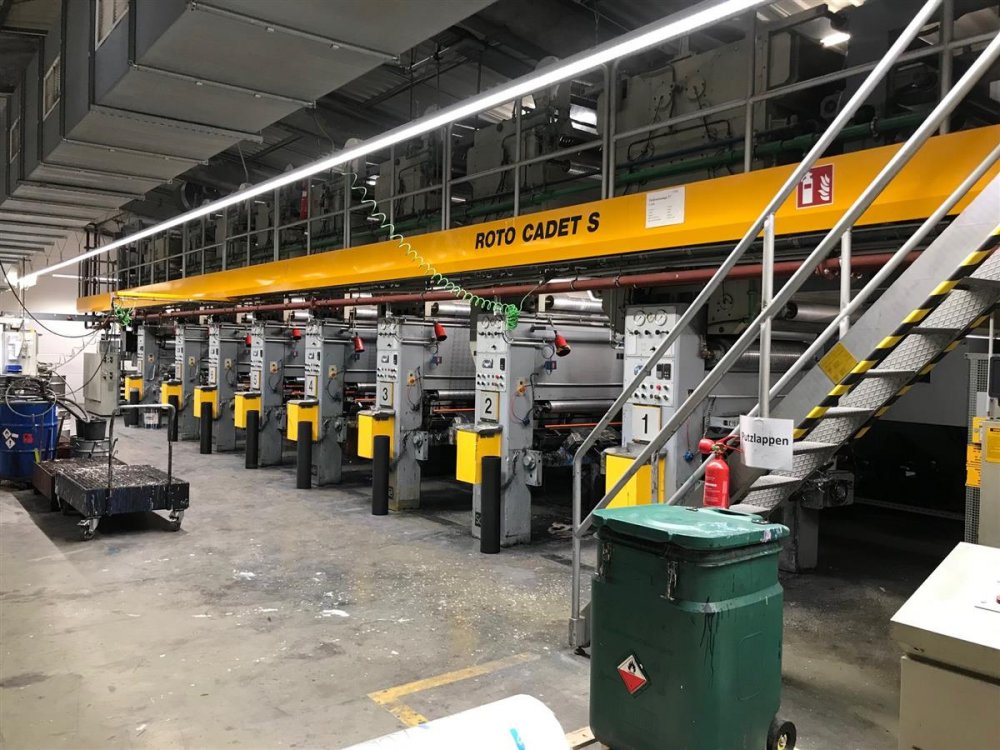

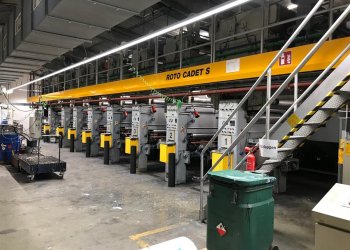

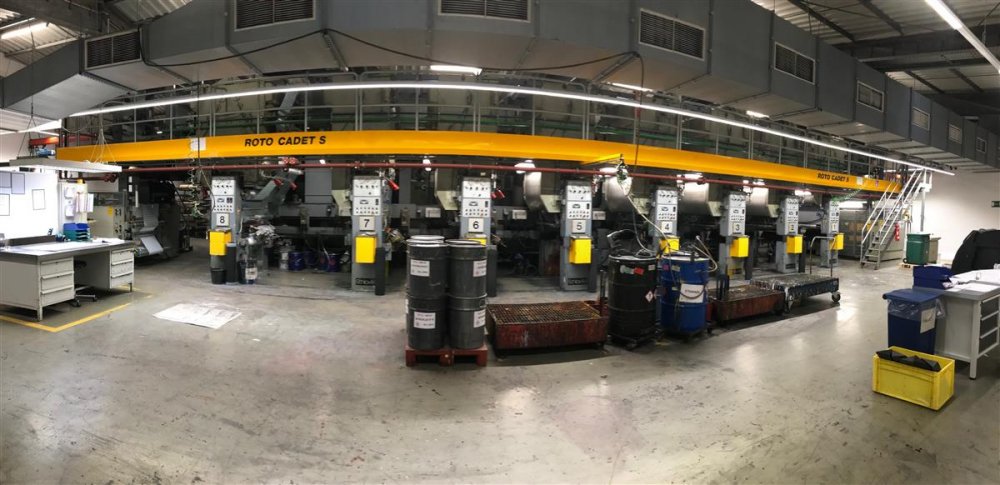

SCHIAVI Roto Cadet S Gravure printing machine 8 colors

** SOLD **

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.

Ask more informations
about a similar one
Machine Code
RO241
Manufacturer
SCHIAVI
Modello
Roto Cadet S
Year
1997
Number of colors
8
Drive
Cardan
Web width (mm)
770
Print width (mm)
760
Print repeat range (mm)
400 - 960 mm

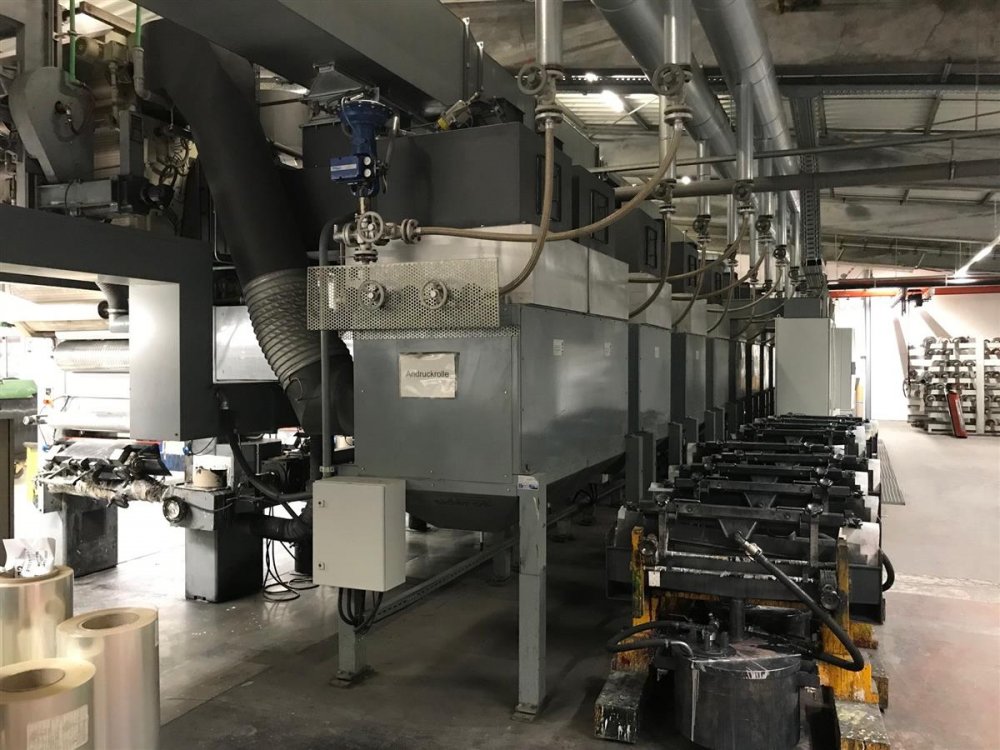

Drying specifications
UNIT 1 and 8 each one double hood 2 X 2 mt 2 blowing fan x 4000 cu.mt/ h , unit 2 to 7 each unit single hood 2 mt length 1 blowing fan 4.000 cu mt / h ,.
Drying heat surce
Thermal oil

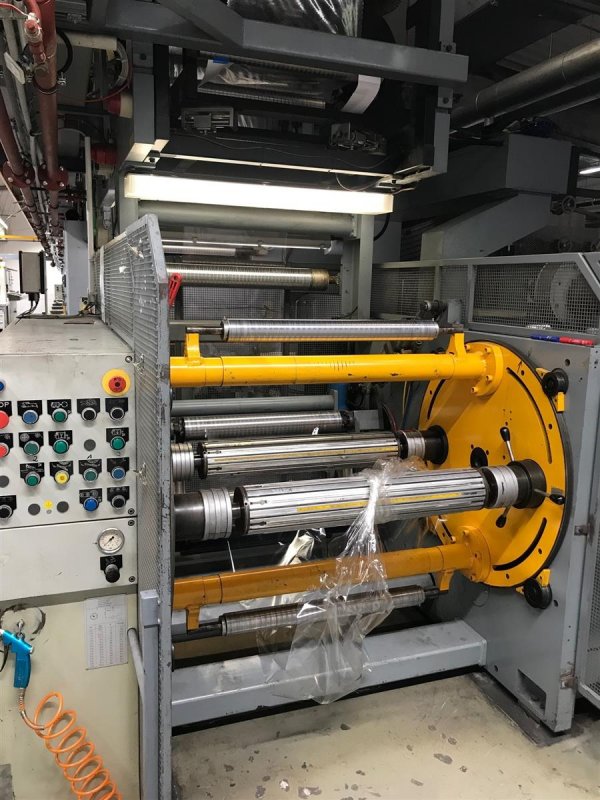

Unwinder type
Turret
Max reel diameter unwinder (mm)
800

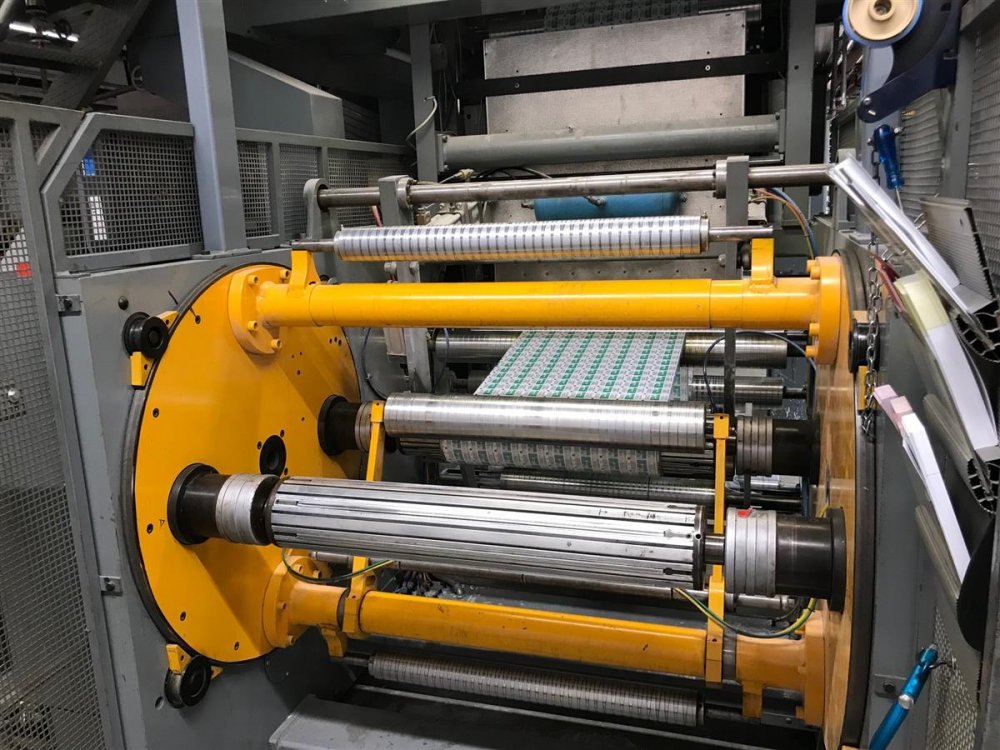

Rewinder type
Turret
Max reel diameter rewinder (mm)
1000

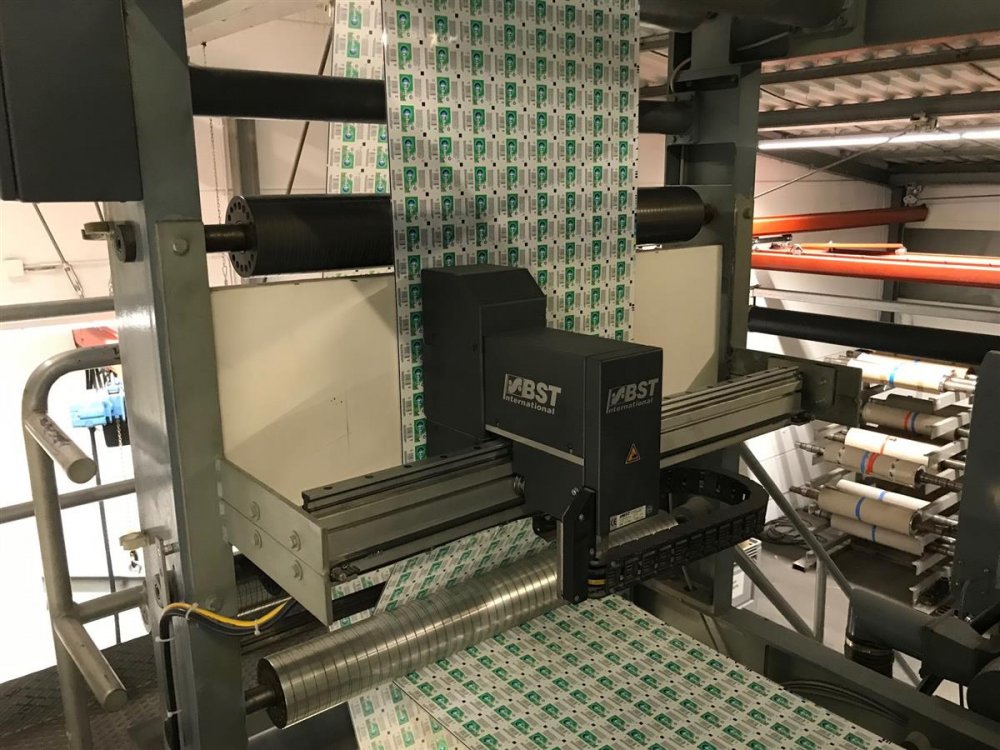

Videocamera
Yes, Super Handy Scan 4000, 2012 BST

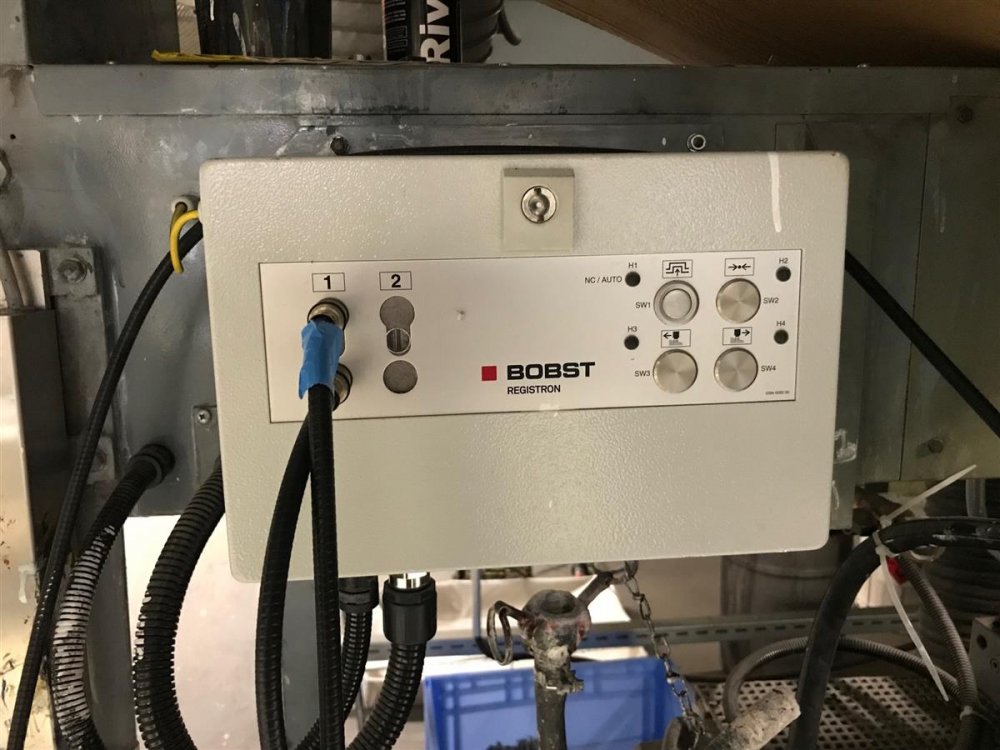

Register controll
BOBST Registron
Vyscosity control
Yes
Corona treatment
Yes, Ahlbrandt Systems
Print cylinders
approx 500
Note
max speed 250 m/min
Machine Code RO241
Manufacturer SCHIAVI
Modello Roto Cadet S
Year 1997
Number of colors 8
Drive Cardan
Web width (mm) 770
Print width (mm) 760
Print repeat range (mm) 400 - 960 mm
Drying specifications UNIT 1 and 8 each one double hood 2 X 2 mt 2 blowing fan x 4000 cu.mt/ h , unit 2 to 7 each unit single hood 2 mt length 1 blowing fan 4.000 cu mt / h ,.
Drying heat surce Thermal oil
Unwinder type Turret
Max reel diameter unwinder (mm) 800
Rewinder type Turret
Max reel diameter rewinder (mm) 1000
Videocamera Yes, Super Handy Scan 4000, 2012 BST
Register controll BOBST Registron
Vyscosity control Yes
Corona treatment Yes, Ahlbrandt Systems
Print cylinders approx 500
Note max speed 250 m/min
