** SOLD **

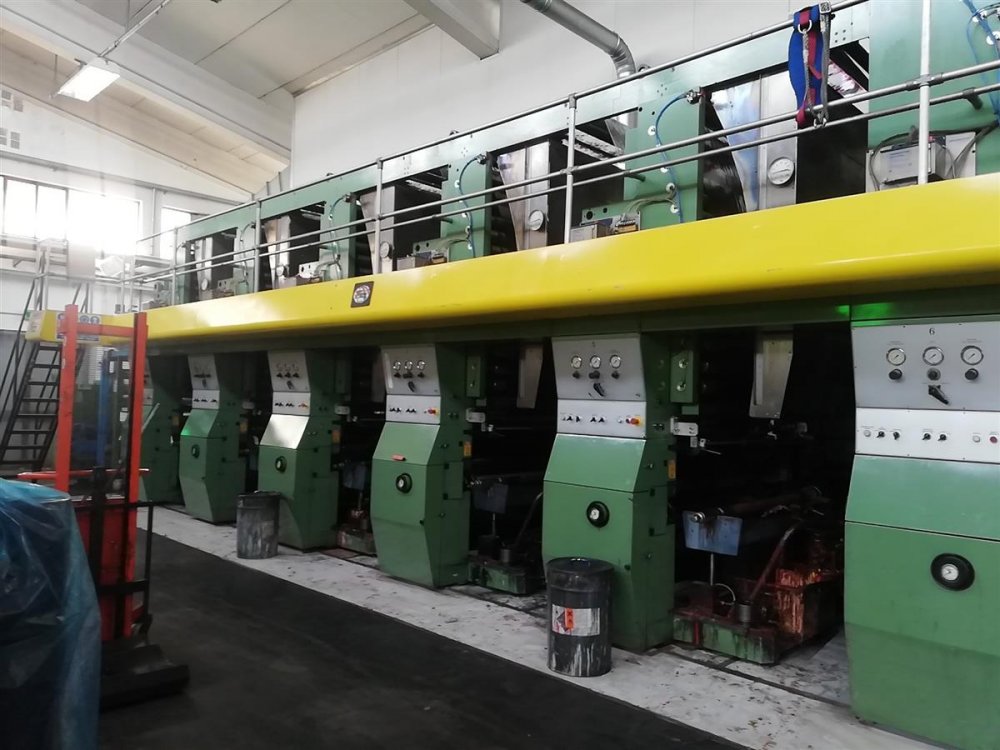

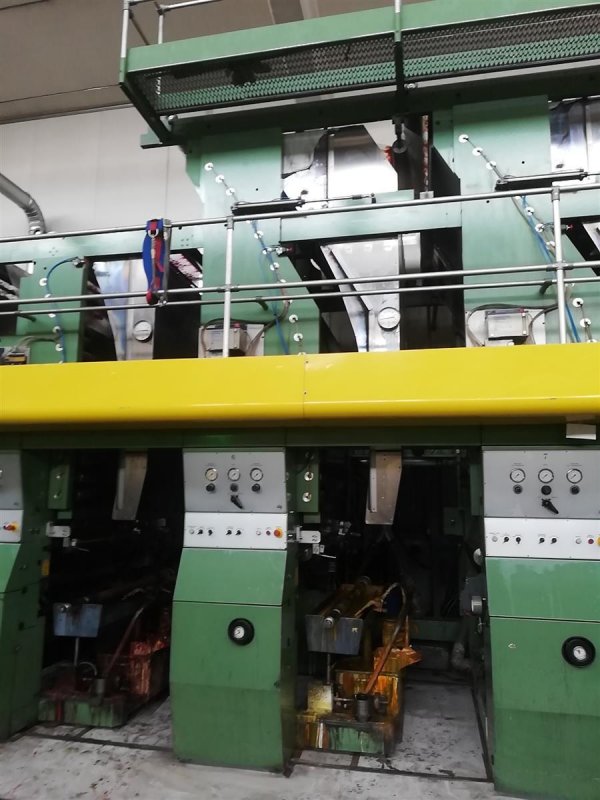

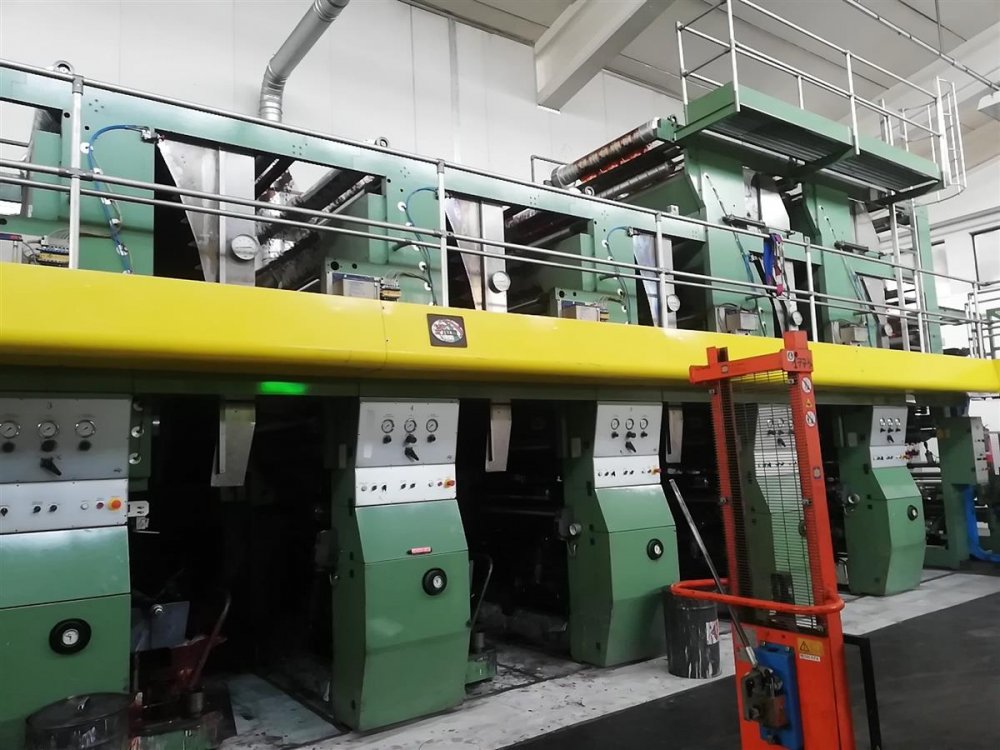

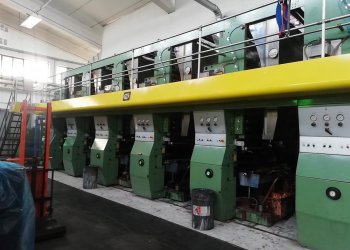

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.
Ask more informations
about a similar one
- Machine Code
- RO192
- Manufacturer
- UTECO
- Modello
- PROGRAMM 1020
- Year
- 1998
- Number of colors
- 7
- Print possibilities
- 7+0
- Overhaul/renovation
- New Register control , new Videocamera , New Chiller , new auto recirculation system with LEL control
- Drive
- Cardan
- Trolley system
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1300
- Print repeat range (mm)
- 400-900 mm
- Drying specifications

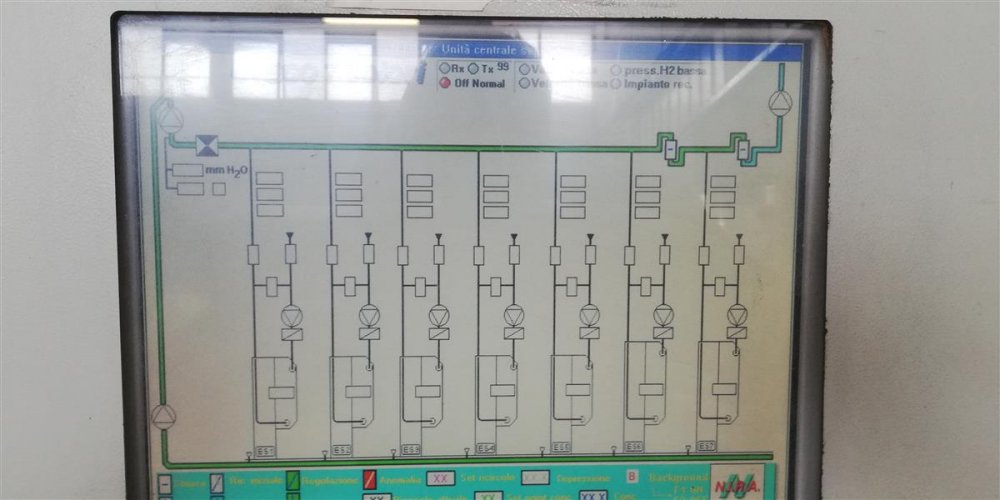

- Independent driers each unit, extended driers on units 6 and 7 , 7 blowing fans , 7 exhaust fans . automatic recirculation system with LEL CONTROL by NIRA
- Drying heat surce
- Steam , thermo heat exchanger

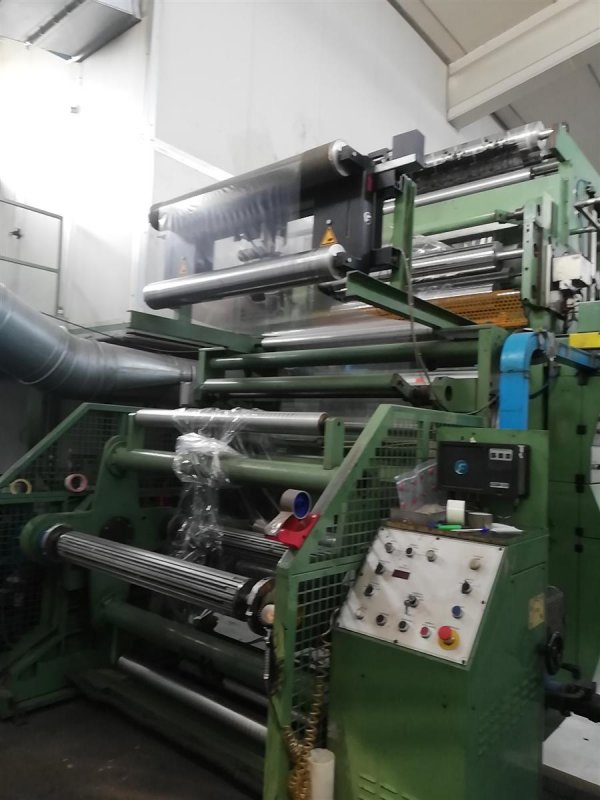

- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 800
- Videocamera
- Grafycontrol with Defekt control
- Register controll
- Grafykontrol CR 33 LT with optic fiber
- Vyscosity control
- Yes Fasnacht
- Print cylinders
- 60
- Note
- 6 spare trolleys
| Machine Code | RO192 |
| Manufacturer | UTECO |
| Modello | PROGRAMM 1020 |
| Year | 1998 |
| Number of colors | 7 |
| Print possibilities | 7+0 |
| Overhaul/renovation | New Register control , new Videocamera , New Chiller , new auto recirculation system with LEL control |
| Drive | Cardan |
| Trolley system | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1300 |
| Print repeat range (mm) | 400-900 mm |
| Drying specifications | Independent driers each unit, extended driers on units 6 and 7 , 7 blowing fans , 7 exhaust fans . automatic recirculation system with LEL CONTROL by NIRA |
| Drying heat surce | Steam , thermo heat exchanger |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 800 |
| Videocamera | Grafycontrol with Defekt control |
| Register controll | Grafykontrol CR 33 LT with optic fiber |
| Vyscosity control | Yes Fasnacht |
| Print cylinders | 60 |
| Note | 6 spare trolleys |
